When you first obtain your VEX AI System, there are a lot of pieces that need to be assembled to get up and running.


AI Challenge Field Assembly


Before the AI System can operate, the AI Challenge Field will need to be assembled.

View the AI Challenge Field Assembly article for more information on how to assemble the field.


Parts of the AI System

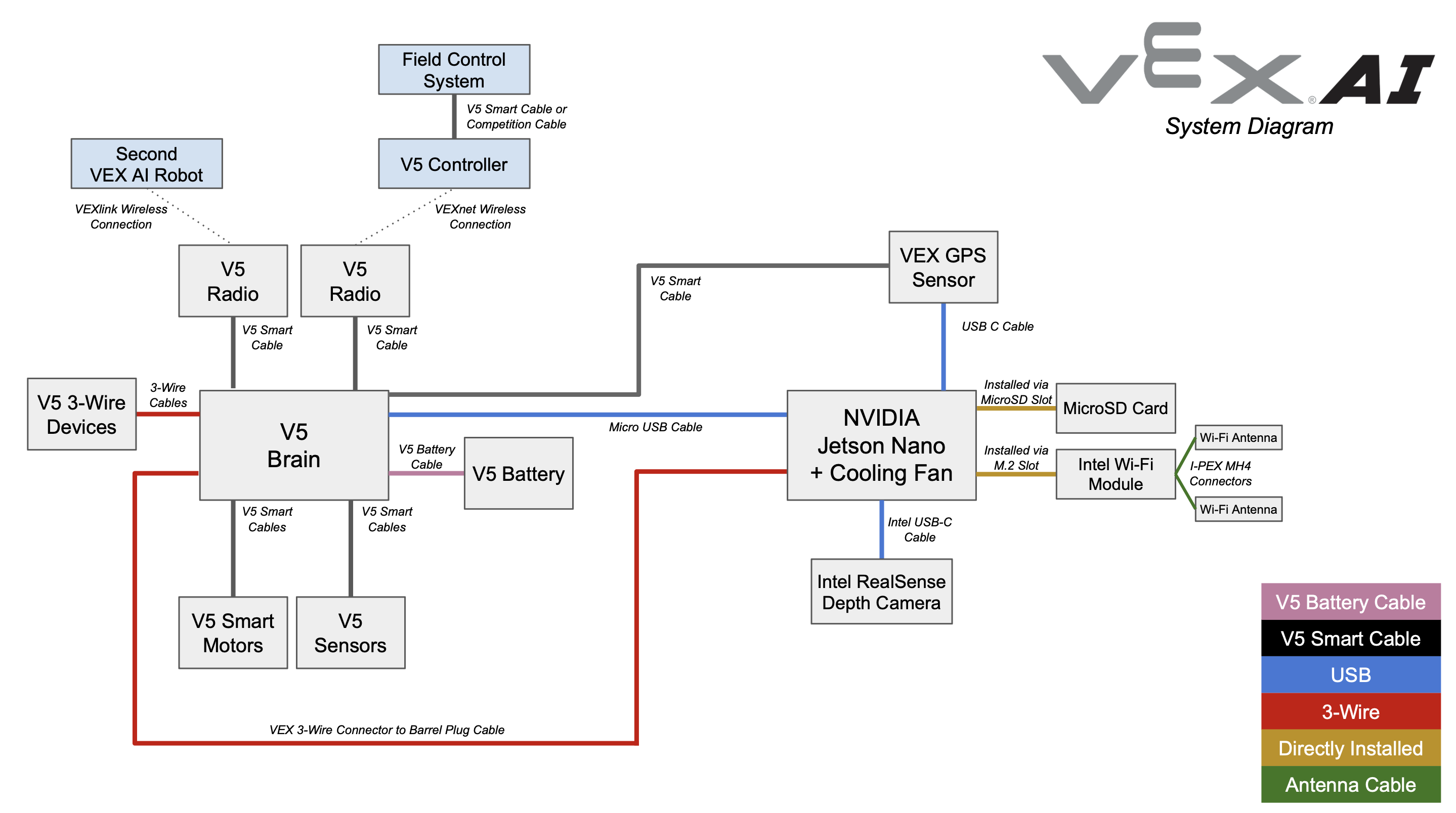

There are numerous parts in the VEX AI System. There are enough pieces for two V5 Robots.

For a more detailed explanation of all of the parts and their purpose, view the Parts of the AI System article.


Connect and Power the Jetson

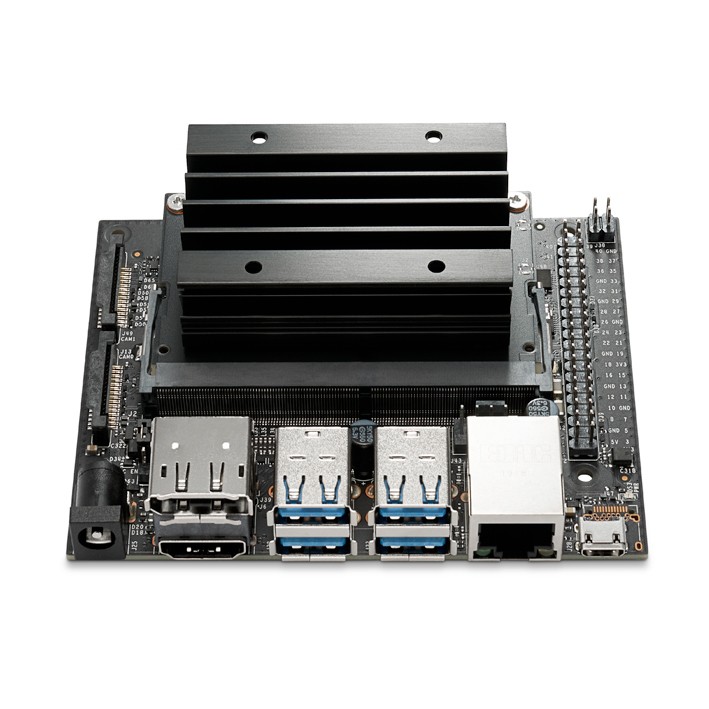

The Jetson is a crucial part of the VEX AI System that runs devices including the FLIR and Intel Cameras. Before the Jetson can be functional, the devices used with it first need to be connected and the Jetson needs to be powered on.

For more information on how to connect devices to the Jetson and power it, view the Connect and Power the Jetson article.


Install the Intel Dual Band Wi-Fi and Antennas


Before the Jetson can function properly, the Intel Dual Band Wi-Fi and Antennas need to be installed.

For more information on installation, view the Install the Intel Dual Band Wi-Fi and Antennas article.


Focusing the FLIR Camera


Focusing the FLIR Camera is important to ensure that it sees the Code Strip on the field. This is used to determine the orientation of the robot while on the field. If the FLIR Camera is out of focus, the reported orientation of the robot may not be accurate.

For more information on how to focus the FLIR Camera, view the Focusing the FLIR Camera article.


Accessing the Dashboard

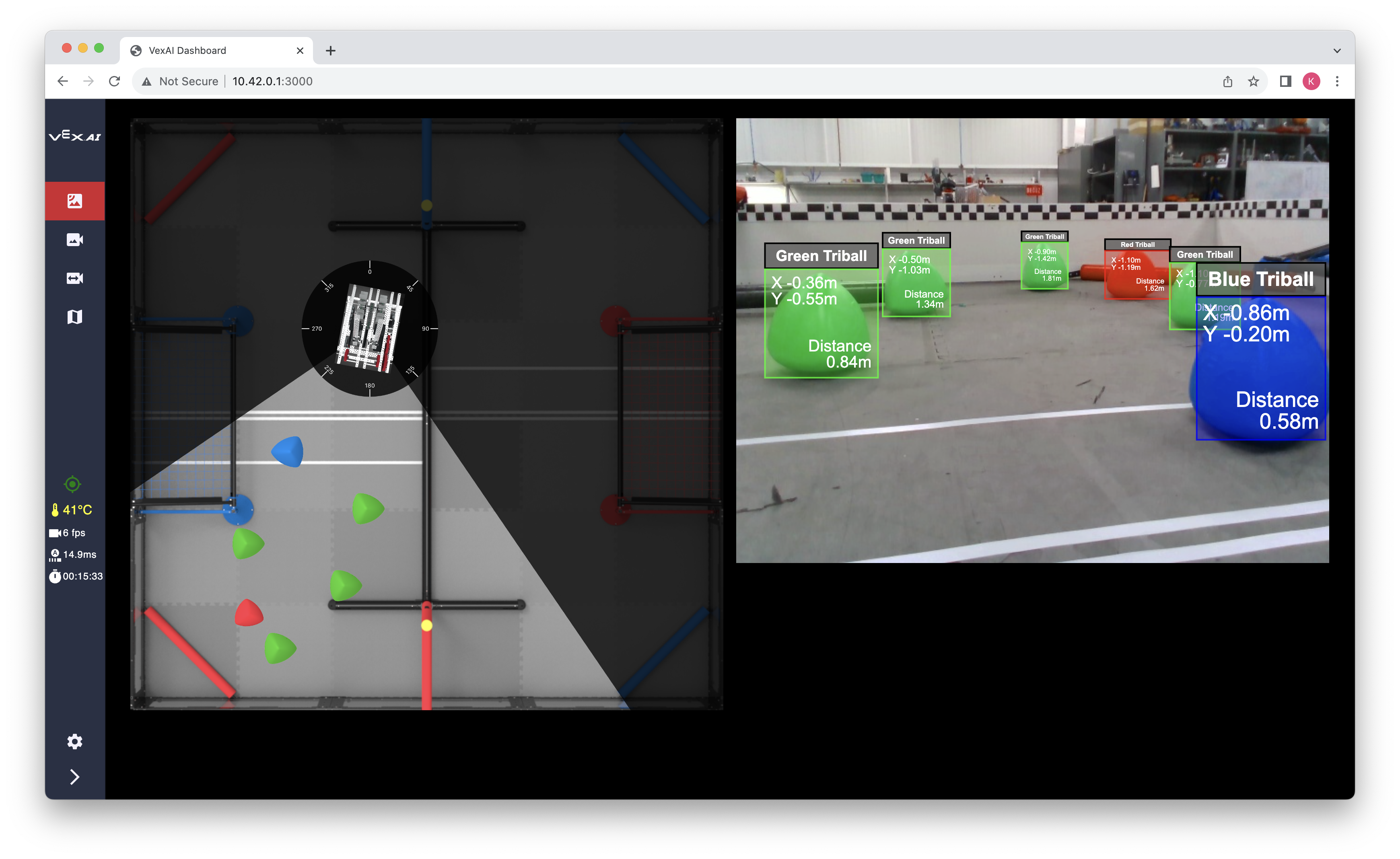

Accessing the Dashboard of the VEX AI Intel Camera gives you insight into where the robot is on the field as well as what game pieces are in front of it.

For more information on the Dashboard, view the Accessing the Dashboard article.


How to Update the AI System


Updating the VEX AI System ensures that it is running properly.

For more information on how to update the AI System, view the Update the AI System article.


Suggested 3D Print Options

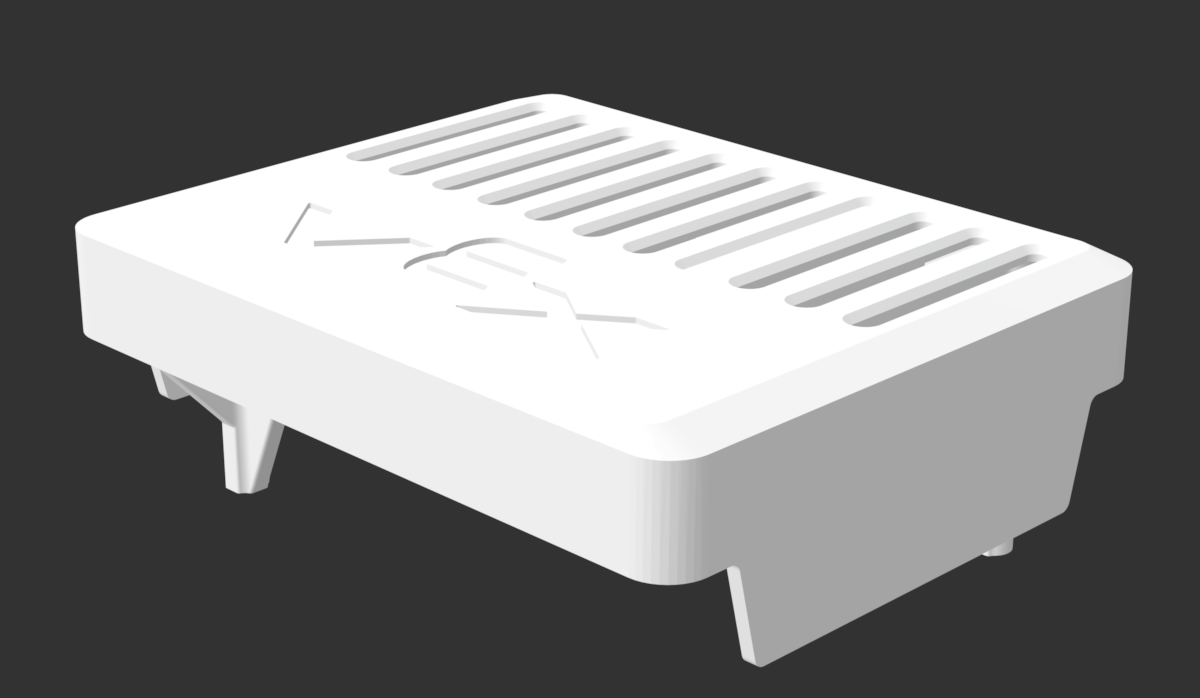

When working with the VEX AI System, there are suggested 3D print options available for the Jetson, FLIR Camera, and the Intel Camera.

For more information about 3D print options, view the Suggested 3D Print Options article.
