Building with VEX V5 – VEX Library

The VEX V5 system has been designed from its conception for an easy, entry level, and there are many resources that will help you get started with your new system.

For more information on VEX V5 Kits refer to this article: Select a Robot Kit - Get Started with VEX V5.

Image showing the V5 category description with highlighted next steps for users, featuring a clear layout of information and visual elements to guide users in navigating the V5 system.

This article will provide you with some resources which will help you with assembling your first robot.

Note: Throughout this article, you will find links to other VEX Library articles and resources that will provide more detailed information about each of the subjects.

Getting organized

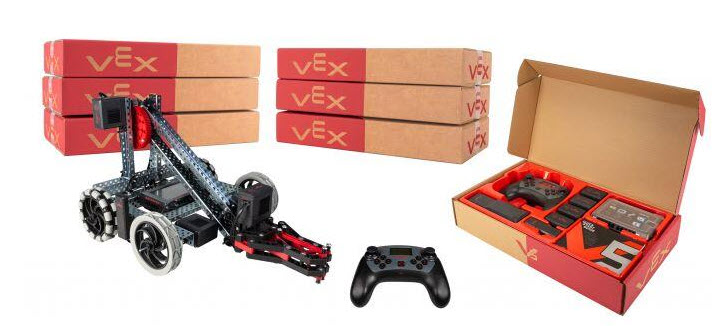

As you start to unpack your VEX V5 Kit, the first thing that becomes obvious is — there are a lot of parts. The first steps to success are to identify these parts and organize the parts.

Screenshot of VEX Robotics V5 Category Description section, illustrating the 'Next Steps' with clear instructions and visual elements related to V5 robotics setup and usage.

Identifying the Parts

VEX Robotics separates its VEX V5 parts into three categories:

V5 Electronics
Structure
Motion

The V5 Electronics include devices such as the V5 Robot Brain, V5 Controller, V5 Smart Motors, V5 Robot Battery, V5 Robot Radio, sensors, and cabling. The Structure parts include things like metal C Channels, U Channels, Angles, Plates, gussets and fasteners. The Motion parts include all of the things which move, such as wheels, gears, sprockets, and other accessories.

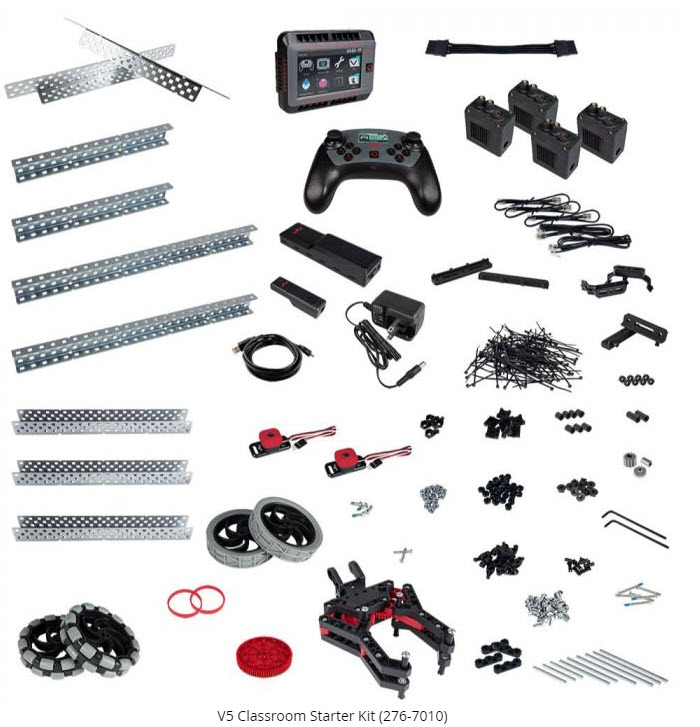

One way to identify all these parts is the inventory found at the beginning of the builds for each of the kits:

V5 Classroom Starter Kit - V5 Clawbot Instruction Manual
V5 Competition Starter Kit
- Lift Build Instructions - Robot Designed for VRC Tower Takeover
- V5 Clawbot Instruction Manual
V5 Classroom Super Kit - V5 Clawbot Instruction Manual
V5 Competition Super Kit - Stack Build Instructions - Robot Designed for VRC Tower Takeover

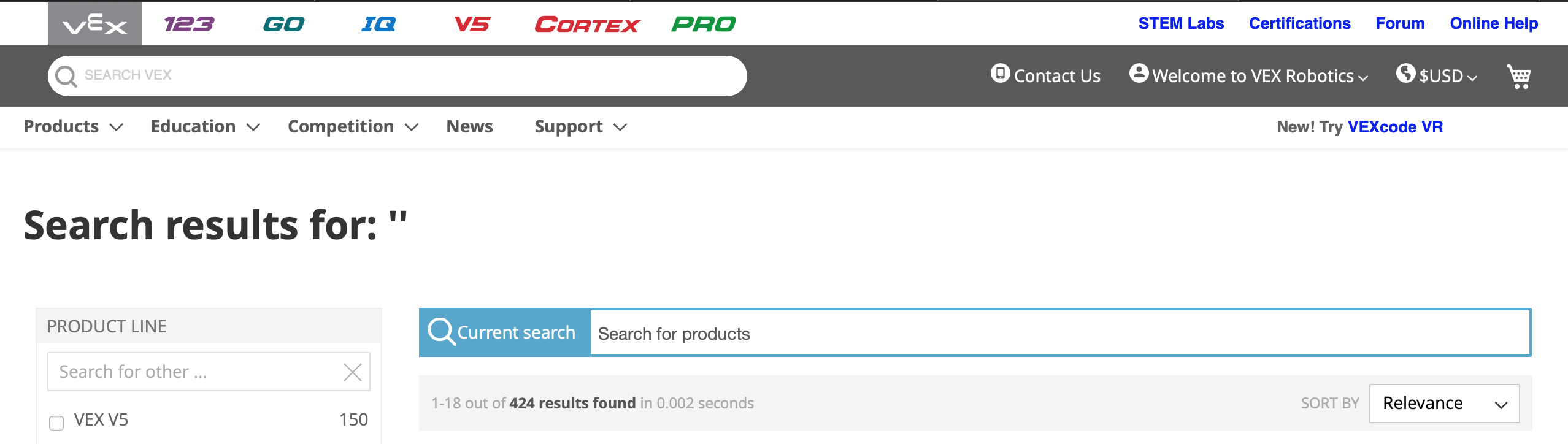

Screenshot of the VEX Robotics search interface, displaying categories and options for V5 resources, with a focus on the 'Next Steps' section for user navigation.

Another method of identifying parts is to search on the part name/part number from your kit’s part list and match them to the images of the parts found on the VEX website.

How to Organize Your Parts

It is important to develop a method of storage and organization for your VEX V5 system. Many users keep their system in a storage bin. VEX has a storage bin which provides a good option for storage and organization. The VEX storage bin has a storage tray which nests conveniently within the top of the bin and a top cover molded to allow storage bins to be safely stacked on one another. The compartments within the storage tray work well for the smaller parts from the kit. Whereas, the larger parts can fit conveniently under the tray.

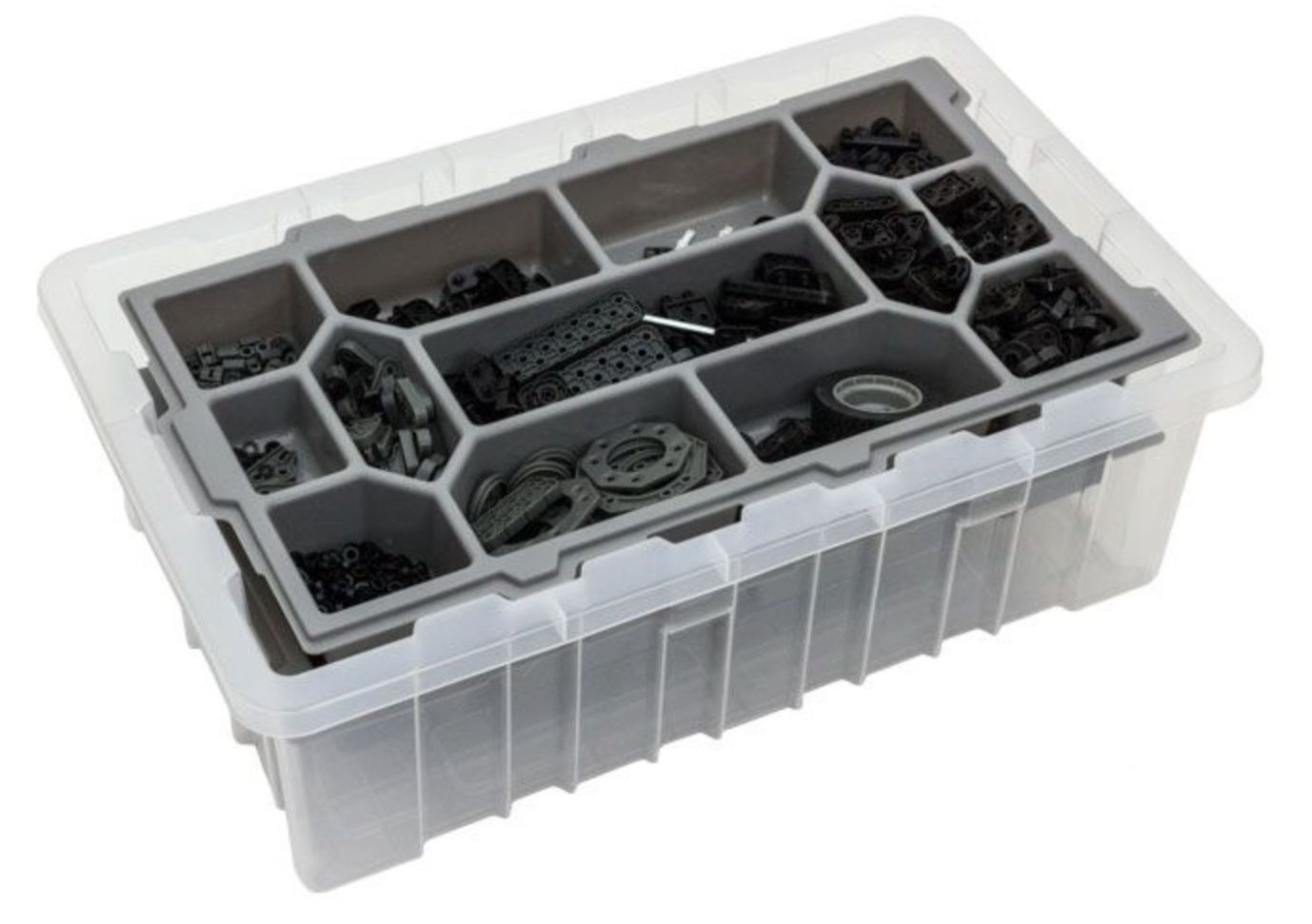

V5 Storage Bin image showing a clear, organized storage solution for V5 robotics components, featuring labeled compartments and a sturdy design, illustrating the recommended next steps for efficient V5 category management.

If you have multiple kits, such as within a classroom environment, additional organization can be helpful. Once you have established an organizational system for each kit, it may be helpful to create labels or labels with pictures to help students return the parts in the kit to their assigned location.

Image showing multiple VEX V5 kits arranged on a table, illustrating various components and tools available for robotics projects, as part of the V5 Category Description in the Next Steps section.

Labeling each of the kits with a unique name is also helpful, such as Kit A, Kit B, Kit C etc. Labeling the V5 Robot Brain, V5 Controller, V5 Smart Battery, V5 Robot Radio, and V5 Robot Battery charger with the unique kit name will help establish which device belongs to which kit.

Initial Kit Setup - Get Started with VEX V5 is another helpful reference.

Powering Up

After you become familiar with your kit’s parts and organize your kit, the next step is to prepare your V5 Robot Brain and V5 Controller for use. This will include:

Charging the V5 Controller.
Charging the V5 Robot Battery.
Connecting the V5 Robot Brain with the Battery power cable to the V5 Robot Battery.
Connecting the V5 Robot Brain with a V5 Smart Cable to the V5 Robot Radio.

In addition, your V5 Controller will need to be paired with the V5 Robot Brain and your V5 Robot Brain will need to have its firmware updated.

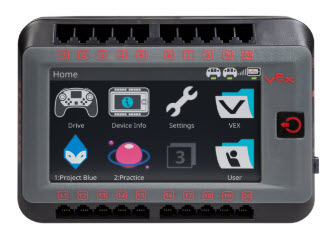

Illustration of the Vex V5 Brain, a key component for robotics, showcasing its ports and features for connecting motors and sensors, used in educational robotics projects.

To assist you there are VEX Library articles providing details on how to accomplish each of these tasks. The articles are listed below.

Charging the V5 Controller

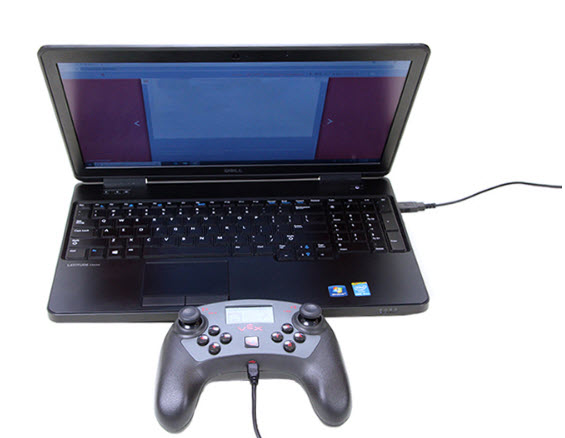

Charging your Controller is accomplished with the USB connection.

Image showing how to charge the V5 controller, featuring the controller connected to a power source with a charging indicator visible.

For more information on your Controller refer to:

Charging the V5 Robot Battery

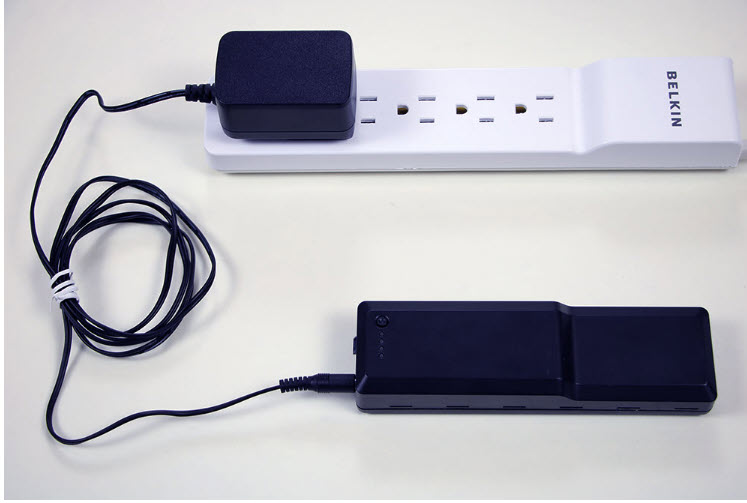

Diagram showing how to charge the V5 battery, illustrating the connection points and charging process for optimal battery maintenance.

The next step in powering up your VEX V5 system is to charge the V5 Robot Battery. This is accomplished with the V5 Battery Charger.

Image of V5 battery clips, showcasing their design and connection points, used for attaching batteries in V5 robotics systems. Relevant to the V5 Category Description and Next Steps section.

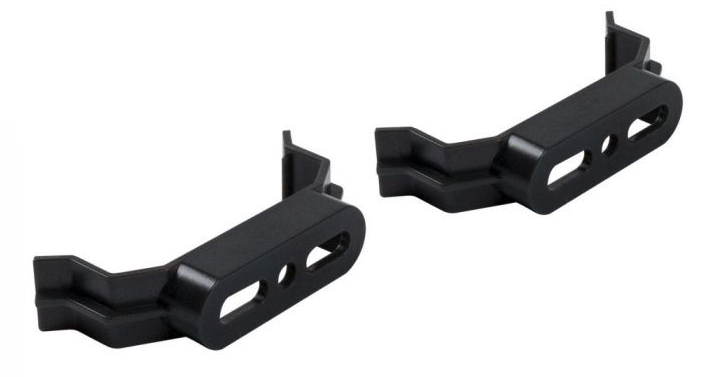

The V5 Robot Battery can be firmly secured to your robot using the V5 Battery Clips.

Image showing the battery indicator lights for the V5 system, illustrating different battery charge levels and their corresponding indicators.

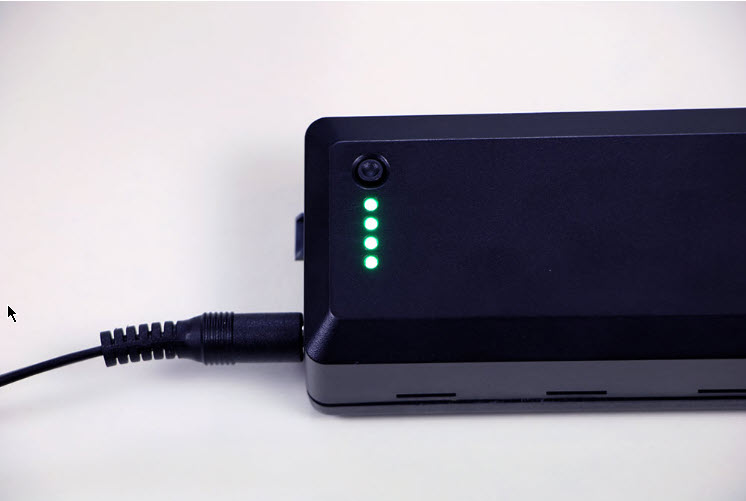

The V5 Robot Battery has LED indicators to report the status of the battery.

For more information about charging the V5 Robot Battery refer to:

Connecting the V5 Robot Brain to the V5 Robot Battery

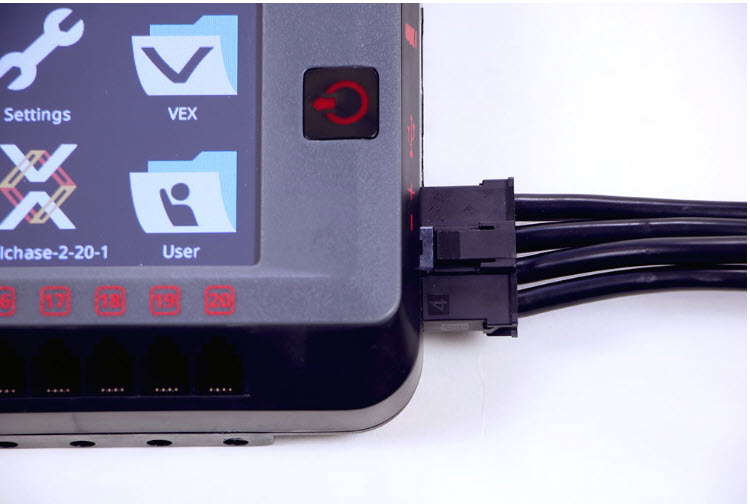

Diagram showing the connection from a battery to a brain in a V5 robotics system, illustrating the power supply to the brain component.

After the V5 Robot Battery has been charged, it will need to be connected to the V5 Robot Brain. This is accomplished using the V5 Battery Cable. The V5 Battery Cable has a locking tab and can only be inserted in one orientation. The cable needs to be firmly inserted into the V5 Robot Brain and the V5 Robot Battery until it locks in place.

For more information about connecting the V5 Robot Battery to the V5 Robot Brain refer to:

Note: The Battery Cables are available in different lengths.

Connecting the V5 Robot Brain with a V5 Smart Cable to the V5 Robot Radio

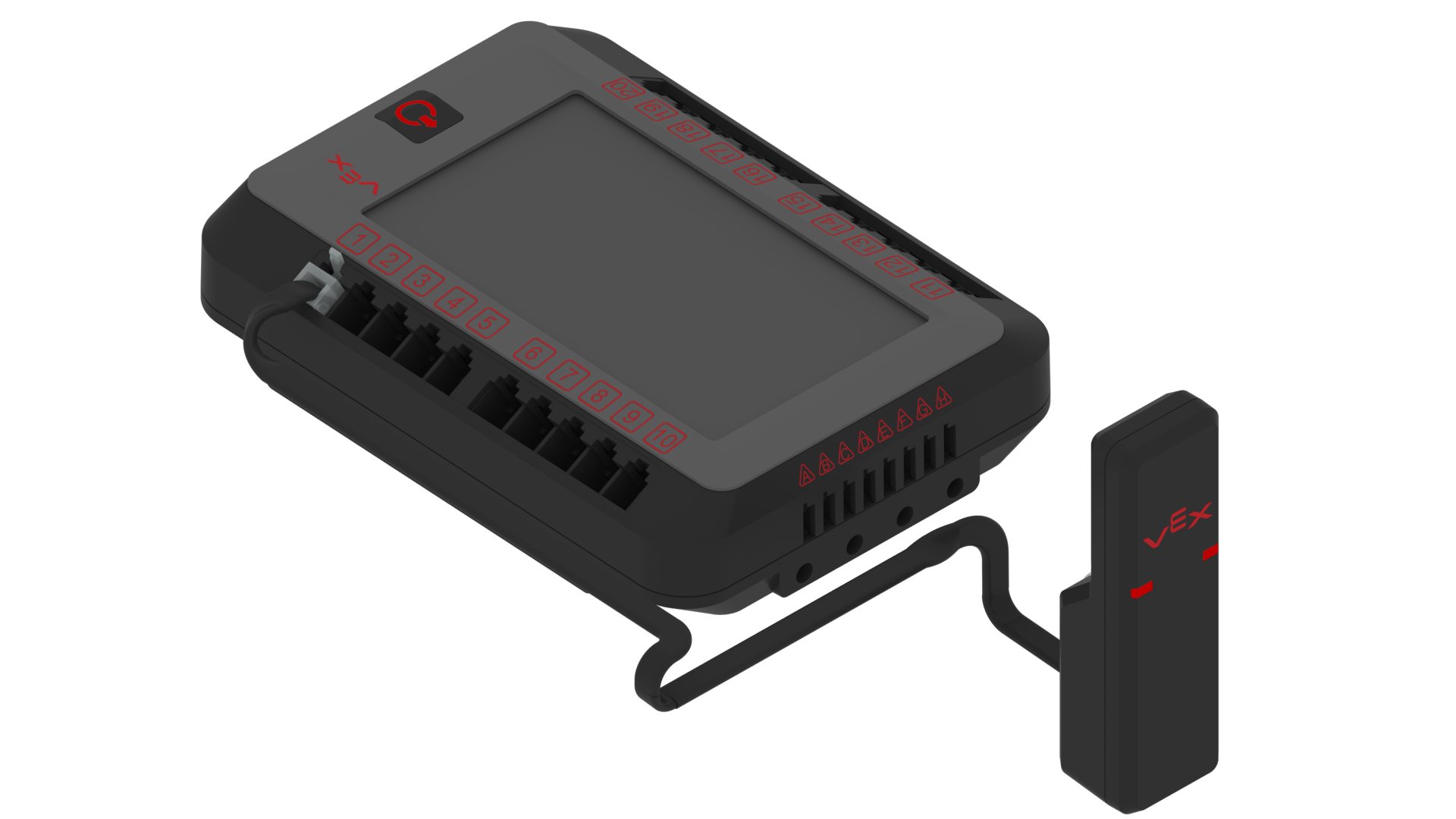

V5 Brain Radio image showing the V5 Brain component used in robotics, featuring its design and ports for connectivity, relevant to the V5 Category Description and Next Steps section.

The V5 Robot Brain and it's V5 Controller communicate wirelessly by using the V5 Robot Radio. The V5 Robot Brain and V5 Robot Radio are connected with a V5 Smart Cable between the Smart Port of the V5 Robot Radio and any of the 21 Smart Ports on the V5 Robot Brain. The V5 Smart Cable has a locking tab and can only be inserted in one orientation. The cable needs to be firmly inserted into both devices until the tabs of the V5 Smart Cable connectors locks in place.

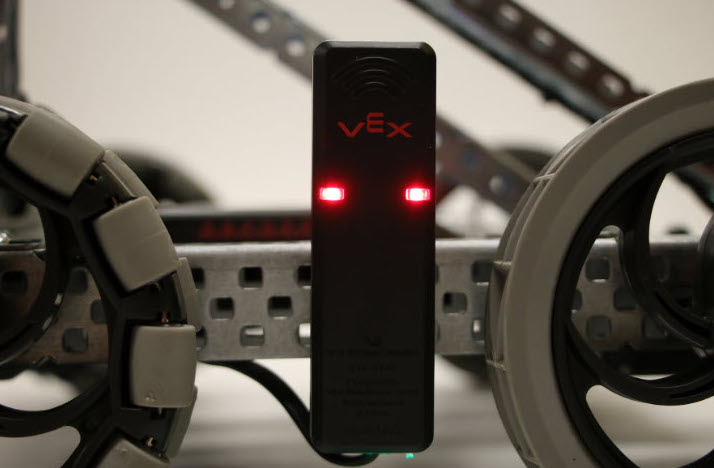

Image showing radio indicator lights with different colors and states, illustrating their meanings for V5 category descriptions and next steps in the article.

The V5 Robot Radio has LED indicators to show the status of the radio. For more information refer to, Connect to the Competition Field - Competition Robots for VEX V5.

The following articles can assist with connecting the V5 Robot Radio

Pairing the V5 Robot Brain and V5 Controller

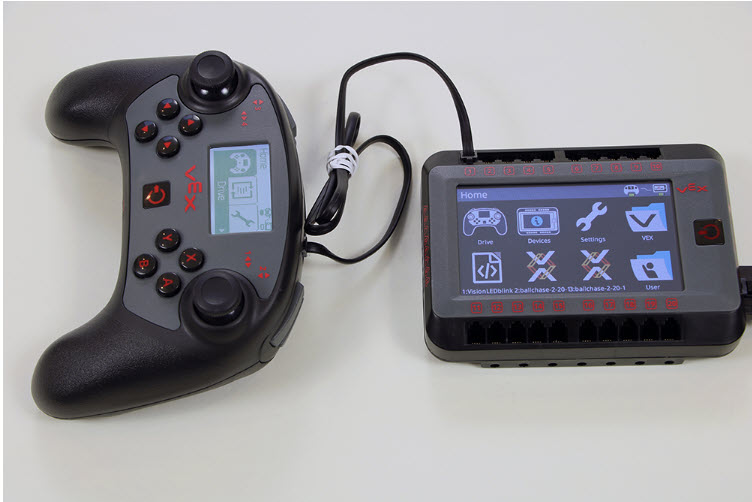

Image of a VEX V5 brain and controller, showcasing the components used for programming and controlling robotics in educational settings.

After the V5 Robot Brain and the V5 Controller both have charged batteries, you will need to pair the two in order to establish communication. This is accomplished by tethering the two together with a V5 Smart Cable and powering up the V5 Robot Brain.

Once a V5 Controller and a V5 Robot Brain are successfully paired this will not need to be done again. For more information regarding pairing a V5 Controller with a V5 Robot Brain refer to Wireless Connection (Pairing) - Controller for VEX V5.

Updating the Firmware

Many VEX V5 products contain their own internal processors and run on a special Operating System. This software is the VEX V5 Firmware and is called VEXos. It is important to update your new equipment’s firmware in order for it to function correctly.

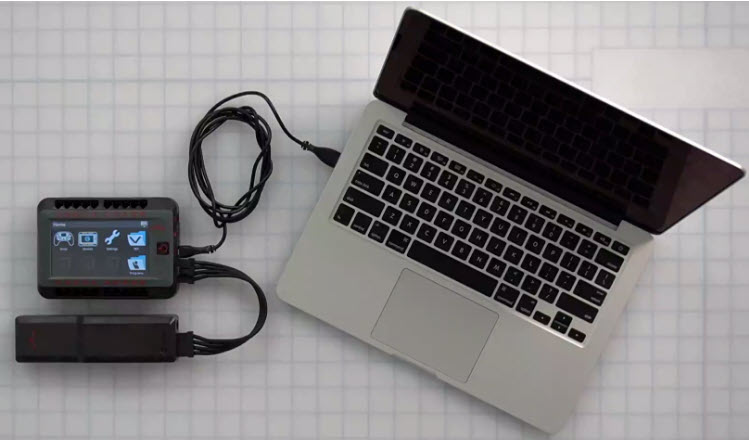

Firmware update process for V5 robotics system, showing step-by-step instructions and visual elements related to updating the device's software.

For more information on updating your firmware refer to these two articles:

Help with Instructions

There are a number of options for building your first robot. Whether it will be the V5 Clawbot whose instructions came with the Classroom Starter Kit, one of the many builds found on the VEX Robotics site, or one of the builds found in the STEM Labs; it is recommended to start with a set of instructions in order to familiarize yourself with the VEX V5 system before assembling your first custom-designed robot.

Step-by-step build instructions for V5 robotics system, illustrating key components and assembly process.

Overview of Build Instructions

One of the types of instructions to build a robot are called Builds. Some are referred to as ‘Hero’ builds. These are starter robots for the VEX Robotics Competition.

Step-by-step build instructions for V5 robotics system, illustrating key components and assembly process, designed to guide users in the next steps of their project.

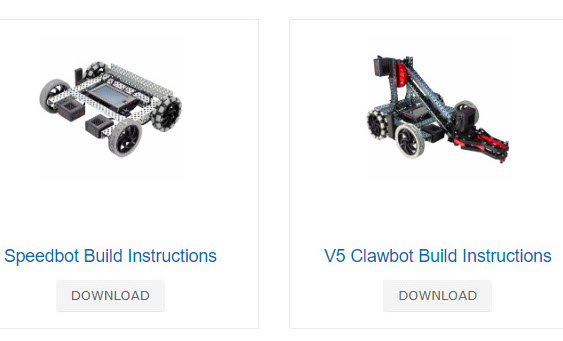

Builds are either a printed document such as the Clawbot V5 Build Instructions which comes in the Classroom Starter Kit or a .pdf which can be downloaded from the VEX Robotics site.

Illustration of various build options for V5 robotics, showcasing different configurations and components, as part of the V5 Category Description under Next Steps.

Each of these builds includes a set of helpful hints, a complete inventory of all the parts needed, and detailed steps which will guide you throughout the build process.

Overview of the STEM Lab Build Instructions

STEM Lab Build Instructions are part of the V5 STEM Labs fun and educational activities. These instructions include all of the information found in the other builds.

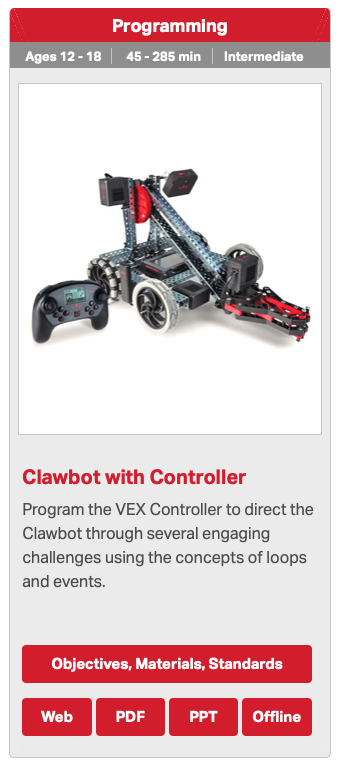

Clawbot STEM Lab image showcasing a robotic claw and educational components, illustrating the V5 robotics category and encouraging users to explore next steps in their learning journey.

Some of the Web versions of the STEM Lab builds have additional navigational aids.

Build instruction navigation diagram for V5 category, illustrating the next steps in the process with labeled sections and arrows for clarity.

Slide show index- navigate by selecting a slide.
Slide show menu bar - navigate by selecting the circle which is linked to the slide.
Advance/Back arrows - advances or backs up the slide show one slide.
STEM Lab navigation - provides navigation for the STEM Lab.

Helpful Hints for Using Build Instructions

A crucial part of the design and the educational process is making mistakes. As you build your first robot you will be experiencing this process.

Here are a few hints to help limit some of mistakes that can be made:

Screenshot of VEX V5 category description with highlighted next steps, displaying key features and options for users to explore further in the VEX robotics system.

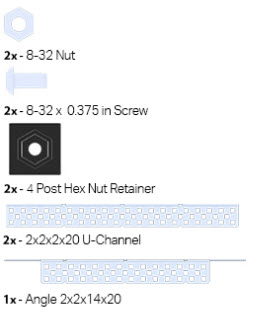

Inventory of parts - Be sure to collect all the correct parts prior to starting each step.

Screenshot of V5 Category Description section showing the 'Next Steps' with highlighted options and instructions for users to follow, featuring a clean layout and clear text for easy navigation.

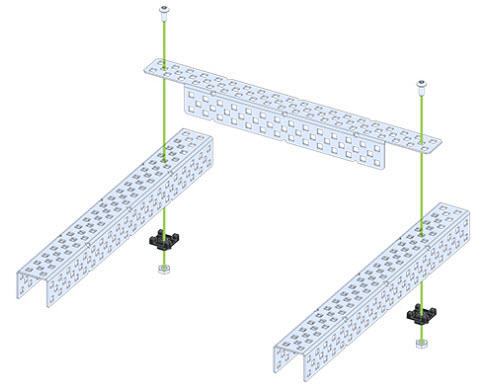

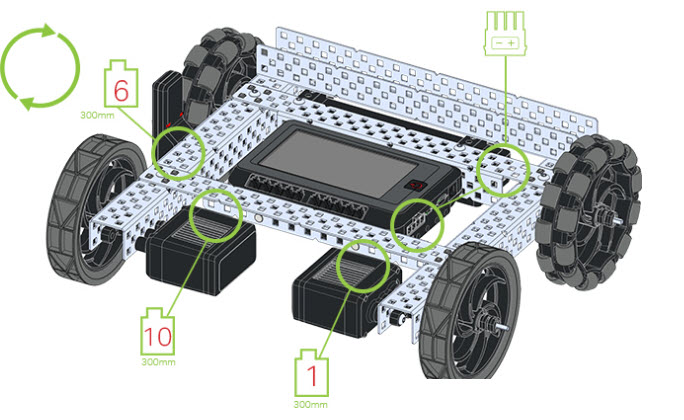

Green lines - Many of the illustrations for assembly will have green lines to indicate where parts should go.

Screenshot of the VEX V5 category description with highlighted next steps for users, featuring a clear layout of options and instructions for further engagement with the VEX robotics system.

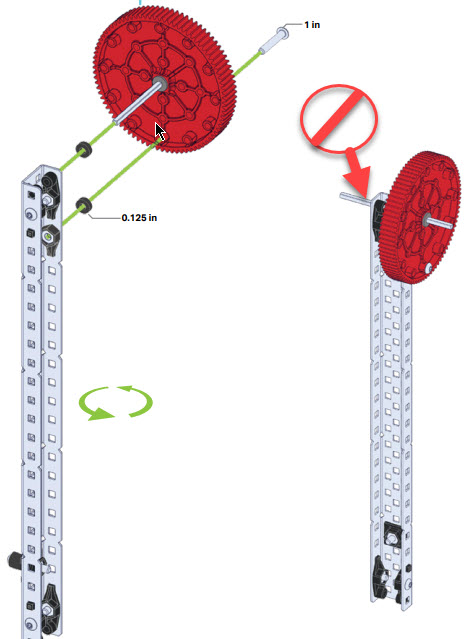

Orientation of parts - Pay close attention to the orientation of parts within the illustrations. For example, a gear placed on the wrong side of a C channel will not work because it will not line up with the driving gear on the Smart Motor that will move the gear.

Screenshot of the V5 Category Description article, illustrating the 'Next Steps' section with highlighted options for users to follow, featuring a clean layout and clear headings for easy navigation.

Notations for connecting cables - When connecting Smart Cables between a device and the V5 Robot Brain the number notation indicates the Smart Port number on the V5 Robot Brain the cable needs to be plugged into.

Assembly Tips

In addition to the many tips which are provided in the build instructions, here are some additional general assembly tips which will assist you with your first robot.

Information on Parts

The VEX V5 system has many different types of parts. Substituting the wrong part for an instruction set in most cases does not work. An understanding of the V5 parts can be very helpful.

Structural - Structural metal parts include C-channels, U-Channels, Angles, Rails, Plates, and Bars. These parts can be purchased in steel or aluminum. The instruction sets within the Builds and the STEM labs should require no modifications to the structural pieces. However, custom-designed robots may require the structural parts to be cut and/or bent into custom pieces. For more information refer to, Design a Chassis - Structure for VEX V5.
Fasteners - Earlier versions of the VEX Educational Robot system utilized screws with a hex socket heads for tightening. The V5 system uses star sockets on the heads of the screws. Star sockets are less prone to stripping and allows you to firmly tighten screw and nut systems. For more information on fasteners refer to:
Wheels - There are many different options for wheels to use on a V5 Robot. The wheels come in several different sizes and are available in traction versions or wheels designed for omni-directional motion. For more information about wheels refer to, Drivetrain - Drivetrains for VEX V5.
Gears and sprockets - The gears and sprockets which are used on the V5 robot to transfer power from the Smart Motors are sized by their number of teeth. For more information refer to:
- Gear Ratios - Motor for VEX V5
- Spur Gears - Motor for VEX V5

Assembling Chain and Tank Treads

The VEX V5 system has chains and tank treads which can be used with sprockets. These parts are assembled by connecting individual links together and this allows for custom lengths to be used between sprockets. The links can be assembled by bringing two together at a slight angle, aligning the hole on one link with the boss on the next. Then twist the two links until they snap together as a unit.

Example of High-Strength Chain.

Example of Tank Treads.

To disassemble to chain/tank tread links, reverse the procedure.

Diagram of a V5 sprocket and chain, illustrating the components and their arrangement for VEX robotics applications, as part of the V5 Category Description in the Next Steps section.

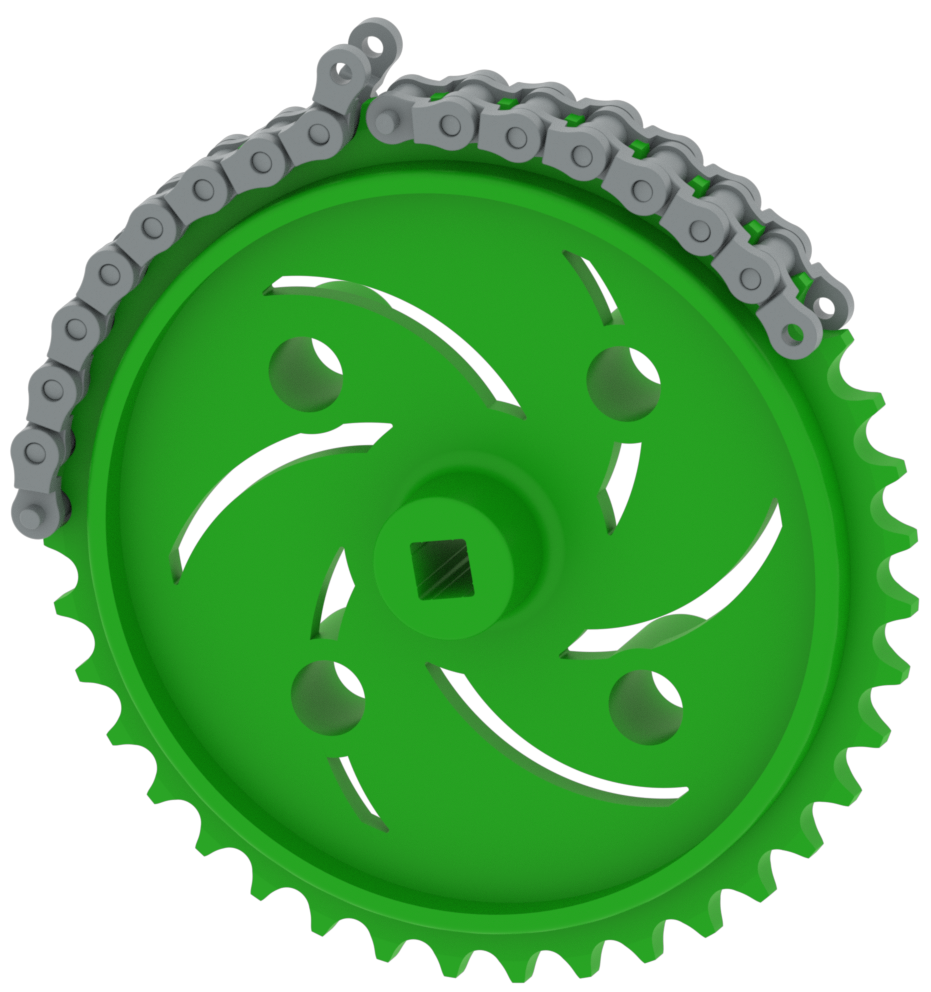

One technique which may help when connecting the two ends of an assembled chain/tank tread is to lay the chain/tank tread on a sprocket while connecting the two ends.

What is Next?

Once you have assembled your first robot, you can now program it! The Coding with VEXcode V5 - Get Started with VEX V5 article will help you get started with programming your robot.

The next adventure will be designing your own robot. When you are ready to start building your first custom-designed robot, the following articles will assist you:
