Starting and downloading Python projects in VEXcode V5 is easy.
The following article will cover:
- How to Start a Python Project
- How to Build a Basic Python Project
- How to Download and Run a Python Project
How to Start a Python Project
Launch VEXcode V5. The platform defaults to the Blocks interface.
Select ‘File,’ then ‘New Text Project’ to open the text interface.

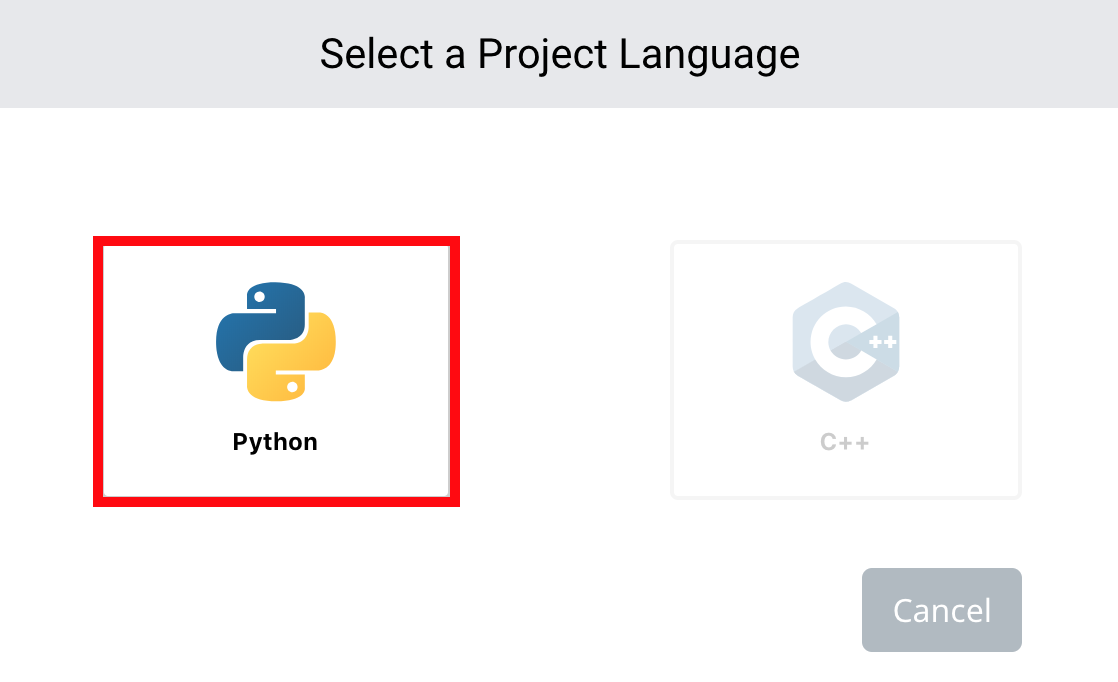

Next, select the Python project language. There is the option to start a new project in either C++ or Python. Only Python is currently available. The option to select C++ is coming soon.
The Python interface will open.
How to Build a Python Project
This section will show you how to create a basic Python project using commands from the Tool Box. The project outlined here will drive the V5 Clawbot forward for 200 millimeters (mm).
Select ‘File’ then ‘Open Examples” to open a template project.
Select the Clawbot (Drivetrain 2-motor, No Gyro) template. Templates are blank projects with preset device configurations.
Notice that a set of project comments open in the workspace. You will add commands after the comments.
Select enter at the end of the last line of code (line 14). This should create the next numbered line (line 15). This is where you will start adding code to the project.
Now you can add commands from the Tool Box. Select the [Drive for] command.
Drag the [Drive for] command into the workspace and place it on the last line of the project (line 15).
How to Download and Run a Python Project
First, name and save your Python project. View one of the following articles for detailed information on how to save a VEXcode V5 Python project:
Then, choose which of the Brain’s slots you will download the project to. To do this, select the ‘Slot’ button on the Toolbar.
Next, connect the Brain to your device (Directly via Micro-USB or via VEX Controller) and check that the Brain icon is green.
Select the ‘Download’ button to download the project to the Brain. The project will download to the chosen slot.
Finally, select ‘Run’ to start the project while the robot is still connected to your computer.
Or, disconnect the Brain from your device and run the project on the V5 Brain.
