Wirelessly connecting a VEX IQ (1st gen) Brain to an iPad / Android Tablet in VEXcode IQ

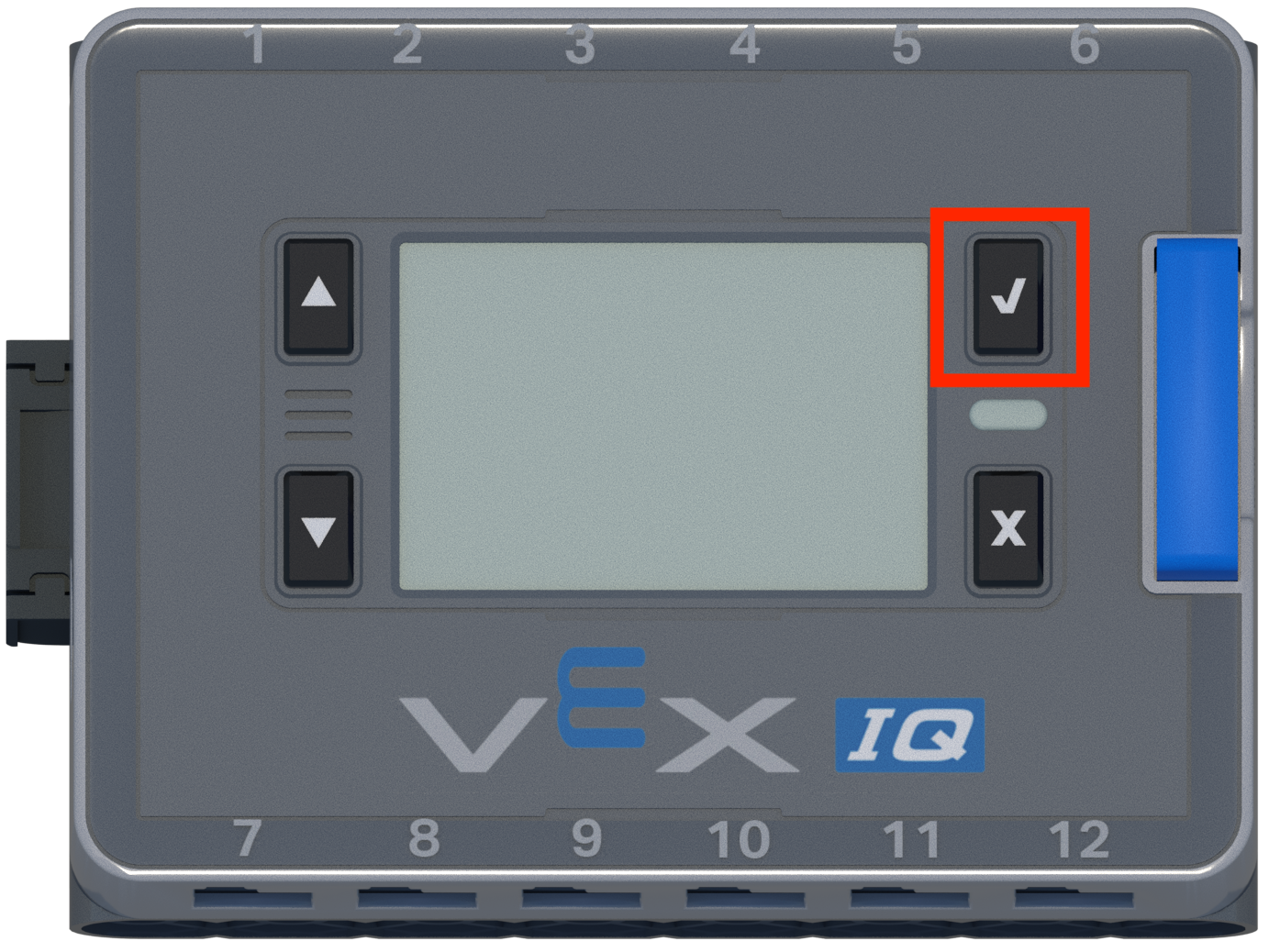

Turn on the VEX IQ Robot Brain by pressing the Check button.

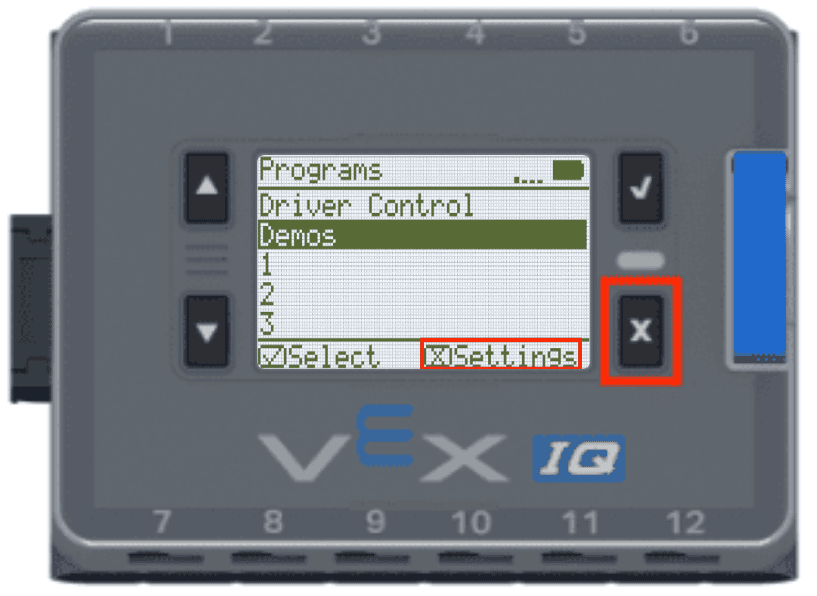

Press the X button on the Robot Brain to see the Settings menu.

Press the Down Arrow to check that the Radio Data is set to On.

Press the Check button to turn the Radio Data On if it is Off.

Ensure Radio Data is on by checking the arrows at the top of the screen.

Use the up arrow to highlight System Info and then press the Check button.

Remember the Brain ID number that you will use to connect the Robot Brain to the iPad / Android Tablet.

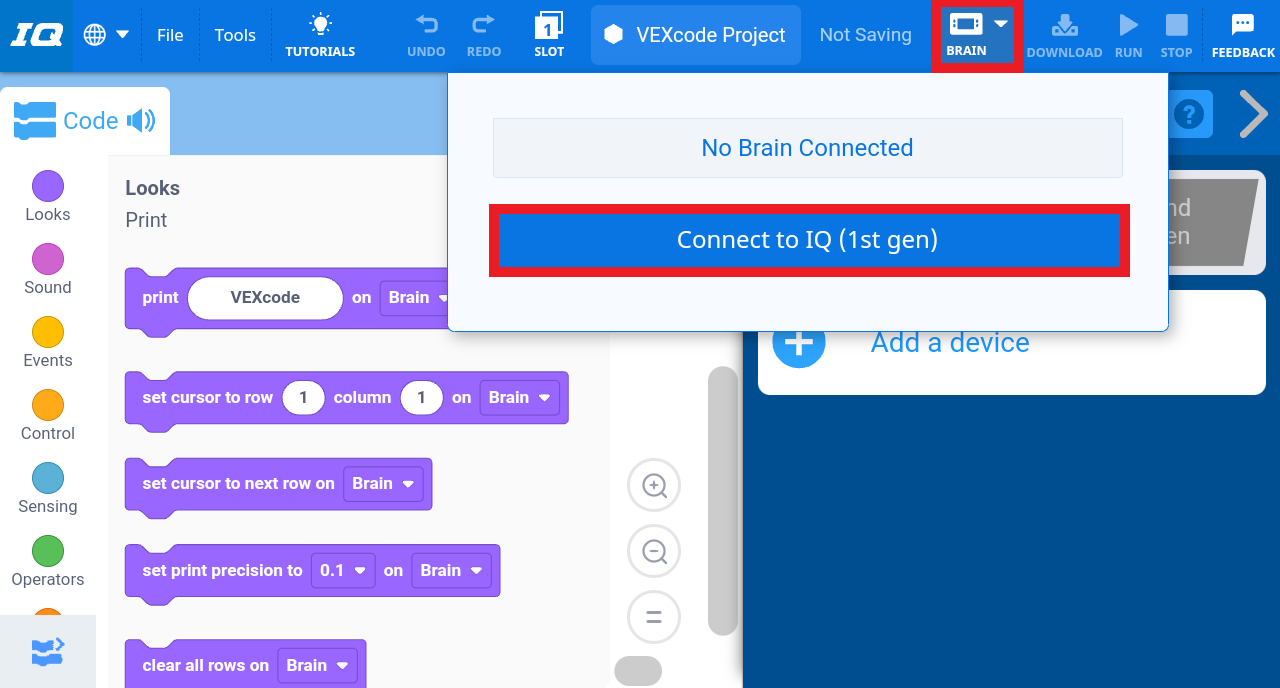

Select the Brain icon at the top of VEXcode IQ.

Select the + button to add your Robot Brain ID number.

Use the number keypad to enter in your Robot Brain ID number.

Select Submit after entering your Robot Brain ID number.

Wait a few seconds for the Robot Brain and iPad / Android Tablet to connect.

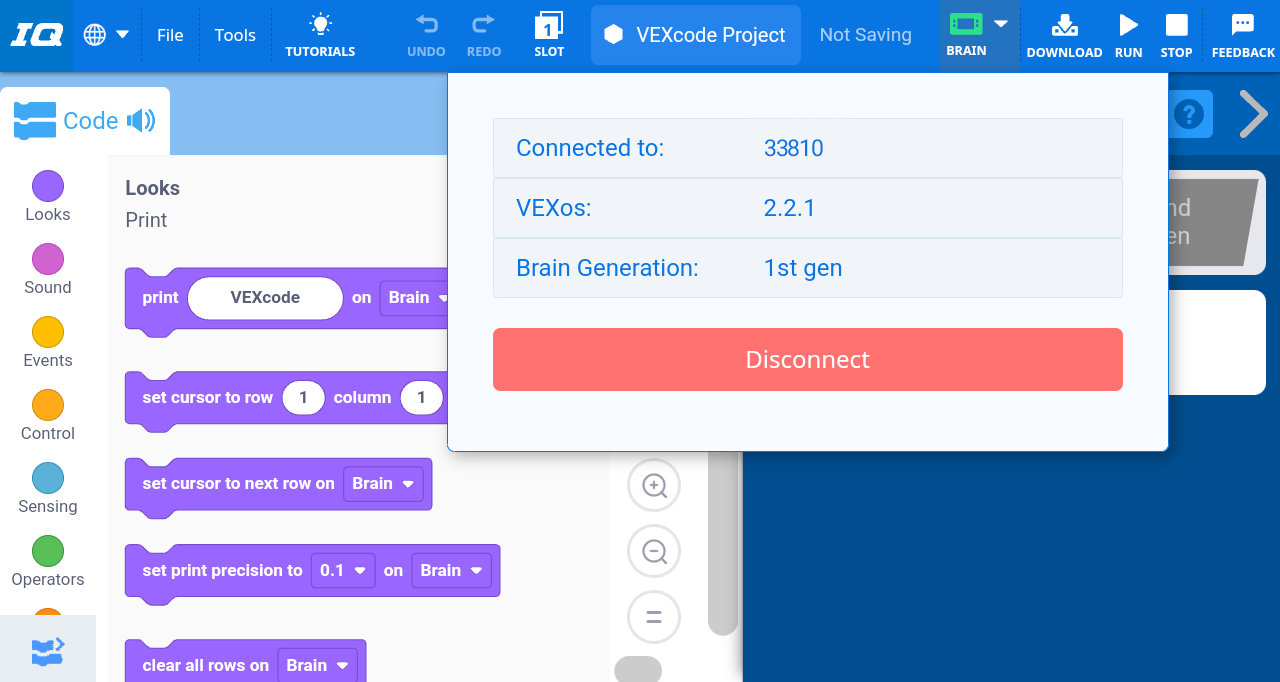

See that the Robot Brain is connected when the Brain icon turns bolded green.

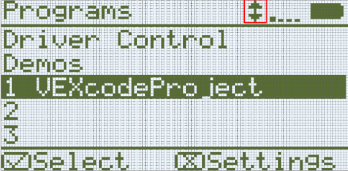

You’ll also see that the arrows at the top of the Brain’s screen are solid now which indicates a successful Smart Radio Connection.

For more information, help, and tips, check out the many resources at VEX Professional Development Plus
