Updating the Firmware of the 6-Axis Robotic Arm in App-Based VEXcode EXP – VEX Library

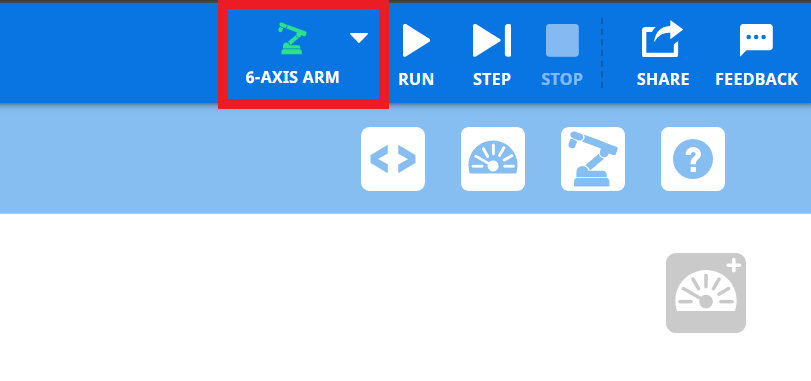

Your 6-Axis Robotic Arm's firmware can be updated within VEXcode EXP. To do so, make sure you have first powered on your 6-Axis Arm, directly connected the 6-Axis Arm to your computer, and connected the 6-Axis Arm to VEXcode EXP.

Diagram illustrating the firmware setup for a 6-axis arm, part of the CTE (Career and Technical Education) resources, highlighting key components and connections for effective operation.

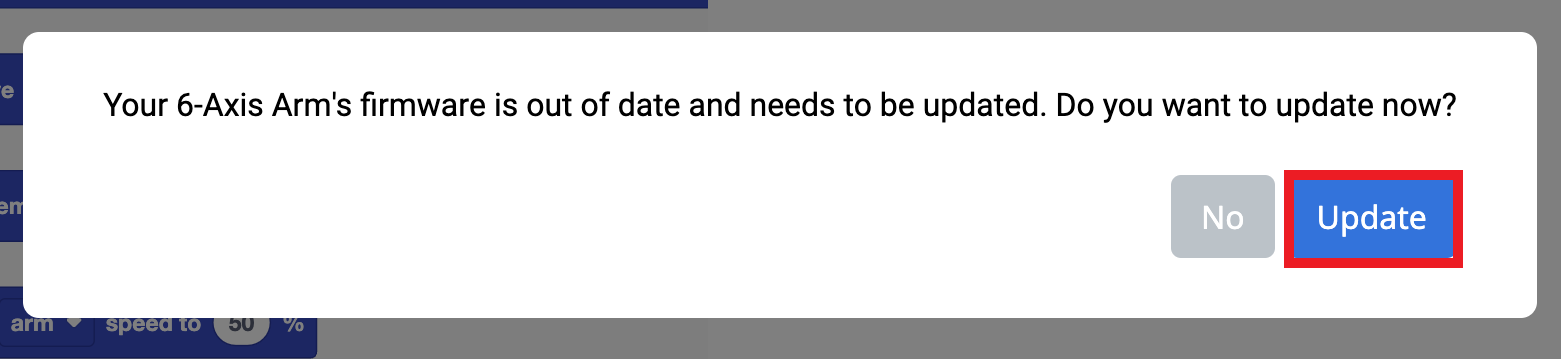

On VEXcode EXP, after you have started a new Arm project, the application will detect if the connected 6-Axis Arm's firmware is up to date or not. If it is out of date, a window will pop up.

Select Update.

Diagram of a 6-axis arm firmware setup for CTE, illustrating the connections and components involved in the system's configuration and operation.

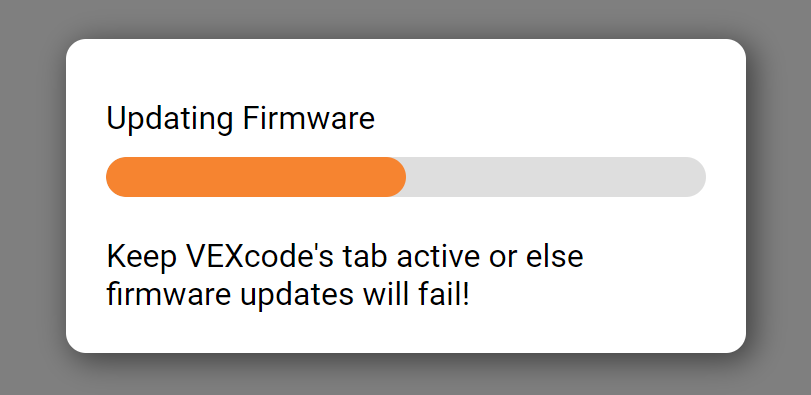

Wait for the progress bar to finish. Make sure to not click off the current webpage until the update is over.

Diagram illustrating the firmware setup for a 6-axis arm in Career and Technical Education, highlighting key components and connections for effective programming and operation.

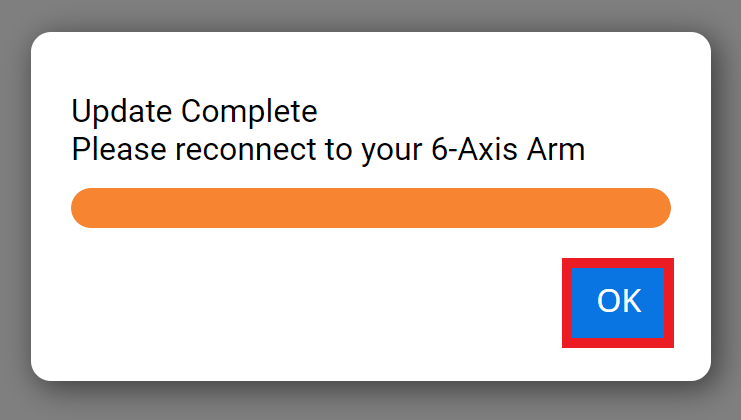

Select OK.

Diagram of a 6-axis robotic arm firmware setup, illustrating connections and components relevant to Career and Technical Education (CTE) for robotics applications.

The 6-Axis Arm will be automatically reconnected to VEXcode EXP.
