Powering the 6-Axis Robotic Arm – VEX Library

The CTE 6-Axis Robotic Arm needs an external power source to operate unless the Arm is connected to an EXP Brain, then the Arm can run off the EXP Brain's battery. Follow the steps below to plug in the power cable for your 6-Axis Robotic Arm.

Diagram illustrating the setup of a CTE workcell, featuring labeled components and layout for optimal workflow in Career and Technical Education.

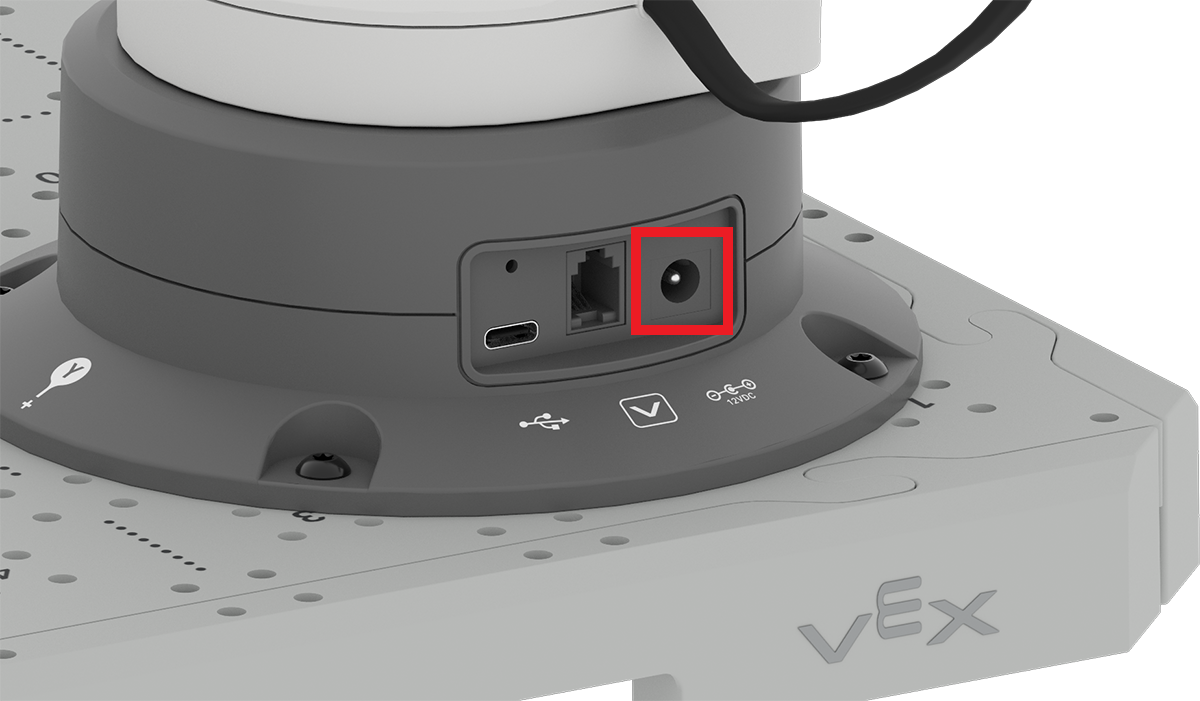

On the back of the 6-Axis Robotic Arm's base, you will find three ports. Connect the power cable into the rightmost port that says "12VDC" beneath it.

Diagram illustrating the setup of a CTE workcell, including labeled components and layout for effective organization and workflow in Career and Technical Education.

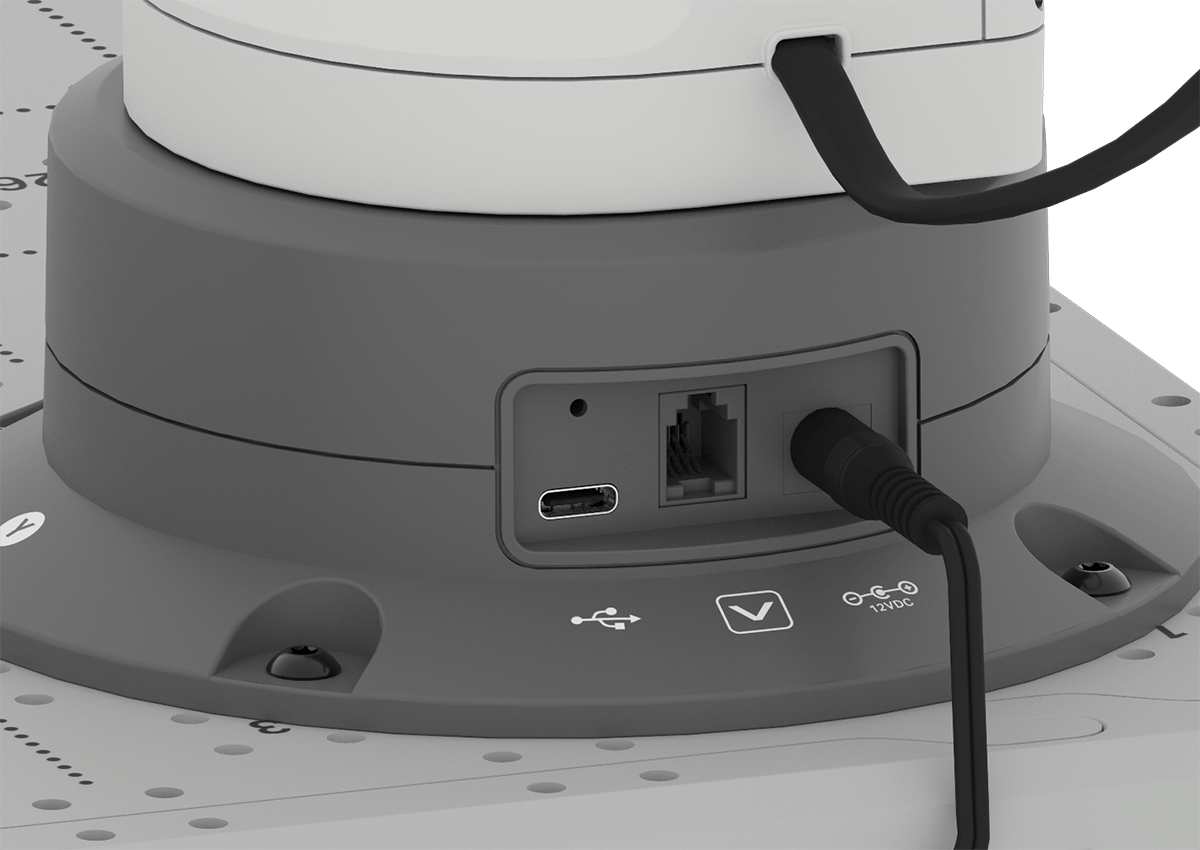

Then connect the other end to an electrical outlet. Your 6-Axis Robotic Arm is now powered and ready to be connected to a computer or EXP Brain.

Diagram illustrating the setup of a CTE (Career and Technical Education) workcell, showing the arrangement of equipment and workflow processes to optimize efficiency in a technical education environment.

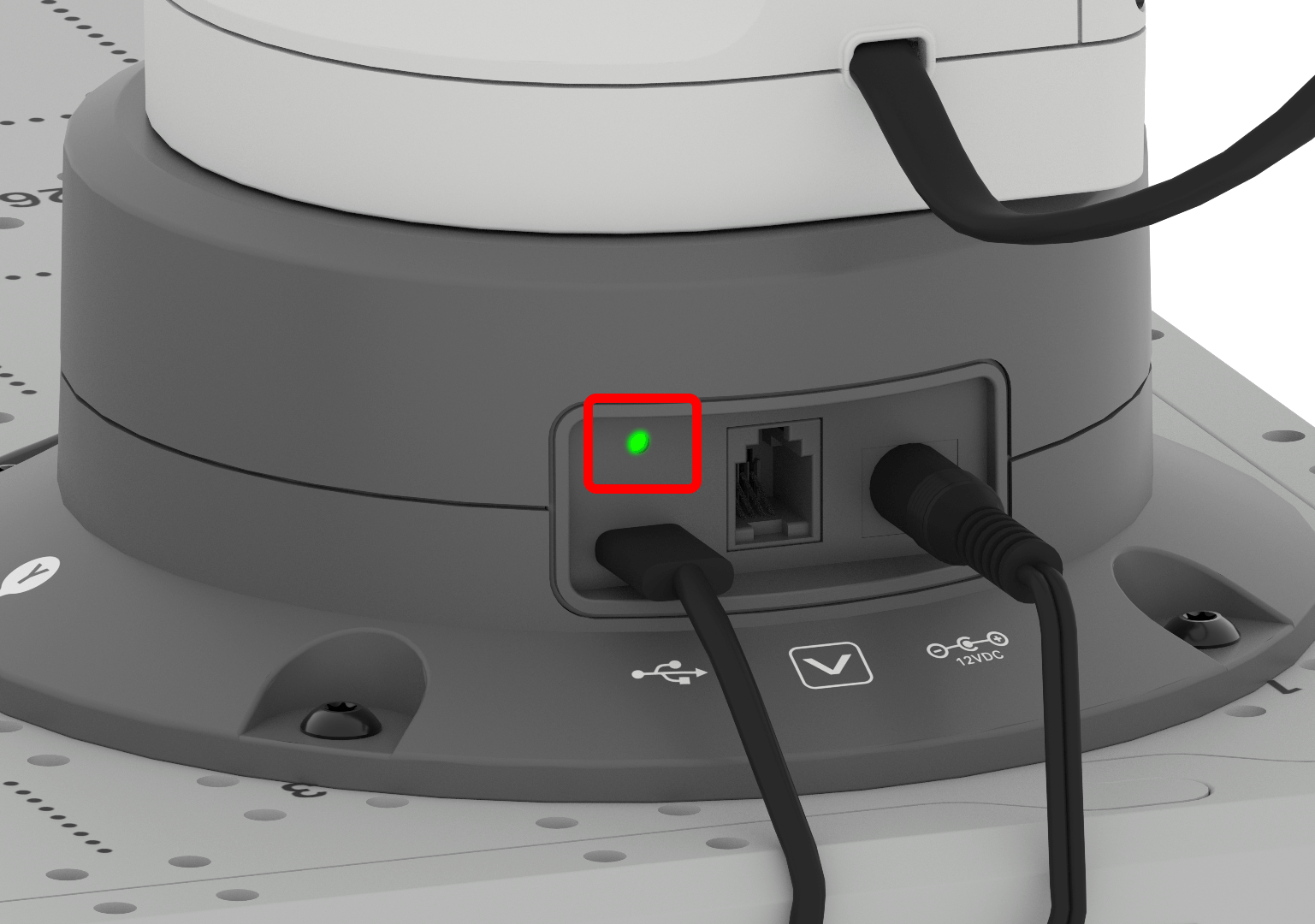

Once you've connected the 6-Axis Robotic Arm to a computer, the green light indicator on the back of the 6-Axis Robotic Arm will light up.
