Troubleshooting the VEX V5 Workcell

There are common errors that you may encounter when building and/or coding the VEX V5 Workcell. This article will address some common errors and questions about the VEX V5 Workcell and will outline the process to resolve each error. Use the navigation in the article to skip to the question that most accurately reflects your issues.

With every change that you make, be sure to test and see if the change resolved your problem. Frequent iterative testing can help you to identify exactly where the issue is and what single step is needed to resolve the issue. This can also help you and your students to master this troubleshooting process and potentially avoid issues in the future.

Note: This article assumes that the V5 Workcell Arm has been built correctly. Before beginning, compare your arm to the build instructions linked here. Check for details such as the size of spacers, and screws, etc.


V5 Workcell Arm Not Moving Accurately?

When completing activities in the STEM Labs, you may encounter issues with the arm not moving as expected. Follow the steps below to determine where the error may lie. These same steps apply when the arm is not moving at all.

Mastering Values

The first thing that always needs to be checked with the Workcell is the mastering values.

Values need to be collected every single day when you use the Workcell. These values may change if you pick up and move a Workcell from one location to another in the classroom and jostle the machine in the process.

With each change that you make in VEXcode V5, make sure that you download and run the project. This will help determine what change solved the issue and can help inform your next steps.

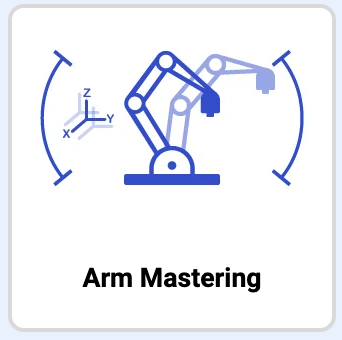

Example project thumbnail for the Arm Mastering project.

First, gather your mastering values. Run the ‘Arm Mastering’ project in VEXcode V5. For steps on how to open, download, and run this project on your Workcell, see the Play section linked here.

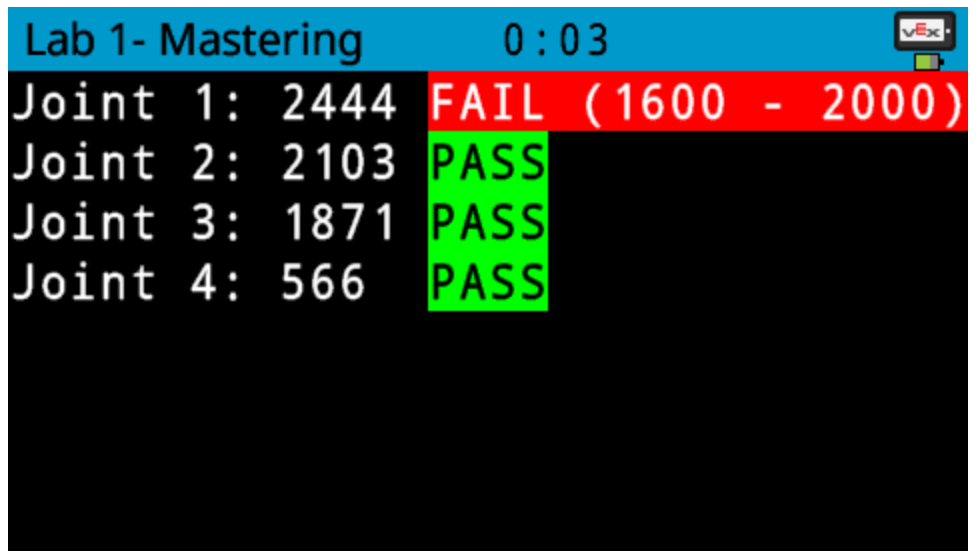

VEX V5 Brain screen showing joint mastering results with one joint failing and others passing.

If any of your joints are out of master and listed as “Failing,” follow the steps in this article to remaster those joints.

If one of your joints will not move into passing, there may be an issue with your build. Continue to follow the steps below to determine the error.

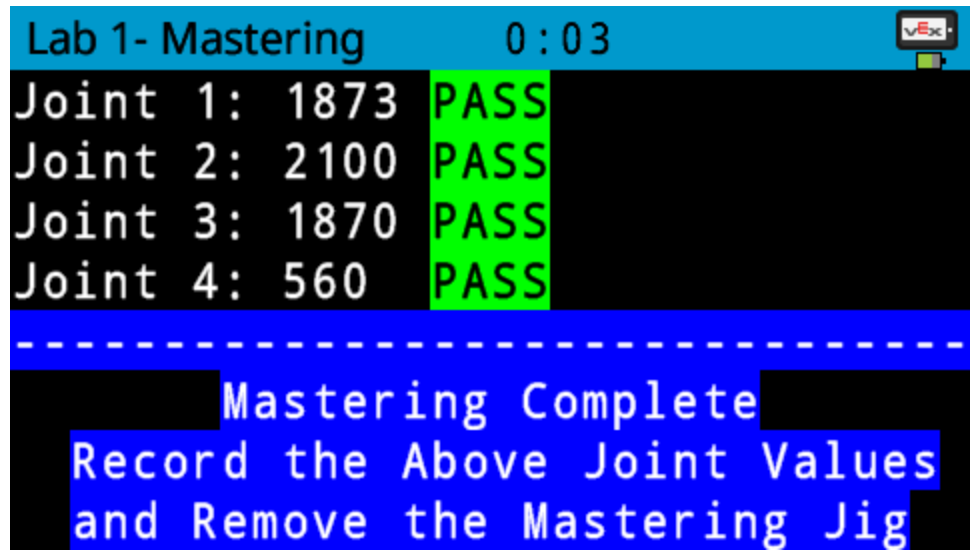

VEX V5 Brain screen showing all joints passing and mastering complete.

Once all of your joints are passing, record those values and ensure that these values are in your VEXcode V5 project.

Cables

Cables are a frequent cause of errors. Organized cables can make troubleshooting faster and prevent future errors. Consider using zip ties to create organized cable sections.

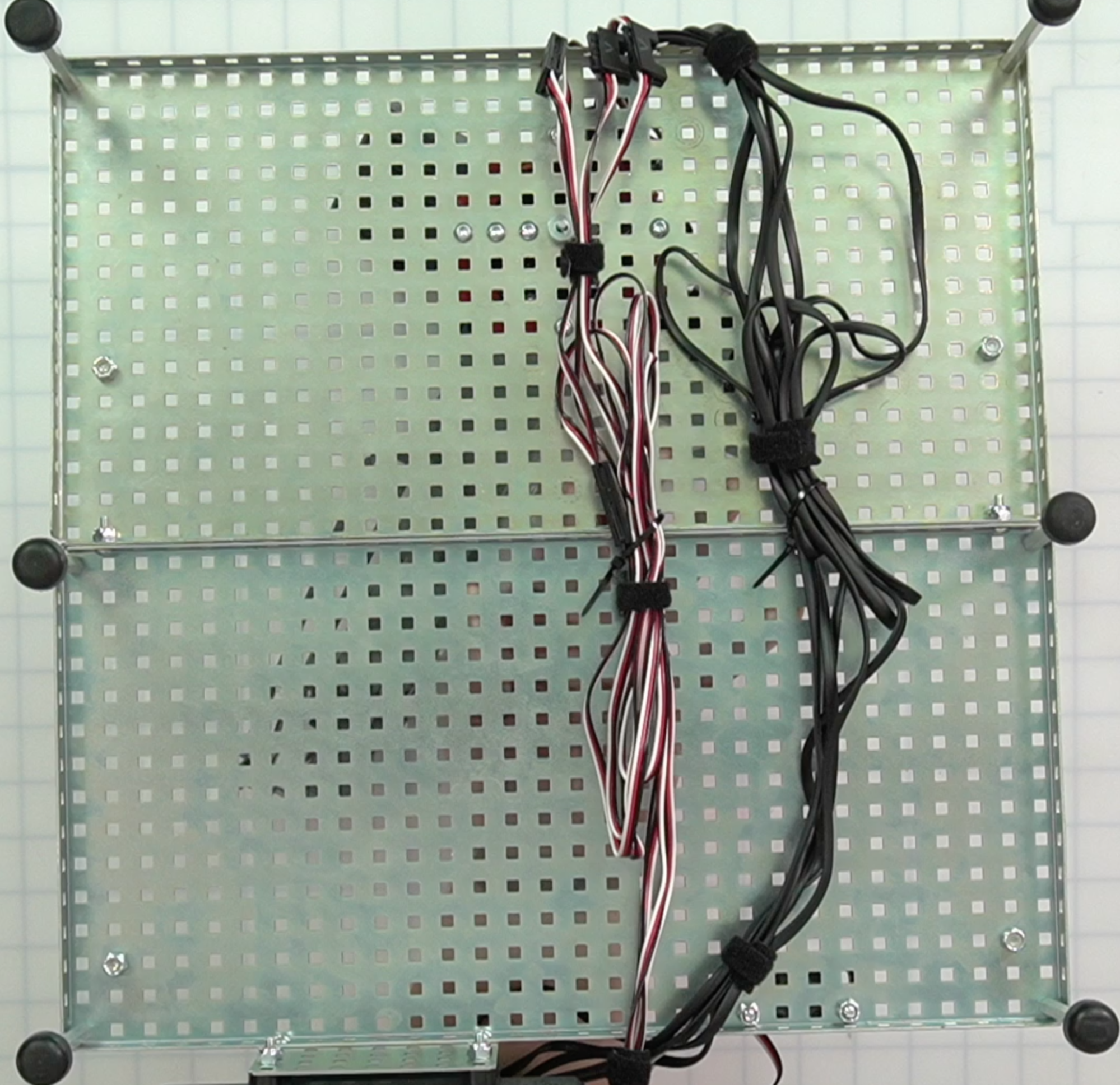

Workcell base underside showing bundled and zip-tied cables organized into separate groups.

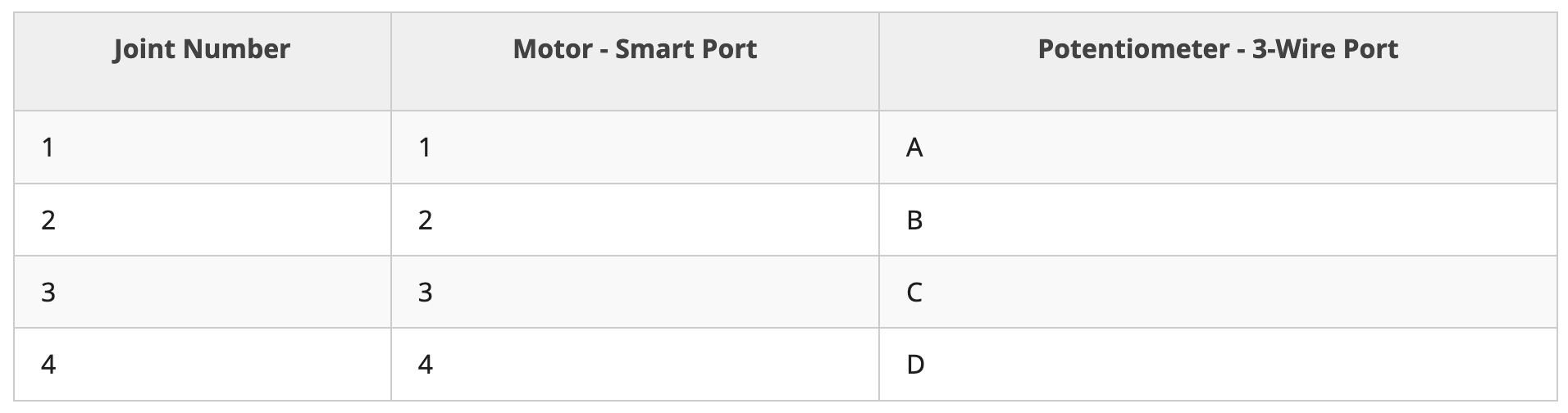

Table showing mapping of joints to motor smart ports and potentiometer 3-wire ports.

Check that all Smart Cables are plugged into the correct port on the Brain and match the port in this table.

A 3-D model of the Workcell arm is also available on this page.

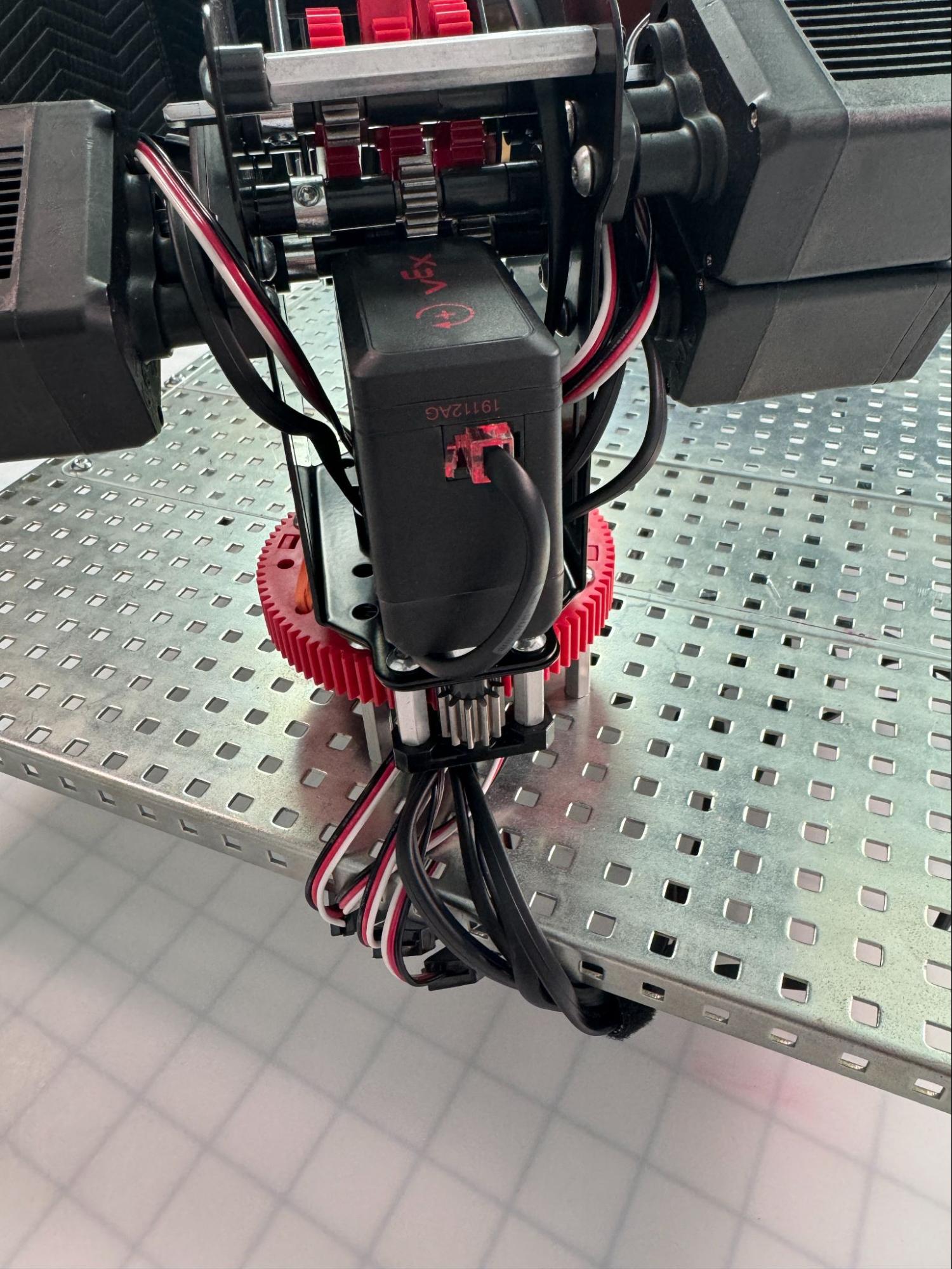

Close-up of V5 Workcell motor with Smart Cable connected and wiring routed beneath the arm.

You can ensure that a Smart Cable is plugged in and working correctly by turning on the Brain. When the Brain is on, the light in the Smart Port of the motor will glow red.

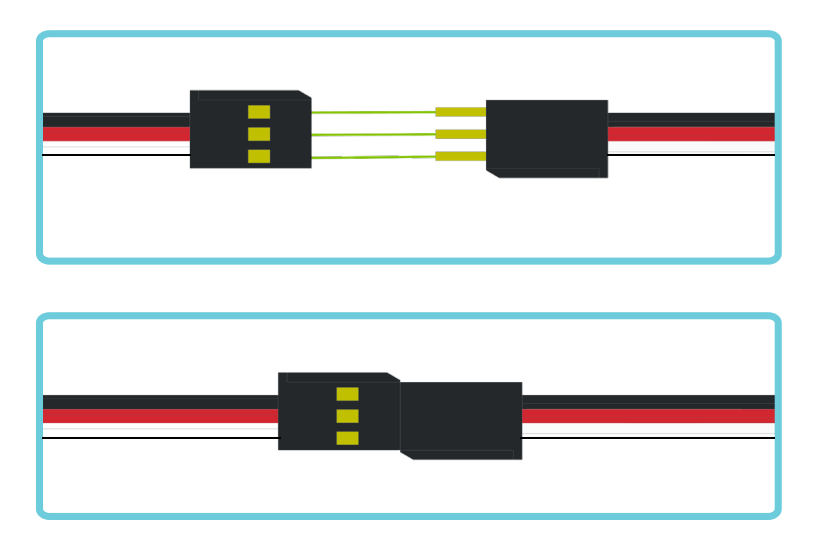

Diagram showing correct and incorrect connections of 3-wire extender cables.

All 3-Wire cables need to be checked as well. First, verify that the cables coming from the potentiometers are tightly fastened to the 3-Wire Extenders.

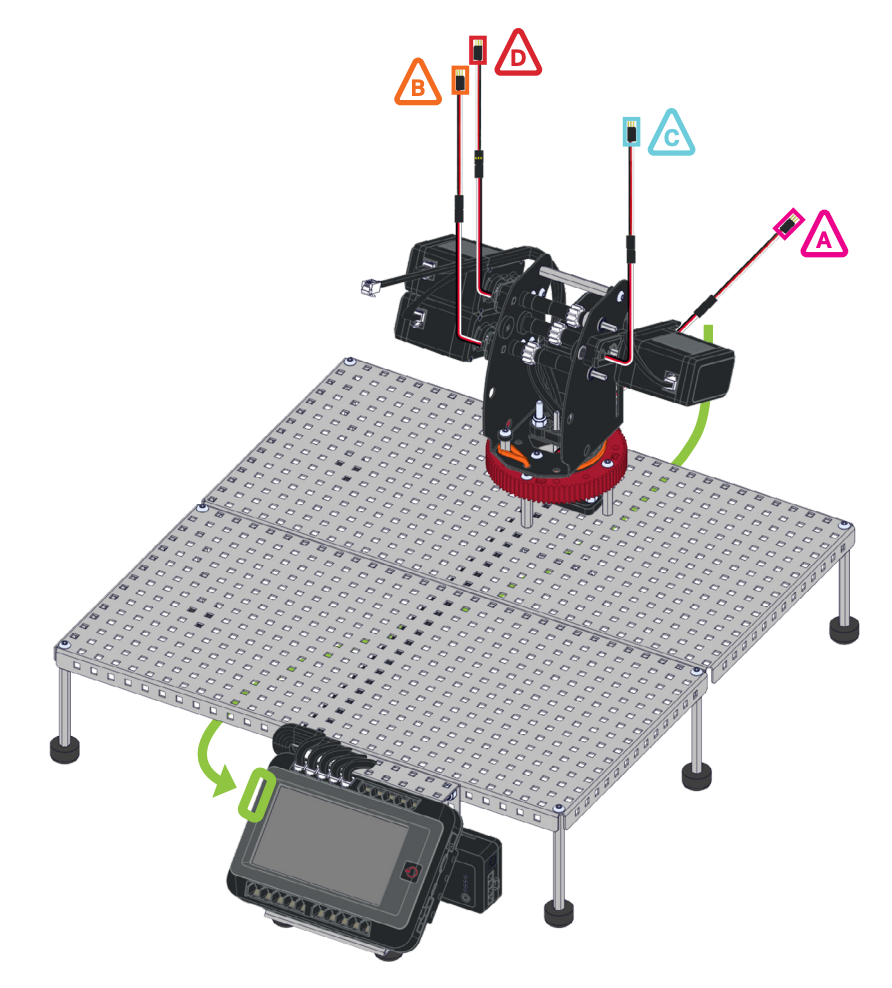

Workcell diagram showing potentiometer cables routed from joints to labeled ports on the V5 Brain.

Then, verify that the 3-Wire Extenders are plugged into the correct port on the Brain and match the ports in this diagram.

Trace each 3-Wire cable from the potentiometer directly to the port on the Brain to ensure the potentiometers and ports match.

Potentiometers

The V5 Workcell uses potentiometers to know the position of the joints at all times.
Failure of a potentiometer would prevent the arm from understanding its current physical location and may cause damage to the Workcell or the arm itself.

If your arm will not master and your motors and cables are correct, the problem likely lies within your potentiometers.

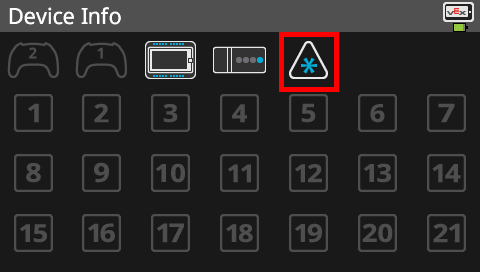

VEX V5 Brain Devices screen with potentiometer port highlighted for checking sensor values.

Use the Devices Screen to check your potentiometers.

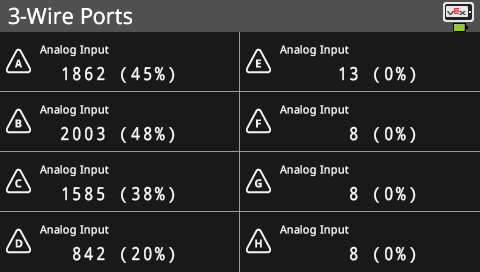

VEX V5 Brain screen displaying analog input values for 3-Wire ports A through D.

First, open the Devices Screen and verify that ports A - D are showing values.

If any of these ports are not showing values above 0%, check the 3-Wire Extenders. They need to be firmly seated in the ports and connected to the 3-Wire cables coming from the potentiometers.

If ports A-D are showing values, look at the values being reported.

Manually move the arm slowly within its range of motion, as shown in this video. Watch the values of each potentiometer change in real time on the Brain screen as the arm is moving. The values should change in a predictable and continuous pattern.

If the shaft is continuing to rotate while you are mastering the arm or the values are jumping wildly when moving the arm, the potentiometer may need to be replaced. Contact VEX Support: support.vex.com.

Screws

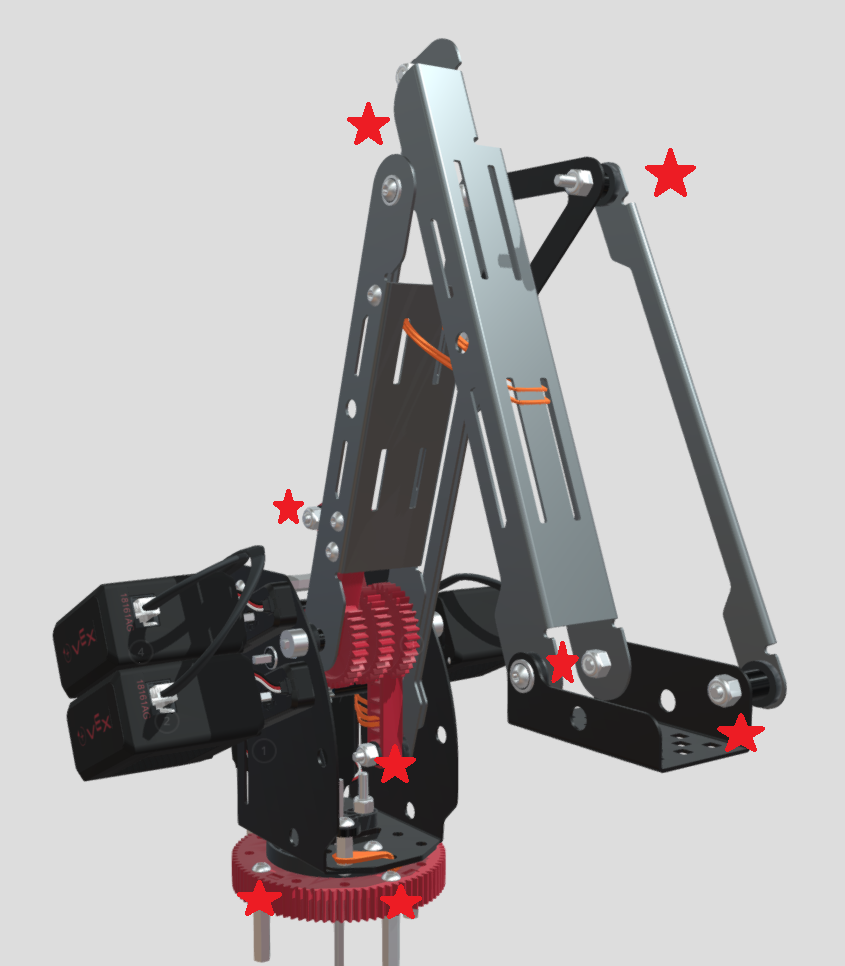

Workcell arm diagram with multiple screw locations marked to indicate where overtightening may affect movement.

Ensure the screws on your Workcell are not overtightened.

Overtightened screws located on any component necessary to arm movement adds extra resistance.

Use the video in this article for reference on how to secure nuts and screws when working with V5 pieces.

Rubber Bands

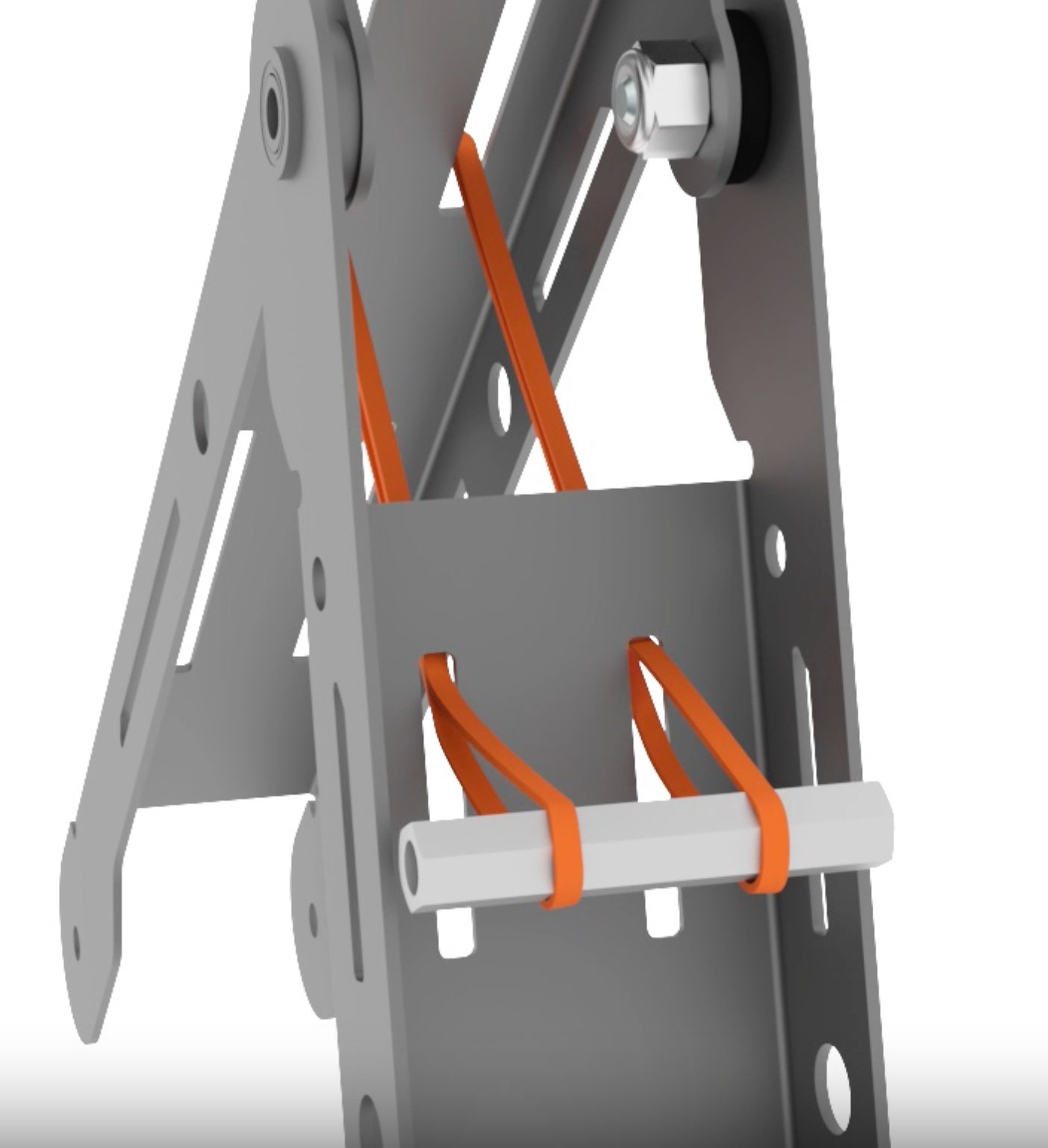

Close-up of Workcell arm showing rubber bands installed between structural components.

If you notice that your V5 Workcell’s arm is not moving accurately, shaking, or generally not moving in a smooth manner, the rubber bands may not be installed correctly, or may be missing.

Follow the steps in this article for aid when installing the V5 Workcell rubber bands.

VEXcode V5

If the mastering values, hardware, and cables all seem to be correct, check your VEXcode V5 project.

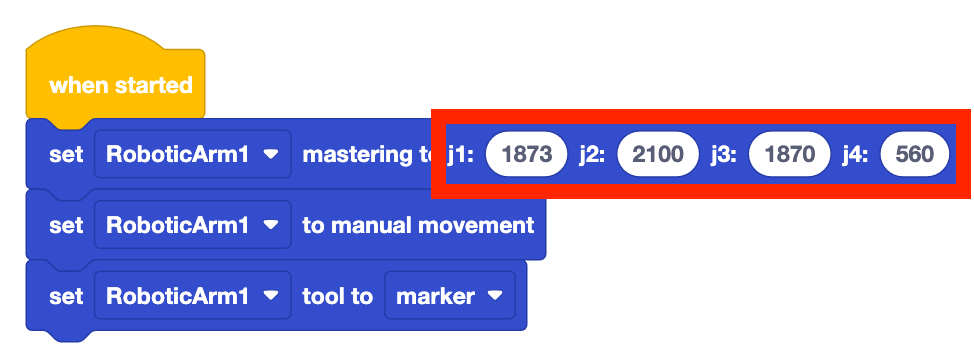

VEXcode V5 blocks showing mastering values entered into the mastering block highlighted as incorrect.

Be sure that your latest mastering values are in your VEXcode V5 project.

VEXcode V5 blocks project with the Enable manual movement block highlighted as incorrect.

If you have an Enable manual movement block in your project, it will override all other movement blocks. Remove this block from your project and try again.

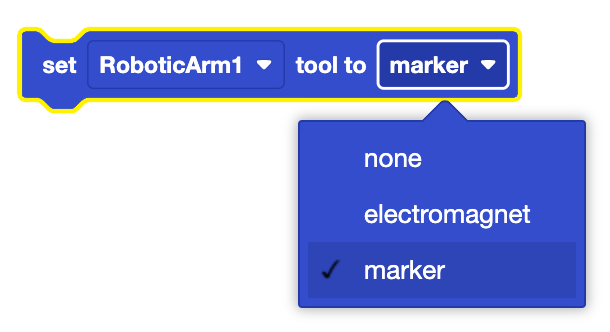

VEXcode V5 Set end effector block with its end effector dropdown menu opened. The options read none, electromagnet, and marker.

The Set end effector block should be set to the end effector you are using with the Workcell. This will change the location of the tool center point (TCP) for the arm and impact the z-coordinates reported.


V5 Workcell Arm Shaking?

Motors

If your robot appears to be shaking, you may have the incorrect motors installed on the arm.

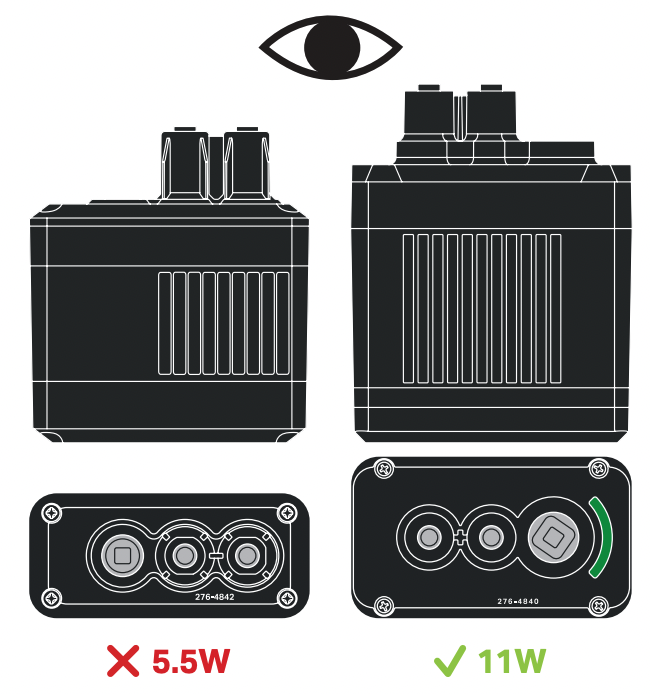

Comparison of VEX Smart Motors showing incorrect 5.5W motor and correct 11W motor labeled.

Ensure you are using the 11W Smart Motor, NOT the 5.5W smaller motor. This error will cause the arm to shake.

VEX V5 Brain screen showing all joints passing and mastering complete.

After verifying that you have the correct motors on the arm, be sure to remaster your arm and use the new values in your VEXcode V5 project.

Screws

Workcell arm diagram with multiple screw locations marked to indicate where overtightening may affect movement.

Ensure the screws on your Workcell are not overtightened.

Overtightened screws located on any component necessary to arm movement adds extra resistance.

Use the video in this article for reference on how to secure nuts and screws when working with V5 pieces.

Rubber Bands

Close-up of Workcell arm showing rubber bands installed between structural components.

If you notice that your V5 Workcell’s arm is not moving accurately, shaking, or generally not moving in a smooth manner, the rubber bands may not be installed correctly, or may be missing.

Follow the steps in this article for aid when installing the V5 Workcell rubber bands.


V5 Workcell Arm Having Trouble Moving Side to Side?

When looking for specific movements from the arm, you can start to determine which joint may be the problem. Moving side to side indicates that the issue may be with Joint 1, which is connected to the movement of the turntable.

Mastering Values

The first thing that always needs to be checked with the Workcell is the mastering values.

Values need to be collected every single day when you use the Workcell. Values may also change if you pick up and move a Workcell from one location to another in the classroom and jostle the machine in the process.

With each change that you make in VEXcode V5, make sure that you download and run the project. This will help determine what change solved the issue and can inform your next steps.

Example project thumbnail for the Arm Mastering project.

First, gather your mastering values. Run the ‘Arm Mastering’ project in VEXcode V5. For steps on how to open, download, and run this project on your Workcell, see the Play section linked here.

VEX V5 Brain screen showing joint mastering results with one joint failing and others passing.

If any of your joints are out of master and listed as “Failing,” follow the steps in this article to remaster those joints.

If one of your joints will not move into passing, there may be an issue with your build. Review the Electronics section below.

VEX V5 Brain screen showing all joints passing and mastering complete.

Once all of your joints are passing, record those values and ensure that these values are in your VEXcode V5 project.

Cables

Cables are a frequent cause of errors. Organized cables can help to make troubleshooting faster and prevent future errors. Consider using zip ties to create organized cable sections.

Workcell base underside showing bundled and zip-tied cables organized into separate groups.

Table showing mapping of joints to motor smart ports and potentiometer 3-wire ports.

Check that all Smart Cables are plugged into the correct port on the Brain and match the port in this table.

A 3-D model of the Workcell arm is also available on this page.

Close-up of V5 Workcell motor with Smart Cable connected and wiring routed beneath the arm.

You can ensure that a Smart Cable is plugged in and working correctly by turning on the Brain. When the Brain is on, the light in the Smart Port of the motor will glow red.

Diagram showing correct and incorrect connections of 3-wire extender cables.

All 3-Wire cables need to be checked as well. First, verify that the cables coming from the potentiometers are tightly fastened to the 3-Wire Extenders.

Workcell diagram showing potentiometer cables routed from joints to labeled ports on the V5 Brain.

Then, verify that the 3-Wire Extenders are plugged into the correct port on the Brain and match the ports in this diagram.

Trace each 3-Wire cable from the potentiometer directly to the port on the Brain to ensure the potentiometers and ports match.

Turntable

If your robot still appears to have issues turning side to side, there is a possibility that something is incorrect in your turntable.

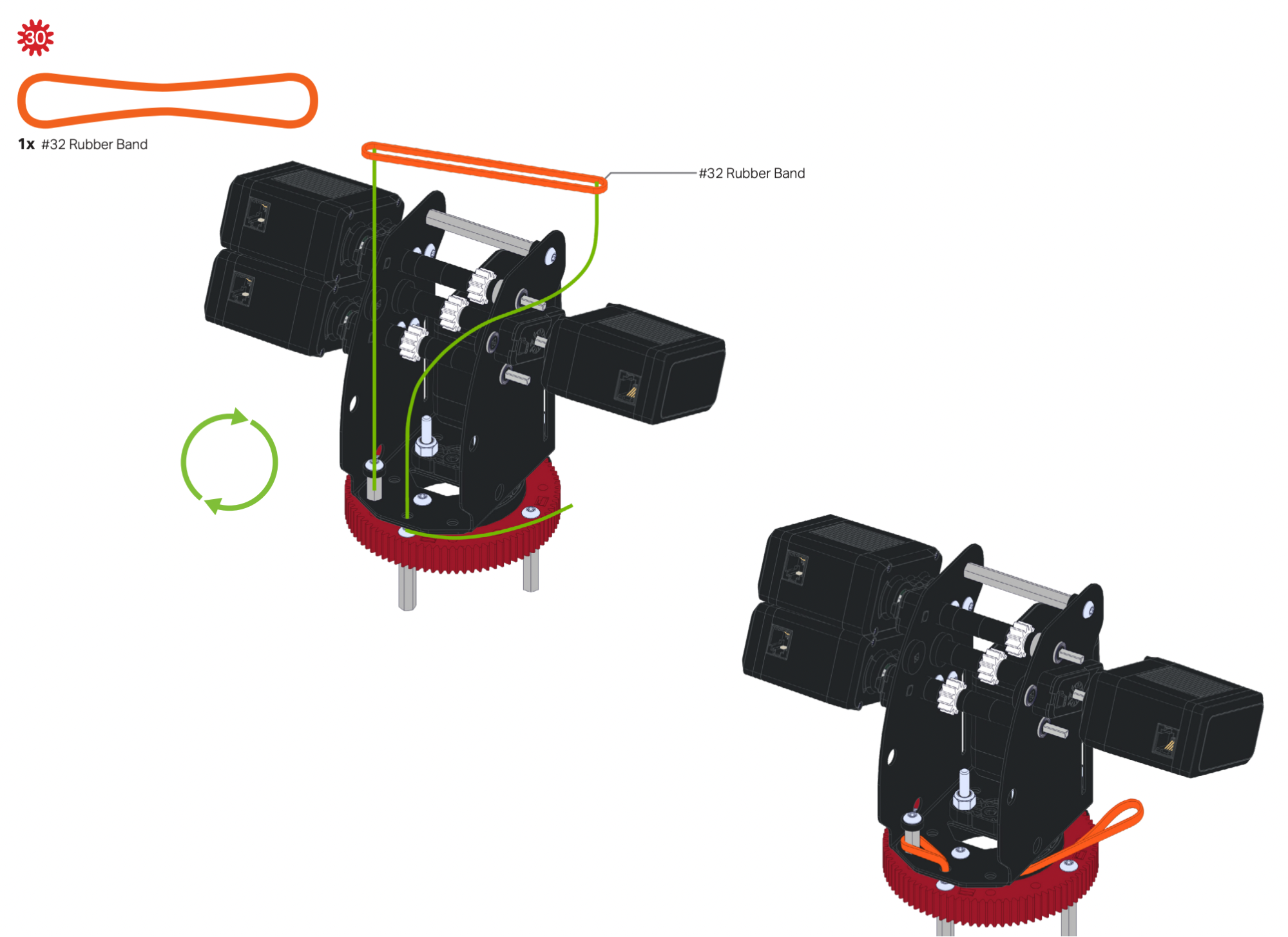

Workcell diagrams showing correct and incorrect rubber band placement on the turntable for proper rotation.

Make sure the rubber band is attached and in the correct position. If it is not, there can be extra friction that makes the turntable movement more difficult.

Follow the steps in this article for aid when installing the V5 Workcell rubber bands.

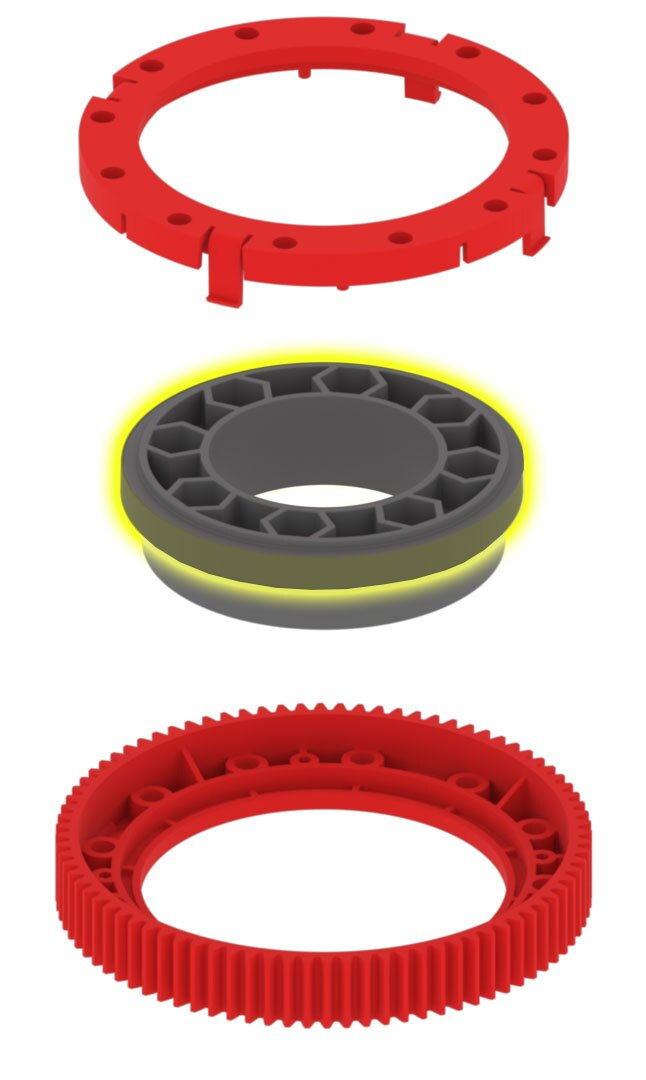

Expanded view of turntable components including ring gear, bearing, and mounting plate.

If your mastering values are within range, your Workcell may not be accurate and may shake because you need to lubricate your turntable.

An unlubricated turntable causes Joint 1 to account for extra resistance.

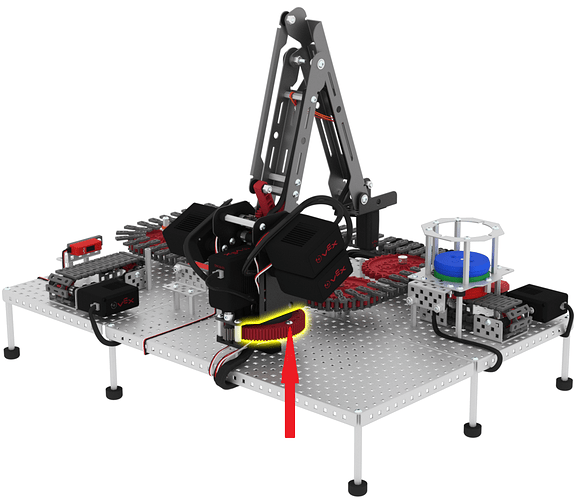

Workcell base with arrow indicating turntable area where lubrication is needed to reduce resistance.

If the four screws securing the turntable to the standoffs are too tight, there also may be more resistance.

Use the video in this article for reference on how to secure nuts and screws when working with V5 pieces.

Potentiometers

The V5 Workcell uses potentiometers to understand joint positions at all times.
Failure of a potentiometer would prevent the arm from understanding its current physical location and may cause damage to the Workcell or the arm itself.

If your arm will not master and your motors and cables are correct, the problem likely lies with your potentiometers.

VEX V5 Brain Devices screen with potentiometer port highlighted for checking sensor values.

Use the Devices Screen to check your potentiometers.

VEX V5 Brain screen displaying analog input values for 3-Wire ports A through D.

First, open the Devices Screen and verify that ports A - D are showing values.

If any of these ports are not showing values above 0%, check the 3-Wire Extenders. They need to be firmly seated in the ports and connected to the 3-Wire cables coming from the potentiometers.

If ports A-D are showing values, look at the values being reported.

Manually move the arm slowly within its range of motion, as shown in this video. Watch the values of each potentiometer change in real time on the Brain screen as the arm is moving. The values should change in a predictable and continuous pattern.

If the shaft is continuing to rotate while you are mastering the arm or the values are jumping wildly when moving the arm, the potentiometer may need to be replaced. Contact VEX Support: support.vex.com.


V5 Workcell Arm Not Staying In Master?

The V5 Workcell uses potentiometers to understand joint positions at all times.
Failure of a potentiometer would prevent the arm from understanding its current physical location and may cause damage to the Workcell or the arm itself.

Values need to be collected every single day when you use the Workcell. Values may also change if you pick up and move a Workcell from one location to another in the classroom and jostle the machine in the process.

Mastering Values

Begin by mastering the arm and gathering the mastering values.

With each change that you make in VEXcode V5, make sure that you download and run the project. This will help determine what change solved the issue and can help inform your next steps.

Example project thumbnail for the Arm Mastering project.

Run the ‘Arm Mastering’ project in VEXcode V5. For steps on how to open, download, and run this project on your Workcell, see the Play section linked here.

VEX V5 Brain screen showing joint mastering results with one joint failing and others passing.

If any of your joints are out of master and listed as “Failing,” follow the steps in this article to remaster those joints.

If one of your joints will not move into passing, there may be an issue with your build. Move to the Electronics section below.

VEX V5 Brain screen showing all joints passing and mastering complete.

Once all of your joints are passing, record those values and ensure that these values are in your VEXcode V5 project.

Cables

Cables are a frequent cause of errors. Organized cables can help to make troubleshooting faster and prevent future errors. Consider using zip ties to create organized cable sections.

Workcell base underside showing bundled and zip-tied cables organized into separate groups.

Table showing mapping of joints to motor smart ports and potentiometer 3-wire ports.

Check that all Smart Cables are plugged into the correct port on the Brain and match the port in this table.

A 3-D model of the Workcell arm is also available on this page.

Close-up of V5 Workcell motor with Smart Cable connected and wiring routed beneath the arm.

You can ensure that a Smart Cable is plugged in and working correctly by turning on the Brain. When the Brain is on, the light in the Smart Port of the motor will glow red.

Diagram showing correct and incorrect connections of 3-wire extender cables.

All 3-Wire cables need to be checked as well. First, verify that the cables coming from the potentiometers are tightly fastened to the 3-Wire Extenders.

Workcell diagram showing potentiometer cables routed from joints to labeled ports on the V5 Brain.

Then, verify that the 3-Wire Extenders are plugged into the correct port on the Brain and match the ports in this diagram.

Trace each 3-Wire cable from the potentiometer directly to the port on the Brain to ensure the potentiometers and ports match.

Potentiometers

If your arm will not master and your motors and cables are correct, the problem likely lies with your potentiometers.

VEX V5 Brain Devices screen with potentiometer port highlighted for checking sensor values.

Use the Devices Screen to check your potentiometers.

VEX V5 Brain screen displaying analog input values for 3-Wire ports A through D.

First, open the Devices Screen and verify that ports A - D are showing values.

If any of these ports are not showing values above 0%, check the 3-Wire Extenders. They need to be firmly seated in the ports and connected to the 3-Wire cables coming from the potentiometers.

If ports A-D are showing values, look at the values being reported.

Manually move the arm slowly within its range of motion, as shown in this video. Watch the values of each potentiometer change in real time on the Brain screen as the arm is moving. The values should change in a predictable and continuous pattern.

If the shaft is continuing to rotate while you are mastering the arm or the values are jumping wildly when moving the arm, the potentiometer may need to be replaced. Contact VEX Support: support.vex.com.


If you still are unable to get your VEX V5 Workcell to work as intended after following all of the steps provided in this article, contact VEX Support: support.vex.com.

For more information, help, and tips, check out the many resources at VEX Professional Development Plus
