Viewing Values of 3-Wire Ports on the V5 Brain – VEX Library

Make sure the V5 Robot Brain is on

Powered off V5 Brain shown with its Home button highlighted.

Turn on the V5 Robot Brain by pressing and holding the Home button on the brain.

Select the Devices icon

Brain screen is shown in the Home menu with the Devices option highlighted.

Tap on the Devices icon highlighted by the red rectangle in the image above.

Select the 3-Wire ports icon

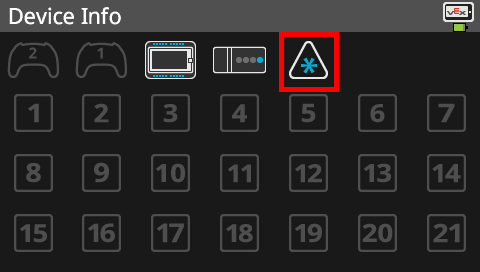

Brain screen is shown in the Device Info menu which has a list of all of the Brain's Smart Ports and connected devices. The 3 Wire ports icon in the Device Info menu is highlighted to indicate that items can be selected to open their information menus.

Tap on the 3-Wire ports icon highlighted by the red rectangle in the image above.

View the values on the 3-Wire ports

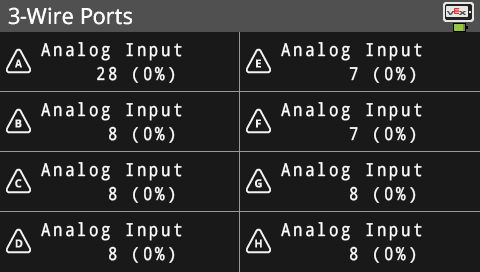

Brain screen is shown in the 3 Wire Ports Info menu that lists information about connected 3 Wire devices. The menu lists all 8 of the 3 Wire ports that are labeled alphabetically from A to H. In this example, all of the ports are set to Analog Input.

NOTE: Each 3-wire Port is highlighted with its letter inside of a triangle.

Change the 3-Wire Port settings

Brain screen is shown in the 3 Wire Ports Info menu with the 3 Wire port settings customized, showing examples of all 4 setting options.

To change the 3-Wire port settings, press the screen on the corresponding port cell.

There are 4 settings: Analog Input, Digital Input, Digital Out High, Digital Out Low.

Analog Input: The brain will display the analog value from the connected VEX EDR sensor.
Digital Input: The brain will display the digital value from the connected VEX EDR sensor.
Digital Out High: The brain will generate a "high" (1) signal to send to the VEX EDR device.
Digital Out Low: The brain will generate a "low" (0) signal to send to the VEX EDR device.
