Get Started with a VEX IQ (2nd gen) Classroom Bundle

When you get your VEX IQ (2nd gen) Classroom Bundle, there are a few things you can do to get yourself organized and started. This article will cover the basics of unpacking your Classroom Bundle and getting ready to use VEX IQ (2nd gen) with your students.

Diagram illustrating the components and setup of the VEX IQ Robotics platform, showcasing key elements for educational robotics projects and programming with VEXcode IQ, as part of the knowledge base resources for beginners and educators.

Note: All of the resources in this article are based on a Small Classroom Bundle. If you ordered a Classroom Bundle, you will receive the equivalent of two Small Classroom Bundles. If you ordered a Large Classroom Bundle, you will receive the equivalent of three Small Classroom Bundles.

This article reviews all of the pieces in your VEX IQ Small Classroom Bundle and where you can find them. For an in-depth view of everything in the Small Classroom Bundle, watch the unboxing video below!

  • Part: This is the name of the part.
  • Photo: This is an image of the part. Use this for reference while unboxing your Classroom Bundle.
  • Quantity: This is the quantity of each part provided.
  • Location: This is where you can find the parts in your Classroom Bundle.
  • Helpful Hints: These are provided in the Location column. These hints provide extra context or information on packaging, identifying part numbers, or tips for additional organization.
Part Photo Quantity Location
IQ Education Kits - Structure Bin Flowchart illustrating the next steps for utilizing the VEX IQ Robotics platform, highlighting key resources and actions for educators and students to enhance their robotics learning and project development. 5

Helpful Hint:

Label each bin so that the Structure bin and the Motion bin remain paired together as you distribute kits in the classroom.



.

IQ Education Kits - Motion Bin Flowchart illustrating the next steps for utilizing VEX IQ resources, including documentation, programming, and project ideas for educational robotics. 5

Helpful Hint:

Label each bin so that the Structure bin and the Motion bin remain paired together as you distribute kits in the classroom.





Field Tiles Flowchart illustrating the next steps for VEX IQ users, outlining key actions for building and programming robots, and resources for educators and students in the VEX IQ robotics platform. 12

These will be located in the blue Carrying Case.

Field Walls Flowchart illustrating the next steps for utilizing the VEX IQ Robotics platform, including links to documentation, programming resources, and project ideas for educators and students. 16

These will be located in the blue Carrying Case.

IQ Cubes Diagram illustrating the components of the VEX IQ Robotics platform, highlighting key elements for building and programming robots, as part of educational resources for beginners and educators in the VEX IQ category. 18

These will be located in the blue Carrying Case.



Helpful Hint:

You will receive 6 IQ Cubes of each color: red, green and blue.

Parts Poster Flowchart illustrating the next steps for VEX IQ users, detailing the progression from understanding components to building and programming robots, and engaging with community resources for enhanced learning and competition preparation.Diagram illustrating the VEX IQ Robotics platform components and programming flow, designed for educational purposes and beginner robotics enthusiasts, as part of the IQ category in the VEX knowledge base. 1

These will be located in the blue Carrying Case.

Helpful Hint:

The PDF version for the Parts Poster can be found at posters.vex.com.

Extra USB Cables Flowchart illustrating the next steps for utilizing VEX IQ resources, including documentation, programming with VEXcode IQ, and project ideas for educational robotics enthusiasts. 5

These will be located in the blue Carrying Case. Remember to check the zipper pockets while unpacking the case.

Helpful Hint:

Keep the extra USB cables with the Classroom Chargers so the USB cables in the Electronics Bin can be used for connecting to VEXcode IQ.

Classroom Chargers Flowchart illustrating the next steps for VEX IQ users, outlining key actions and resources for building, programming, and enhancing robotics projects within the VEX IQ ecosystem. 2

These will be located in the blue Carrying Case. Remember to check the zipper pockets while unpacking the case.

Helpful Hint:

There are 5 USB ports between the two chargers, so you can charge 5 IQ Brains or 5 IQ Controllers with one outlet. Keep the extra USB cables with the Classroom Charger so the USB cables in the Electronics Bin can be used for connecting to VEXcode IQ.

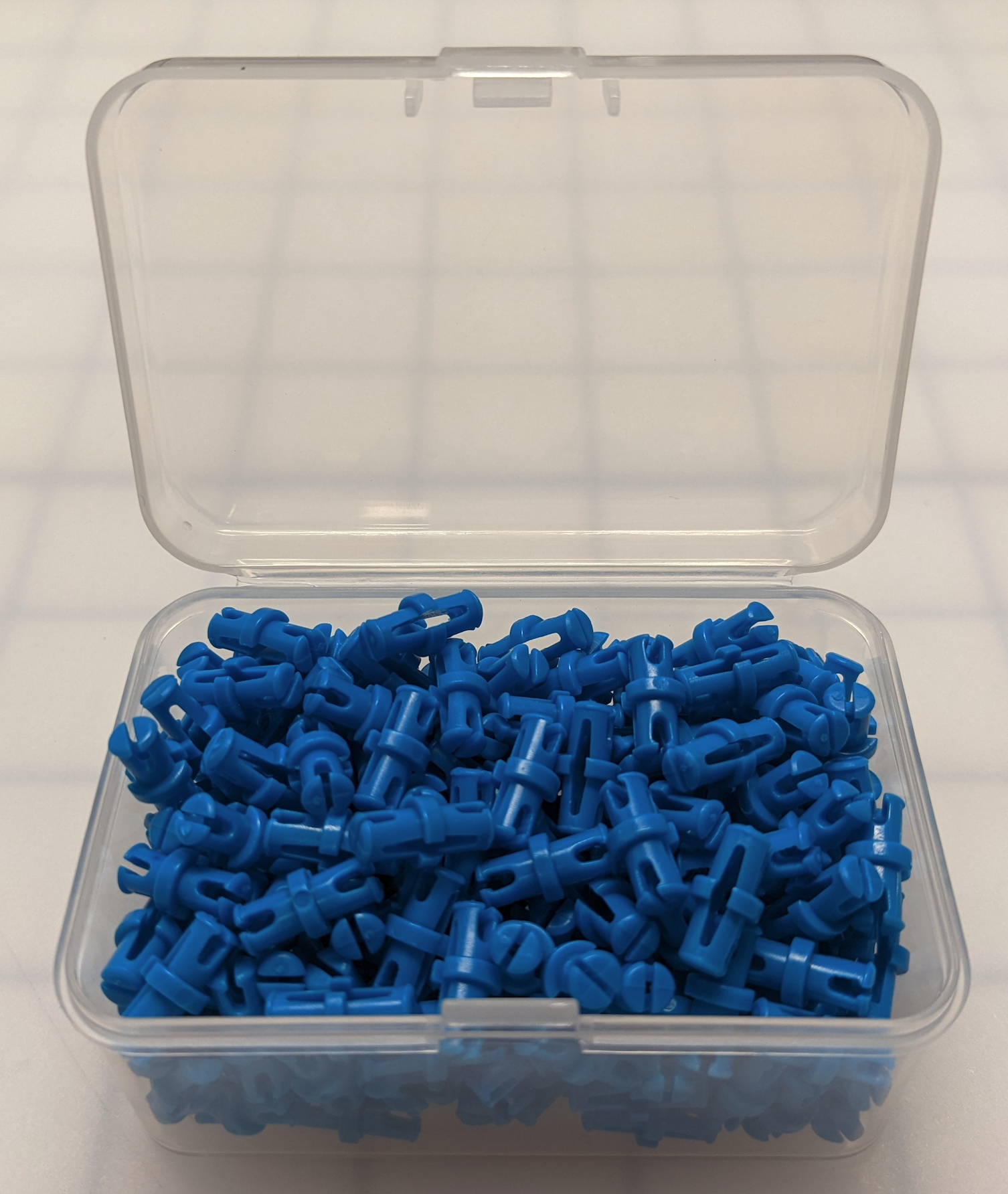

Extra 1 x 1 Connector Pins



Flowchart illustrating the next steps for using the VEX IQ Robotics platform, including key resources and documentation for educators and students to enhance their robotics learning experience. 1 Jewel Case with 221 Connector Pins

All extra jewel cases will be located in the blue Carrying Case on top of the IQ Cubes.



Helpful Hint:

Each set of extra parts will be contained in a small jewel case. Remove these and keep them in a teacher-only area to ensure your extra parts are not mixed into existing IQ Kits.

Extra Connector Pins and Cable Anchors Diagram illustrating the components of the VEX IQ Robotics platform, highlighting key elements for educational robotics, including building, programming, and project ideas for beginners and educators.

1 Jewel Case with

  • 53 1 x 2 Connector Pins
  • 21 2 x 2 Connector Pins
  • 22 0 x 2 Connector Pins
  • 21 0 x 3 Connector Pins
  • 11 Cable Anchors

All extra jewel cases will be located in the blue Carrying Case on top of the IQ Cubes.



Helpful Hint:

Each set of extra parts will be contained in a small jewel case. Remove these and keep them in a teacher-only area to ensure your extra parts are not mixed into existing IQ Kits.

Extra Chain Assemblies and Links, Traction links, Intake Flaps, 24X Pitch Ropes, Rubber Bands and Center Lock Beams

Diagram illustrating the components and setup of the VEX IQ Robotics platform, highlighting key elements for educational robotics projects and programming with VEXcode IQ, as part of the knowledge base resources for beginners and educators.

1 Jewel Case with

  • 2 Chain Assemblies
  • 5 Chain Links
  • 5 Traction Links
  • 3 Short Intake Flaps
  • 2 Medium Intake Flaps
  • 2 24x Pitch Ropes
  • 2 Rubber Bands
  • 2 1 x 3 Center Lock Beams

All extra jewel cases will be located in the blue Carrying Case on top of the IQ Cubes.



Helpful Hint:

Each set of extra parts will be contained in a small jewel case. Remove these and keep them in a teacher-only area to ensure your extra parts are not mixed into existing IQ Kits.

Extra Standoffs, Standoff Extenders and Standoff Connectors Diagram illustrating the components and programming options of the VEX IQ Robotics platform, designed for educational purposes and beginner robotics enthusiasts, as part of the IQ category in the VEX knowledge base.

1 Jewel Case with

  • 11 0.25x Pitch Standoffs
  • 13 0.5x Pitch Standoffs
  • 13 1x Pitch Standoffs
  • 15 2x Pitch Standoffs
  • 5 4x Pitch Standoffs
  • 6 6x Pitch Standoffs
  • 11 0.5x Pitch Standoff Extenders
  • 13 Mini Standoff Connectors
  • 9 End Standoff Connectors
  • 9 90 Degree Standoff Connectors

All extra jewel cases will be located in the blue Carrying Case on top of the IQ Cubes.



Helpful Hint:

Each set of extra parts will be contained in a small jewel case. Remove these and keep them in a teacher-only area to ensure your extra parts are not mixed into existing IQ Kits.

Extra Shafts, Idler Pins, Washers, Spacers, Rubber Shaft Collars, 1 x 1 Beams, 12 Tooth Gears, 8 Tooth Sprockets, 1 x 4 End Lock Beams

Flowchart illustrating the next steps for utilizing VEX IQ resources, including links to documentation, programming tutorials, and project ideas for educators and students in robotics education.

1 Jewel Case



All extra jewel cases will be located in the blue Carrying Case on top of the IQ Cubes.



Helpful Hint:

Each set of extra parts will be contained in a small jewel case. Remove these and keep them in a teacher-only area to ensure your extra parts are not mixed into existing IQ Kits.

Carrying Case for Field Tiles, Walls, and Game Elements Image illustrating next steps in VEX IQ robotics education, featuring components and programming resources for beginners, along with project ideas and best practices for building and programming robots. 1

This Carrying Case will contain all of the extra parts, cables and chargers, the parts poster, the Field Tiles and Walls, and the game elements of your IQ Classroom Bundle.

For more information, help, and tips, check out the many resources at VEX Professional Development Plus
