Mounting the Field Control System to the V5 Portable Competition Field

This article will walk you through how to mount the Field Control System to the V5 Portable Competition Field

Step 1 of building a V5 competition robot, showing a detailed layout of components and assembly instructions for effective robot construction.

1. Gather hardware

  • Driver interface - Qty 2
  • Match controller - Qty 1
  • Nylock nuts - Qty 6
  • 8-32 Screw between 0.5” & 2.0” long - Qty 6
  •

Diagram illustrating the assembly process for a competition robot in the V5 category, highlighting key components and connections.

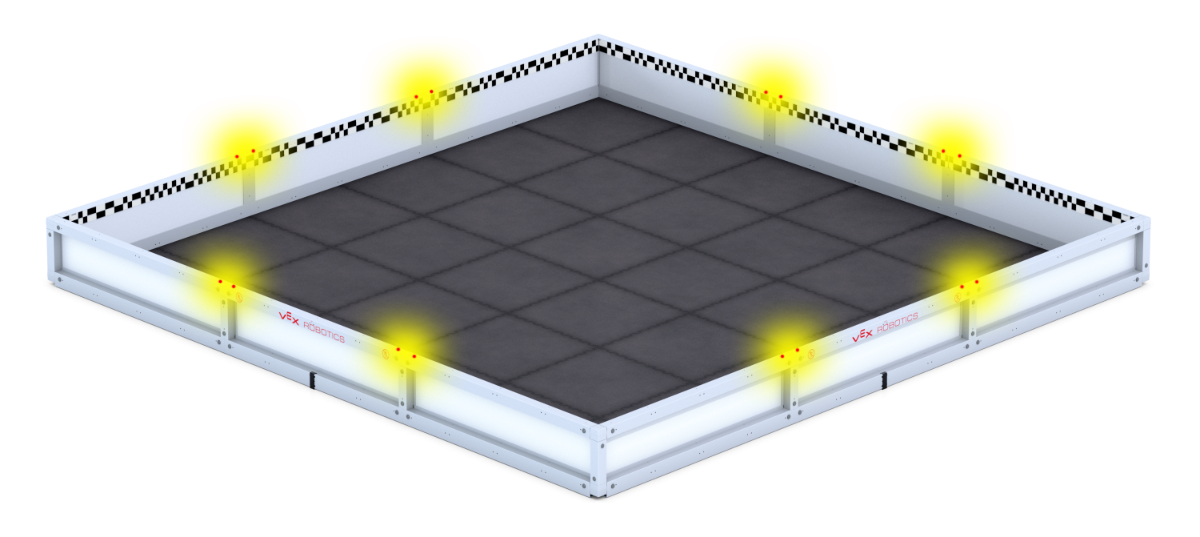

2. Determine location to attach driver interfaces

  • Determine the red & blue drivers stations.
  • The driver interfaces should be mounted near the drivers stations.
  • The driver interfaces can be attached to any T-connector section of the field.

Note: The following steps (#3-5) can be followed to attach the three control systems to the field.

Diagram illustrating the assembly process of a competition robot, highlighting key components and their arrangement, as part of the V5 Category Description.Flowchart illustrating the steps for building competition robots in V5, highlighting key components and processes involved in the design and construction phases.

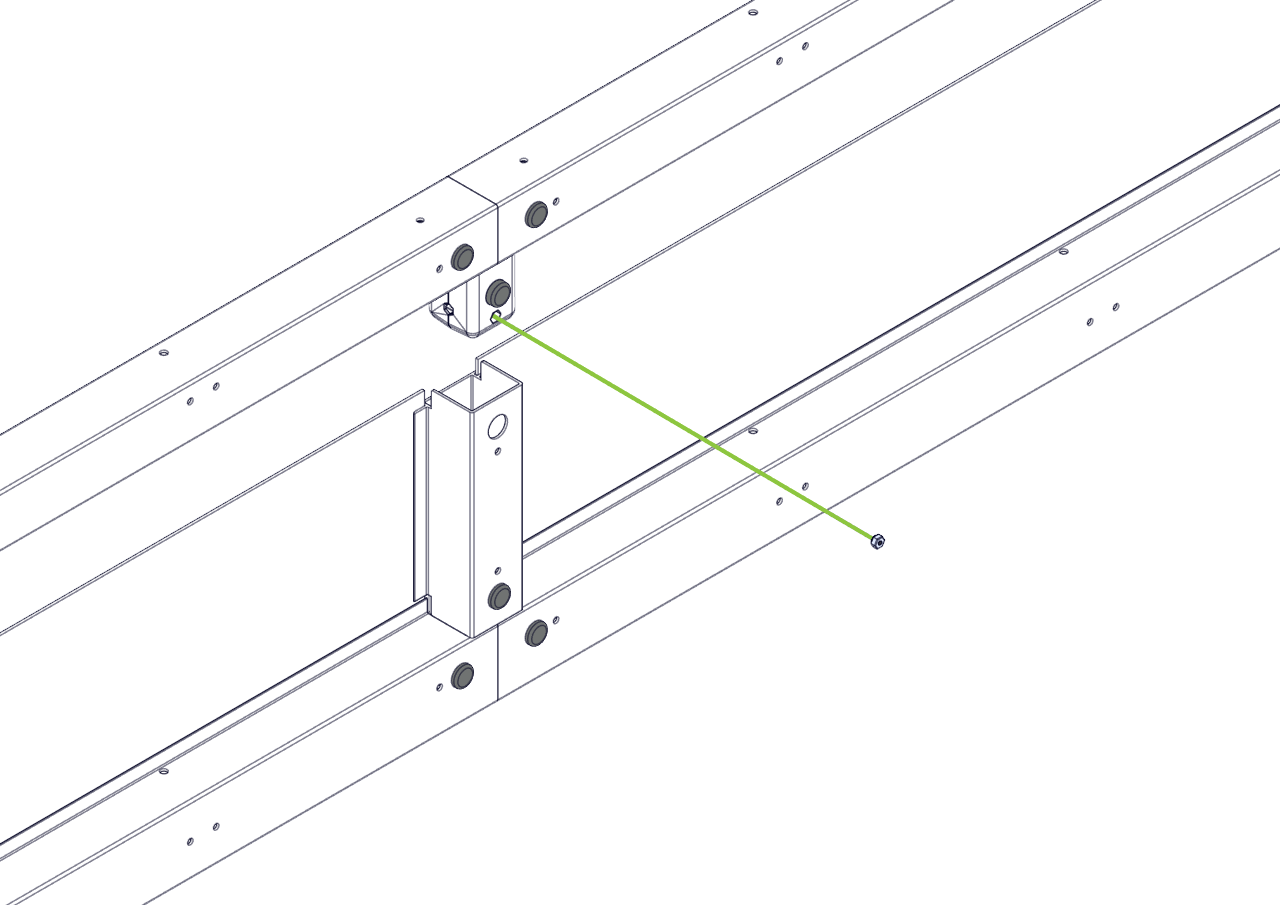

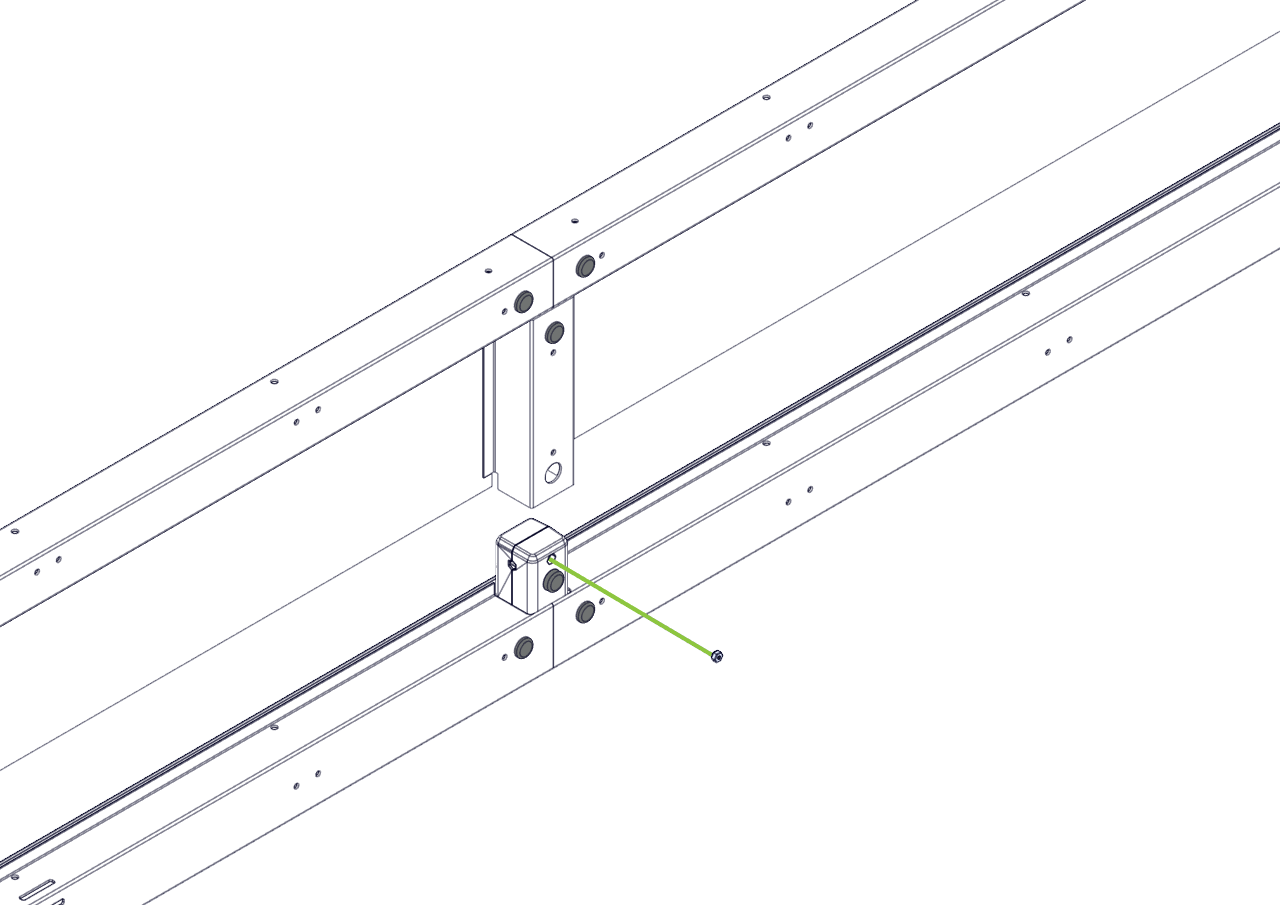

3. Un-pop the short extrusion from both the top and bottom T-connectors.

  • Place nylock nuts into the nut pockets in the T-connectors.
  • Then re-pop the extrusion onto the connectors.

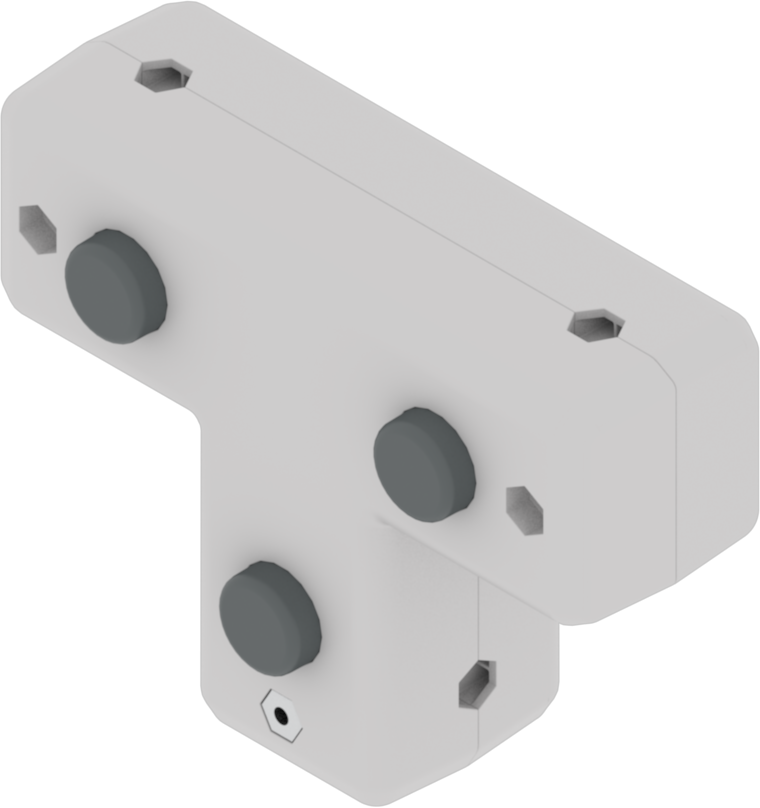

V5 T-connector with nut, used in competition robots for connecting components in the VEX robotics system.

Note: ensure the nylock nuts are inserted in the correct orientation.

Screenshot of Step 4.1 illustrating the design process for V5 competition robots, showcasing key components and assembly instructions in the context of V5 Category Description.Flowchart illustrating the steps for designing competition robots in the V5 category, highlighting key processes and decisions involved in the robot development workflow.

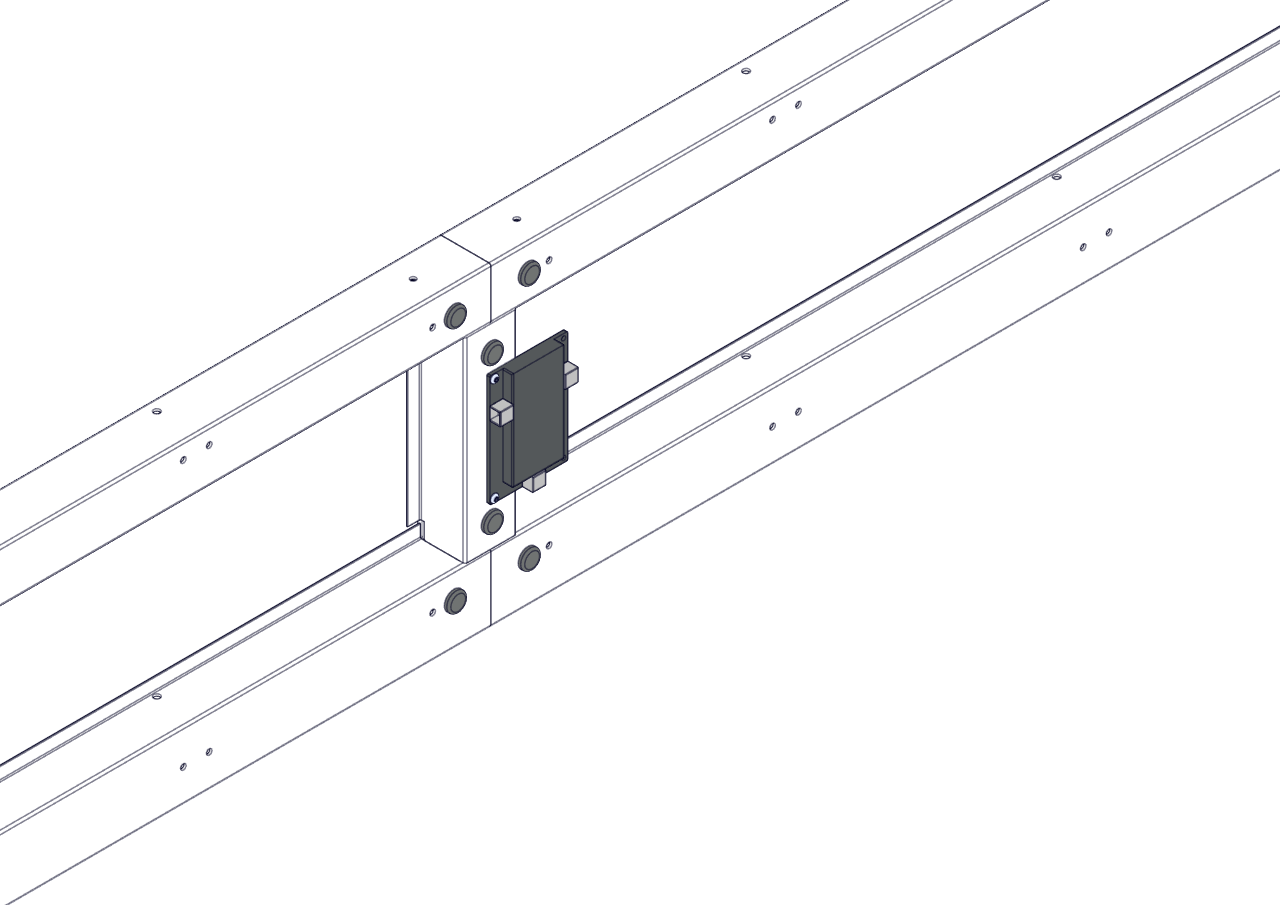

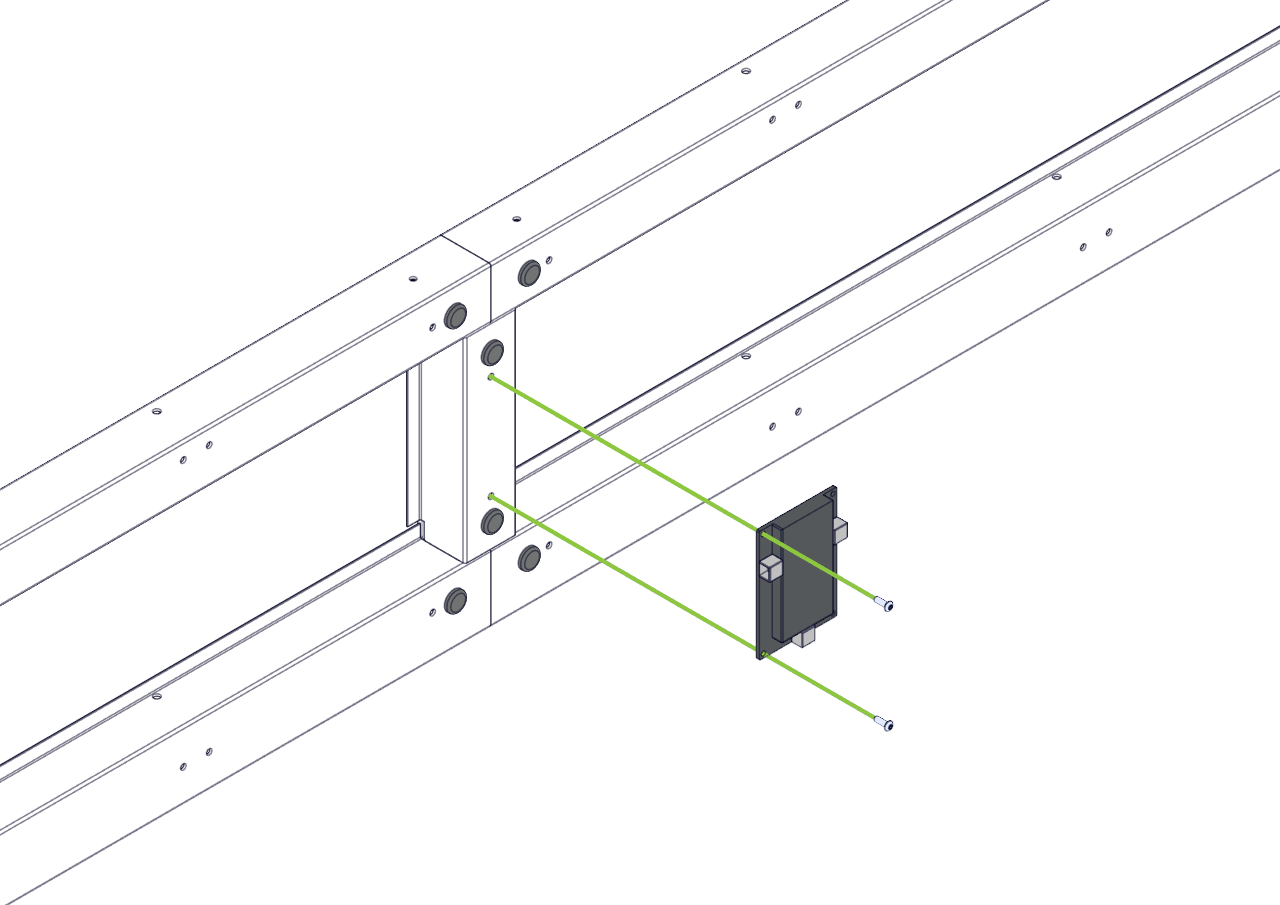

4. Attach the driver interface to the short extrusion using two 8-32 screws.

  • Ensure the screws are fully tightened and the driver interface is secure.

Diagram illustrating the assembly process for a competition robot in the V5 category, highlighting key components and connections.

5. Determine location to attach the match controller.

  • Find the location closest to the computer that will be used to control matches.
  • Mount the match controller in the same orientation shown in the steps above

Diagram of a VEX V5 Control System with Portable Field setup, illustrating components and layout for competition robots, showcasing connectivity and configuration for optimal performance in robotics competitions.

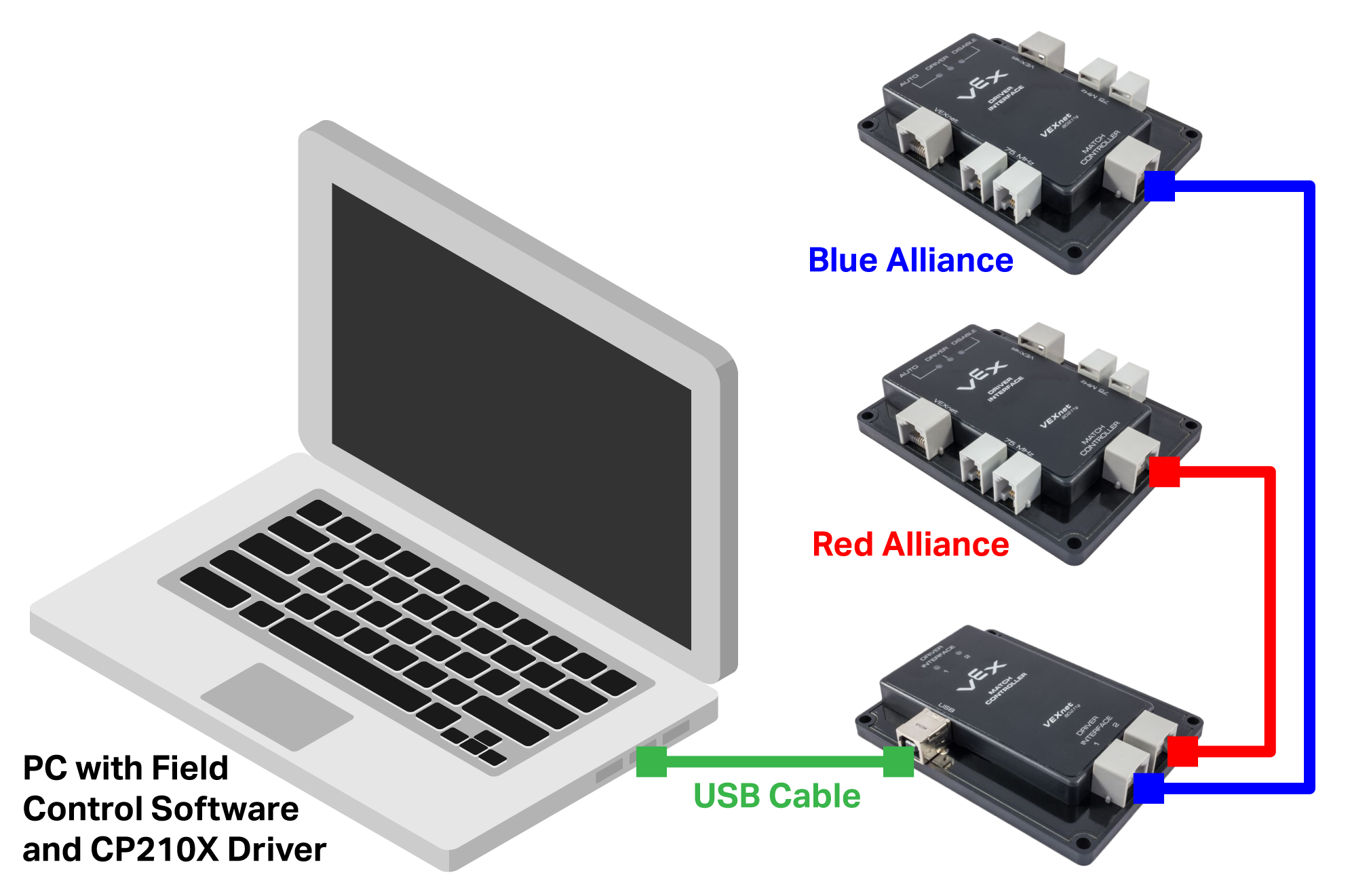

6. Wire the field.

For more information, help, and tips, check out the many resources at VEX Professional Development Plus
