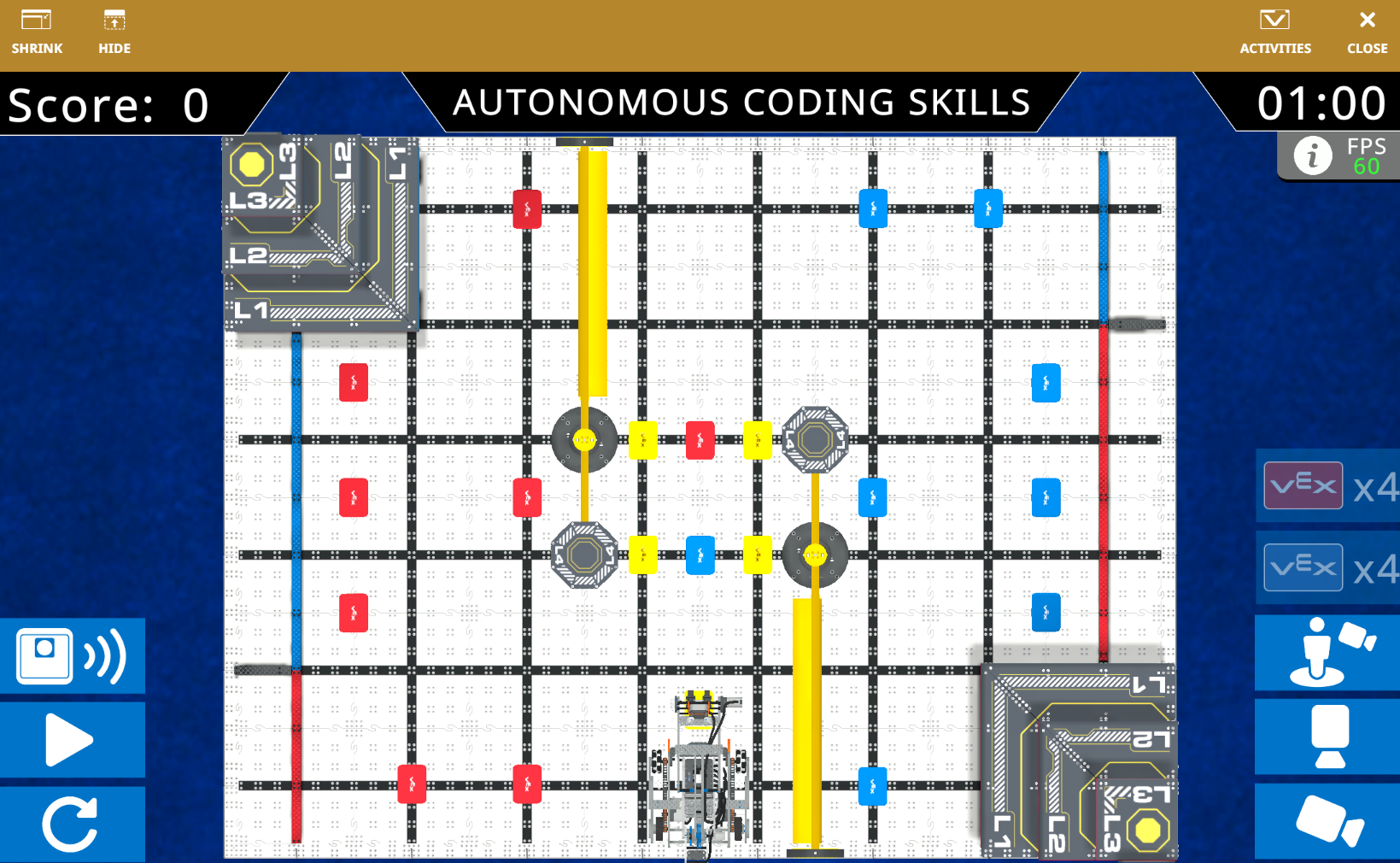

The VEX IQ Robotics Competition Level Up Playground is a virtual representation of the Field for the VEX IQ Robotics Competition Level Up (2026-2027) Competition game. The Playground Window is a space for the Hero Bot, Flop, to interact and move to play Level Up Virtual Skills.
How to Start, Stop, and Reset a Project
Select the Start button to start a project.
This button will change to a Stop button when a project is actively running.
Selecting the Stop button will stop the project and the timer immediately.
The Match Results Window will appear at this time. See below for more information on the Match Results Window.
Select the Reset button to reset the timer, point value, and Field.
Viewing Your Score and the Timer

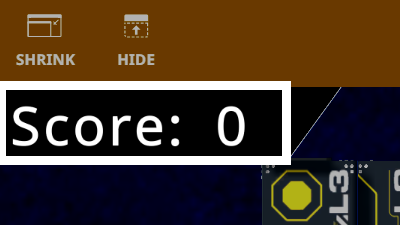

Your score can be seen above the Field on the left side. This will be updated in real-time while the project is running.
The timer is located above the Field on the right side.
The timer begins when a project is started and counts down from 1:00. The timer will count down until Stop is selected, the Stop project block is used in the project, or the timer reaches 0 seconds.
Using the Match Results Window

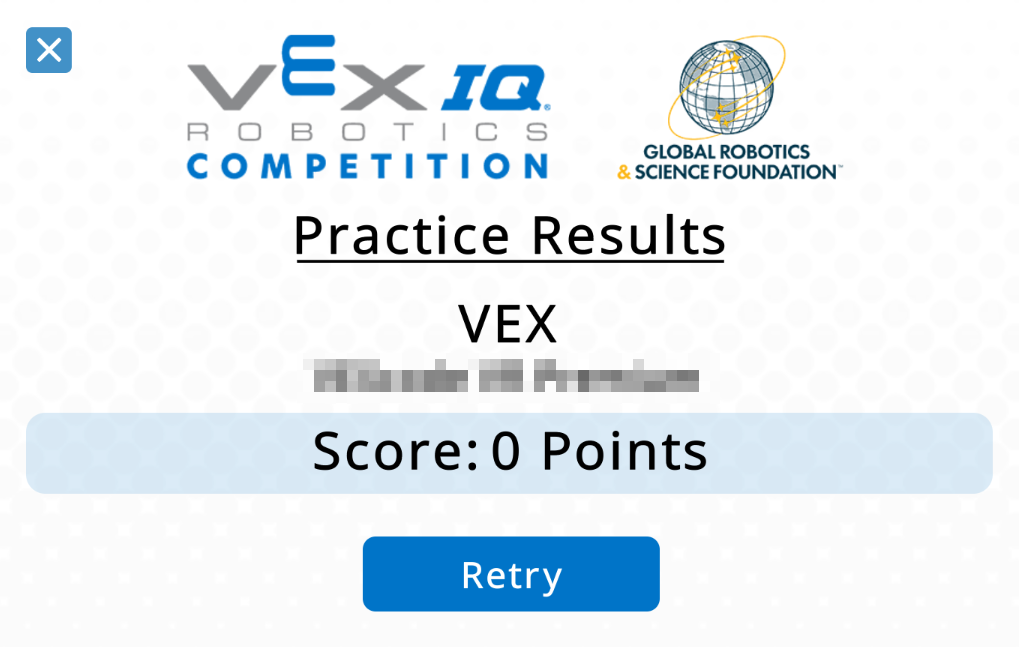

When a project is stopped, or the timer hits 0 seconds, the Match Results window will appear.
The total score for the project will be shown, along with the name of the team.

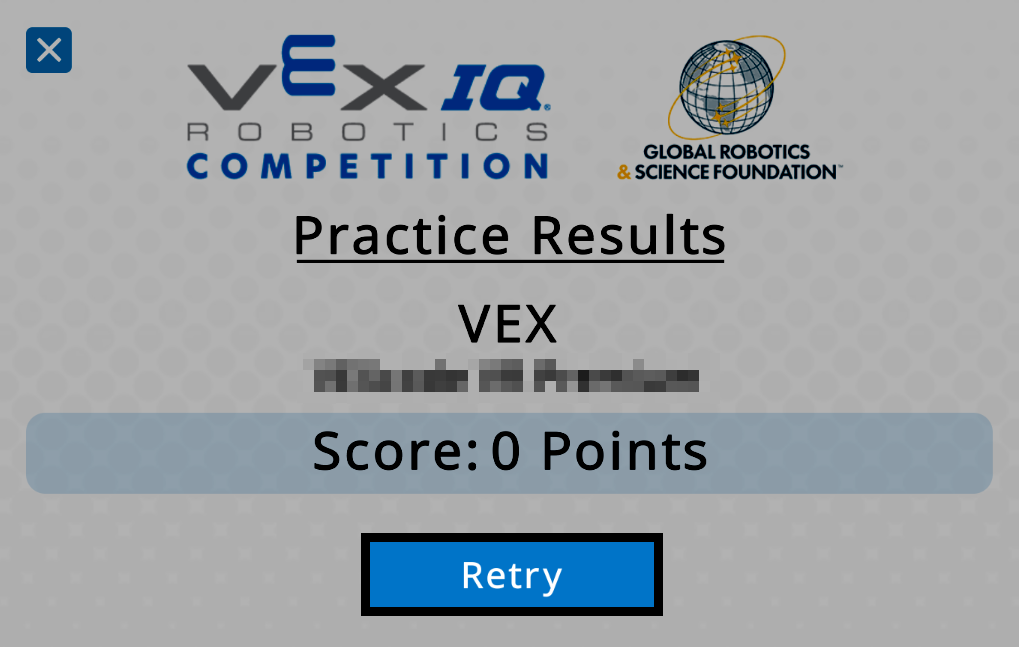

Select the Retry button to return to the Field and reset the timer and score.

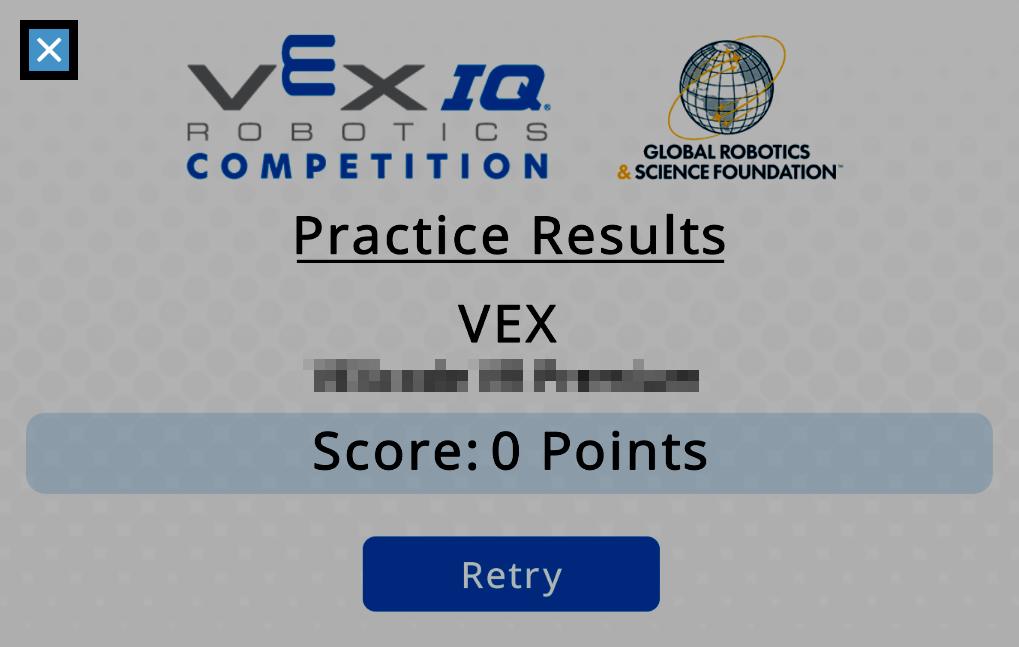

Select the X in the top-left corner to close the Match Results Window and return to the Field.
This will not reset the Field, timer, or score. It will return to the Field exactly as it was at the moment the project was stopped.
Expanding the Playground Window
The Playground window begins at a smaller size by default. If you want to expand the window, select the Expand button at the top-left corner.

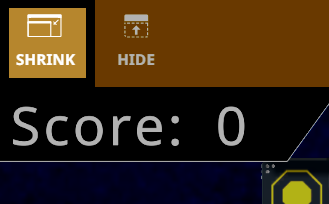

Select the Shrink button in the top-left corner to return the window to the default size.
Hiding and Showing the Playground Window

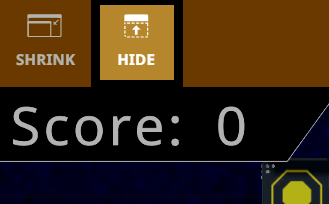

Select the Hide button to collapse the Playground Window. This will still keep the toolbar at the top of the window visible.
To view the full Playground Window again, select the Show button.
Selecting Different Camera Views

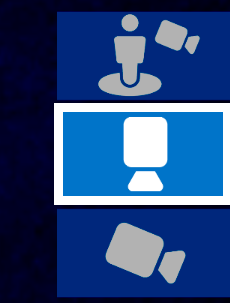

Select the Top Camera button to see an overhead view of the entire Field. This is the default view when you open the Level Up Playground Window.

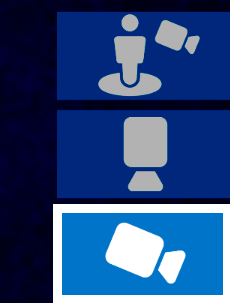

Select the Chase Camera button to see a behind-the-robot view.

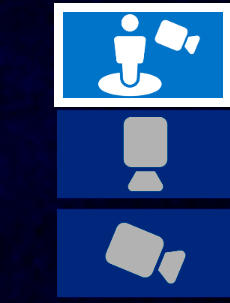

Select the Driver Station Camera button to see a perspective view, as if you were standing at the Driver Station by the Field.
Using the Match Load Buttons

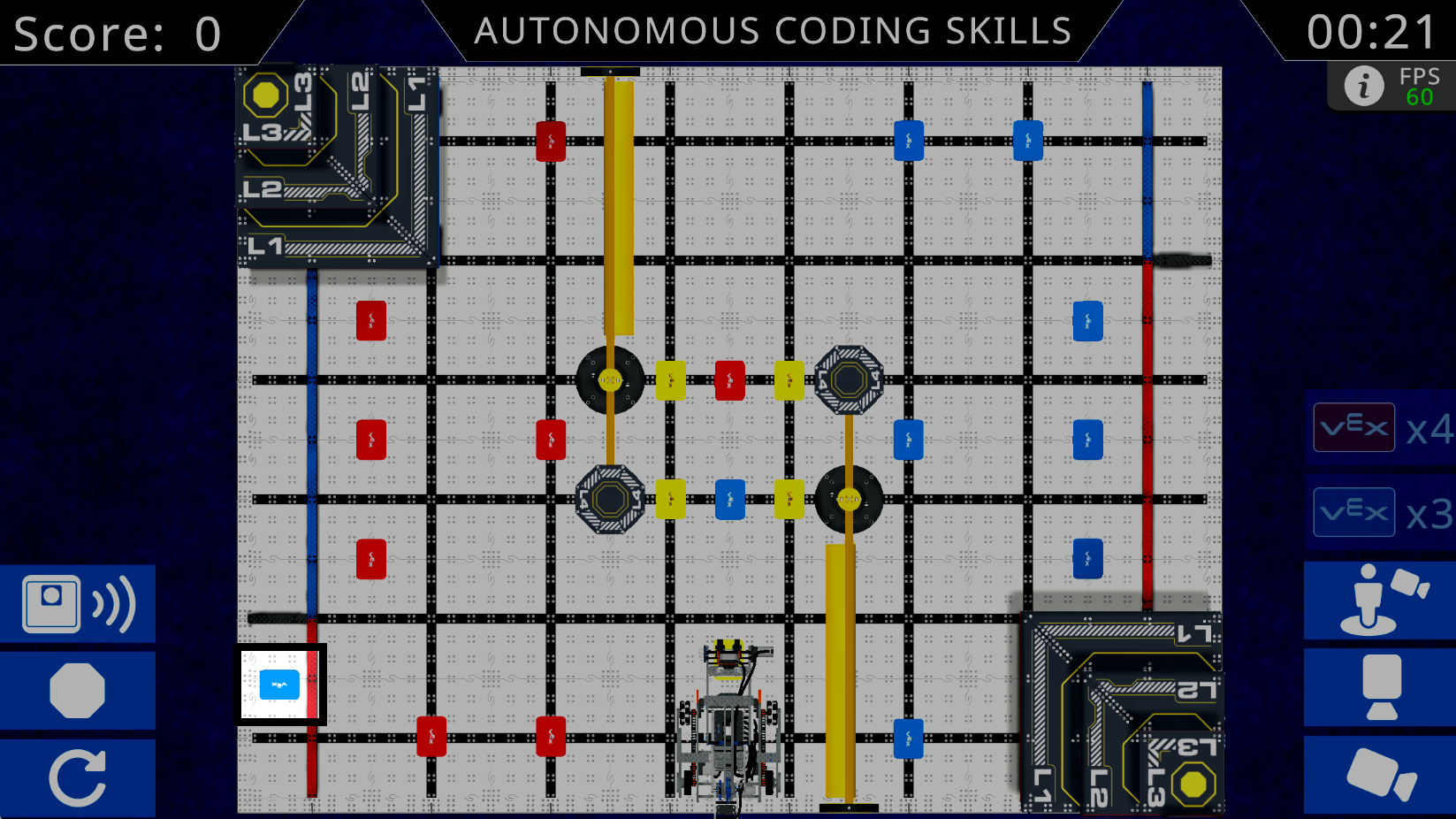

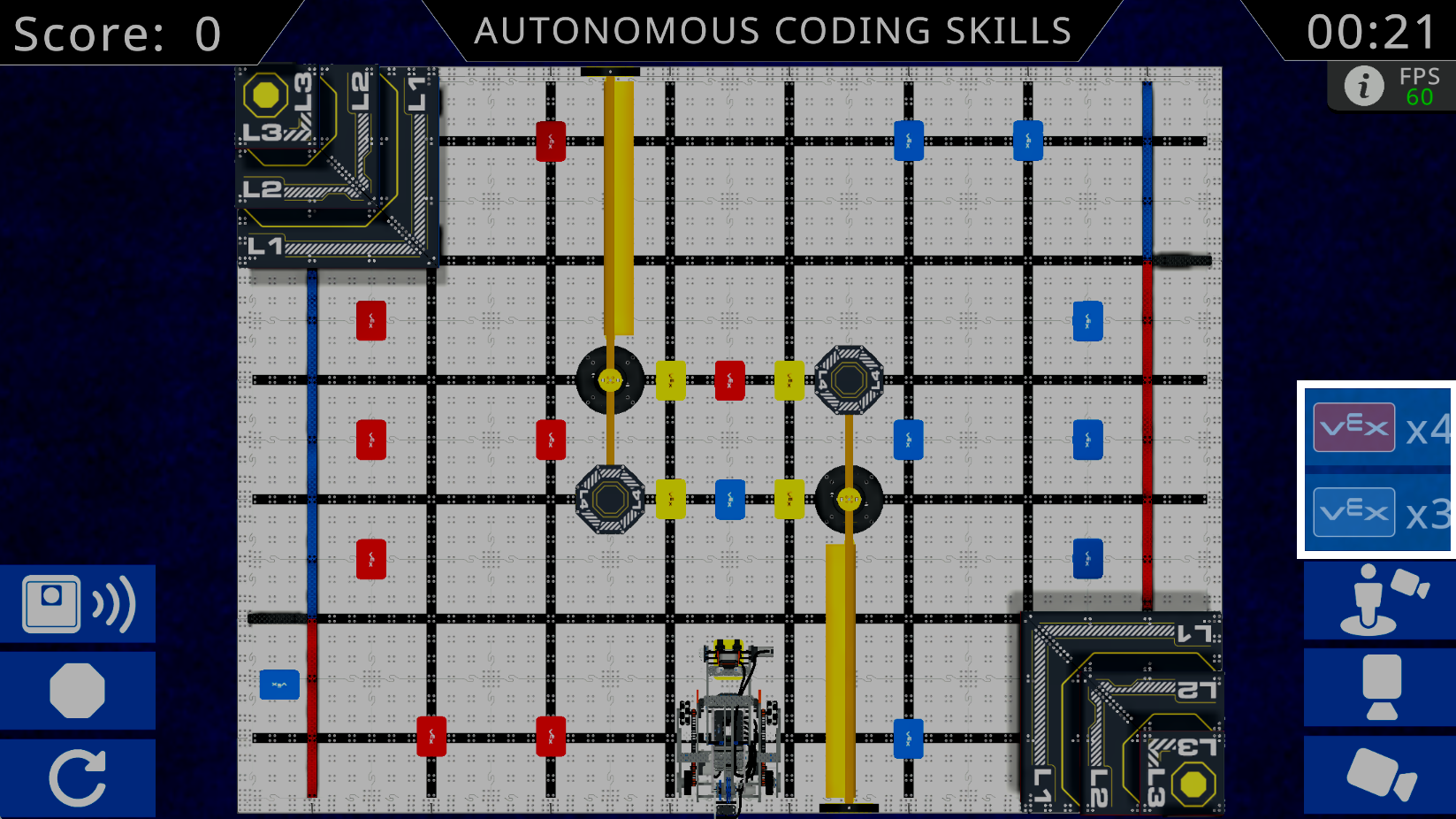

The Match Load buttons are located on the right side of the Playground Window. While a project is running, select the red or blue button to place a Bean Bag of that color in the Loading Zone for Flop to interact with.
Only one Bean Bag can be in the Loading Zone at a time. The buttons cannot be selected again until the current Bean Bag and the robot has been moved out of the Loading Zone.
The number on each button shows how many Bean Bags of that color are still available to place. Each count begins at four and decreases by one each time a Bean Bag of that color is placed.
Viewing AI Vision

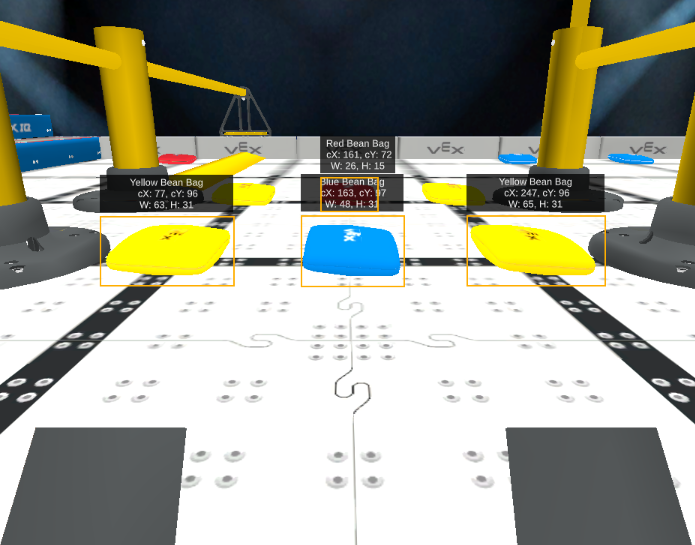

Select the AI Vision button to view the AI Vision camera viewer.
Data from the AI Vision will appear in a window to the left side of the Field. Here you will see the camera view from the AI Vision sensor, with data about any game elements in view.
To learn more about using AI Vision in the Level Up Playground, view the Blocks and Python support in the VEX API (Coming Soon).
Viewing Additional Information

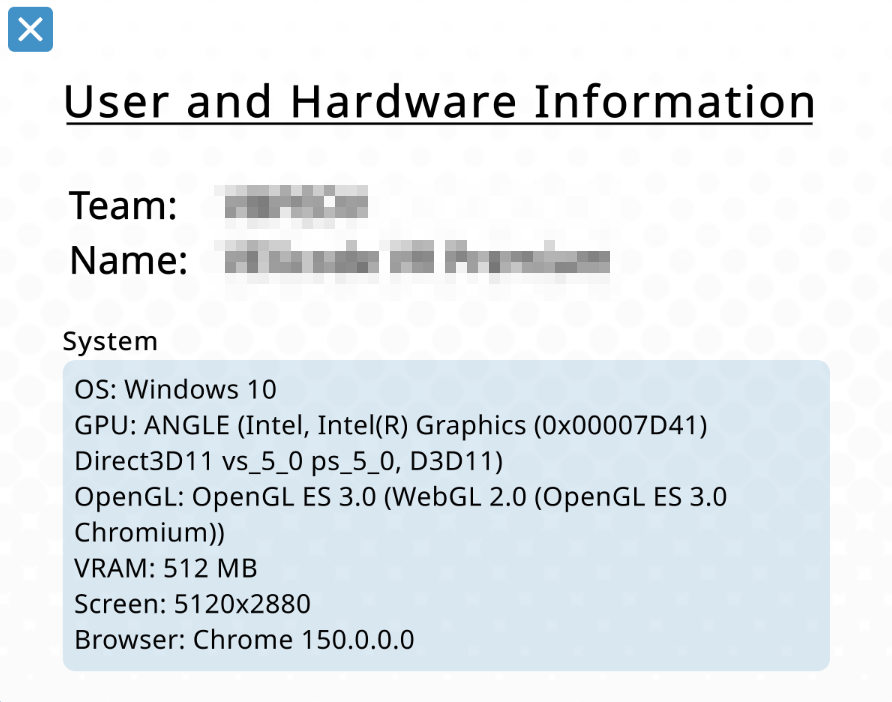

Select the Info icon to open the User and Hardware Information window.
Data about your device will be displayed in the User and Hardware Information window. This can be used to help troubleshoot any performance issues.
Select the X button in the upper-left corner to close the window and return to the Playground.
