Creating a New Blocks Project in VEXcode EXP

A new Blocks project opens any time you start VEXcode EXP. But, you can also open a new Blocks or Text project after VEXcode EXP has already started.

Note: when starting a new project, a prompt will appear asking you to save if the current project has not been saved yet.


Open a Template

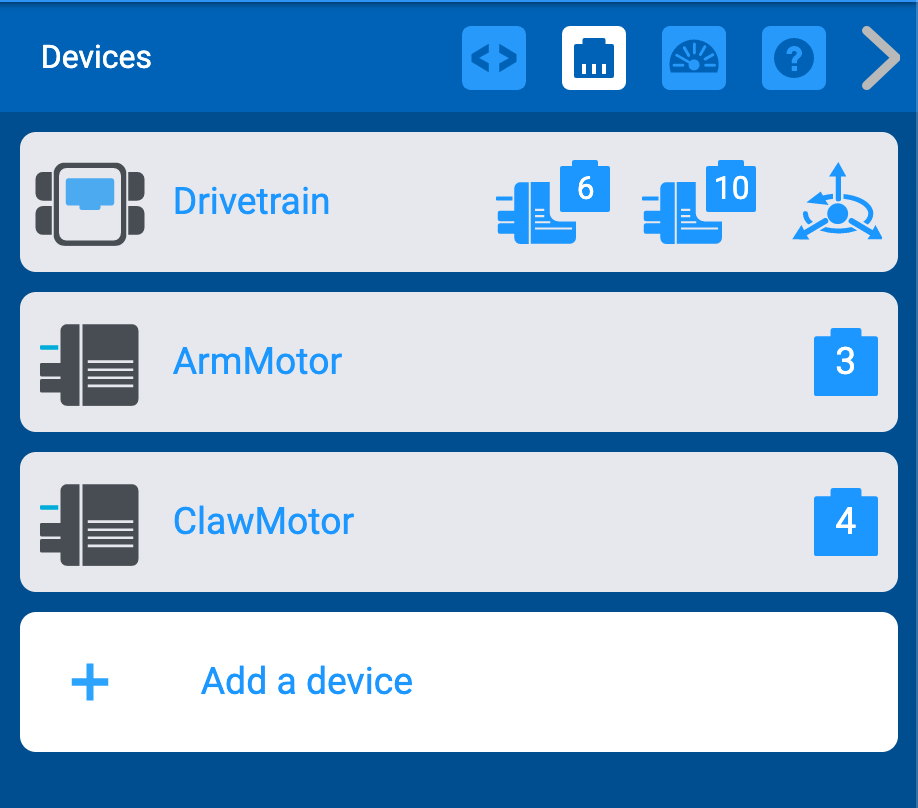

Templates have a special icon and are used to create a blank project with a preset device configuration.

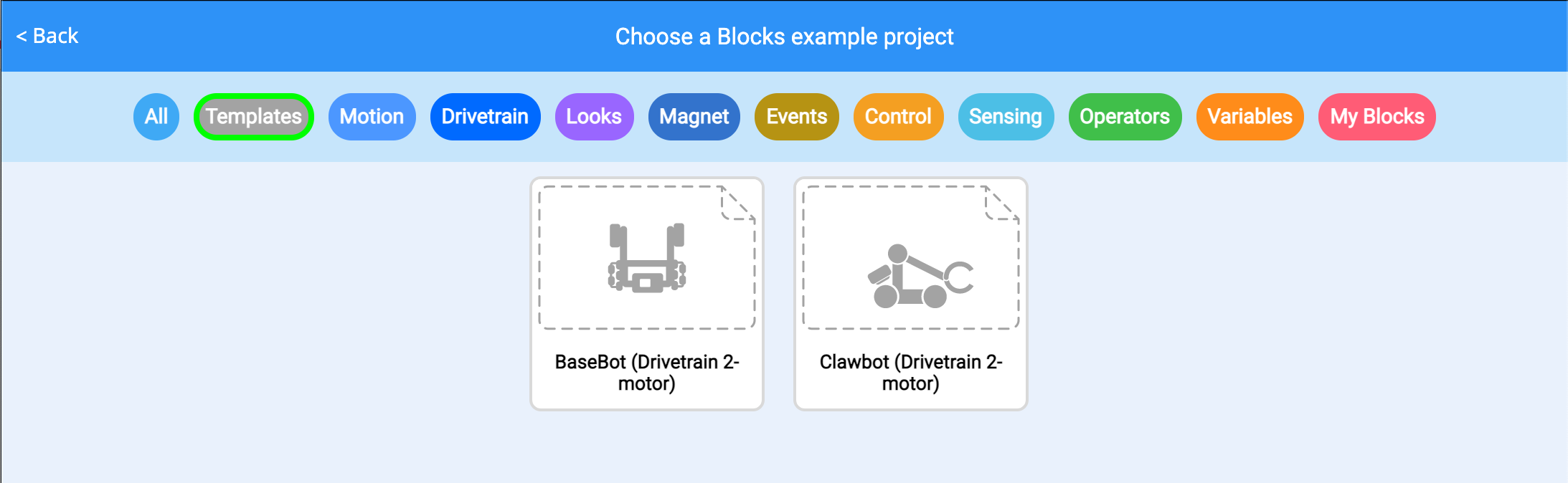

Open the File menu and select ‘Open Examples’ to open a template project.


If using a standard robot build, like the Clawbot, a Template can be used to quickly get started with a new project.


Open a Blank Project

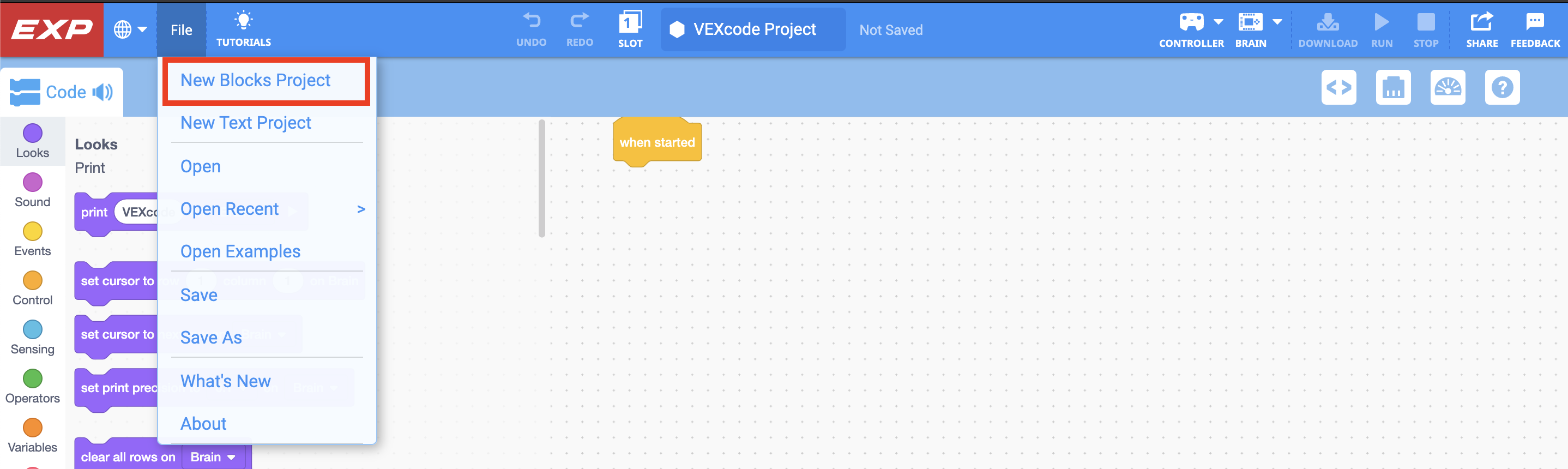

Open the File menu and select ‘New Blocks Project’ to open a new Blocks project.

For more information, help, and tips, check out the many resources at VEX Professional Development Plus
