Installing EXP Controller Battery

This article is not viewable in your language. Please check back at a future date.

This article's translation was completed by machine translation. Please forgive any possible errors.

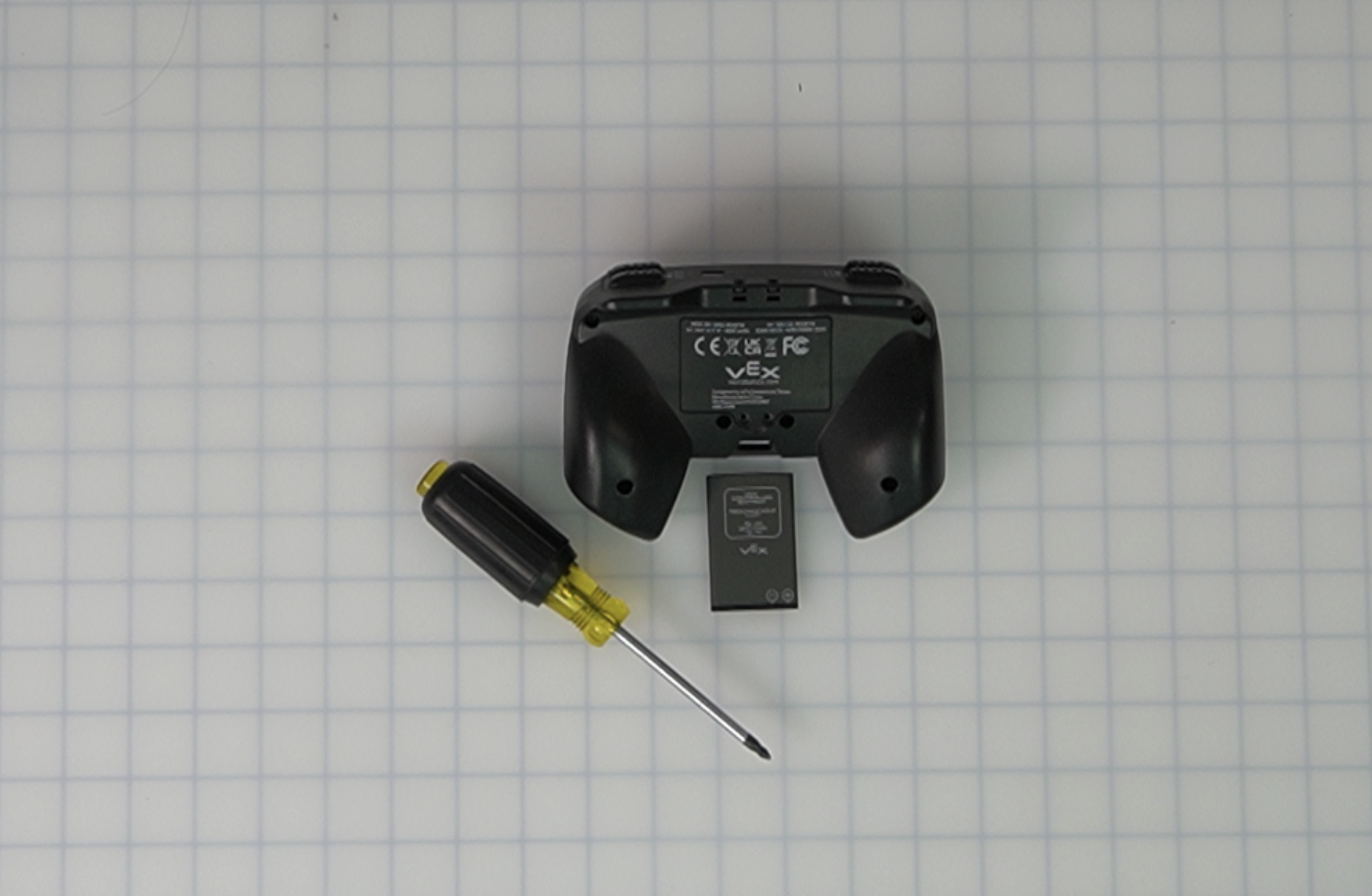

1. Have the following ready to install the Controller Battery:
   • VEX EXP Controller
   • VEX EXP Controller Battery
   • Phillips screwdriver

•

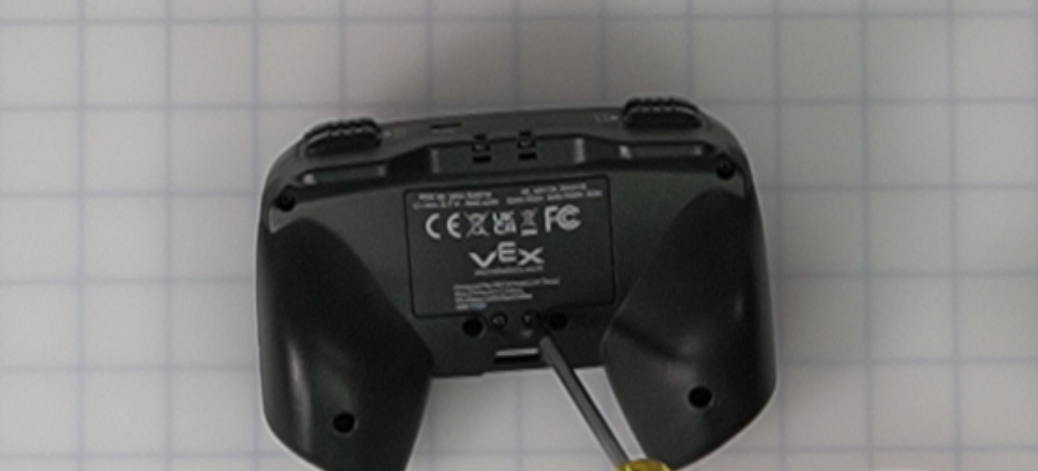

2. Open the Controller Battery door.
   • Use the Phillips screwdriver to loosen the screw and remove the battery door.

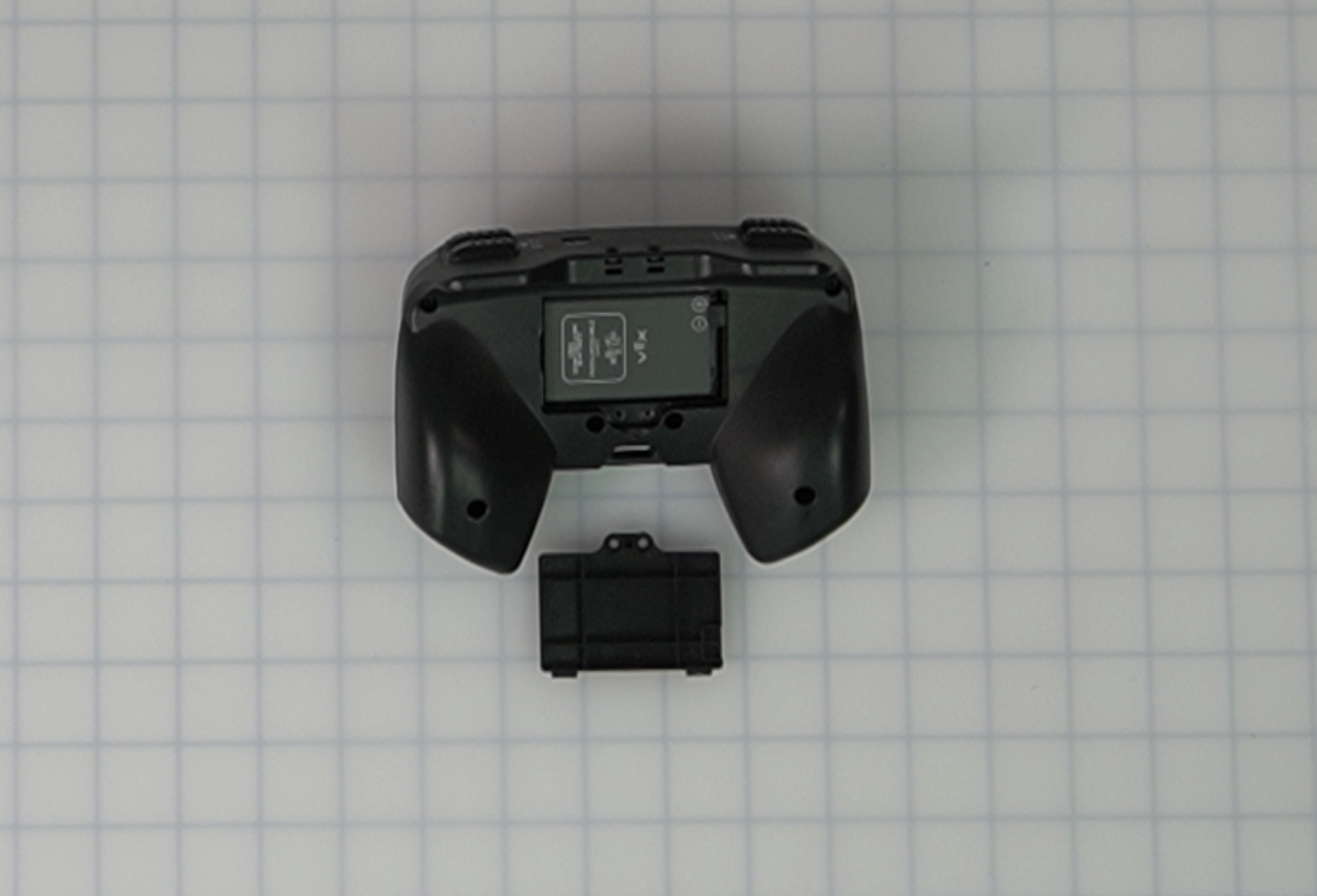

3. Place the battery inside the Controller.
   • Keep the printed side of the Controller Battery face up and align the negative (-) and positive (+) markers with the markers inside of the Controller.
   • Slide the battery into the Controller while keeping it below the plastic tab on the right near the positive and negative markers.



4. Replace the Controller Battery door.
   • Replace the battery door and screw it back into place.
