There are four Pneumatics Kits available for the V5 system.

Pneumatics Kit 1 - Single Acting Cylinders
Pneumatics Kit 1A - Single Acting Cylinder Add-On
Pneumatics Kit 2 - Double Acting Cylinders
Pneumatics Kit 2A - Double Acting Cylinder Add-On

For more information on the pneumatic components and how to use them, refer to Getting Started with Pneumatics with the V5 System.

Single Acting Cylinder Kits

Single acting pneumatic cylinder piece.

The single acting cylinder kits feature single acting pneumatic cylinders. The advantage of these cylinders is that a spring forces the rod to retract after the air is released from the cylinder, therefore the cylinder does not use as much air for each cycle of extending and retracting.

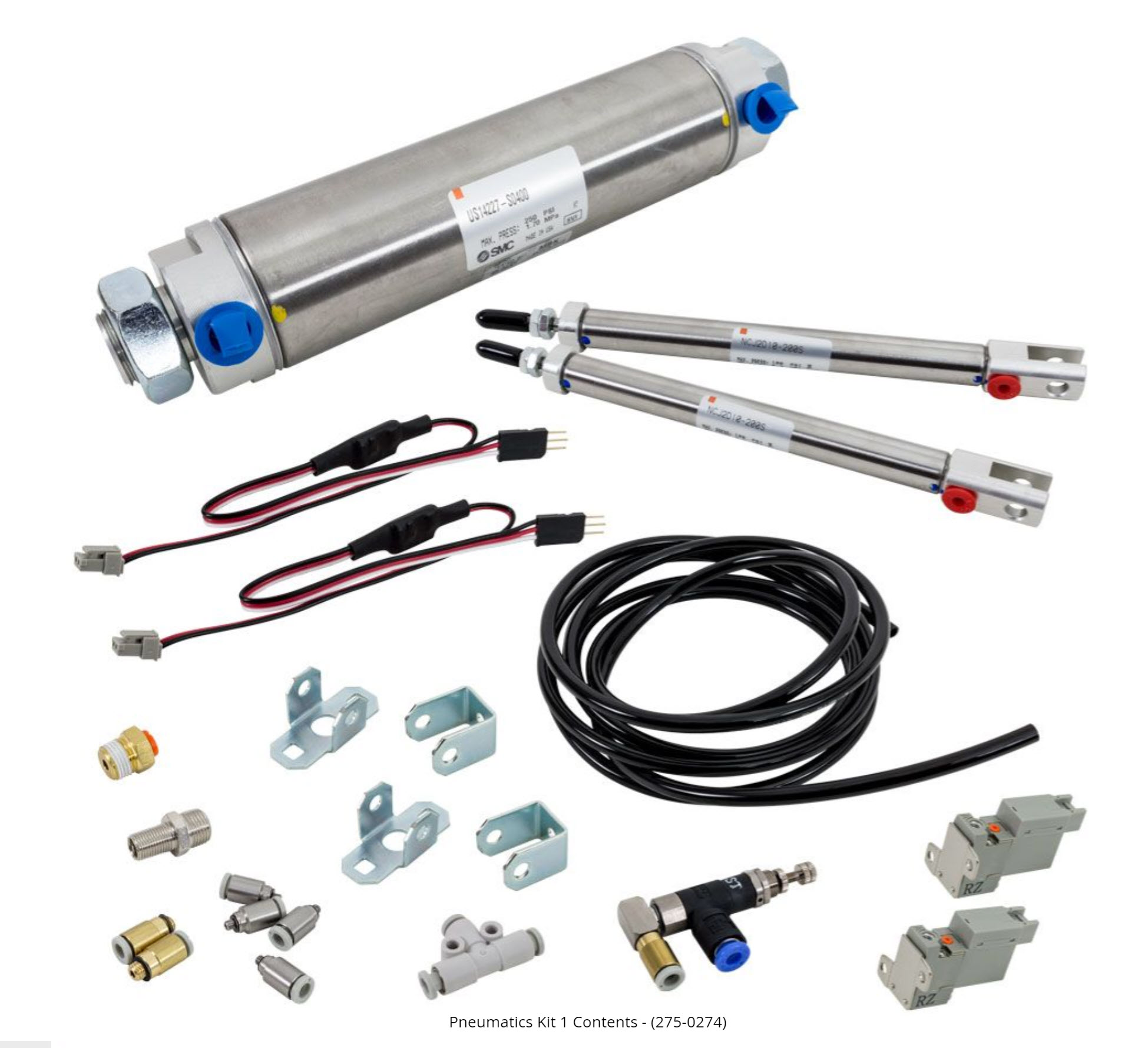

Pneumatics Kit 1 Contents with the pieces in similar categories grouped together.

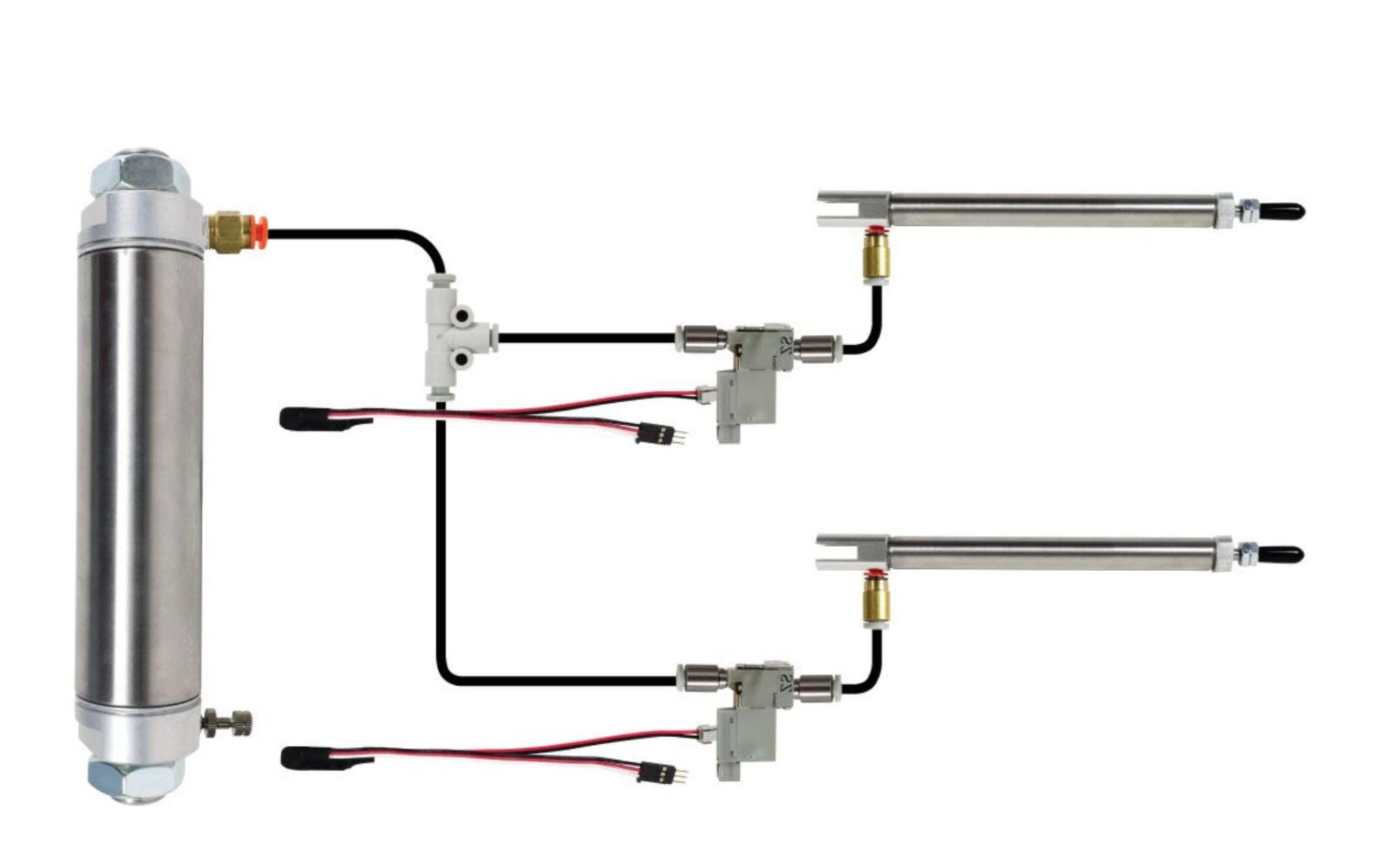

Example complete pneumatics system that can be built using parts from the Pneumatics Kit 1.

The Pneumatics Kit 1 - Single Acting Cylinders contains all of the components necessary to create a complete system to control two single acting pneumatic cylinders.

Pneumatics Kit 1 - Single Acting Cylinders (275-0274)

(2) Solenoid Driver - Cable w/Driver, Connects one VEX EDR 1/0 Port to one Solenoid
(1) Tire Pump Fitting - Shraeder Valve With 4mm Tube Fittings - 8090410075
(1) Reservoir - Reservoir, 1-1 /2" X 4", w 1 /8"NPT & MS port - US14227-S0400
(1) Pressure Regulator - Mini Regulator w/ 4mm Fittings - A-474-0000005
(1) "T" Fitting - "T" Fitting for Valves - KQ2T04-00 or "-00A"
(2) Cylinder - Single Acting Spring Return Cylinder 10mm Bore - NCJ2D10-200S
(2) Solenoid, On/Off - 3/2 Solenoid Valve, SVDC - SY113-SMO-PM3-F
(4) Fitting for Valves - 4mm Tubing x M3 Thread - KJS04-M3 or KJL04-M3 or KQ2S04-M3G
(1) Fitting for Reservoir - 1 /8 X 4mm Male Connector To Reservoir - KQ2H03-34S or "-34AS"
(2) Fitting for Cylinders - MS Male Connector for Cylinders - KQ2S04-M5 or "-MSA"
(1) Tubing - 4mm X 1696mm Length Tubing - TUO425B-X81US1696
(2) Cylinder Mount - Mount for Cylinder - CYLINDER-MOUNT
(2) Cylinder Rod Pivot - Pivot for the Cylinder Rod - CYLINDER-ROD-PIVOT

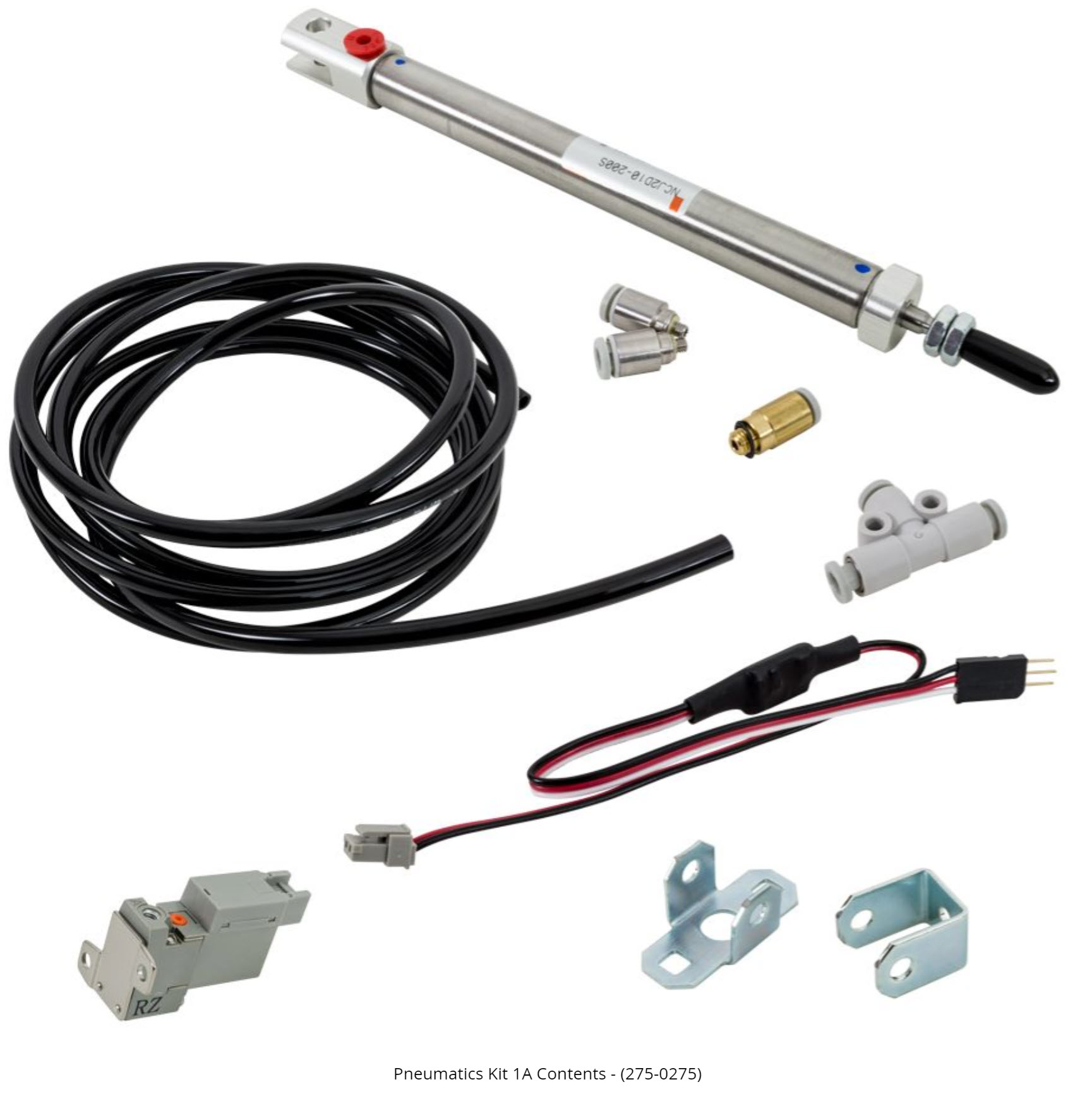

Pneumatics Kit 1A Contents with the pieces in similar categories grouped together.

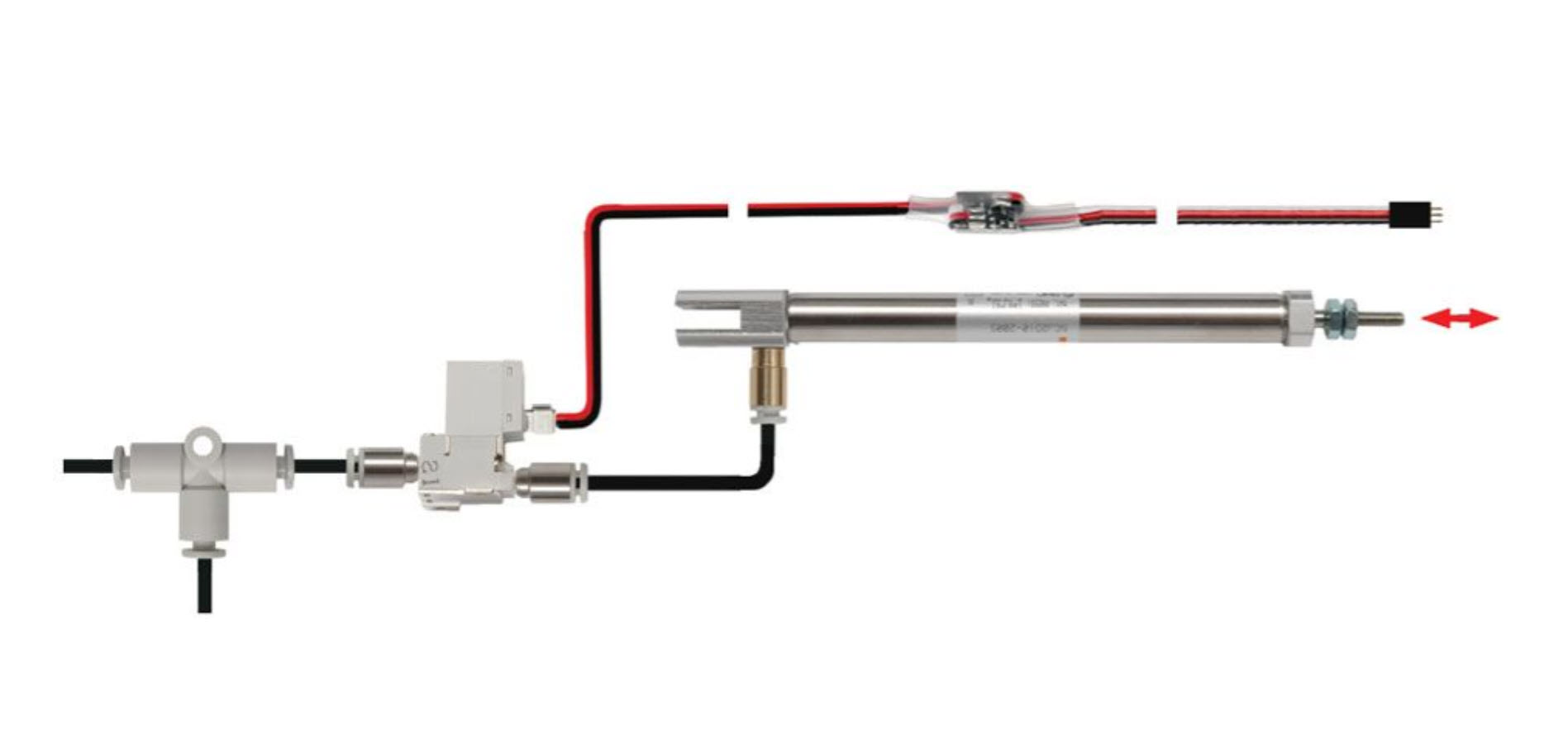

Example additional single acting pneumatics cylinder that can be built using parts from the Pneumatics Kit 1A.

The Pneumatics Kit 1A - Single Acting Cylinder Add-On contains all of the components to add an additional single acting pneumatic cylinder to your system.

This kit cannot be used as a stand alone item. It needs to be used with either a Pneumatic Kit 1 or a Pneumatics Kit 2 in order to function.

Pneumatics Kit 1A - Single Acting Cylinder Add-On (275-0275)

(1) Solenoid Driver - Cable w/Driver, Connects one VEX EDR I/O Port to one Solenoid
(1) "T" Fitting - "T" Fitting for Valves - KQ2T04-00 or "-00A"
(1) Cylinder - Single Acting Spring Return Cylinder 10mm Bore - NCJ2D10-200S
(1) Solenoid, On/Off - 3/2 Solenoid Valve, 5VDC - SY113-SMO-PM3-F
(2) Fitting for Valves - Fitting 4mm Tubing x M3 Thread - KJS04-M3 or KQ2S04-M3G
(1) Fitting for Cylinders - M5 Male Connector for Cylinders - KQ2S04-M5 or "-M5A"
(1) Cylinder Mount - Mount for Cylinder - CYLINDER-MOUNT
(1) Cylinder Rod Pivot - Pivot for the Cylinder Rod - CYLINDER-ROD-PIVOT
(1) Tubing - 4mm X 1696mm Length Tubing - TUO425B-X81US1696

Double Acting Cylinder Kits

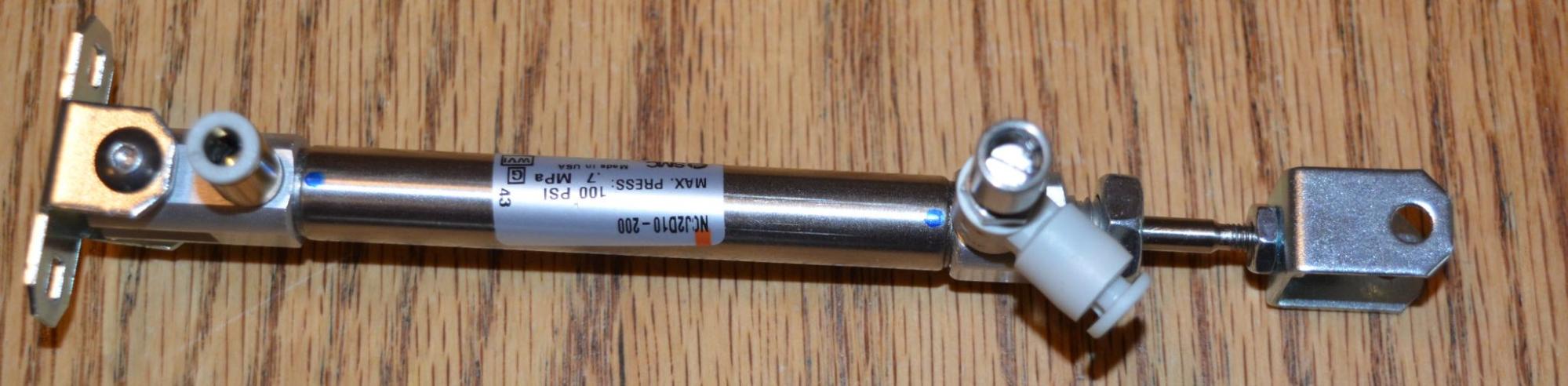

Double acting pneumatic cylinder piece.

The double acting cylinder kits feature double acting pneumatic cylinders. The advantage of these cylinders is that when the rod is extending it does not have to overcome the force of the spring which is found within the single acting pneumatic cylinders. In addition, the rod is pushed back in (retracted) by the air pressure. This means it is possible for the double acting cylinders to produce more force in both directions than the single acting pneumatic cylinders.

Pneumatics Kit 2 Contents with the pieces in similar categories grouped together.

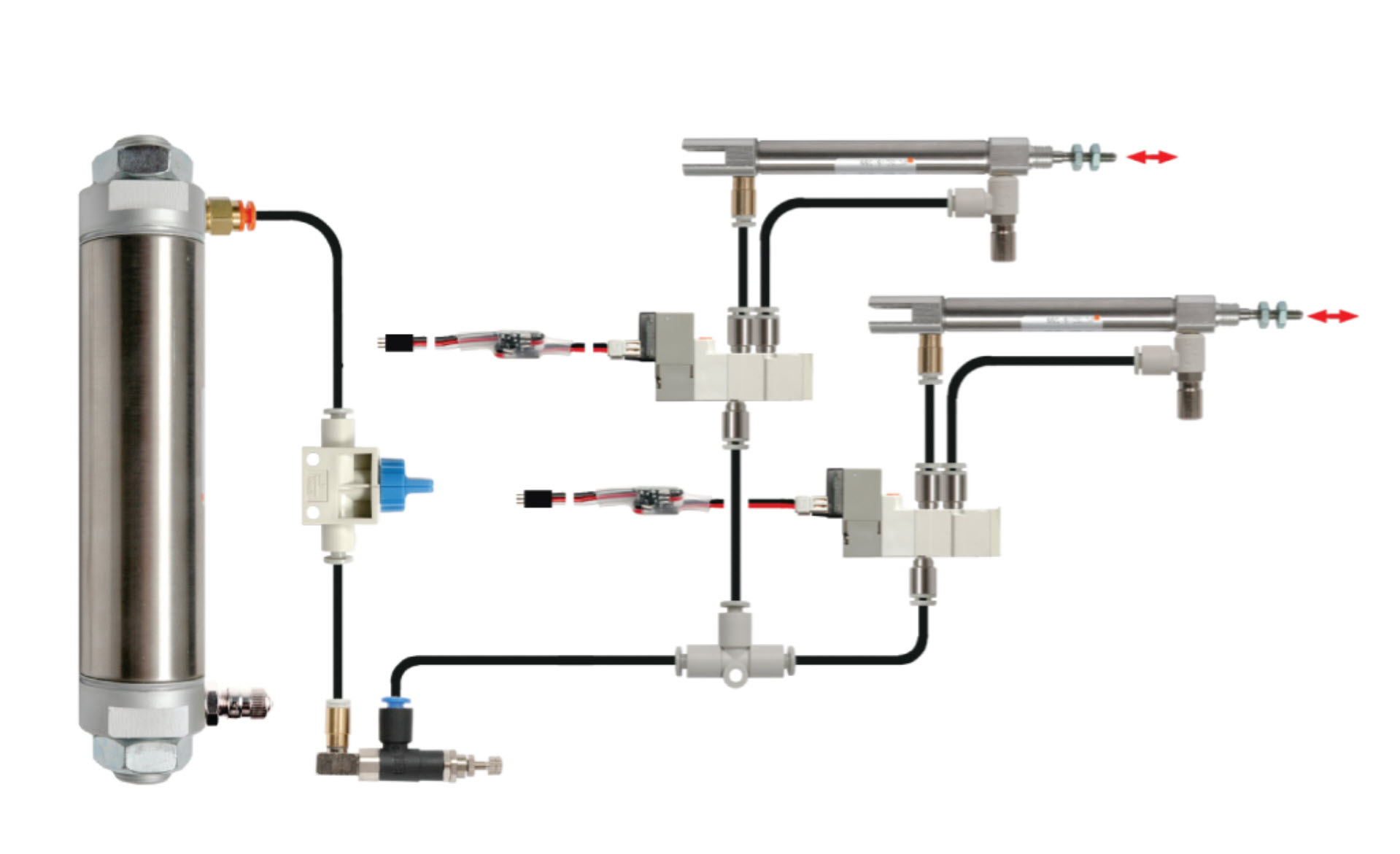

Example complete pneumatics system that can be built using parts from the Pneumatics Kit 2.

The Pneumatics Kit 2 - Double Acting Cylinders contains all of the components necessary to create a complete system to control two double acting pneumatic cylinders.

The Pneumatics Kit 2 contains two flow meters and an on-off switch which is not found in the Pneumatics Kit 1

Pneumatics Kit 2 - Double Acting Cylinders (275-0276)

(2) Solenoid Driver - Cable w/Driver, Connects one VEX EDR I/O Port to one Solenoid
(1) Tire Pump Fitting - Shraeder Valve With 4mm Tube Fittings - 8090410075
(1) Reservoir - Reservoir, 1-1/2" X 4", w 1/8"NPT & M5 port - US14227-S0400
(1) On/Off Switch - Finger Valve - VHK3-04F-04F
(1) Pressure Regulator - Mini Regulator w/ 4mm Fittings - A-474-0000005
(1) "T" Fitting - "T" Fitting for Valves - KQ2T04-00 or "-00A"
(2) Cylinder, Bi-directional - Dbl Acting Cylinder 10mm Bore - NCJ2D10-200
(2) Solenoid, Fwd, Reverse - 5/2 Single Solenoid Valve, 5VDC - SYJ3120-SMO-M3-F
(2) Flow Meter - M5 elbow meter out flow control 4mm tubing - AS1201F-M5-04T
(6) Fitting for Valves - Fitting 4mm Tubing x M3 Thread - KJS04-M3 or "-M3G"
(1) Fitting for Reservoir - 1/8 X 4mm Male Connector To Reservoir - KQ2H03-34S or "-34AS"
(2) Fitting for Cylinders - M5 Male Connector for Cylinders - KQ2S04-M5 or "-M5A"
(1) Tubing - 4mm X 1696mm Length Tubing - TUO425B-X81US1696
(2) Cylinder Mount - Mount for Cylinder - CYLINDER-MOUNT
(2) Cylinder Nut - Nut for the Cylinder Mount - CYLINDER-NUT
(2) Cylinder Rod Pivot - Pivot for the Cylinder Rod - CYLINDER-ROD-PIVOT

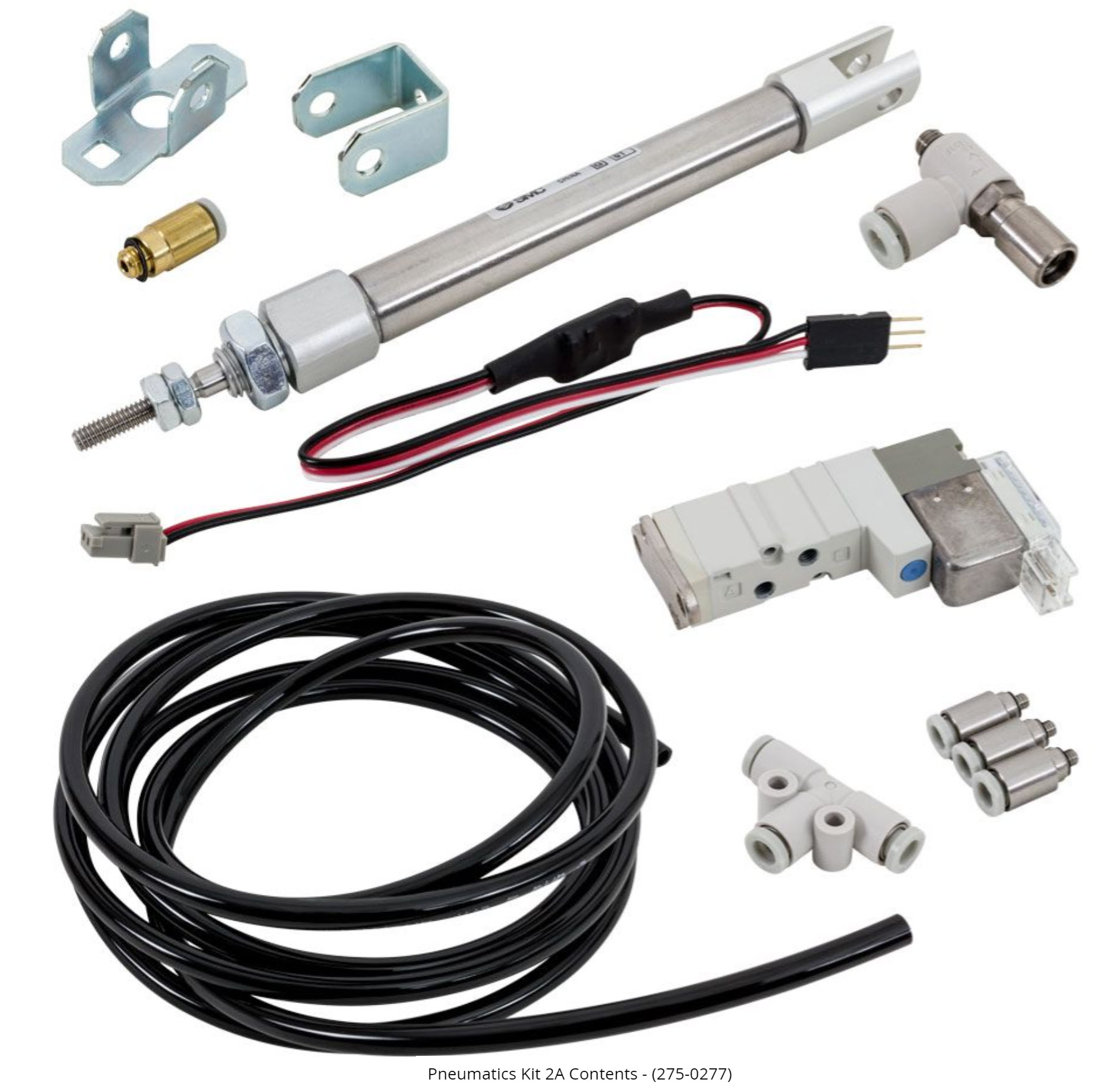

Pneumatics Kit 2A Contents with the pieces in similar categories grouped together.

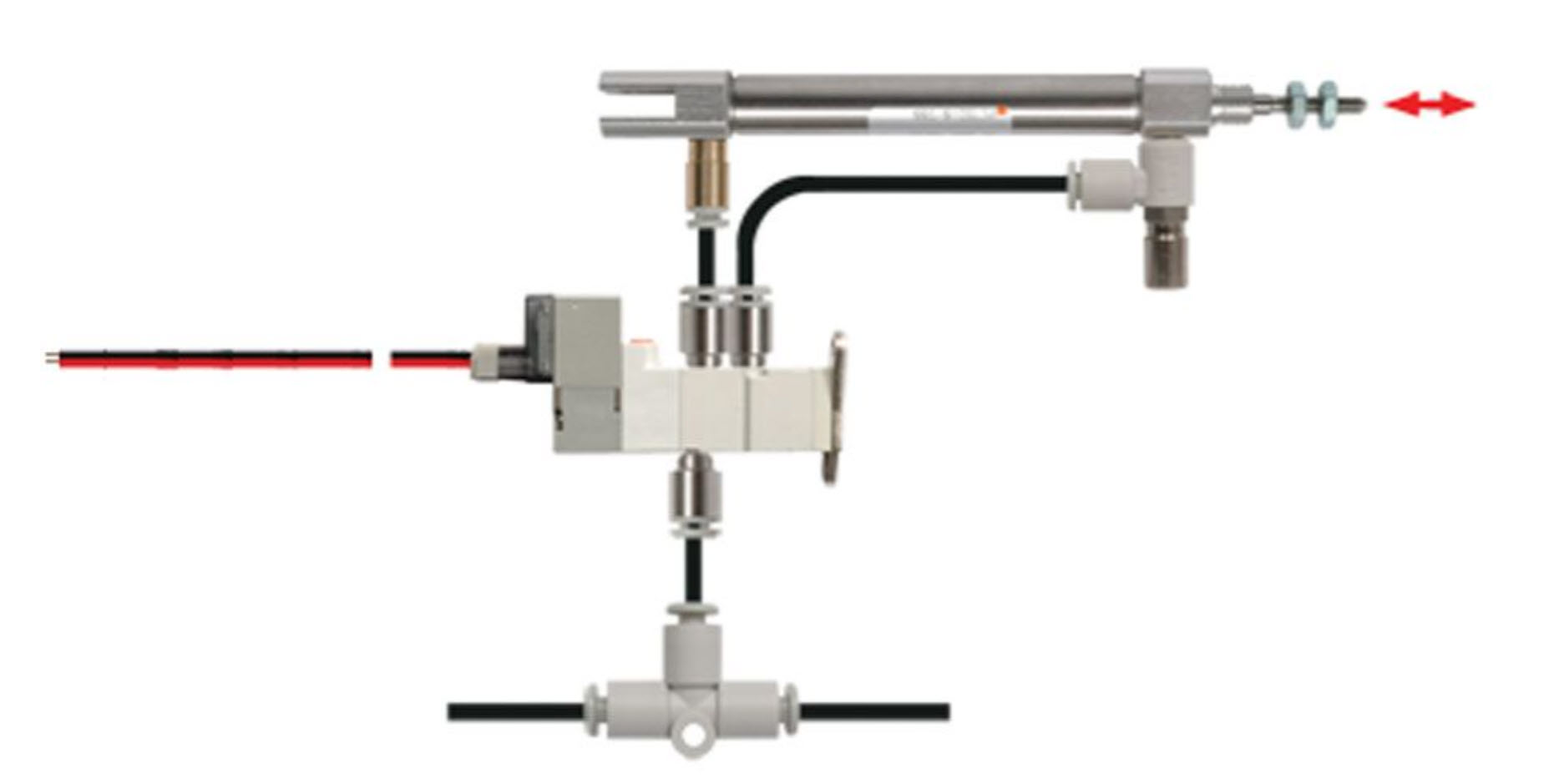

Example additional double acting pneumatics cylinder that can be built using parts from the Pneumatics Kit 1A.

The Pneumatics Kit 2A - Double Acting Cylinder Add-On contains all of the components to add an additional double acting pneumatic cylinder to your system.

This kit cannot be used as a stand alone item. It needs to be used with either a Pneumatic Kit 1 or a Pneumatics Kit 2 in order to function.

Pneumatics Kit 2A - Double Acting Cylinder Add-On (275-0277)

(1) Solenoid Driver - Cable w/Driver, Connects one VEX EDR I/O Port to one Solenoid
(1) "T" Fitting - "T" Fitting for Valves - KQ2T04-00 or "-00A"
(1) Cylinder, Bi-directional - Dbl Acting Cylinder 10mm Bore - NCJ2D10-200
(1) Flow Meter - M5 elbow meter out flow control 4mm tubing - AS1201F-M5-04T
(1) Solenoid, Fwd, Reverse - 5/2 Single Solenoid Valve, 5VDC - SYJ3120-SMO-M3-F
(3) Fitting for Valves - Fitting 4mm Tubing x M3 Thread - KJS04-M3 or KQ2S04-M3G
(1) Fitting for Cylinders - M5 Male Connector for Cylinders - KQ2S04-M5 or "-M5A"
(1) Tubing - 4mm X 1696mm Length Tubing - TUO425B-X81US1696
(1) Cylinder Nut - Nut for the Cylinder Mount - CYLINDER-NUT
(1) Cylinder Rod Pivot - Pivot for the Cylinder Rod - CYLINDER-ROD-PIVOT
(1) Cylinder Mount - Mount for Cylinder - CYLINDER-MOUNT

Additional Parts

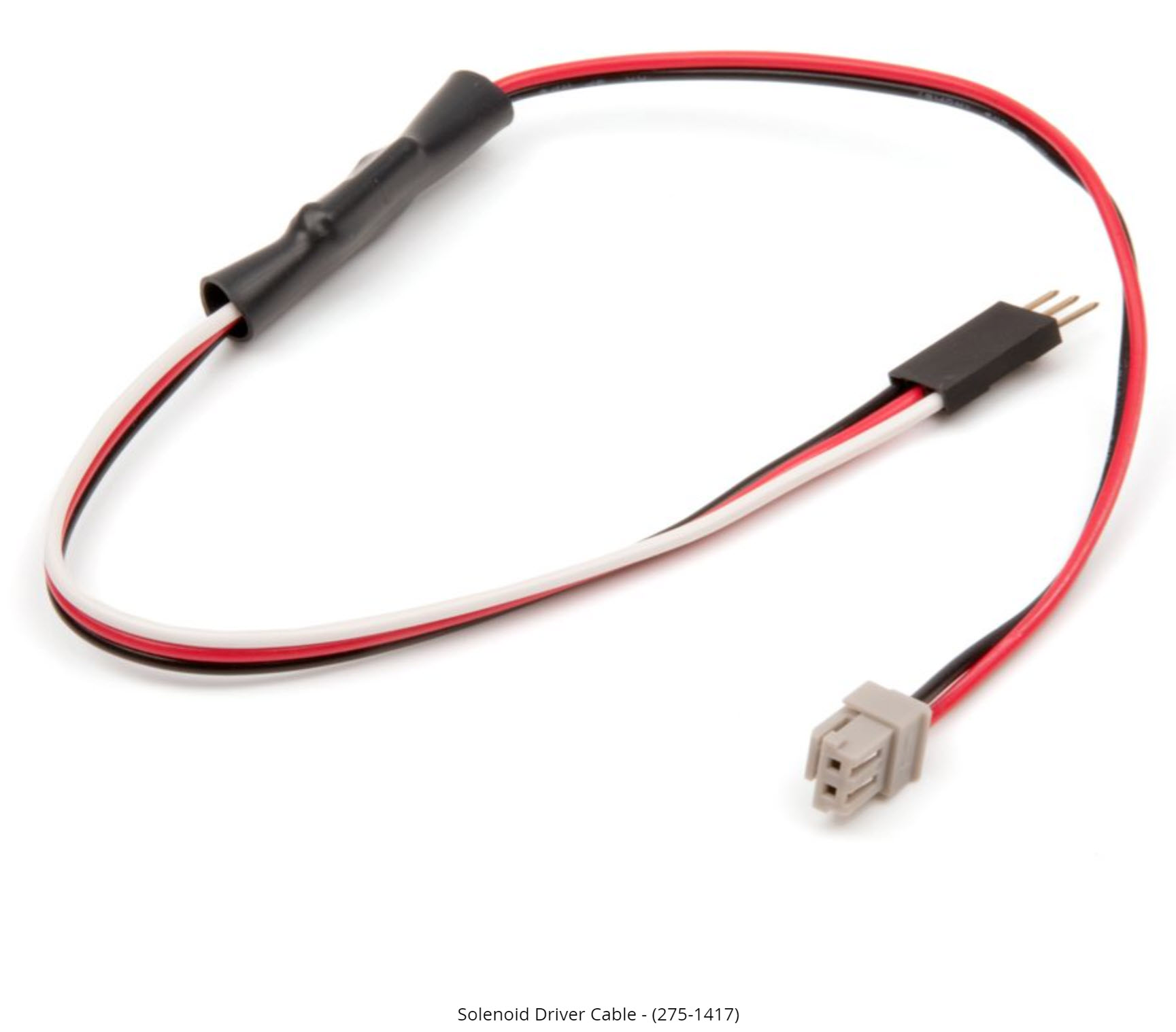

Solenoid Driver Cable piece.

Solenoid Driver Cable (2-pack) contains two solenoid driver cables for replacement should an original Solenoid Driver Cable become damaged.

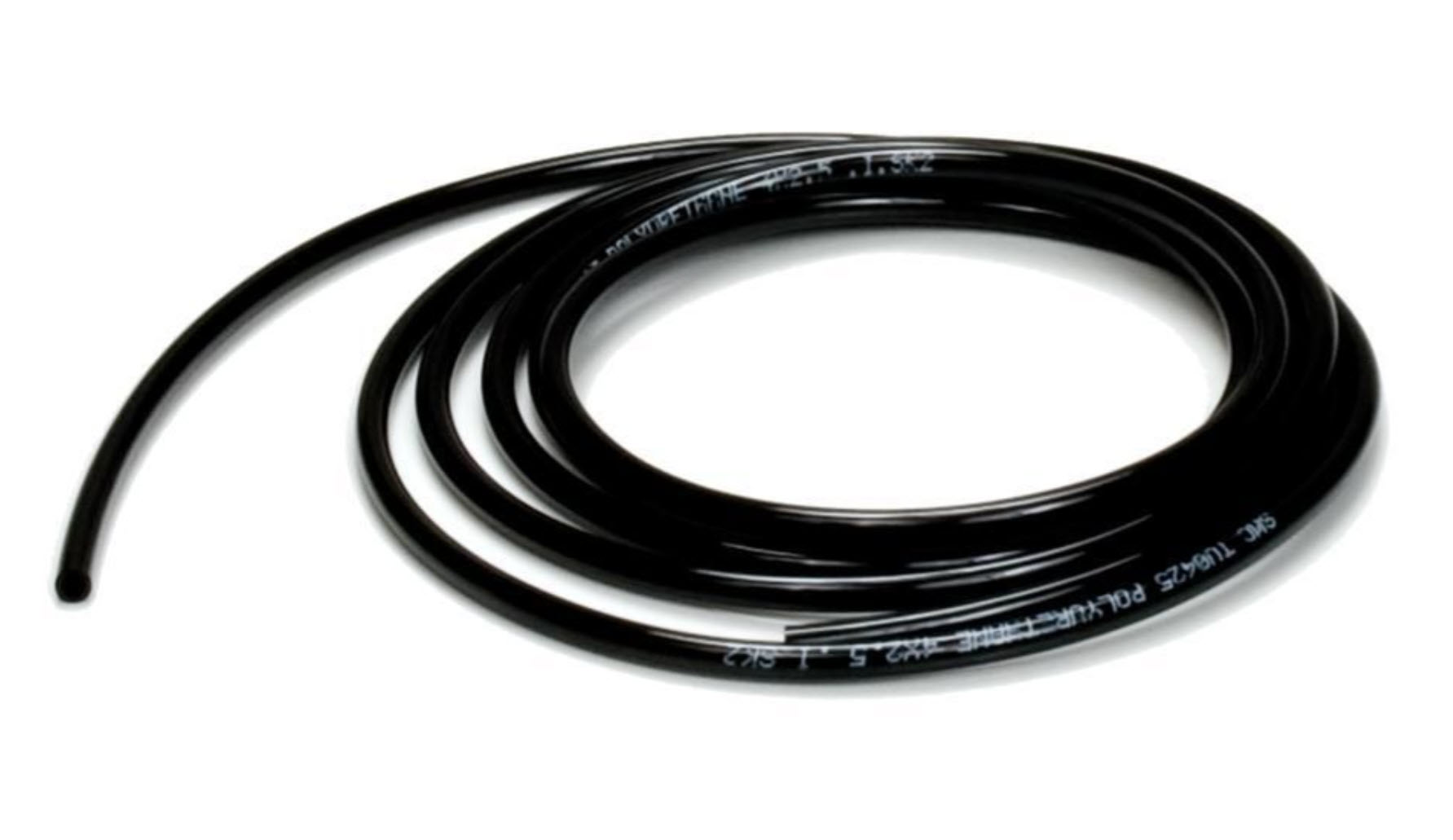

Pneumatic tubing piece.

Additional pneumatic tubing is available to allow you to separate your pneumatic components with larger distances.
