V5 Workcell Kit Storage - Bin 2: Electronics and Tools

This article will cover the pieces from the V5 Workcell Kit that will be organized into Storage Bin 2.

There are three components to organizing Storage Bin 2:


Tray 1


Tray 2


Base

This article organizes each piece in Bin 2 and provides the following information in a table form from left to right:

  • Part: This is the name of the part. Hyperlinks are provided for replacement parts available to purchase individually at vexrobotics.com.
    Photo: This is an image of the part. Use this for reference while unboxing your kit and building the V5 Workcell.
  • Part Number: If a part comes in a larger kit, bag, or box, the part number of the kit, bag, or box and the individual part number is provided. Use these part numbers to identify your pieces while unboxing and then building the V5 Workcell.
  • Quantity: This is the quantity of each part provided. Use this to ensure you have the correct number of parts in each location in the Bin or Tray while unboxing.
  • Bag Notes: This column provides information about how the part or parts in that kit, bag, or box will be received. If the parts come in a larger kit, bag, or box, an image of the label is provided for reference. Use these for reference when unboxing your kit.

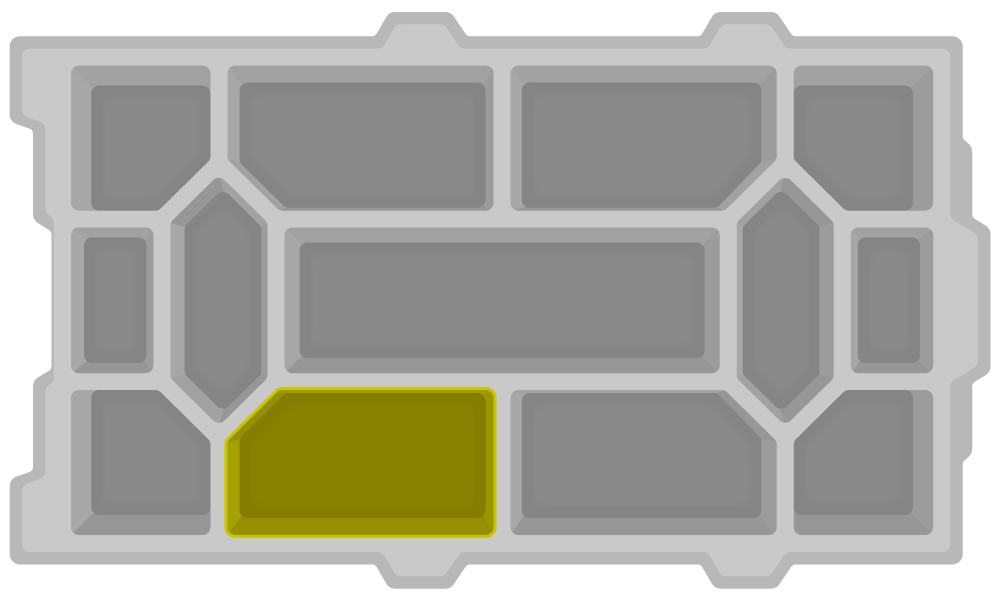

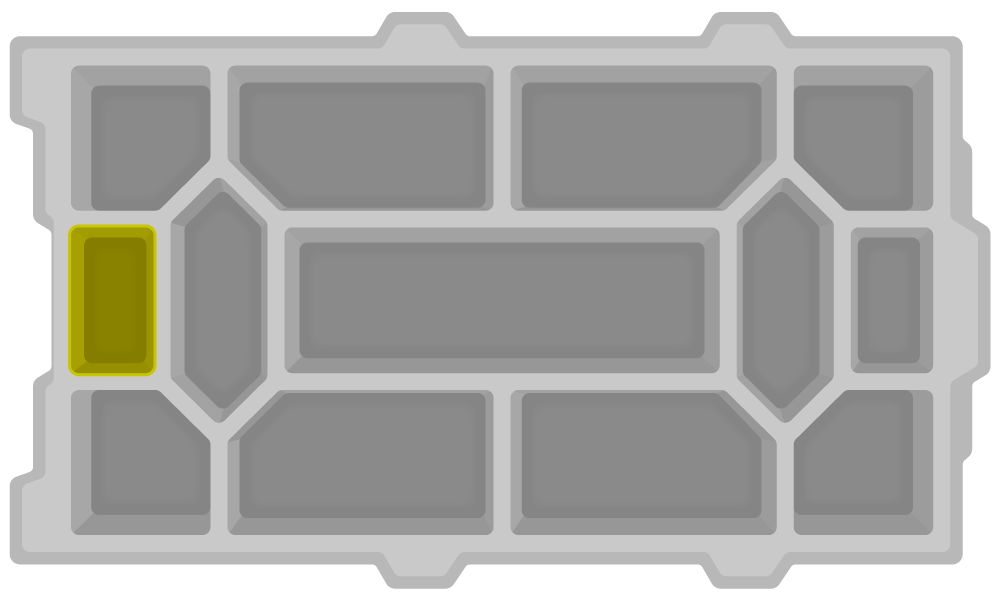

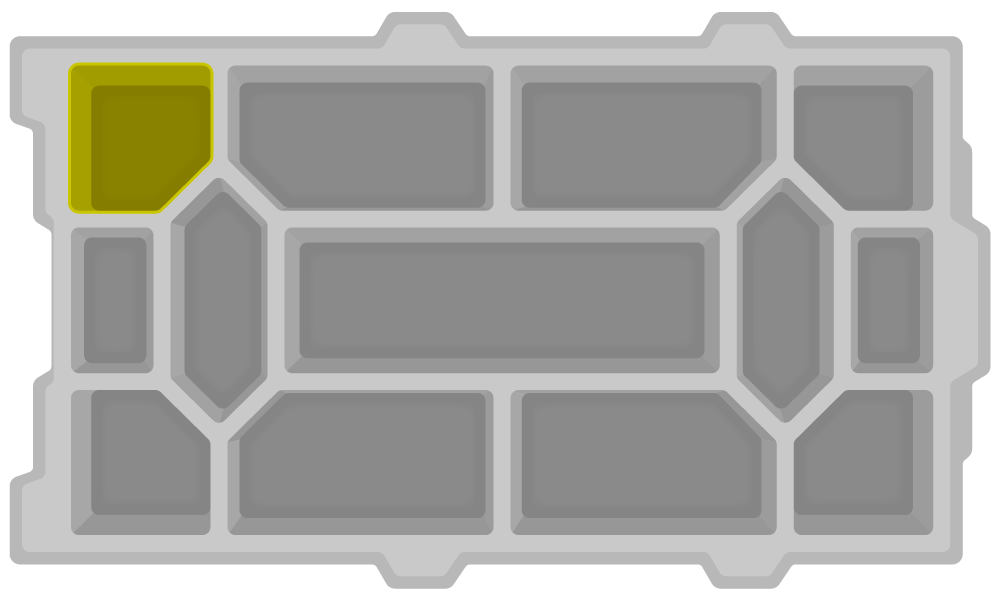

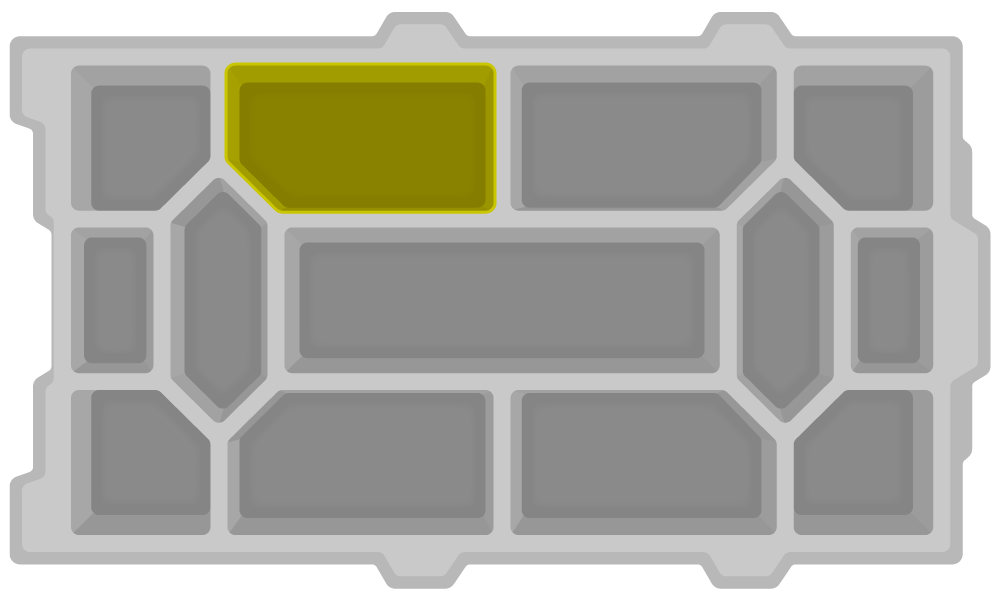

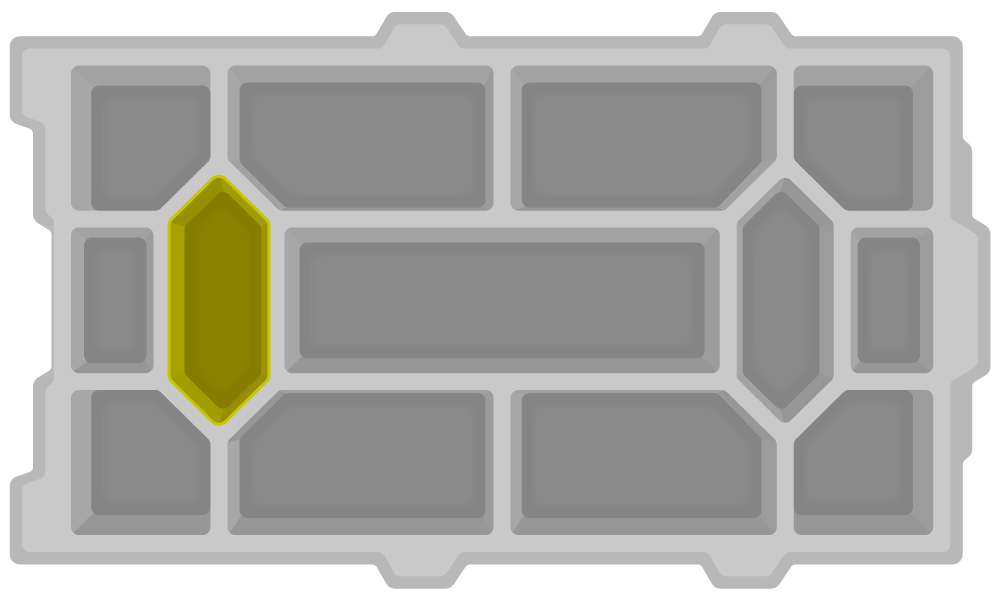

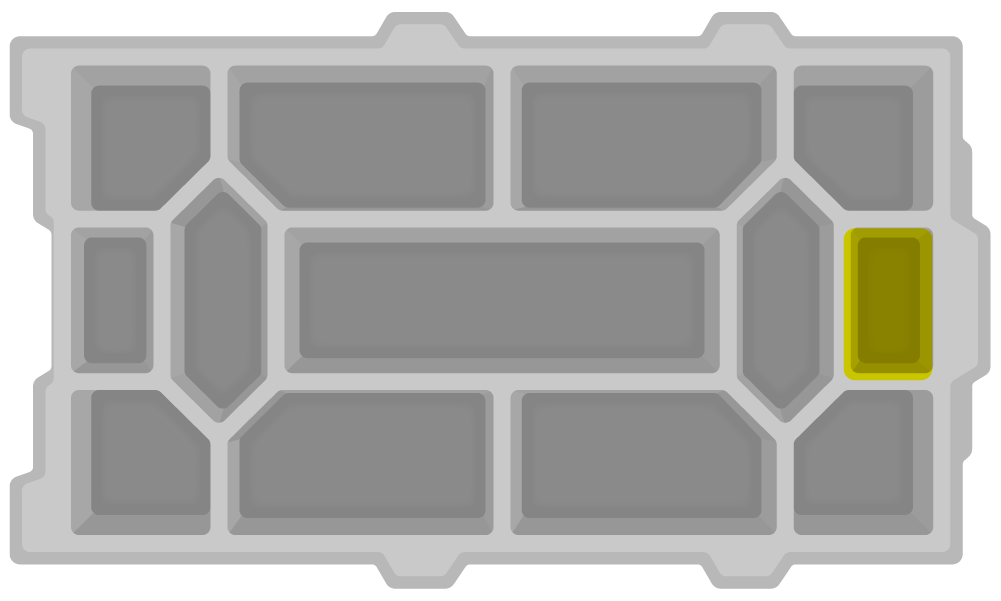

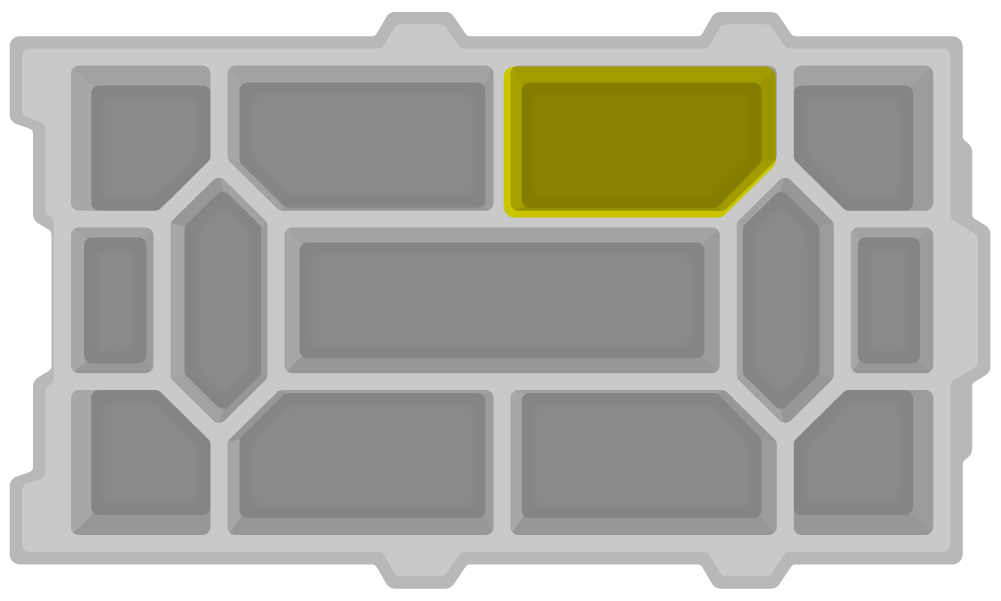

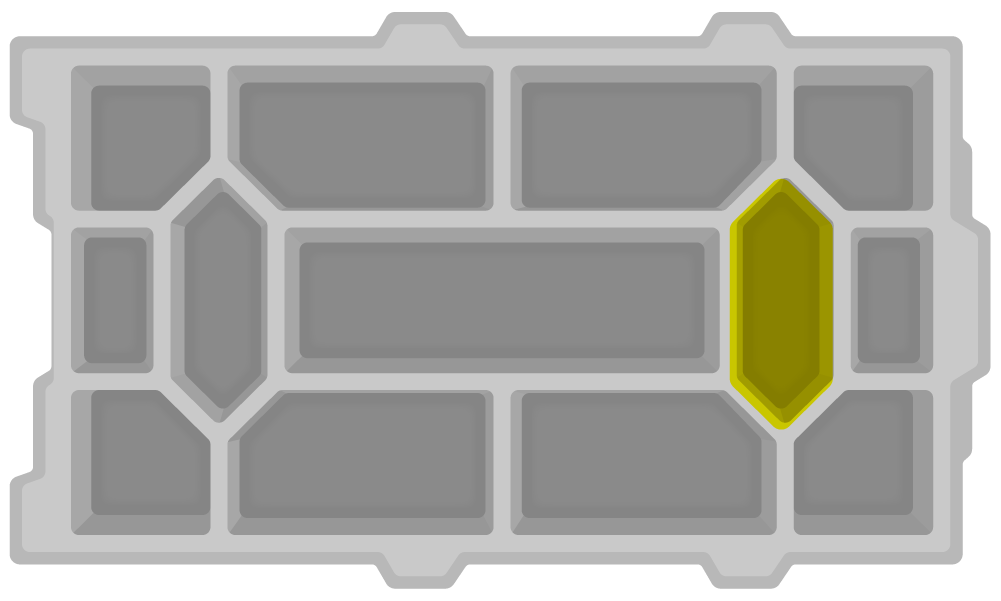

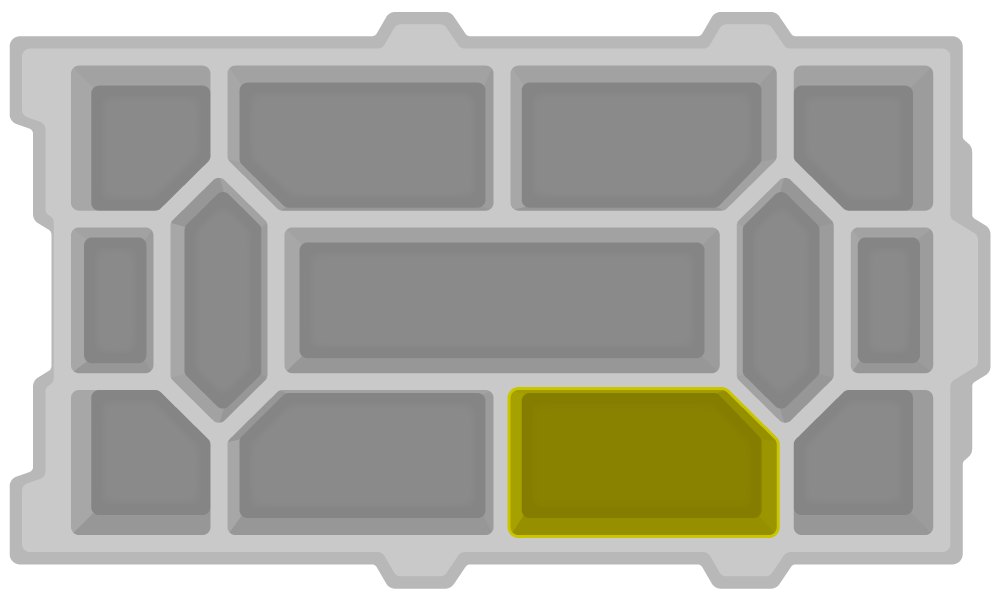

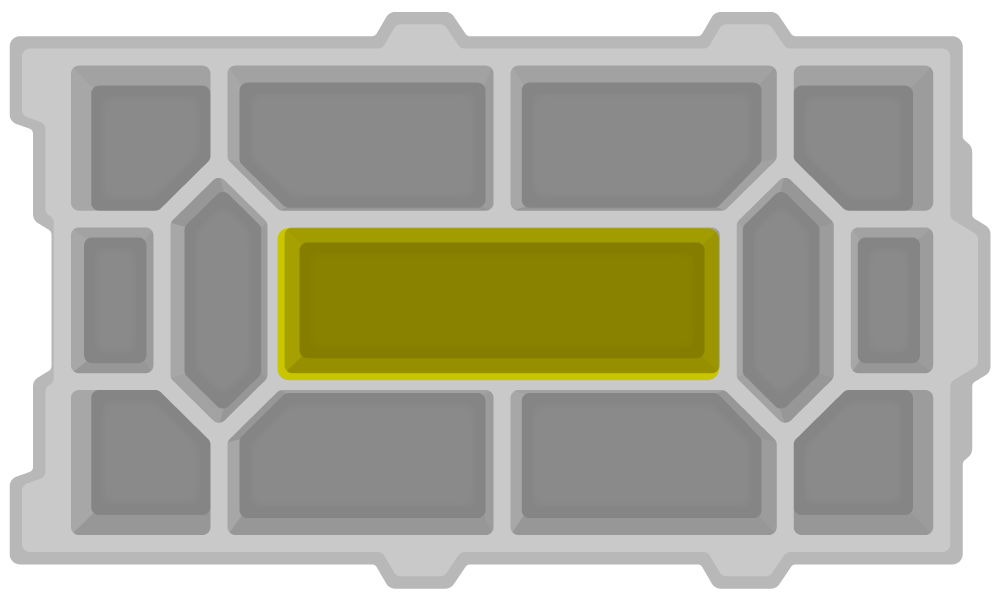

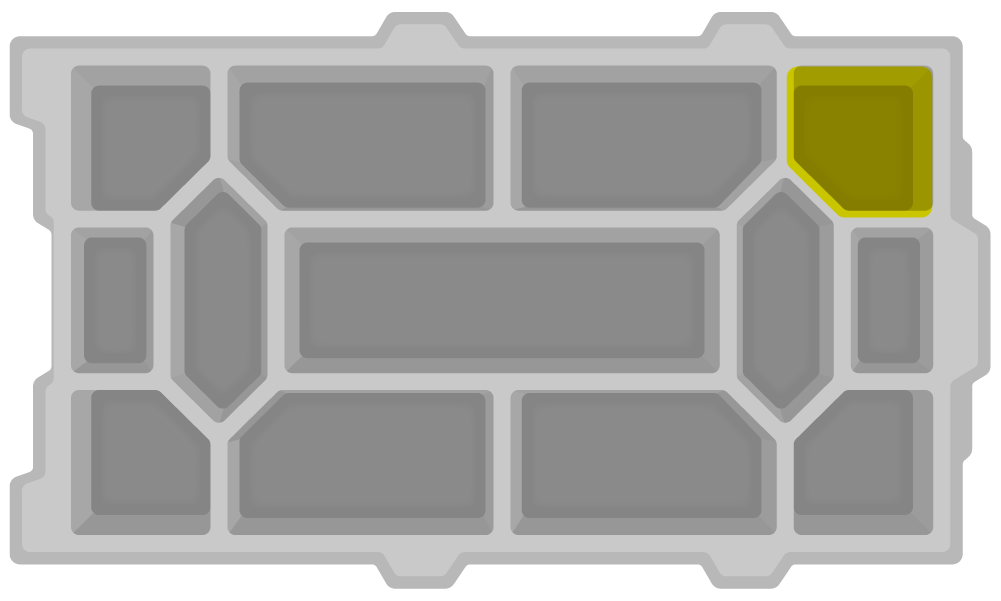

  • Location: This is an image of the Bin or Tray with a highlight on where the part should be placed in that Bin or Tray. This information can also be useful while building the V5 Workcell if a reminder is needed for where a part is located.
    • Helpful Hints: These are provided in the Location column. These hints provide extra context or information on packaging, identifying part numbers, or tips for additional organization.

Storage Bin 2: Tray 1

Part Photo Part Number Quantity Bag Notes Location

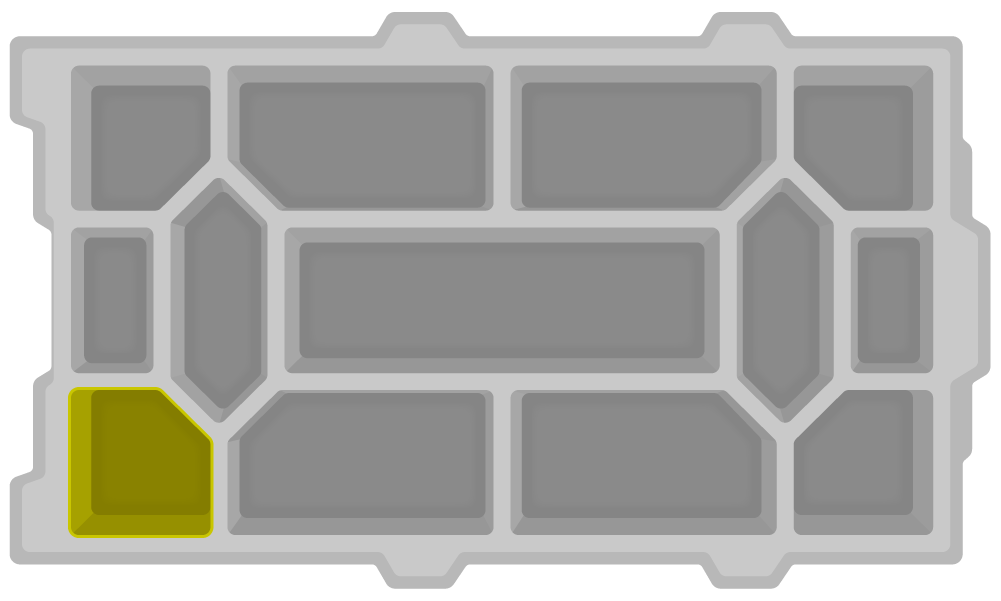

V5 Optical Sensor V5_Optical_Sensor.png This part comes in this pack:
276-7832

Individual part number:
276-7043
4 These come as part of the Workcell Electronics Box

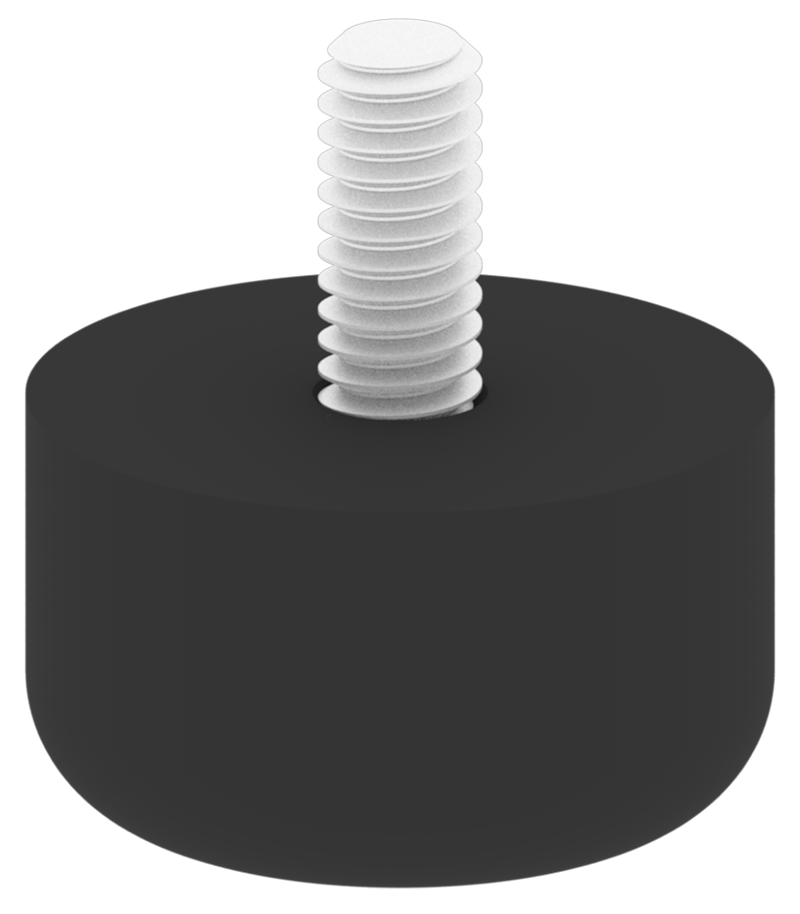

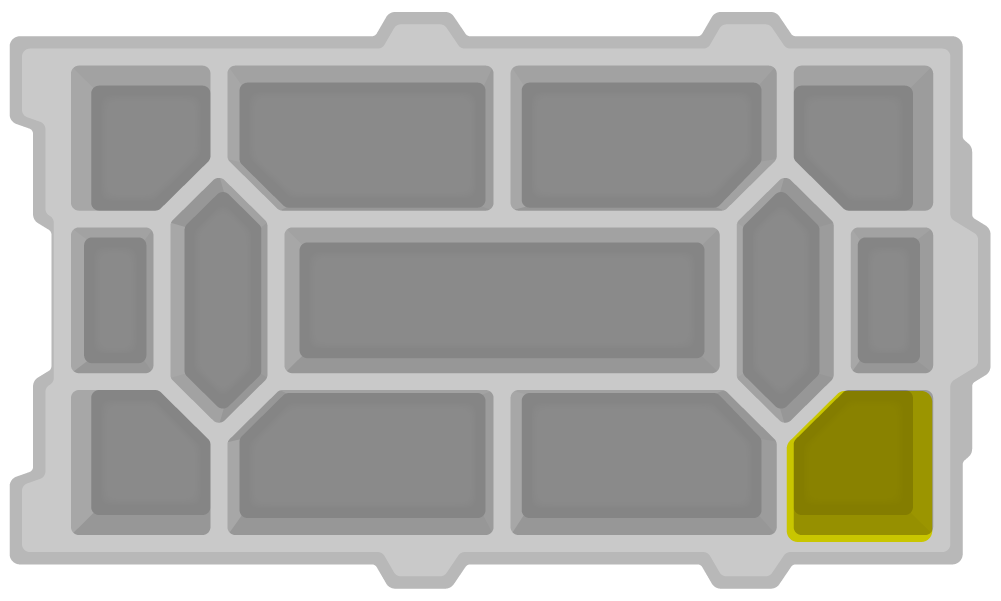

Rubber Bumper RubberBumper.png 276-7499-001 12 Comes in 1 pack of 12 VEX_IQ_Parts_Tray--glow09.png

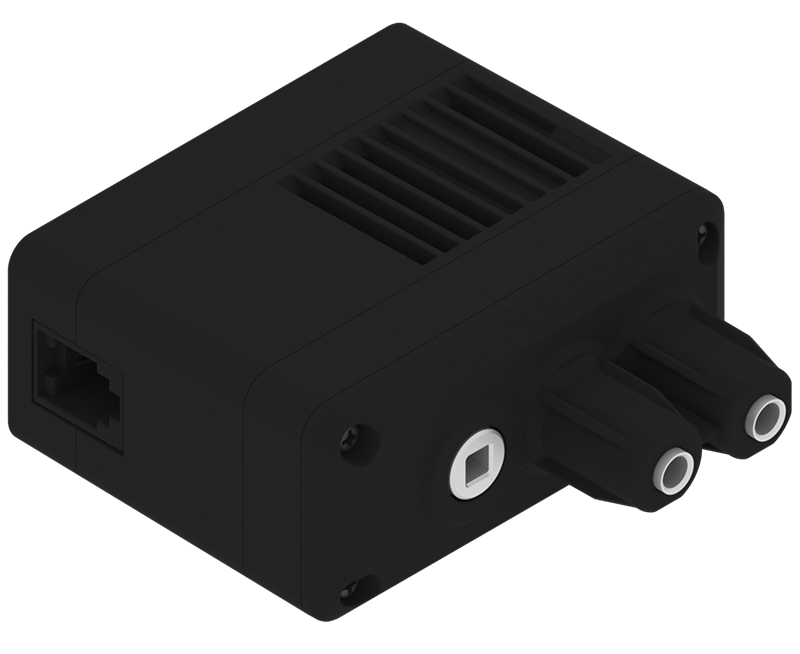

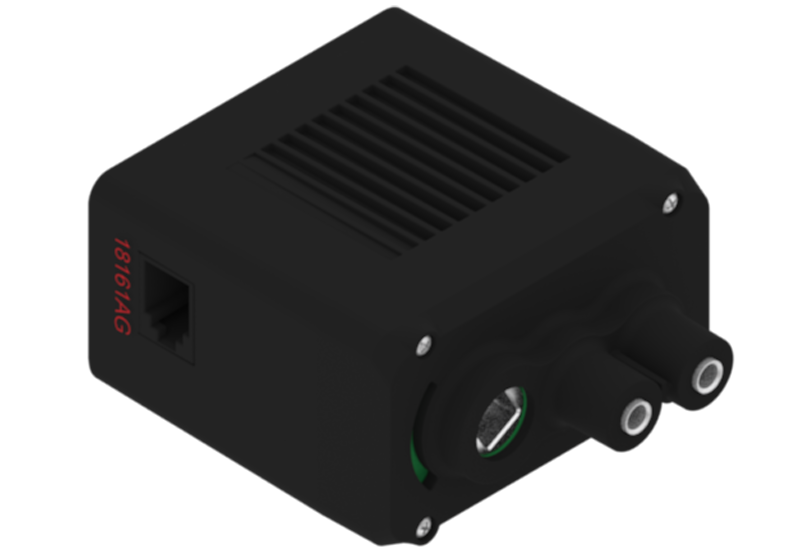

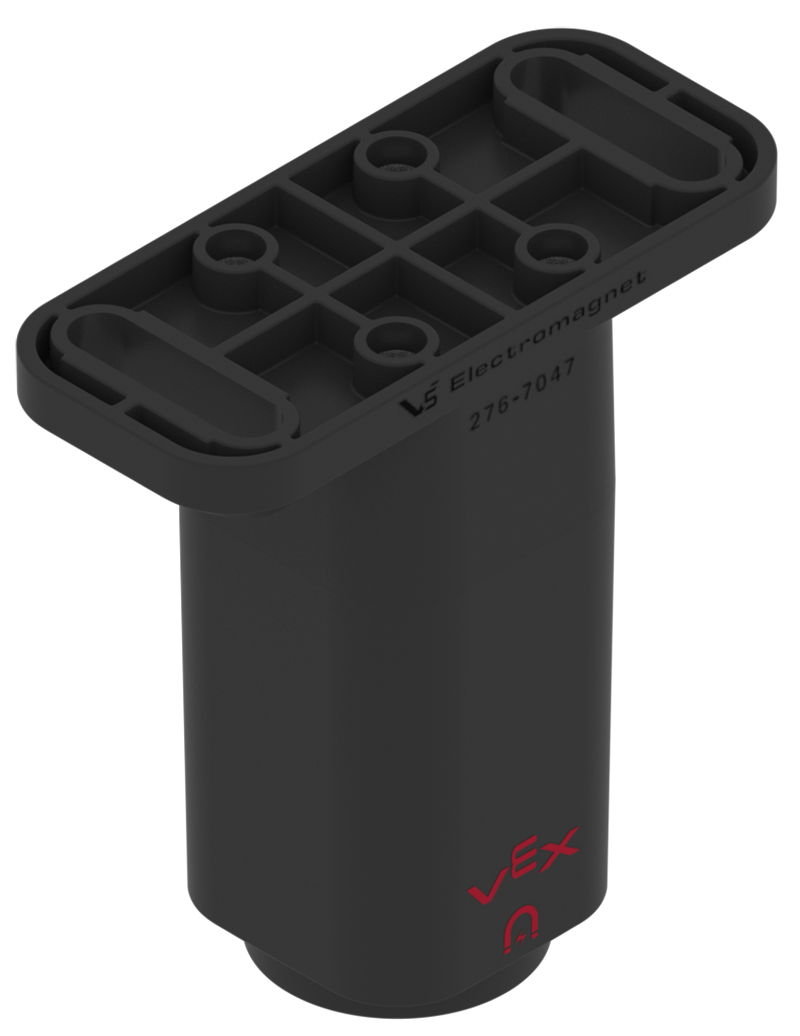

V5 Electromagnet V5_Electromagnet__2_.png This part comes in this pack:
276-7832

Individual part number:
267-7047
1 This comes as part of the Workcell Electronics Box

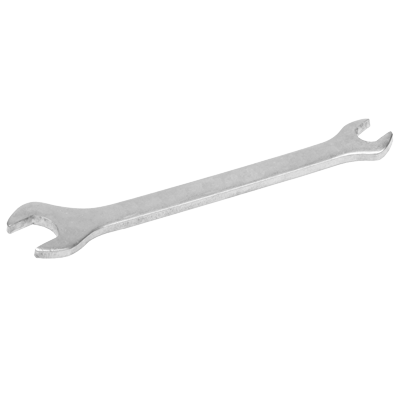

Open End Wrench Open_end_wrench.png This part comes in this pack:
276-6650-804

Individual part number:
267-4350-001
6 These come as part of the Competition Super Kit Tools bag.

This is a clear, unlabeled bag that contains the Open End Wrenches, the Star Drive Keys, and the Star Screwdrivers.

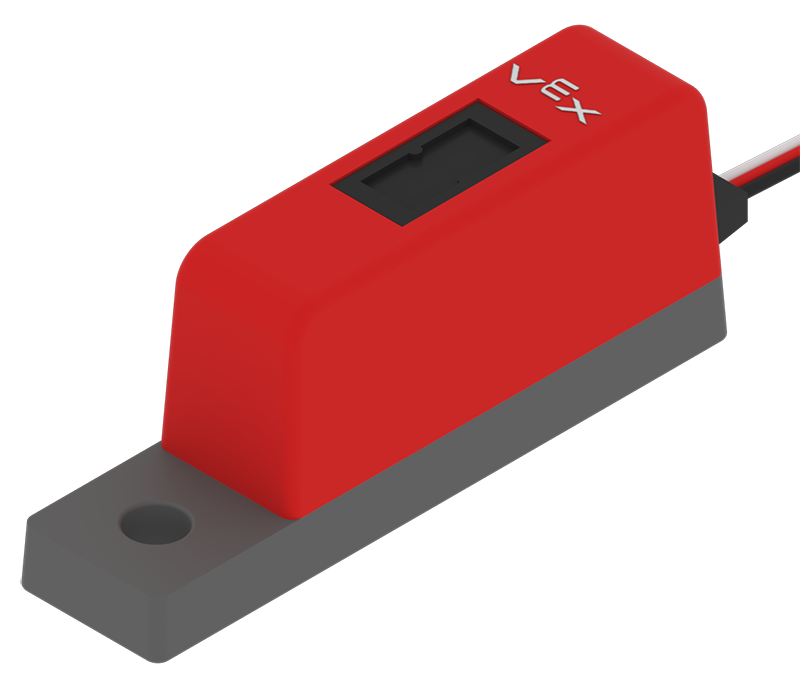

Line Tracker LineTracker.png 276-2154-001 6 Comes in 2 packages of 3 VEX_IQ_Parts_Tray--glow12.png

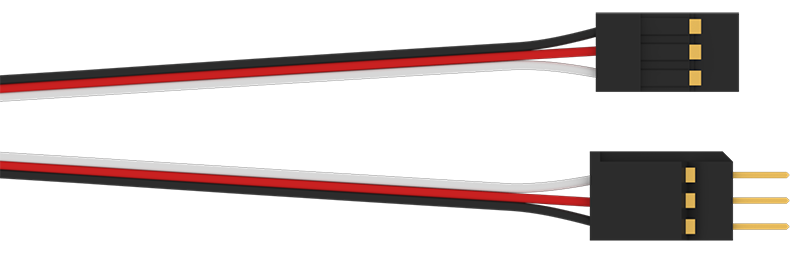

3 Wire Extension Cable (24") 3WireExtensionCable__1_.png 276-1425-000 8 Comes in 2 packages of 4 VEX_IQ_Parts_Tray--glow11.png

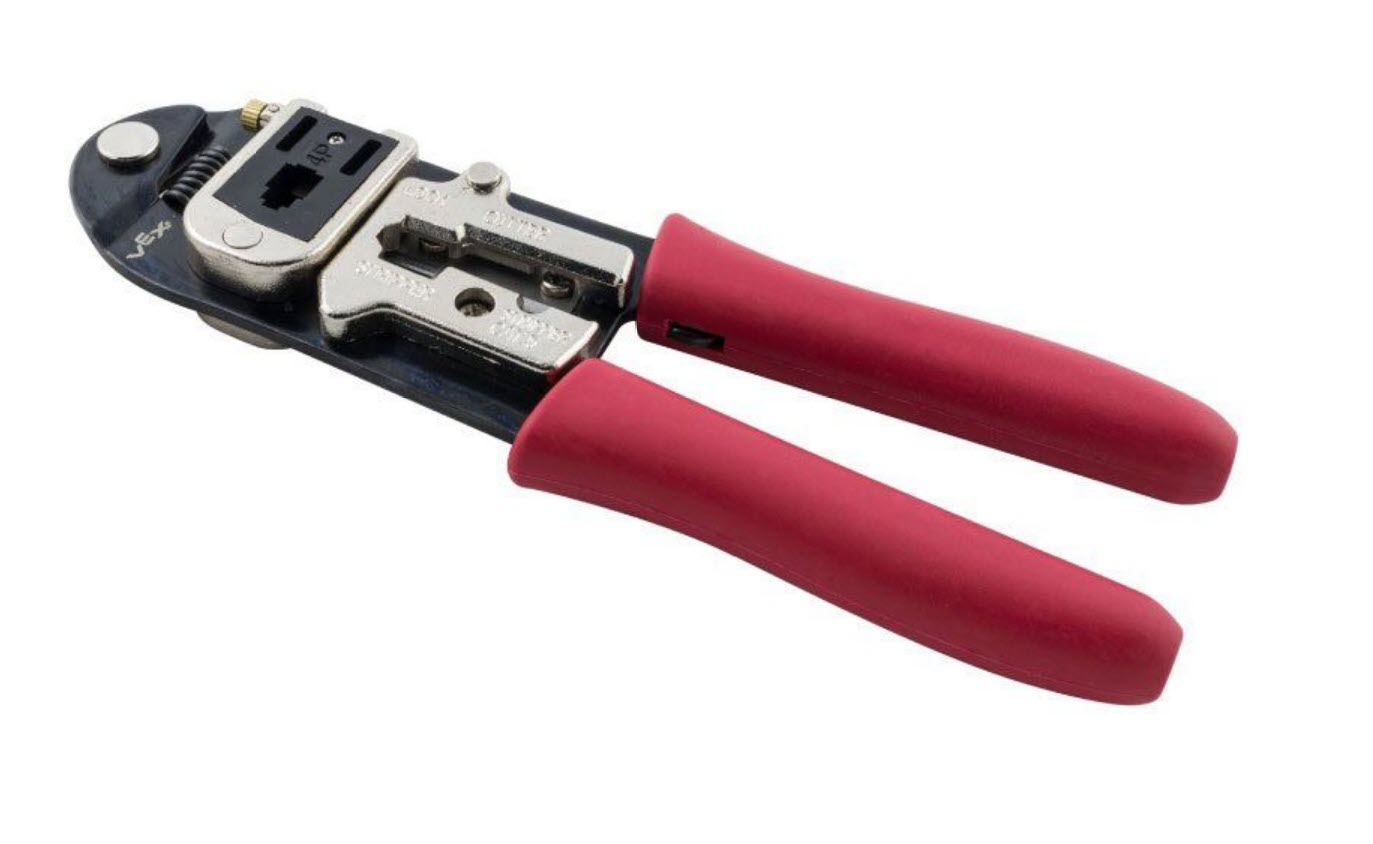

V5 Smart Cable Crimping Tool crimping_tool.jpg 276-5773 1 Comes individually VEX_IQ_Parts_Tray--glow07.png

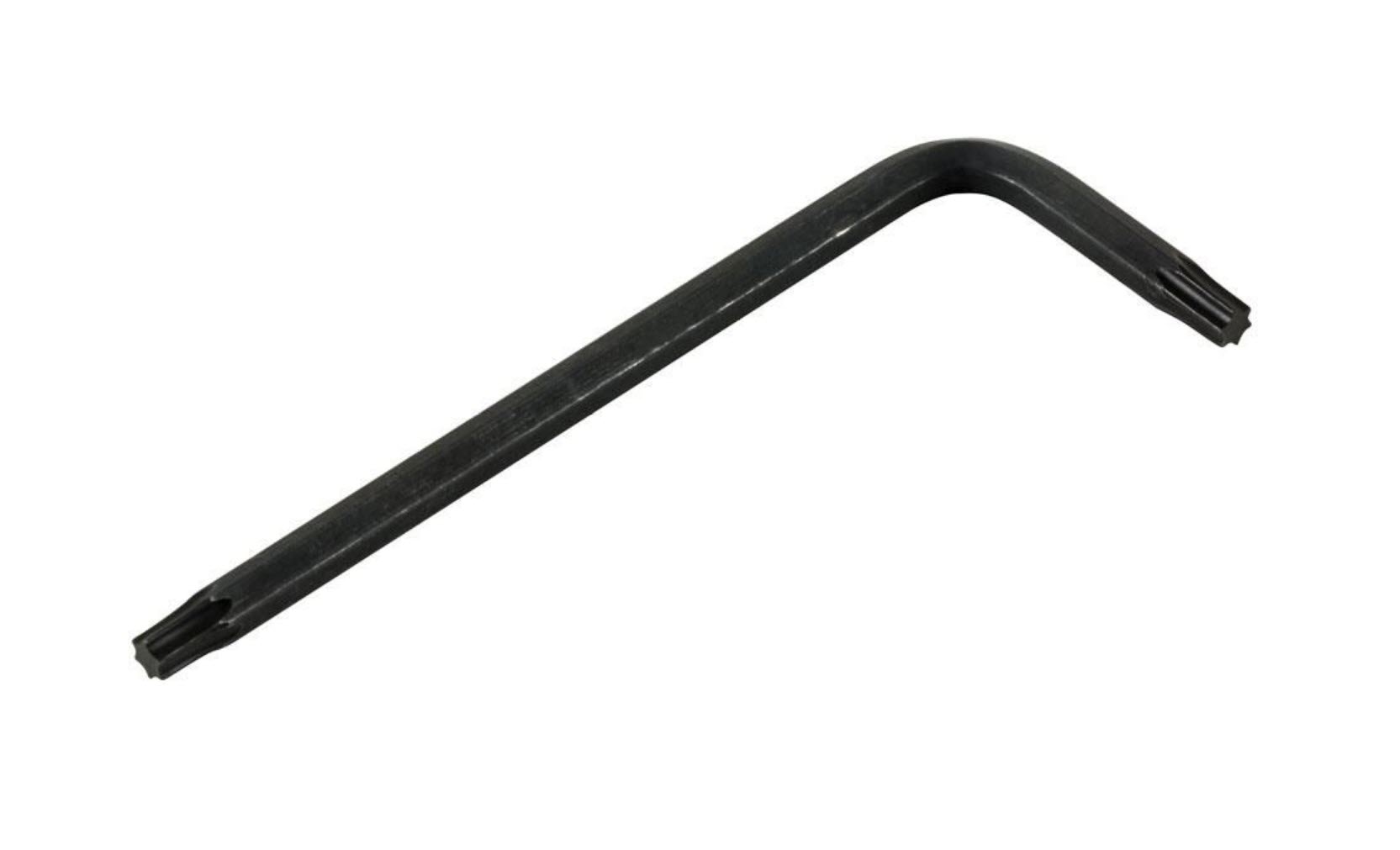

T15 Star Drive Keys T15_key.jpg This part comes in this pack:
276-6650-804

Individual part number:
276-5011-001
2 These come as part of the Competition Super Kit Tools bag.

This is a clear, unlabeled bag that contains the Open End Wrenches, the Star Drive Keys, and the Star Screwdrivers.
T8 Star Drive Keys T15_key.jpg This part comes in this pack:
276-6650-804

Individual part number:
276-5012-001
2

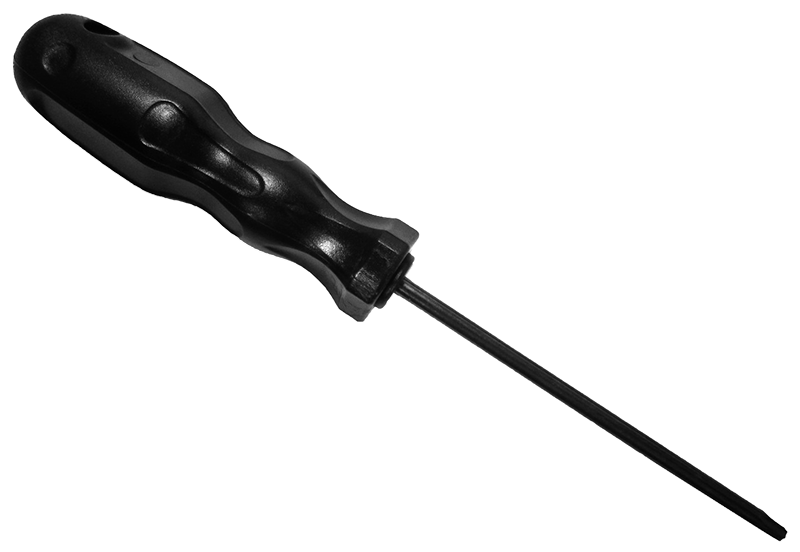

T15 Star Screwdriver

Note: There are various colored versions of the T15 Screwdriver. The color received may not match the listed product photo.
T15_Star_Screwdriver.png This part comes in this pack:
276-6650-804

Individual part number:
276-5236-002
4

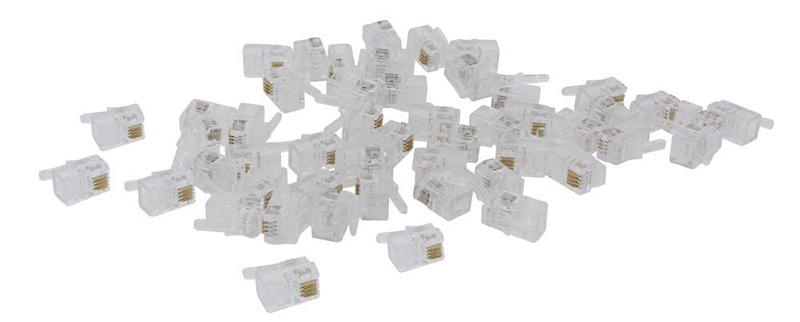

V5 Smart Cable Connectors CableConnectors.jpg 276-5775-001 50 Comes in 1 bag of 50 VEX_IQ_Parts_Tray--glow10.png

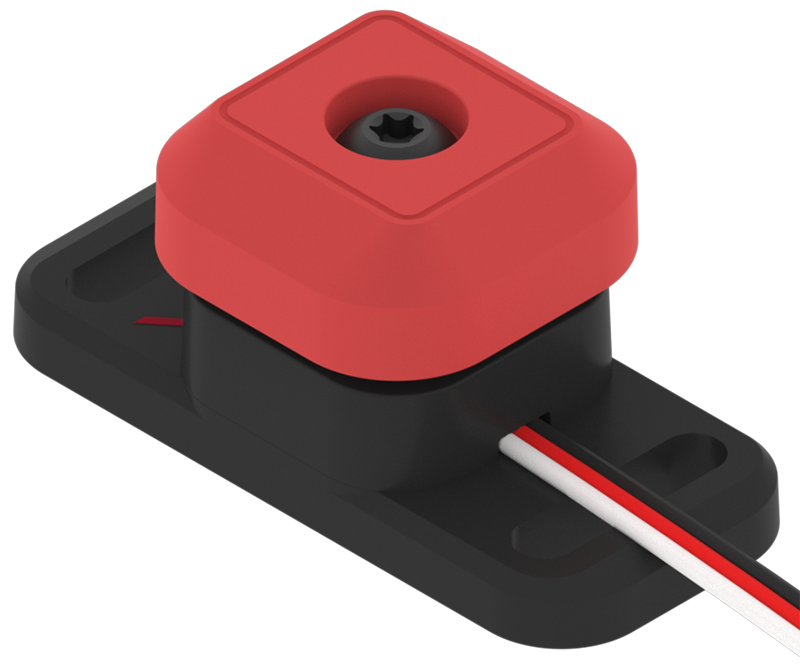

V5 Bumper Switch v2 V5BumperSwitchV2.png 276-4858 2 Comes in 1 bag of 2 VEX_IQ_Parts_Tray--glow06.png

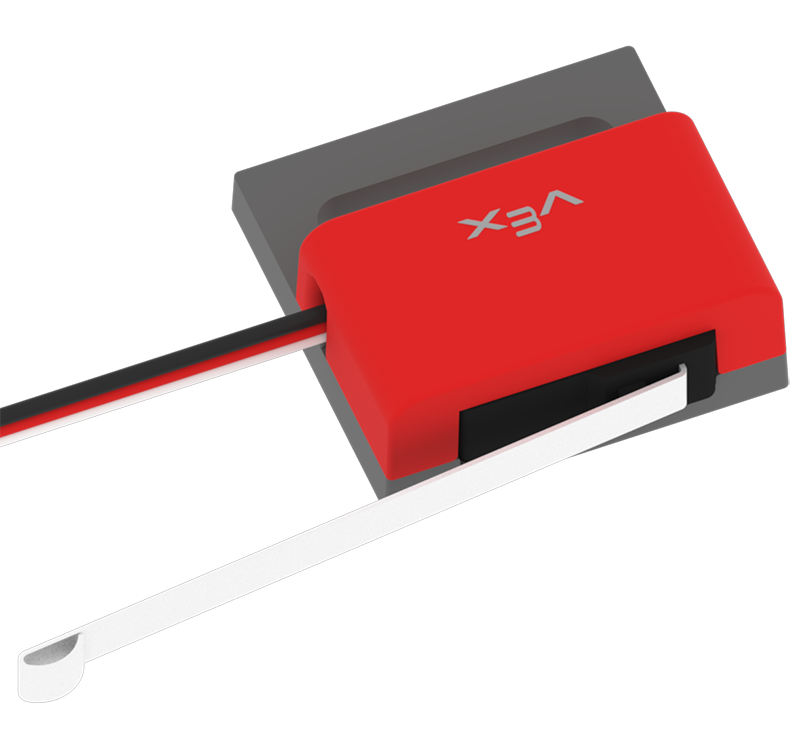

Limit Switch LimitSwitch.png 276-2174-000 2 Comes in 1 box of 2 VEX_IQ_Parts_Tray--glow05.png

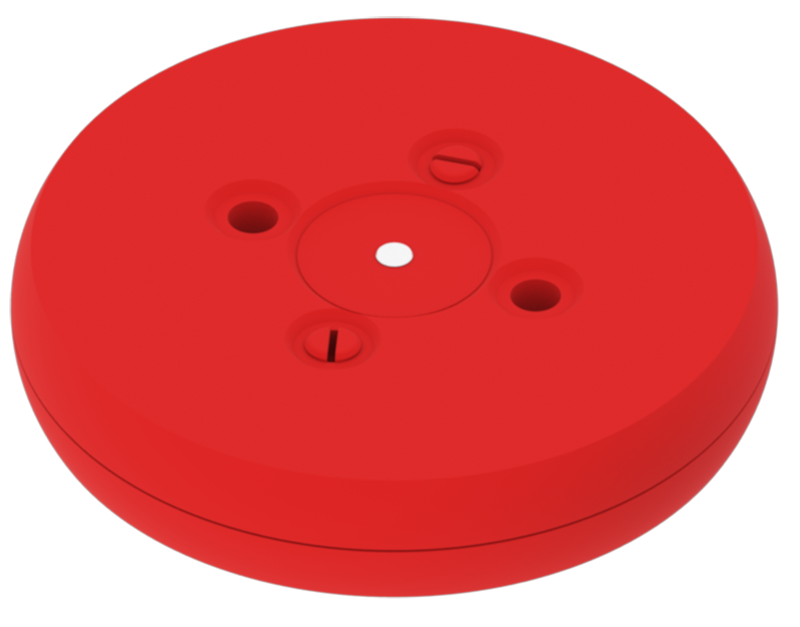

Red 5x Pitch Weighted Disk RedWeightedDisk.png This part comes in this pack:
276-7472-804

Individual part number:
228-3445-2250
2 36 Disks will come in one bag. Remove two of each color to be placed in this tray.

The other 30 Disks will go into Bin 3.

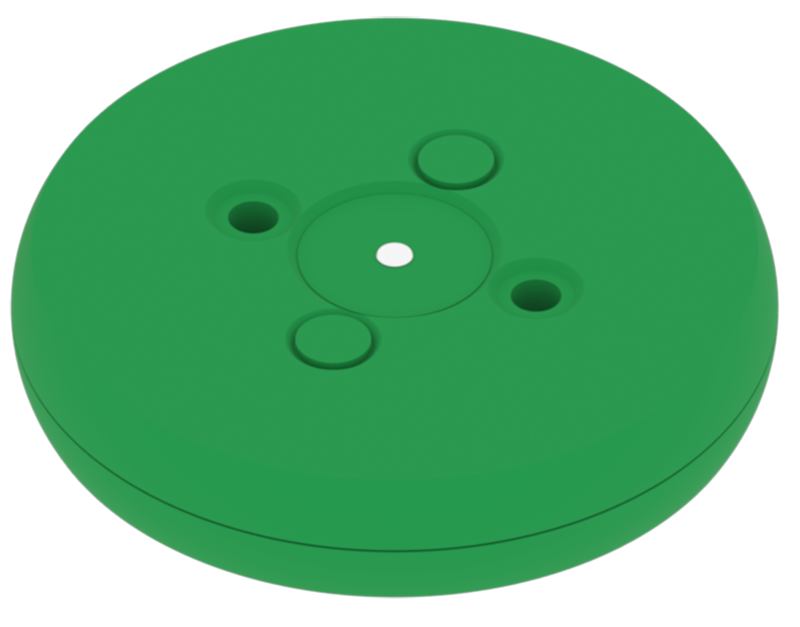

Green 5x Pitch Weighted Disk GreenWeightedDisk.png This part comes in this pack:
276-7472-804

Individual part number:
228-3450-2250
2

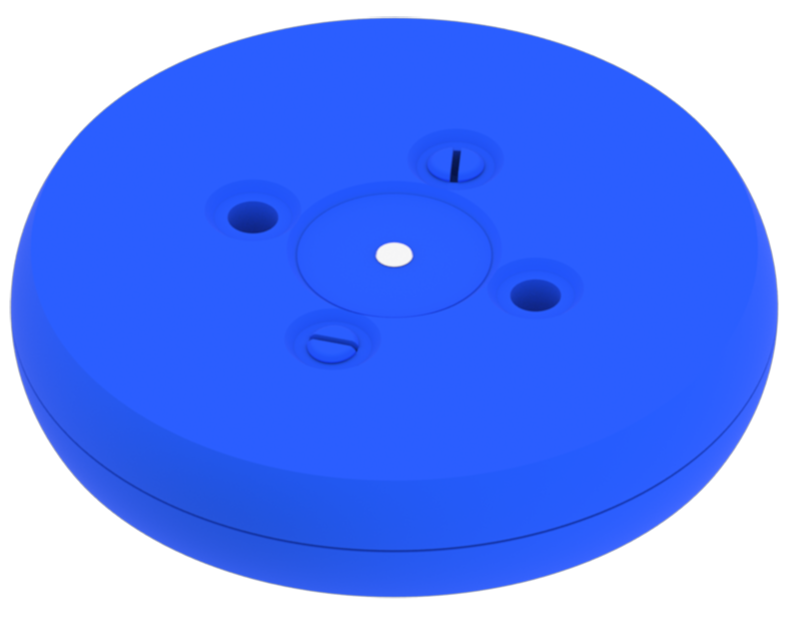

Blue 5x Pitch Weighted Disk BlueWeightedDisk.png This part comes in this pack:
276-7472-804

Individual part number:
228-3196-2250
2
3 Wire Extension Cable ( 36") 3WireExtensionCable.png 276-1976-000 8 Comes in 2 packages of 4 VEX_IQ_Parts_Tray--glow02.png

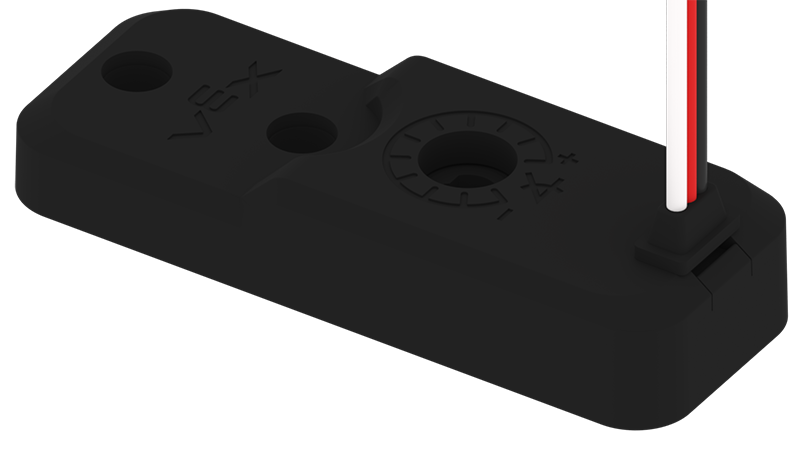

Potentiometer V2 PotentiometerV2.png This part comes in this pack:
276-7832

Individual part number:
276-7417-000
4 These come as part of the Workcell Electronics Box

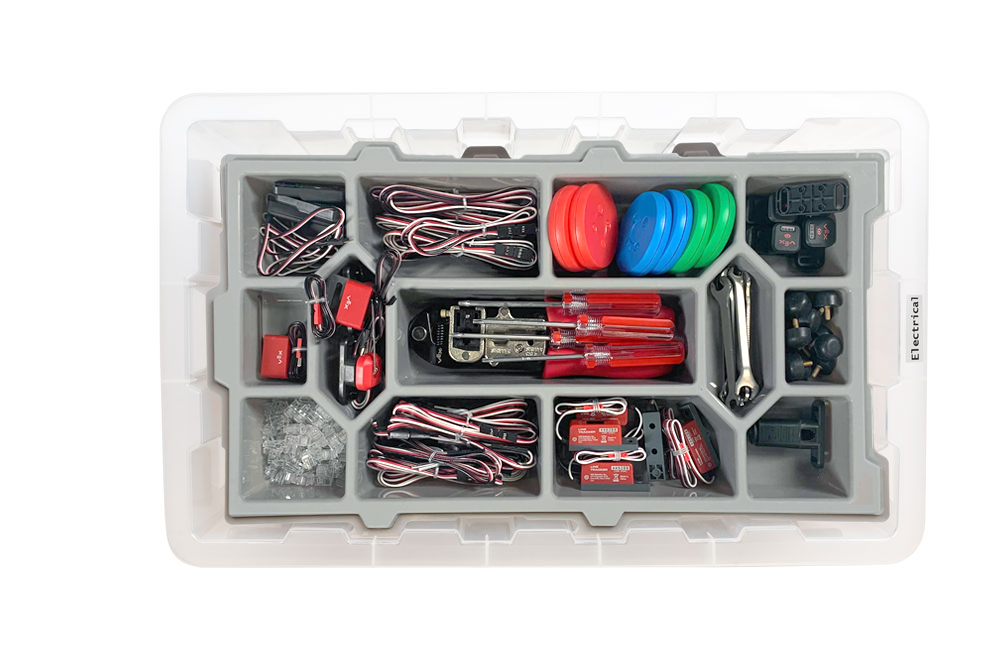

Once all of the parts from the Workcell Kit have been placed into tray 1 of Storage Bin 2, tray 1 will look like this image.



Storage Bin 2: Tray 2

Note: Storage Bin 2 uses two trays. Storage Bin 3 does not use a tray. The tray from Bin 3 should be used as Tray 2 of Storage Bin 2.

Part Photo Part Number Quantity Bag Notes Location

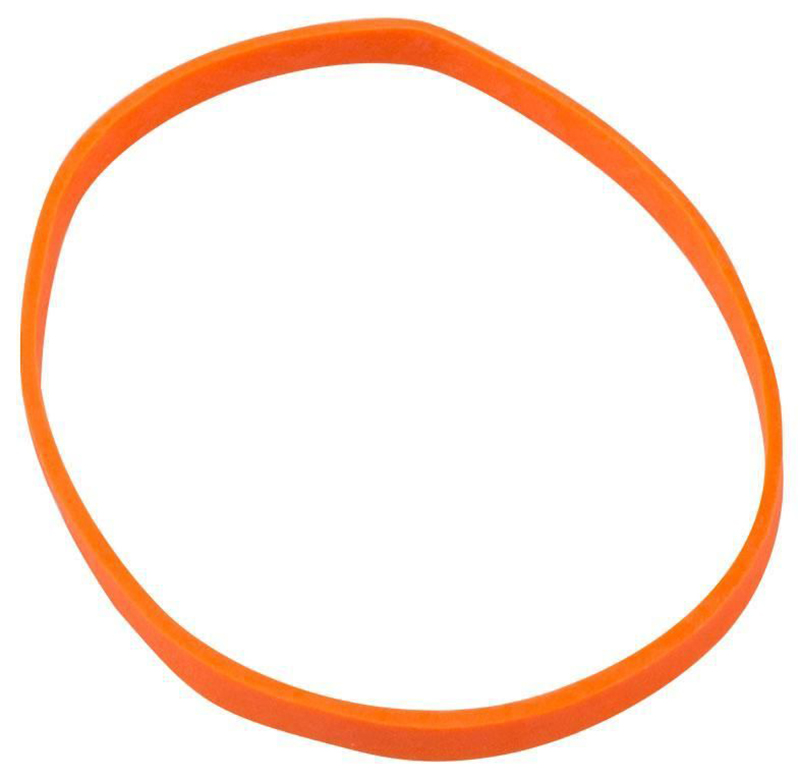

Silicone Rubber Band #32 SiliconeRubberBand.jpg 228-6633-468 10 Comes in 1 pack of 10 VEX_IQ_Parts_Tray--glow09.png

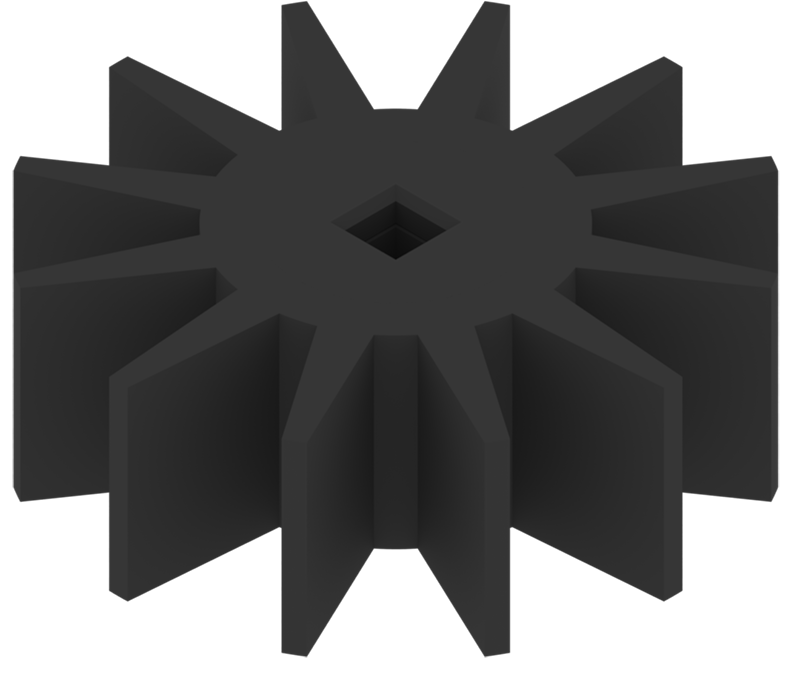

Intake Roller IntakeRoller.png Comes in this package:
276-1499

Individual part number:
228-6633-000
8 Comes in 1 pack of 8 VEX_IQ_Parts_Tray--glow13.png

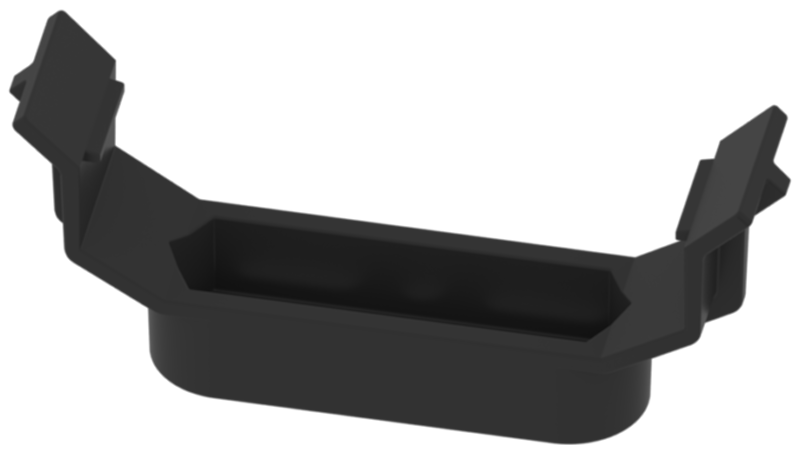

V5 Battery Clip V5BatteryClip.png Comes in this kit:
270-7247-802

Individual part number:
276-6020
2 These two parts come in the PLTW V5 Upgrade Kit box


Helpful Hint: When attaching the V5 Battery, you will only use the two Battery Clips. The other four side attachments that come with the Battery Clips can be used when not using the Robot Brain Mount Assembly (276-7152-002).
300mm V5 Smart Cables 300mmSmartCable.jpg Comes in this package:
276-6364

Individual part number:
276-4860-020
3 Comes in the V5 Smart Cables Starter Pack

600mm V5 Smart Cables 600mmSmartCable.jpg This part comes in two bags:
276-6364
276-4861

Individual part number:
276-4860-030
3 1 comes in the V5 Smart Cables Starter pack.


2 come in the V5 Smart Cables (Long Assortment).

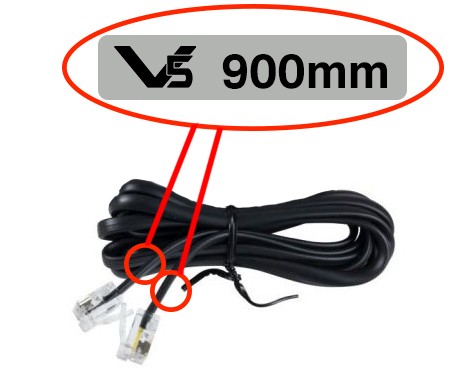

900mm V5 Smart Cables 900mmSmartCable.jpg This part comes in two bags:
276-6364
276-4861

Individual part number:
276-4860-010
2 1 comes in the V5 Smart Cables Starter pack.


1 comes in the V5 Smart Cables (Long Assortment).

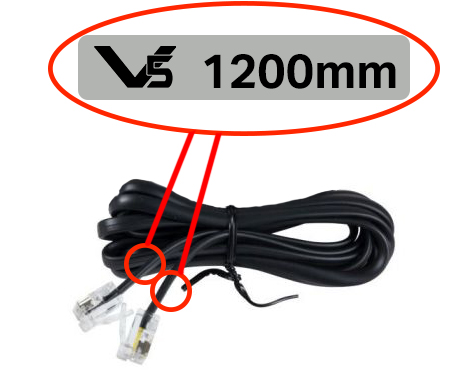

1200mm V5 Smart Cables 1200mmSmartCable.jpg Comes in this package:
276-4861

Individual part number:
276-4861-020
1 Comes in the V5 Smart Cables (Long Assortment) pack.

1500mm V5 Smart Cables 1500mmSmartCable.jpg Comes in this package:
276-4861

Individual part number:
276-4861-030
2 Comes in the V5 Smart Cables (Long Assortment) pack.

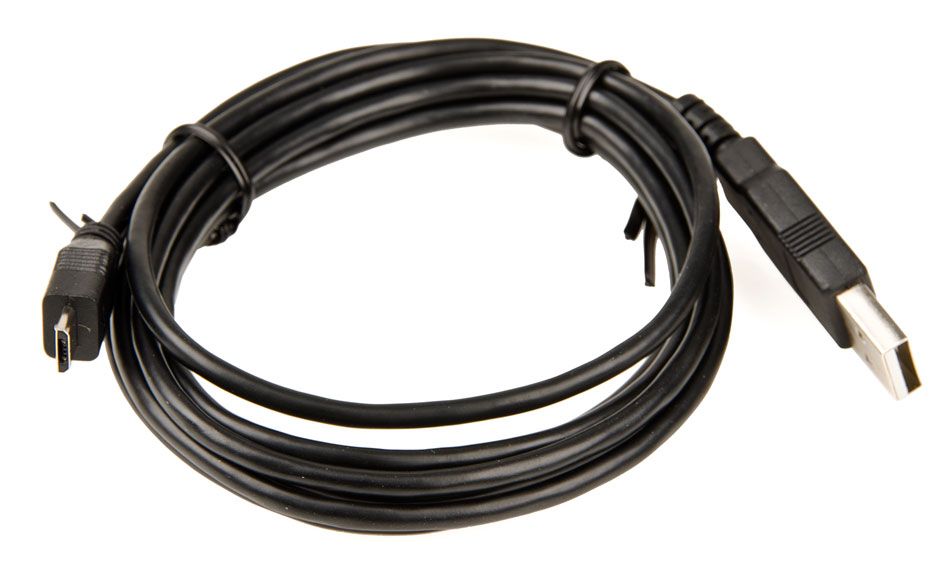

USB Cable (A-Micro) USB_cable.jpg Comes in this kit:
270-7247-802

Individual part number:
228-2785
1 This part comes in the PLTW V5 Upgrade Kit box.

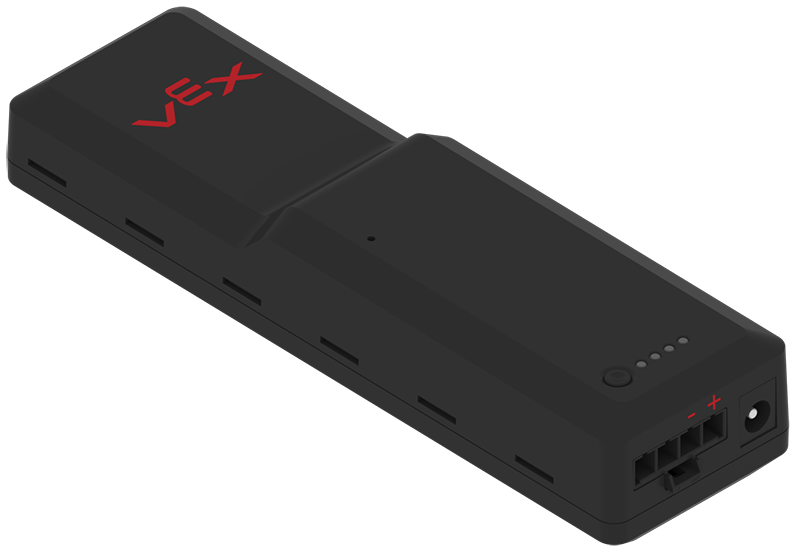

V5 Robot Battery Li-Ion 1100mAh V5Battery.png Comes in this kit:
270-7247-802

Individual part number:
276-4811
1 This part comes in the PLTW V5 Upgrade Kit box.

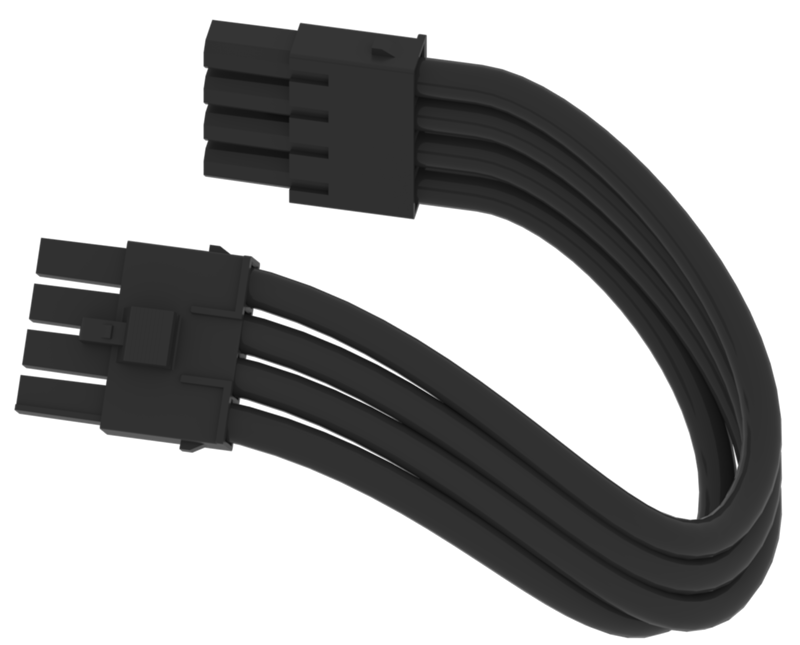

V5 Power Cable BatteryCable.png Comes in this kit:
270-7247-802

Individual part number:
276-4817
1 This part comes in the PLTW V5 Upgrade Kit box.

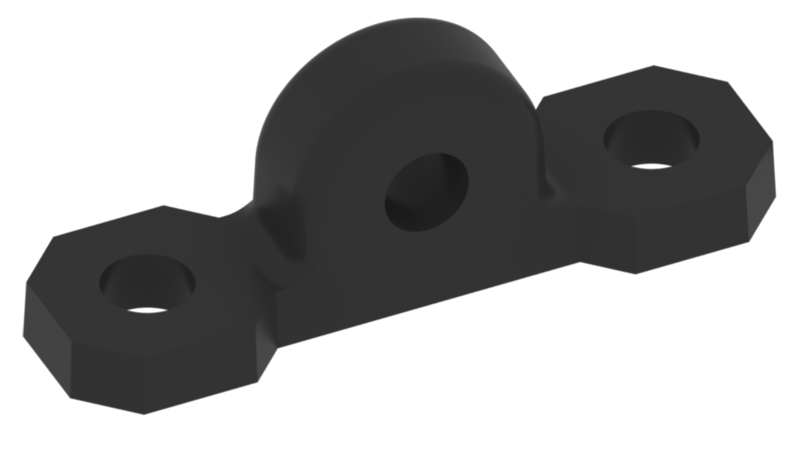

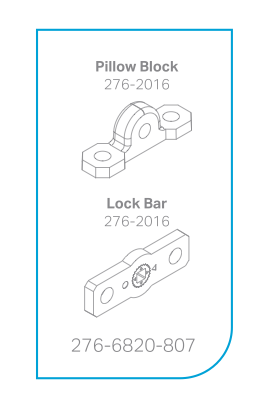

Pillow Block PilllowBlock.png Comes in this bag:
276-6820-807

Individual part number:
276-2016-001
12 Comes in one bag

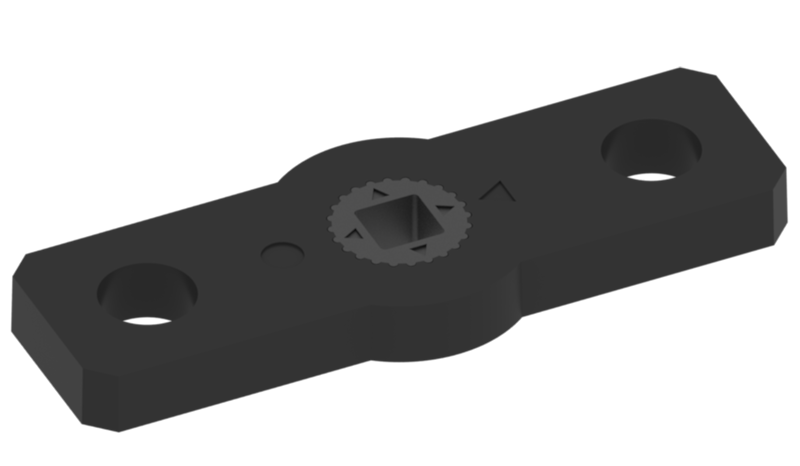

Lock Bar Assembly LockBar.png Comes in this bag:
276-6820-807

Individual part number: 276-2016-002
8

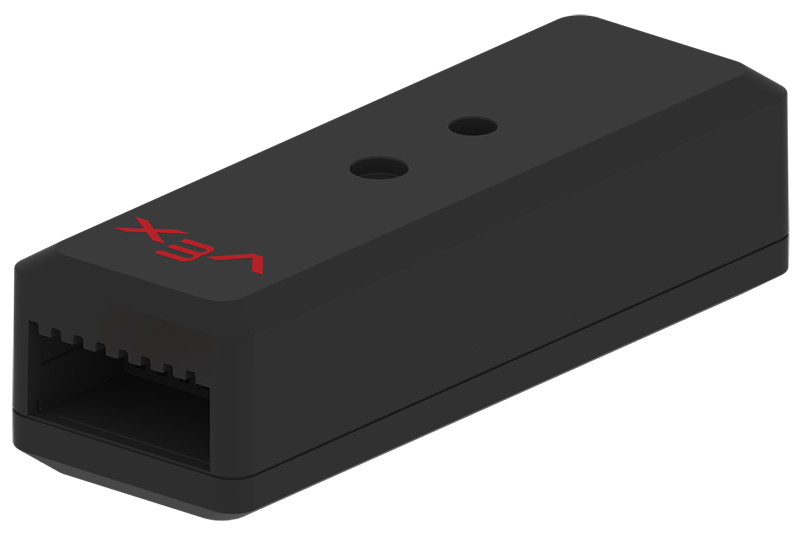

V5 3-Wire Expander V5WireExpander.png 276-5299 1 This comes individually VEX_IQ_Parts_Tray--glow06.png

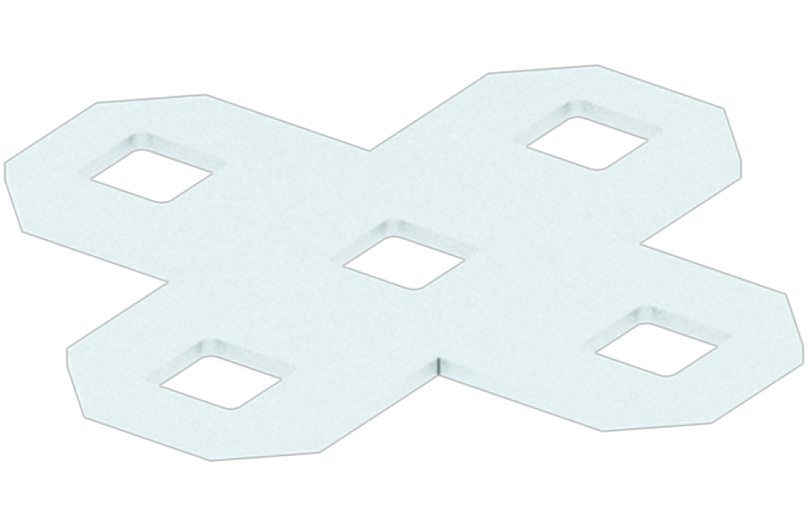

Plus Gusset PlusGusset.png Comes in this box:
276-6830

Individual part number:
276-1110-001
2

The gusset pack includes 4 of each type. Remove two of each gusset type to be placed in this tray.

The other gussets will go into Bin 3.

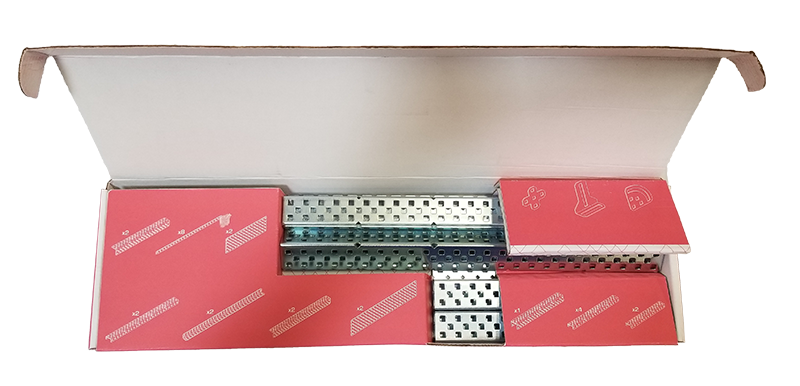

Comes in the V5 Classroom Structure Kit


90 Degree Gusset AngleGusset.png Comes in this box:
276-6830

Individual part number:
276-1110-002
2

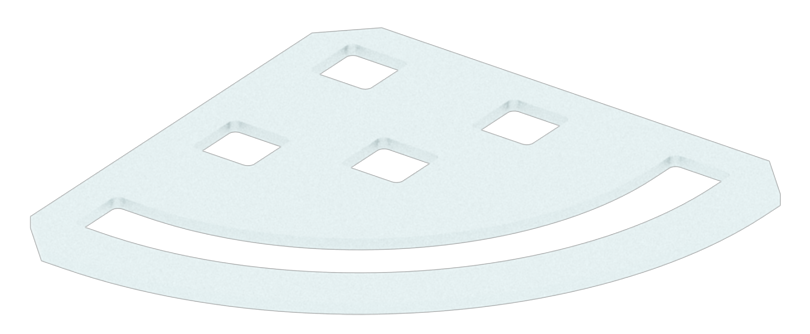

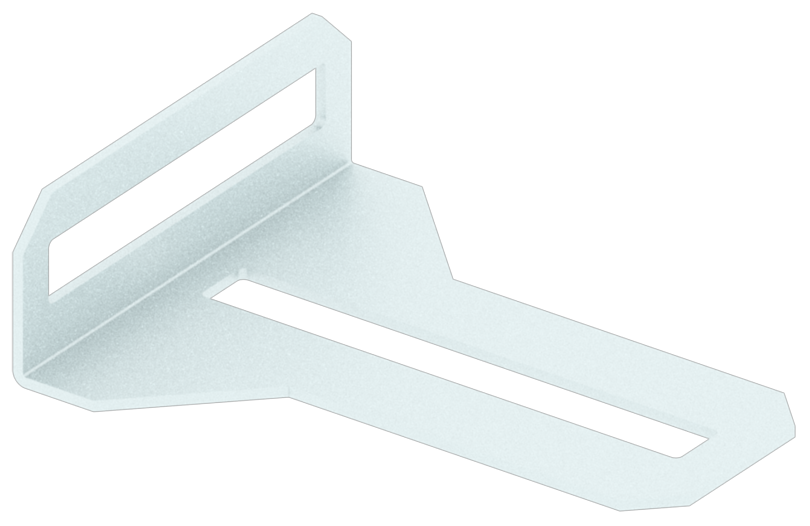

Angle Gusset PivotGusset.png Comes in this box:
276-6830

Individual part number:
276-1110-003
2

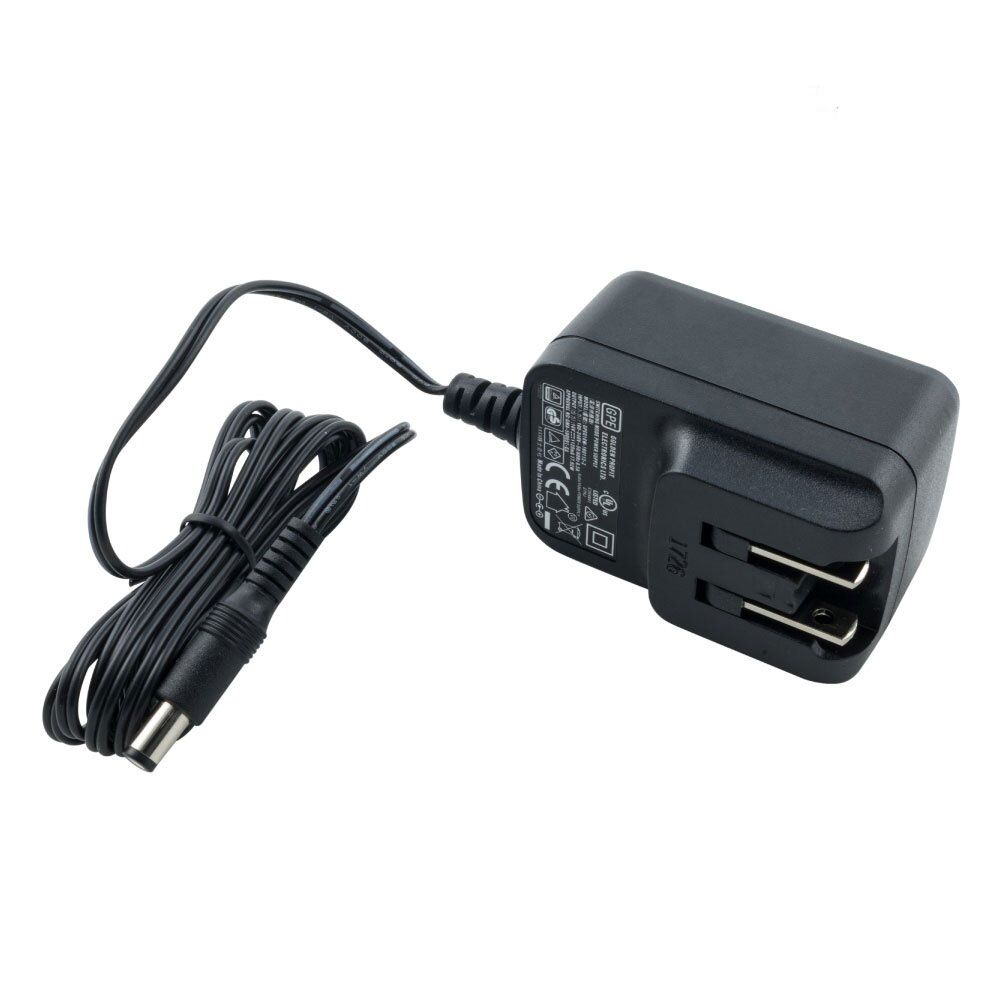

V5 Robot Battery Charger Battery_charger.jpg Comes in this kit:
270-7247-802

Individual part number:
276-4812
1 These parts come in the PLTW V5 Upgrade Kit box

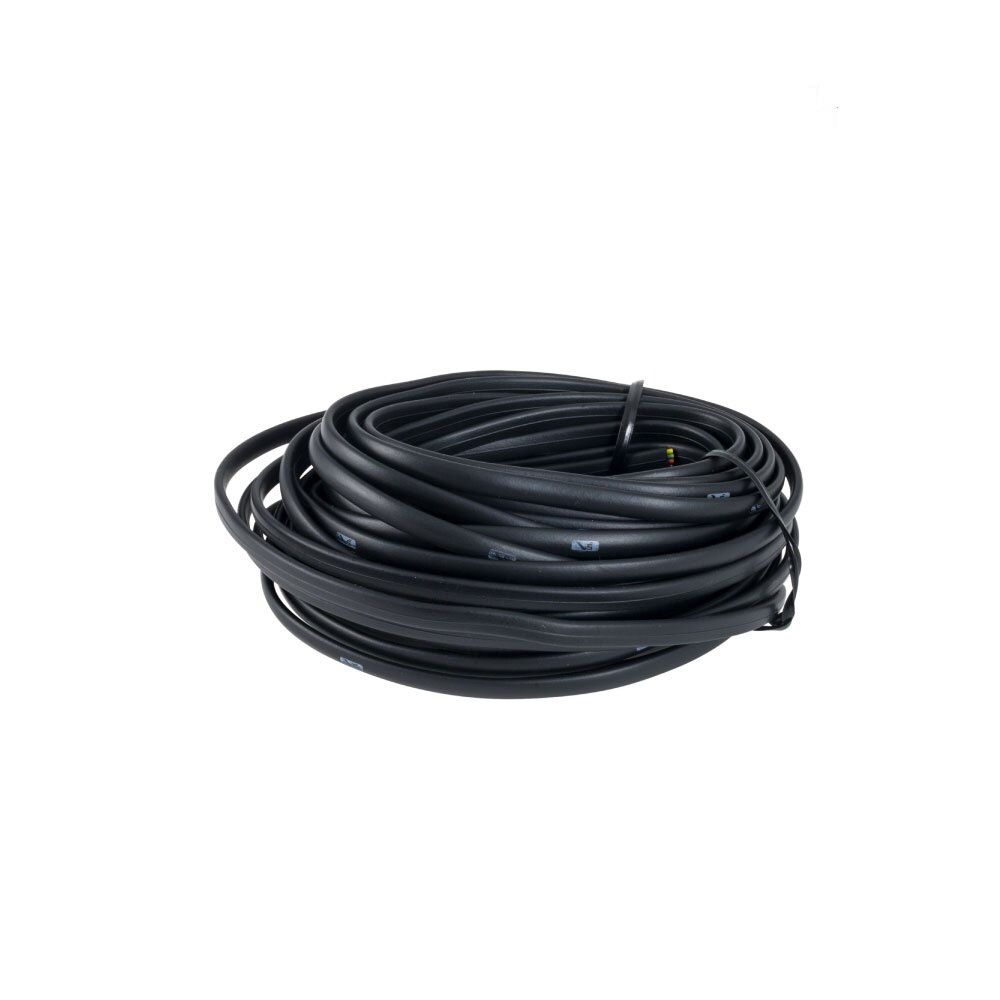

V5 Smart Cable Stock (8m) Cable_stock.jpg 276-5774 1 Comes in 1 bag VEX_IQ_Parts_Tray--glow03.png

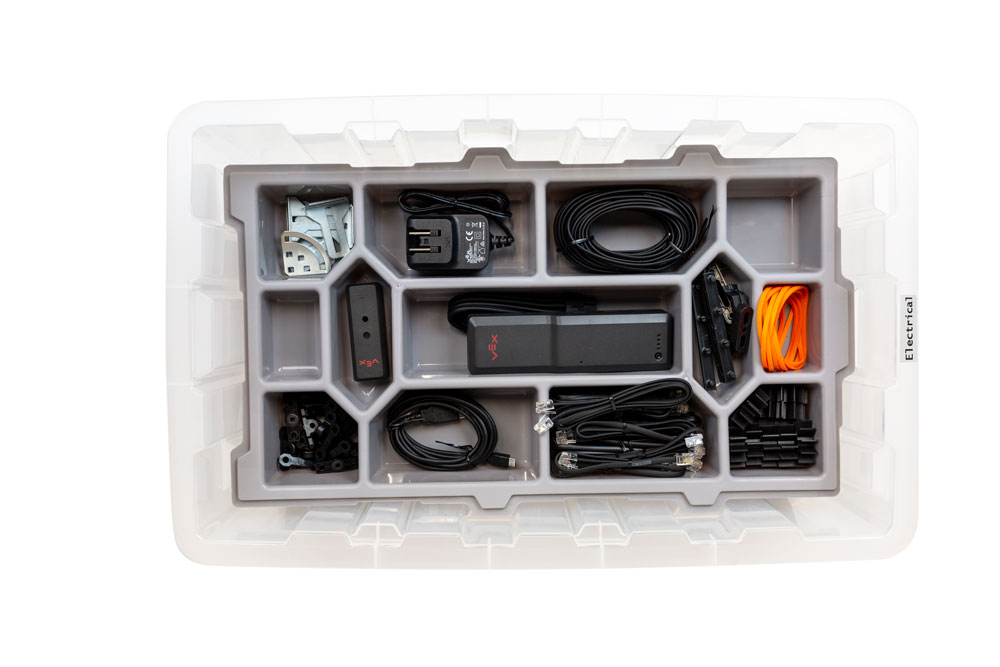

Once all of the parts from the Workcell Kit have been placed into tray 2 of Storage Bin 2, tray 2 will look like this image.



Storage Bin 2: Base

Part Photo Part Number Quantity Bag Notes Location

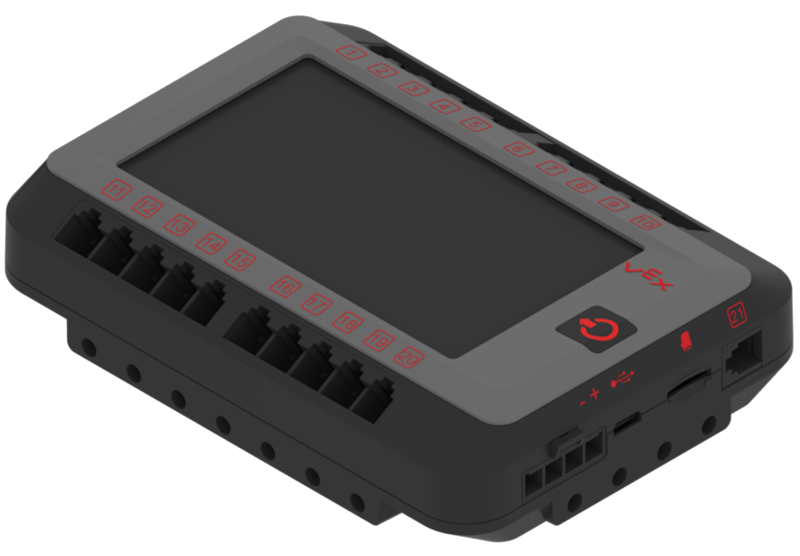

V5 Robot Brain V5RobotBrain.png Comes in this kit:
270-7247-802

Individual part number:
276-4810
1 These parts come in the PLTW V5 Upgrade Kit box

V5 Smart Motor (11w) V5SmortMotor11w.png Comes in this kit:
270-7247-802

Individual part number:
276-4840
4 These parts come in the PLTW V5 Upgrade Kit box

V5 Smart Motor (5.5W) V5SmartMotor5.5W__1_.png This part comes in this pack:
276-7832

Individual part number:
276-4842-000
8 These come as part of the Workcell Electronics Box

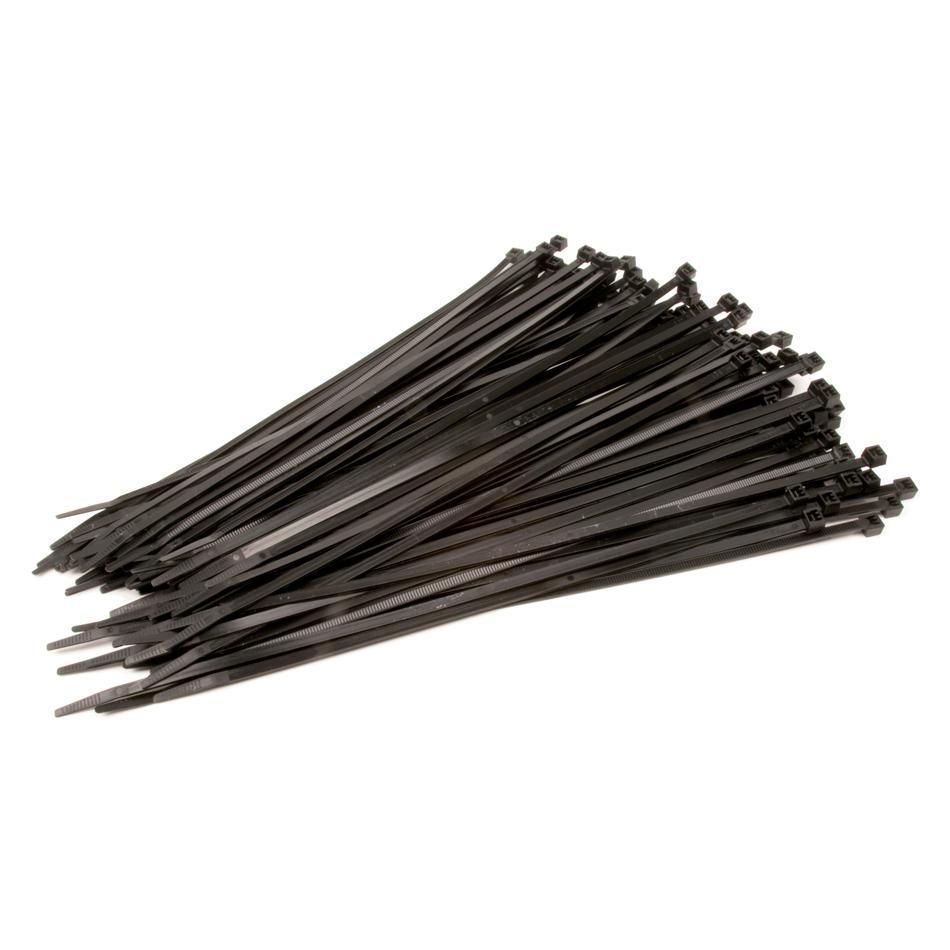

4” Zip Ties 4in_zip_ties.jpg 276-1032 200 Comes in 2 packs of 100. VEX_IQ_Bin--glow.png

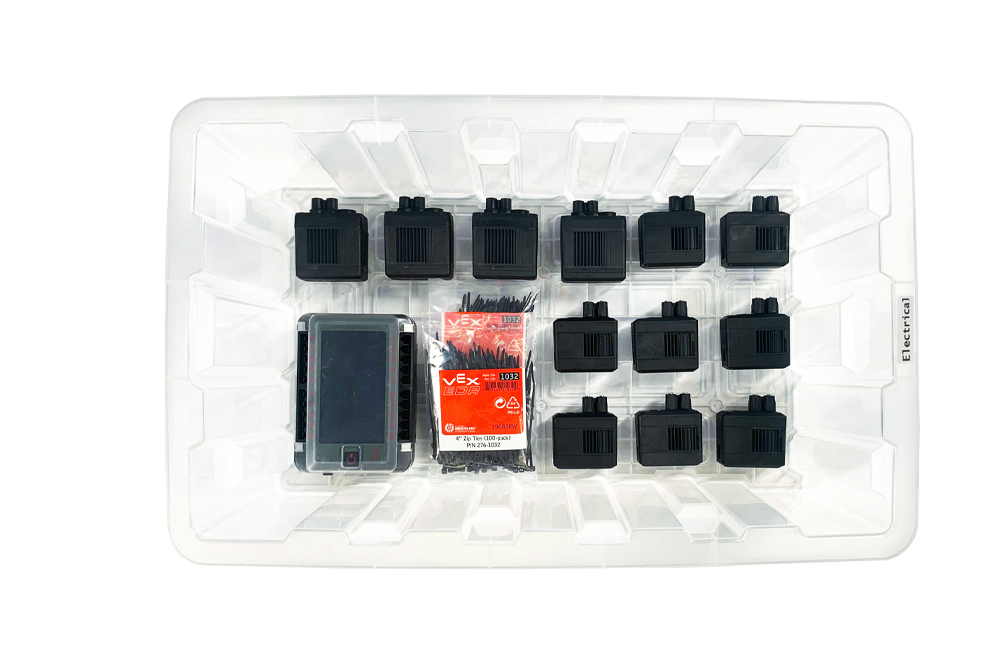

Once all of the parts from the Workcell Kit have been placed into the base of Storage Bin 2, the base will look like this image.


For more information, help, and tips, check out the many resources at VEX Professional Development Plus
