V5 Workcell Kit Storage - Bin 3: Competition Hardware

This article will cover the pieces from the V5 Workcell Kit that will be organized into Storage Bin 3.

There is only one component to organizing Storage Bin 3:


Base

This article organizes each piece in Bin 3 and provides the following information in a table form from left to right:

  • Part: This is the name of the part. Hyperlinks are provided for replacement parts available to purchase individually at vexrobotics.com.
    Photo: This is an image of the part. Use this for reference while unboxing your kit and building the V5 Workcell.
  • Part Number: If a part comes in a larger kit, bag, or box, the part number of the kit, bag, or box and the individual part number is provided. Use these part numbers to identify your pieces while unboxing and then building the V5 Workcell.
  • Quantity: This is the quantity of each part provided. Use this to ensure you have the correct number of parts in each location in the Bin while unboxing.
  • Bag Notes: This column provides information about how the part or parts in that kit, bag, or box will be received. If the parts come in a larger kit, bag, or box, an image of the label is provided for reference. Use these for reference when unboxing your kit.
  • Location: This is an image of the Bin with a highlight on where the part should be placed in that Bin. This information can also be useful while building the V5 Workcell if a reminder is needed for where a part is located.
    • Helpful Hints: These are provided in the Location column. These hints provide extra context or information on packaging, identifying part numbers, or tips for additional organization.

Storage Bin 3: Base

Part Photo Part Number Quantity Bag Notes Location

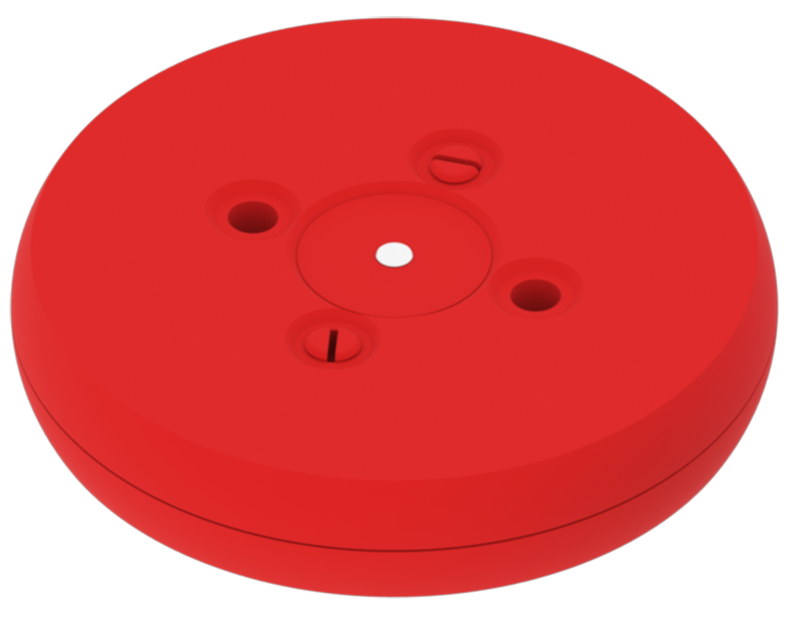

Red 5x Pitch Weighted Disk RedWeightedDisk.png

This part comes in this pack: 276-7472-804

Individual part number: 228-3445-2250

10 36 Disks will come in one bag.

Two of each color to be placed in Bin 2.

The other 30 Disks will go into Bin 3.


Helpful Hint: Use a large resealable bag to keep the Disks together in this Bin. These can be bagged with all 30 Disks together or in 3 bags separated by color.

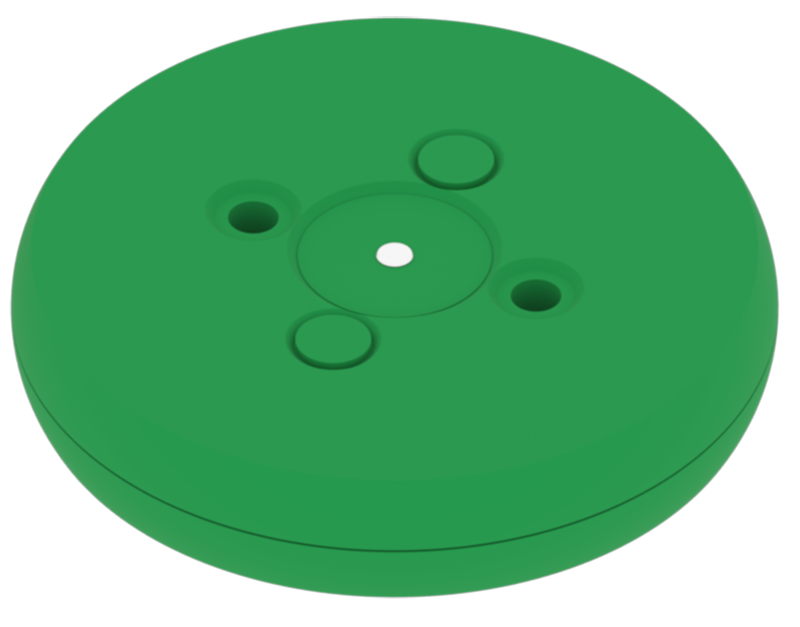

Green 5x Pitch Weighted Disk GreenWeightedDisk.png This part comes in this pack:
276-7472-804

Individual part number:
228-3450-2250
10

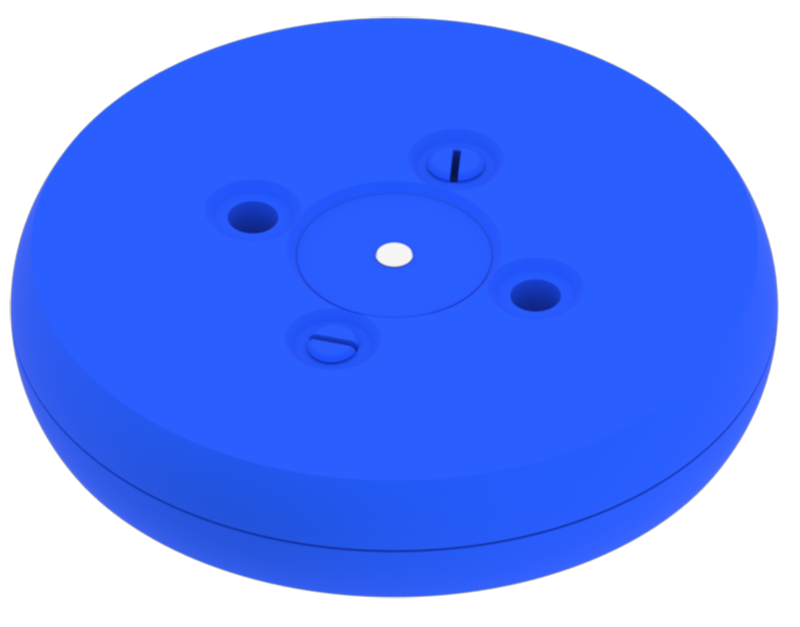

Blue 5x Pitch Weighted Disk BlueWeightedDisk.png This part comes in this pack:
276-7472-804

Individual part number:
228-3196-2250
10

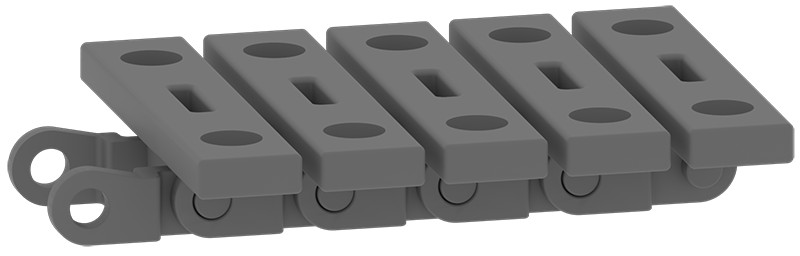

High Strength Chain Attachment Link Kit ConveyorLink.png 276-7578 18 links Comes in multiple bags of 6 links.

Only one bag is needed for Bin 1.

The other bags will be placed in Bin 3.

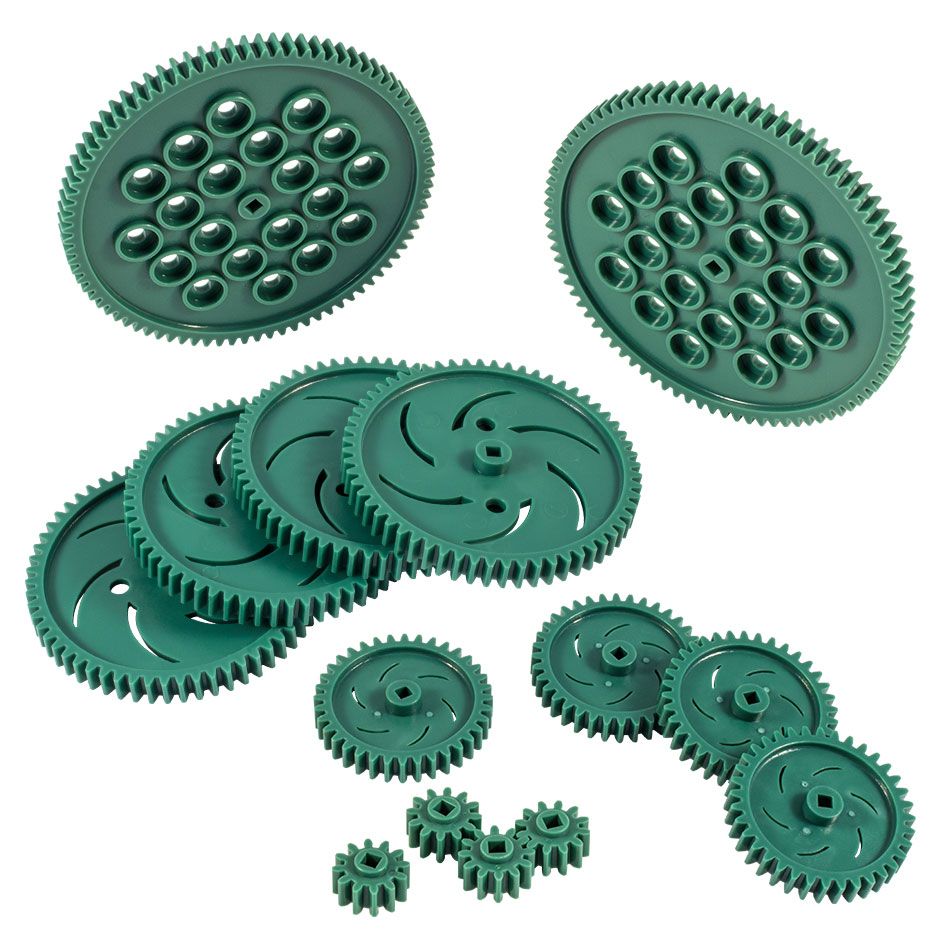

Gear Kit Gear_kit.jpg 276-2169 1 Comes in one box. VEX_IQ_Bin--glow.png

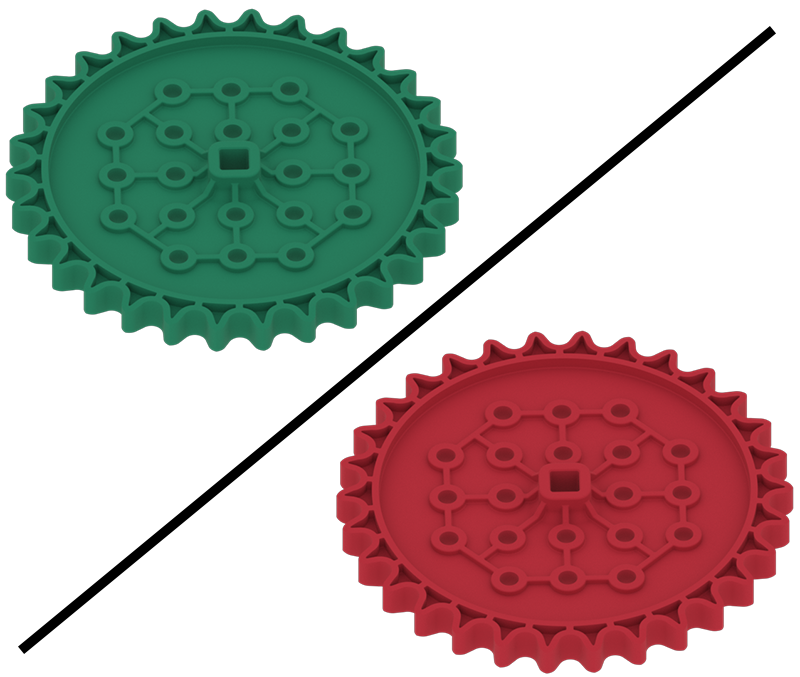

30T High Strength Sprocket

Note: This part is currently being transitioned from green to red.
30TSprocket__1_.png This part comes in a pack:
276-3880

Individual part number:
276-2252-007
8 Comes in the High Strength 30-Tooth Sprocket packs.


Only two of these 4-packs are needed for Bin 3.

The other pack will go in Bin 1.

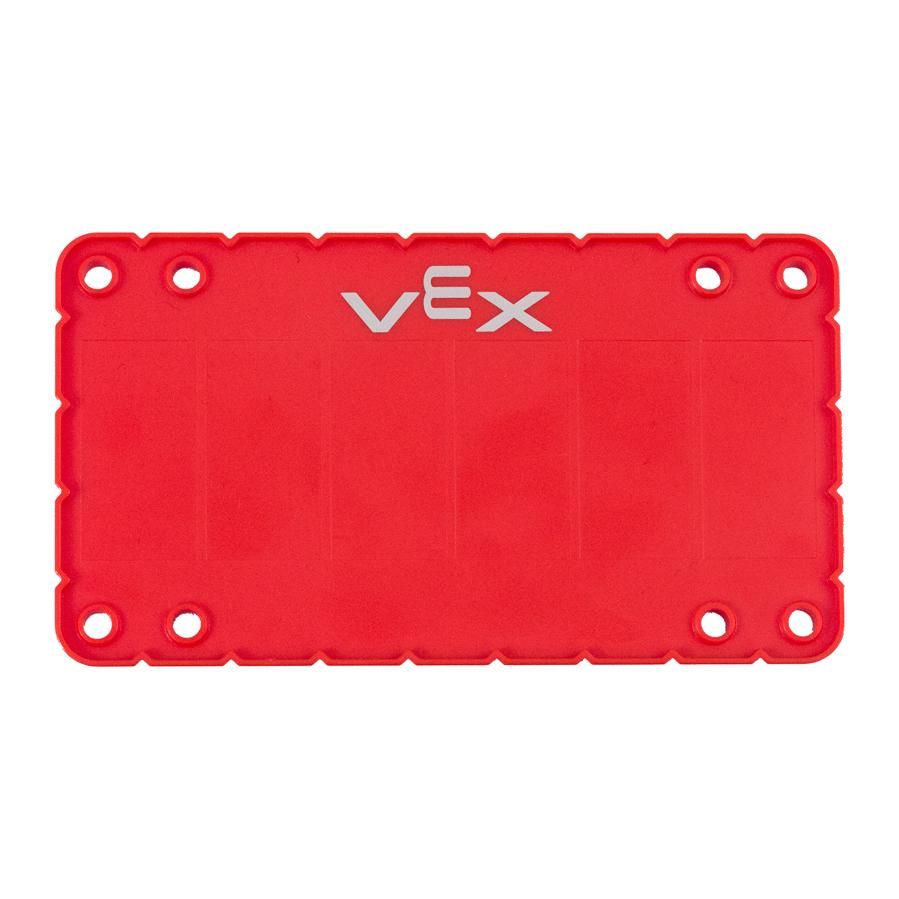

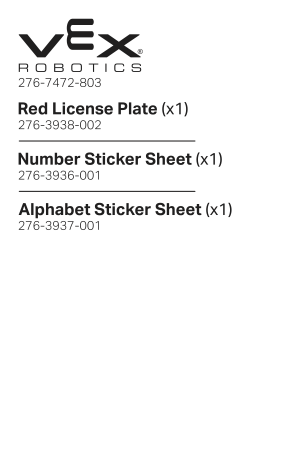

Red VRC License Plate Red_license_plate.jpg This part comes in this kit:
276-7472-803

Individual part number:
276-3938-002
1 These parts come in one bag.

License Plate Alphabet Sheet Alphabet.png This part comes in this kit:
276-7472-803

Individual part number:
276-3936-001
1

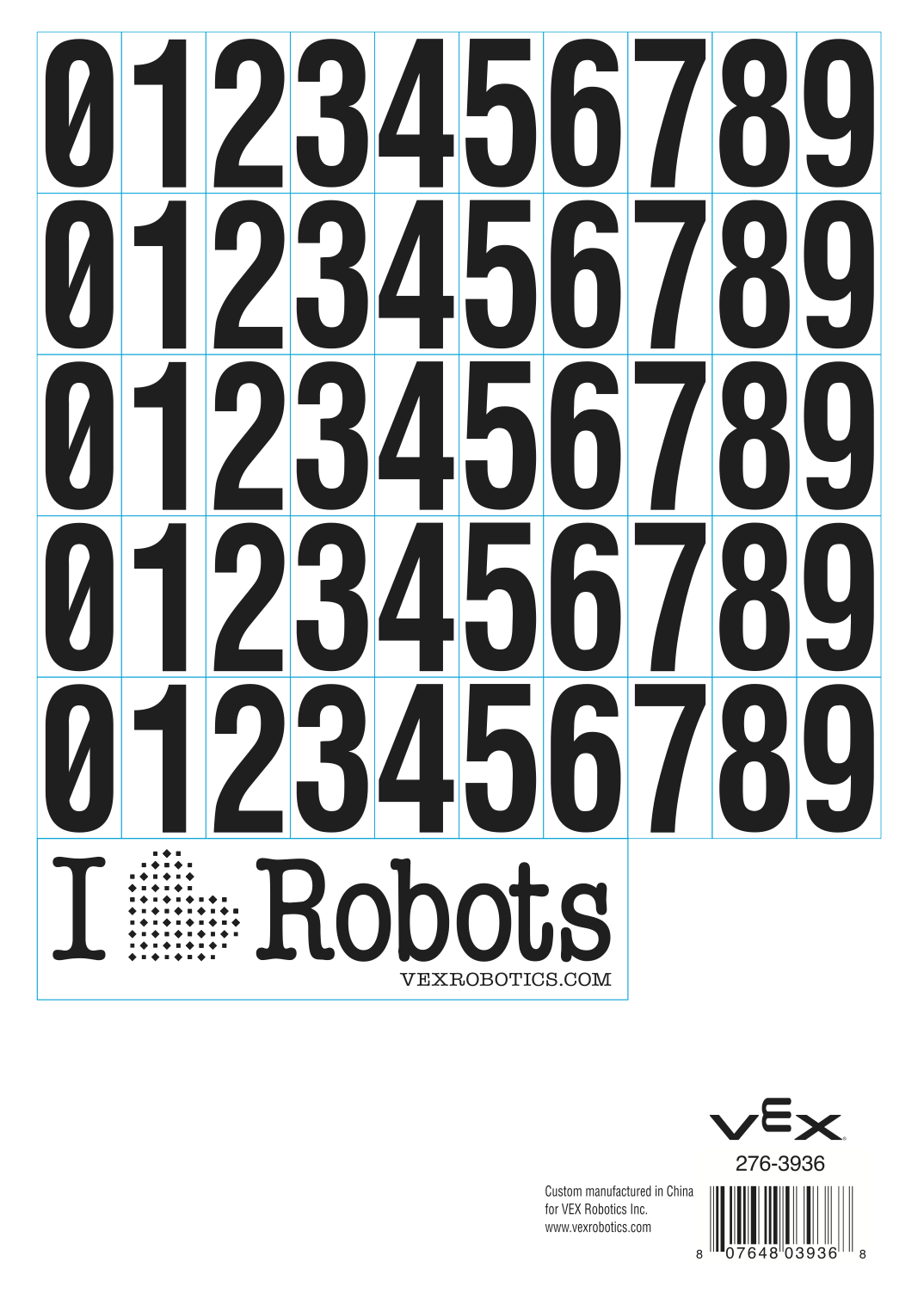

License Plate Number Sticker Sheet number_sticket_sheet.png This part comes in this kit:
276-7472-803

Individual part number:
276-3936-001
1

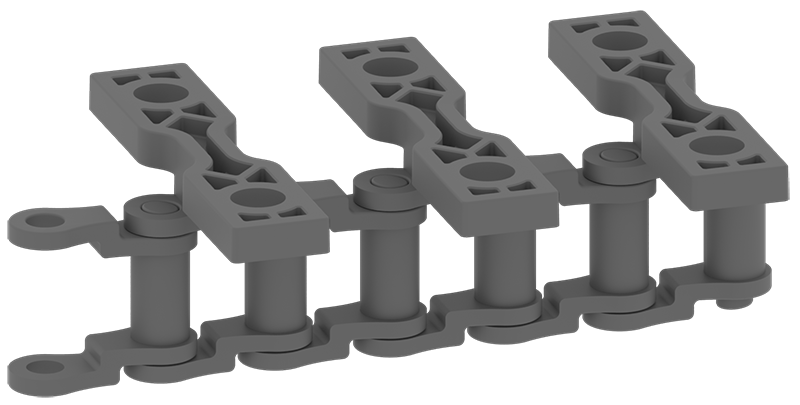

High Strength Conveyor Chain TransportConveyorLink.png 276-7141 18 chains Comes in multiple bags of 6 chains.

Only one bag is needed for Bin 1.

The other bags will be placed in Bin 3.

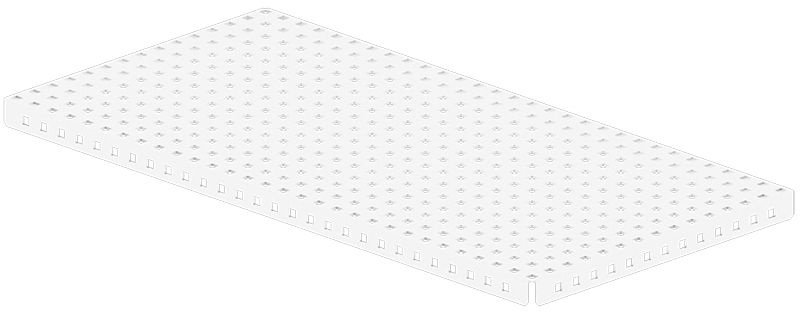

15x30 Base Plate 15x30BasePlate.png 276-1341-003 3 These come in three boxes of two Base Plates.

You will need to open one of these boxes while organizing your storage bin to create two sets of three.

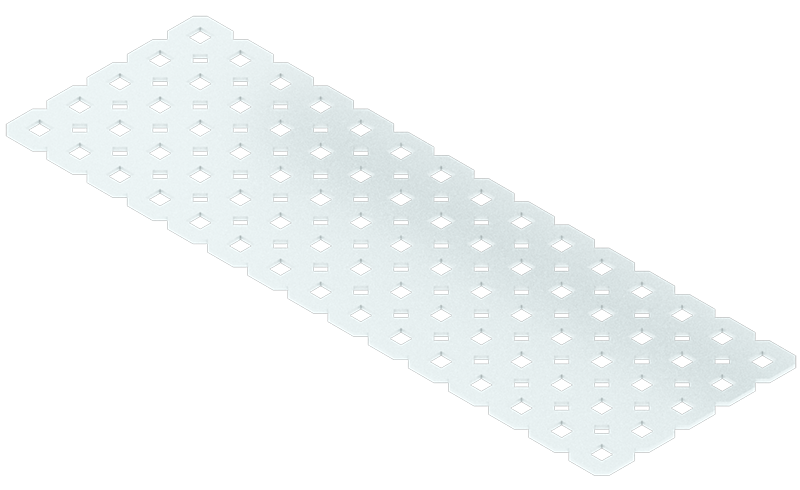

5x15 Steel Plate 5x15Plate.png Comes in this box:
276-6830

Individual part number:
275-2023-001

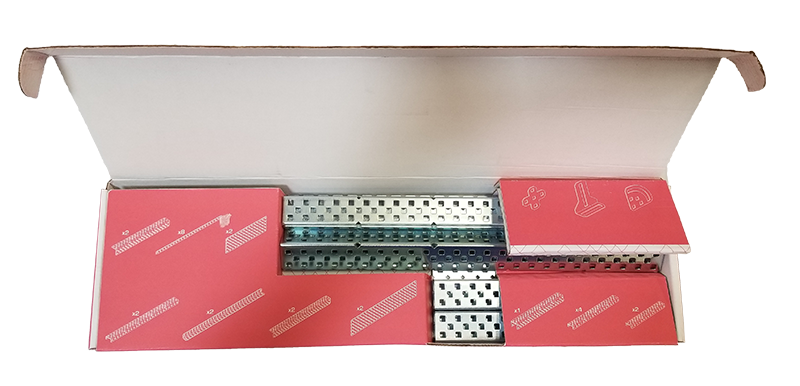

2 Comes in the V5 Classroom Structure Kit.

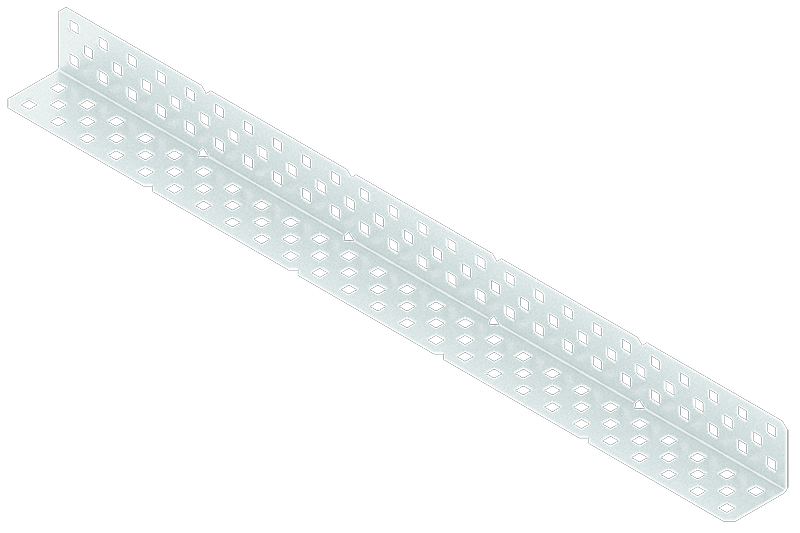

2x2x25 Angle 2x2x25Angle.png Comes in this box:
276-6830

Individual part number:
276-2232-022
2

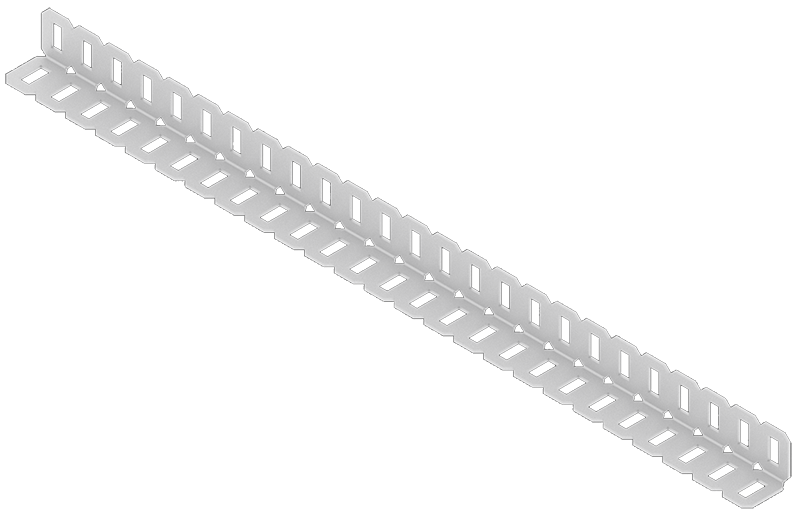

1x1x25 Steel Slotted Angle 1x1x25_Steel_Slotted_Angle.png Comes in this box:
276-6830

Individual part number:
276-2232-025
2

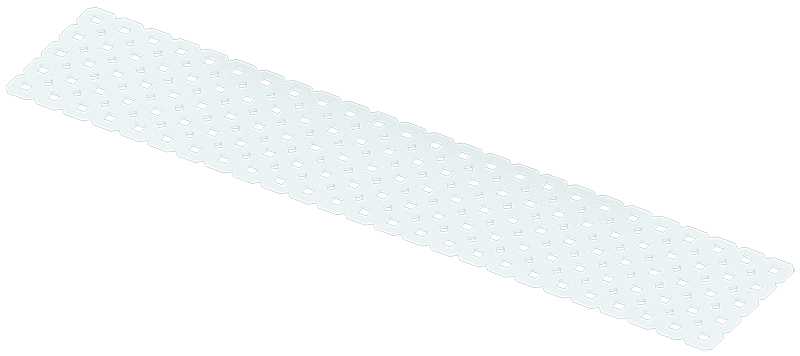

5x25 Steel Plate 5x25Plate.png Comes in this box:
276-6830

Individual part number:
275-1140-001
2

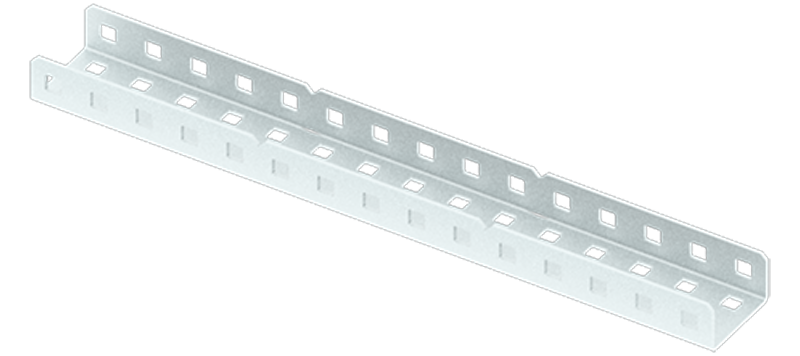

1x2x1x15 Steel C-Channel 1x2x1x15C-Channel.png Comes in this box:
276-6830

Individual part number:
276-2232-028
2

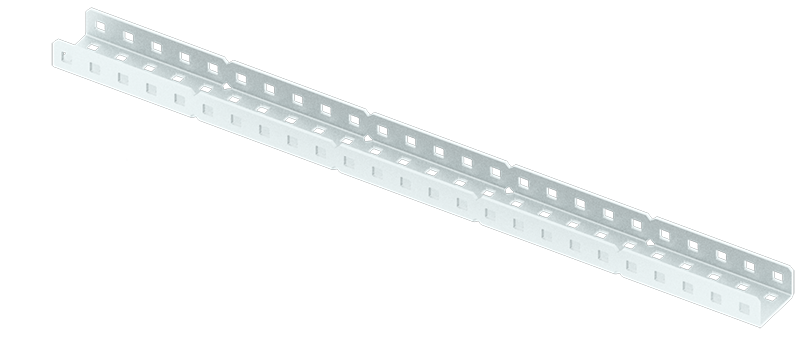

1x2x1x25 Steel C-Channel 1x2x1x25C-Channel.png Comes in this box:
276-6830

Individual part number:
276-2232-029
2

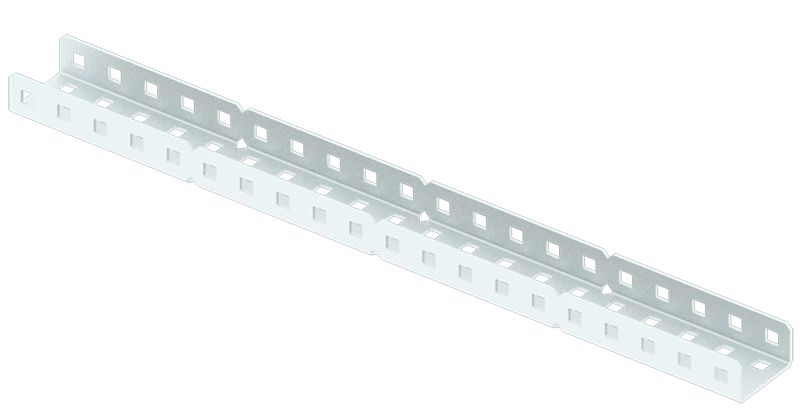

1x2x1x20 Steel C-Channel 1x2x1x20C-Channel.png Comes in this box:
276-6830

Individual part number:
276-2600-003
4

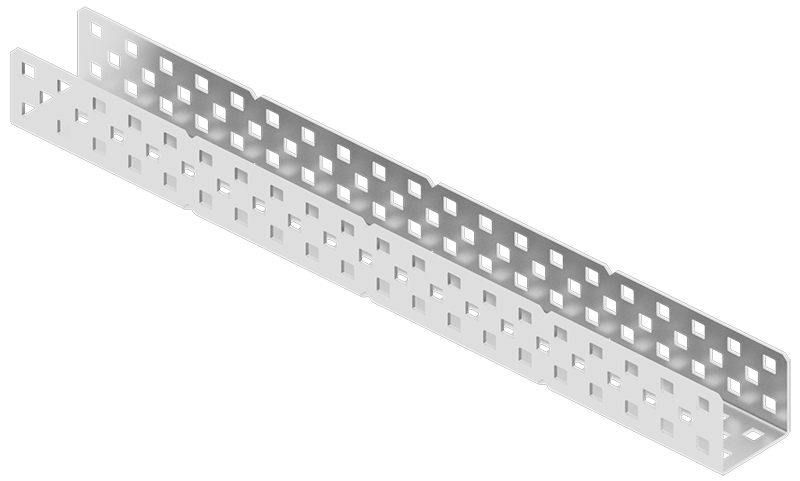

2x2x2x20 U Channel 2x2x2x20_U_Channel.png Comes in this box:
276-6830

Individual part number:
276-6009-001
1

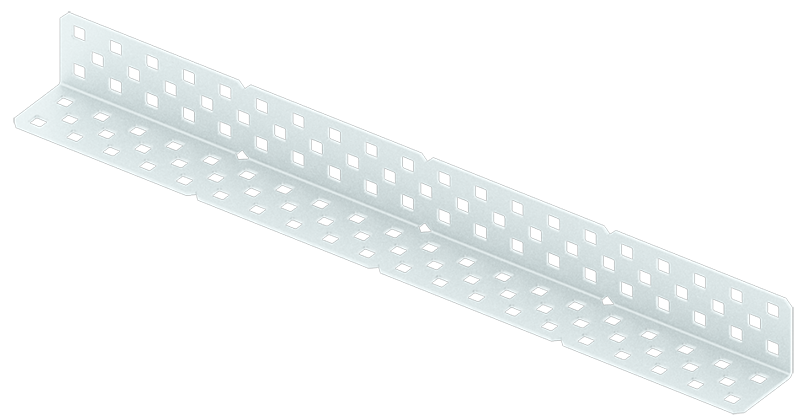

2x2x20 Steel Angle 2x2x20SteelAngle.png Comes in this box:
276-6830

Individual part number:
276-2600-001
2
1x25 Steel Bar 1x25SteelBar.png Comes in this box:
276-6830

Individual part number:
275-1141
8

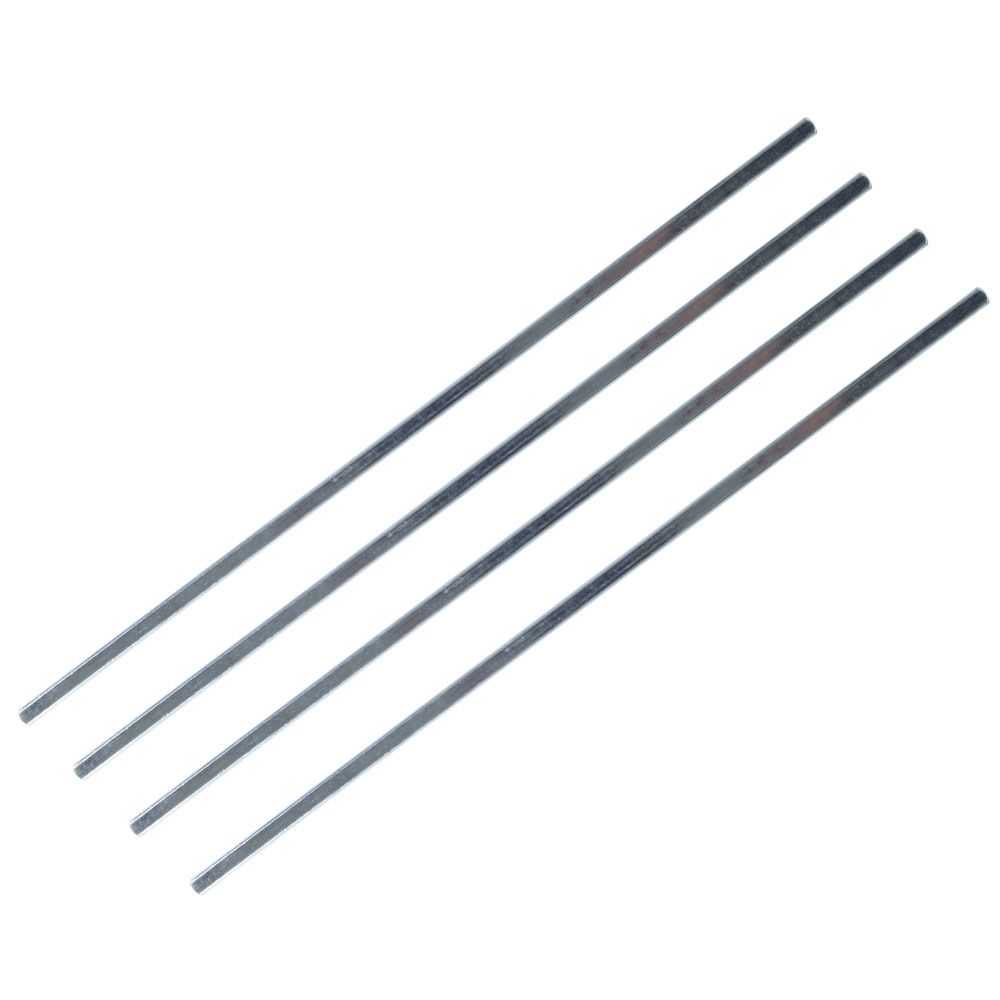

12” Drive Shaft 12__drive_shaft.jpg 276-1149 4 Comes in 1 pack of 4. VEX_IQ_Bin--glow.png

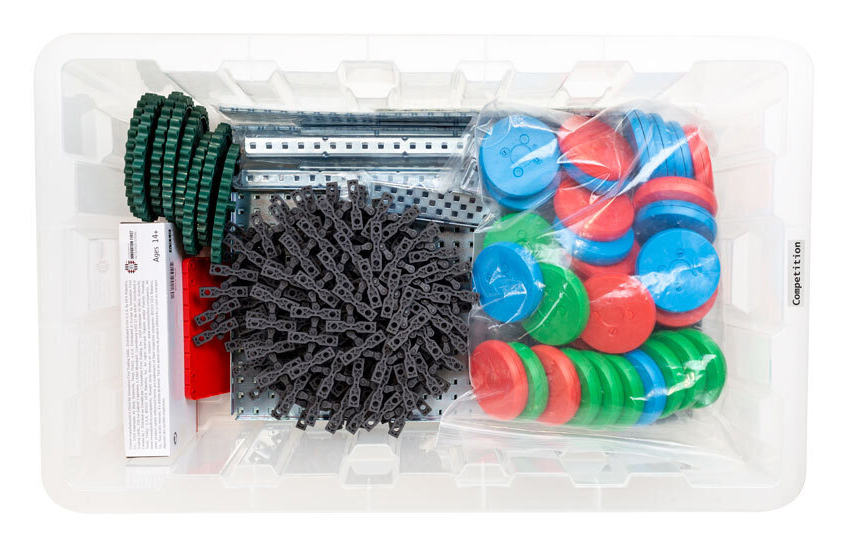

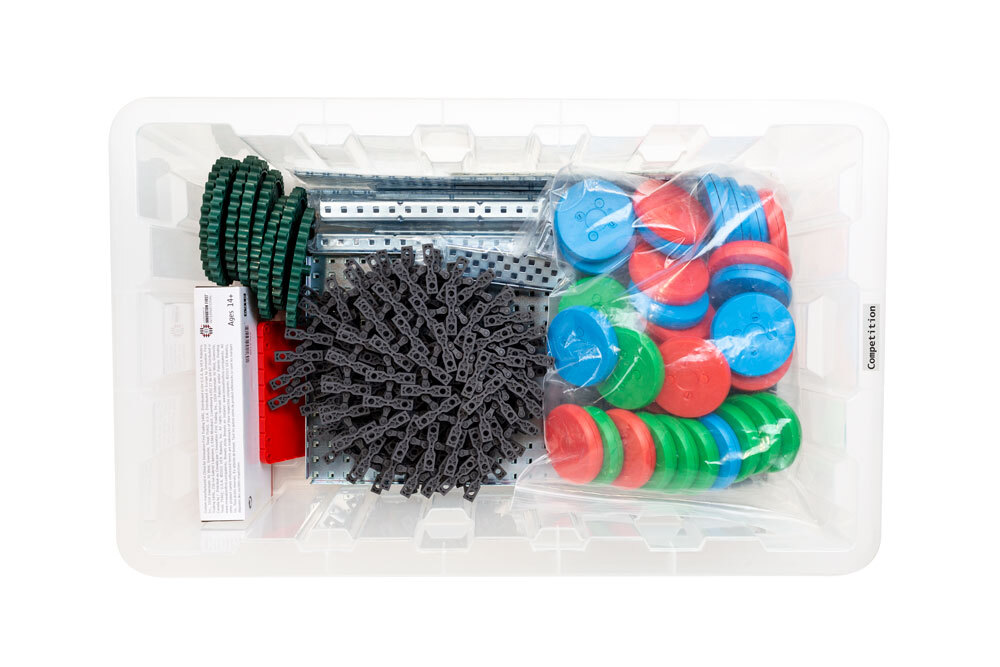

Once all of the parts from the Workcell Kit have been placed into the base of Storage Bin 3, the base will look like this image.
