To begin coding the VEX 123 Robot, you'll first need to connect it to VEXcode 123. Below are the steps for connecting and disconnecting the robot.
Connect a VEX 123 Robot to VEXcode 123
When you first launch VEXcode 123, you may get a dialogue box asking for permissions to use the device's location. Select ALLOW to allow the permissions.
Turn on the 123 Robot by pushing the 123 Robot along a surface to “wake” it.

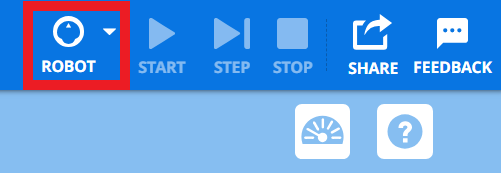

Select the robot icon at the top of VEXcode.

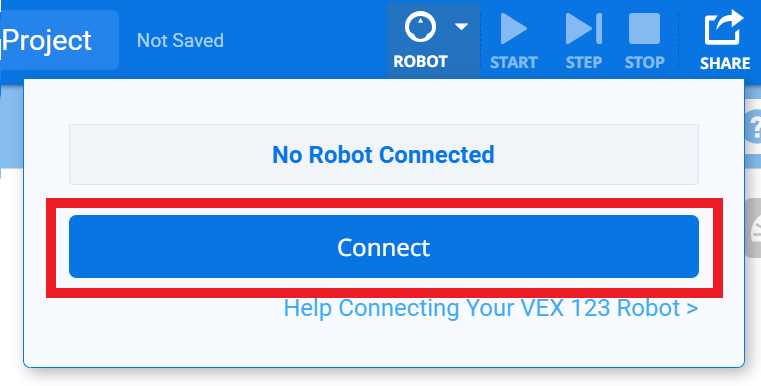

Select Connect.

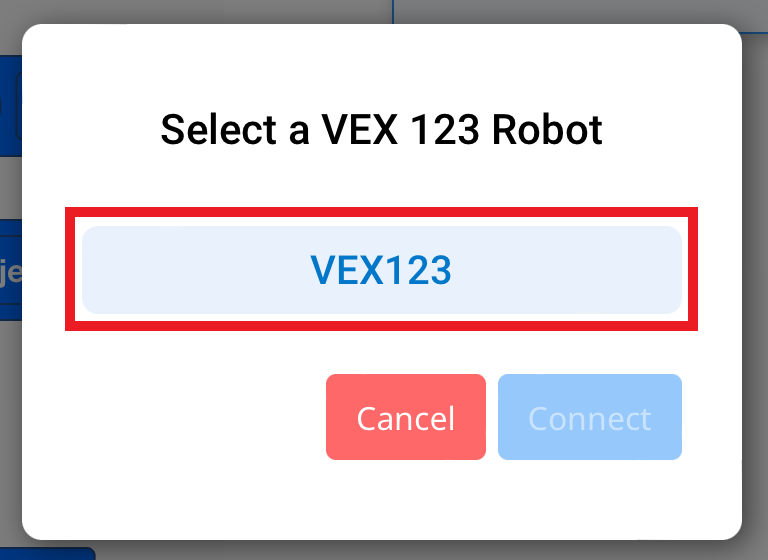

A dialogue box will open. Select the name of the 123 Robot that you want to connect to VEXcode 123.

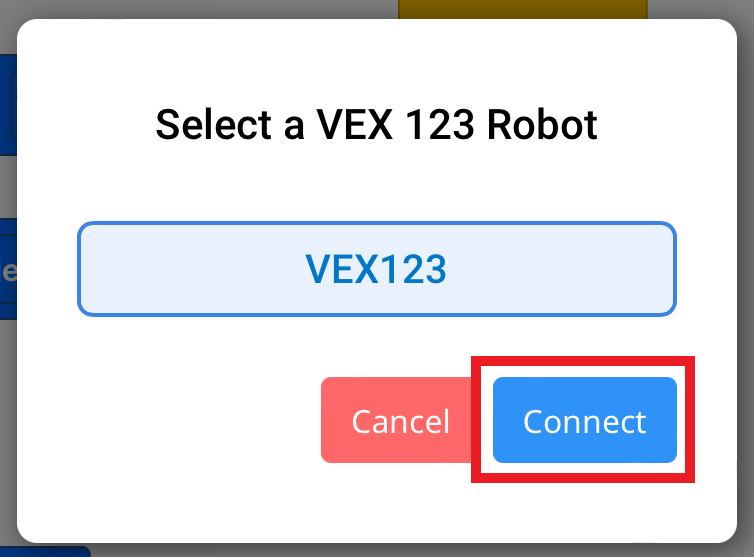

Select Connect after choosing your robot.

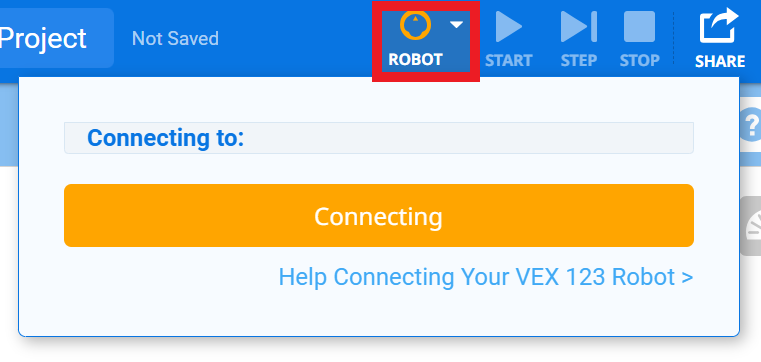

The Robot icon will turn orange and a Connecting to: message will appear while the Robot is connecting.
Once the 123 Robot is connected the Robot icon will turn green. The message in the window will say Connected to: and the name of the Robot that is connected to VEXcode 123.

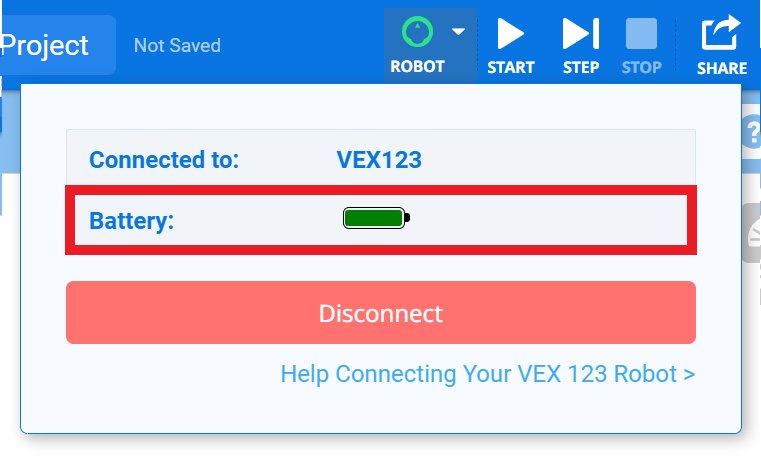

Underneath the Connected to: message, there is an icon that displays the battery level of the 123 Robot.
The battery indicator displays one of three colors to show the current charge level.
- Red - Low battery.
- Yellow - Medium battery.
- Green - Full battery.
Disconnect a VEX 123 Robot from VEXcode 123

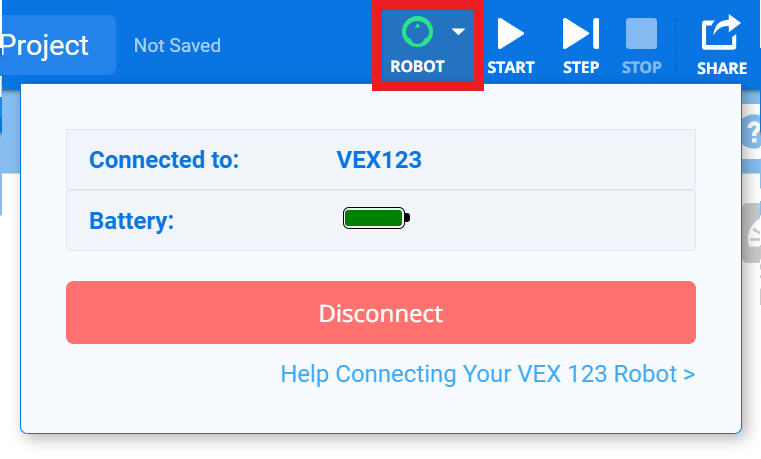

Select Disconnect to disconnect your 123 Robot from VEXcode 123.
If You Are Experiencing Connection Issues
- For troubleshooting support, view the Troubleshooting Connecting to App-based VEXcode 123 VEX Library article.
- If you are still having trouble connecting your 123 Robot to VEXcode 123, see this VEX Library article to troubleshoot your Bluetooth connection on Android.
- If you are unable to resolve your issue, please contact VEX support.
