Saving a V5 C++ Project on Chromebook

When working in VEXcode V5, it is important to understand how to save a project on a Chromebook.


Using ‘Save’

Screenshot of the VEX V5 software interface showing the 'Open and Save C++ Projects' section, with options and file management tools displayed for users to manage their C++ projects effectively.

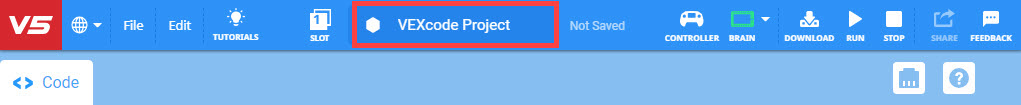

Saving VEXcode V5 C++ projects is easy. First, select the project name window.

V5 Category Description: Open and Save C++ Projects - A visual representation of the process for managing C++ project files in VEX robotics software, illustrating key steps and options available for users.

A Save dialog window will open.

V5 Category Description: Open and Save C++ Projects - A visual representation of the process for managing C++ project files in VEX robotics software, illustrating key steps and options available for users.

Name your project by typing in your device's Save dialog window.

Notice the .v5cpp file extension after the file name. VEXcode V5 C++ files will have this file extension.

Screenshot of the folder download interface in V5 software, illustrating how to open and save C++ projects, with options for selecting folders and managing files.

Select the destination, such as the Downloads folder.

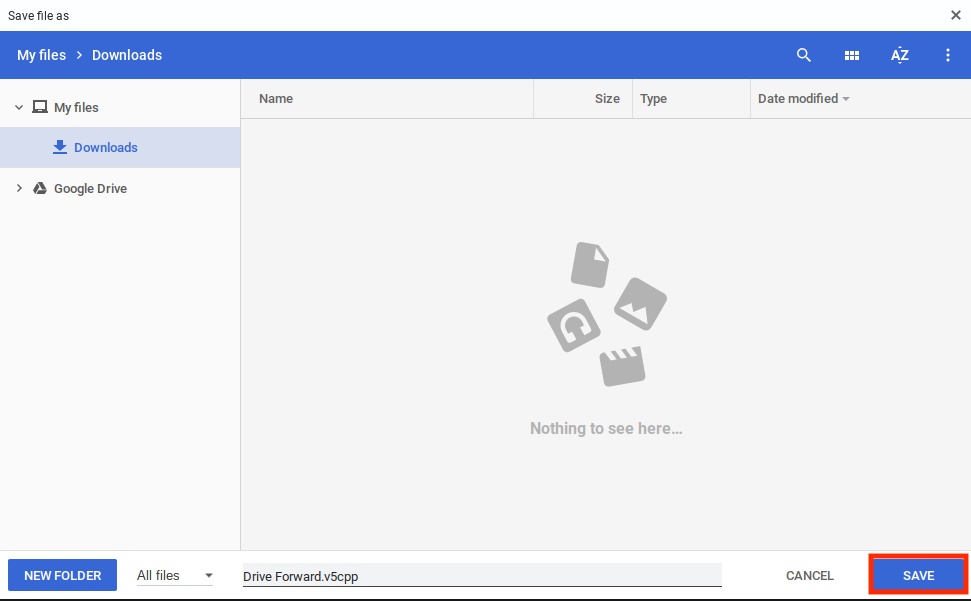

Screenshot of the 'Save' button in the VEXcode V5 software interface, illustrating the process of saving C++ projects as part of the Open and Save C++ Projects section.

Then select ‘Save.’

Screenshot of the VEXcode V5 interface showing the 'Destination Check' feature for managing open and save options for C++ projects.

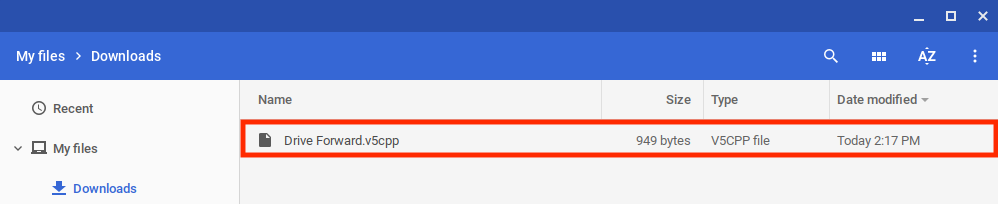

The file will save to the chosen destination on your device. VEXcode V5 C++ projects are recognizable by their .v5cpp extension.

Screenshot of the VEX V5 software interface showing the 'Open and Save C++ Projects' section, with options and file management tools displayed for users to manage their C++ projects effectively.

The updated project name will be visible in the project name window.

Screenshot of the VEX V5 software interface showing the process for opening and saving C++ projects, with highlighted options and menus relevant to project management.

Once a project is saved, VEXcode V5 will automatically save all changes in a project.

Screenshot showing the process of opening and saving C++ projects in VEX V5 software, including menu options and file management interface.

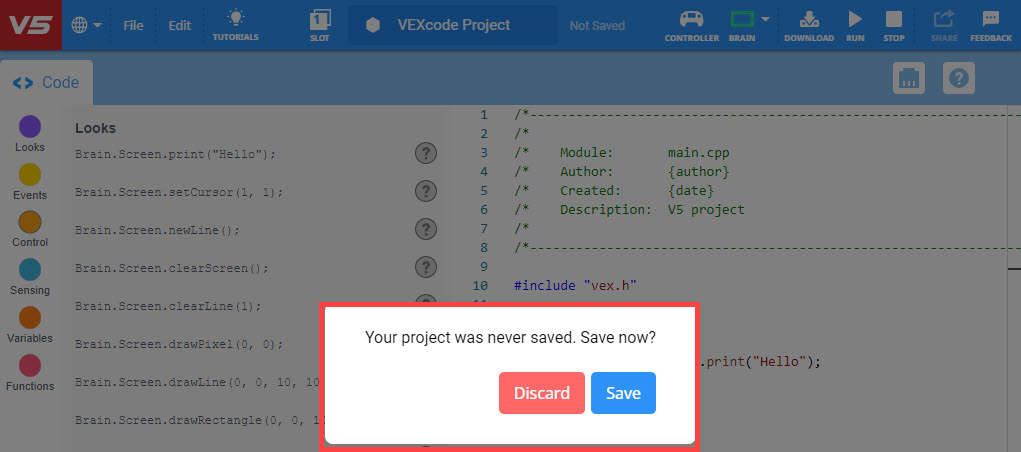

Note: Whenever there is an unsaved project VEXcode V5 will prompt users to save their work if the user attempts to:

  • Close VEXcode V5
  • Create a new project
  • Open another project

Using ‘Save As’

Screenshot of the VEX V5 software interface showing the 'Open and Save C++ Projects' section, with highlighted options for managing C++ project files.

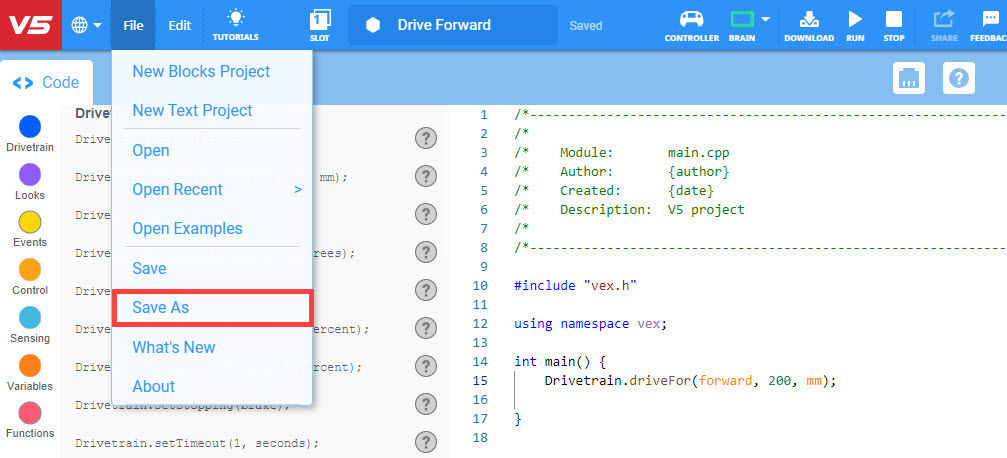

You can also use the ‘Save As’ option from the File menu to make a copy of a project under a different name or in a different location.

For more information, help, and tips, check out the many resources at VEX Professional Development Plus
