3D Printing Housings for the VEX AI System

When working with the VEX AI System, there are suggested 3D print options available for the Jetson, FLIR Camera, and the Intel Camera.

These 3D print suggestions can be used to house the Jetson and stabilize the cameras.

The print files can be downloaded:

The following article will cover:

  • 3D Print Suggestion for the Jetson
  • 3D Print Suggestion for the FLIR Camera
  • 3D Print Suggestion for the Intel Camera

3D Print Suggestion for the Jetson

When using the Jetson, it is important to create a type of case for it to ensure that it does not get damaged in competition.

There are two print files included for the Jetson:

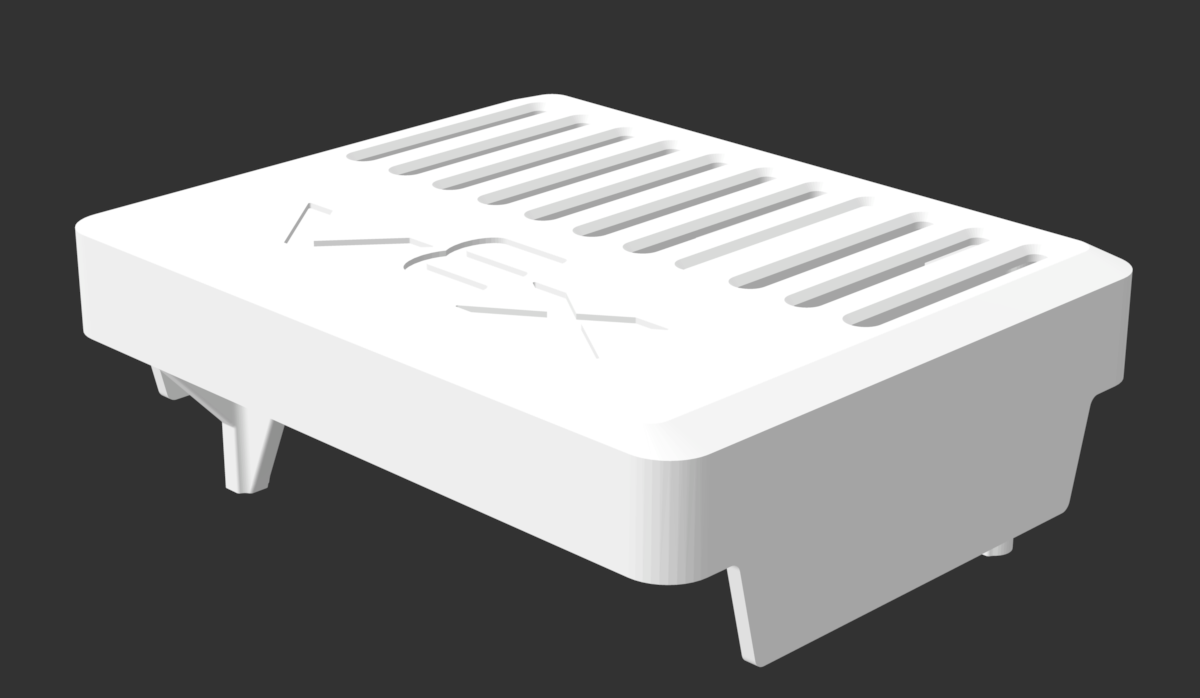

Jetson Nano Case Top

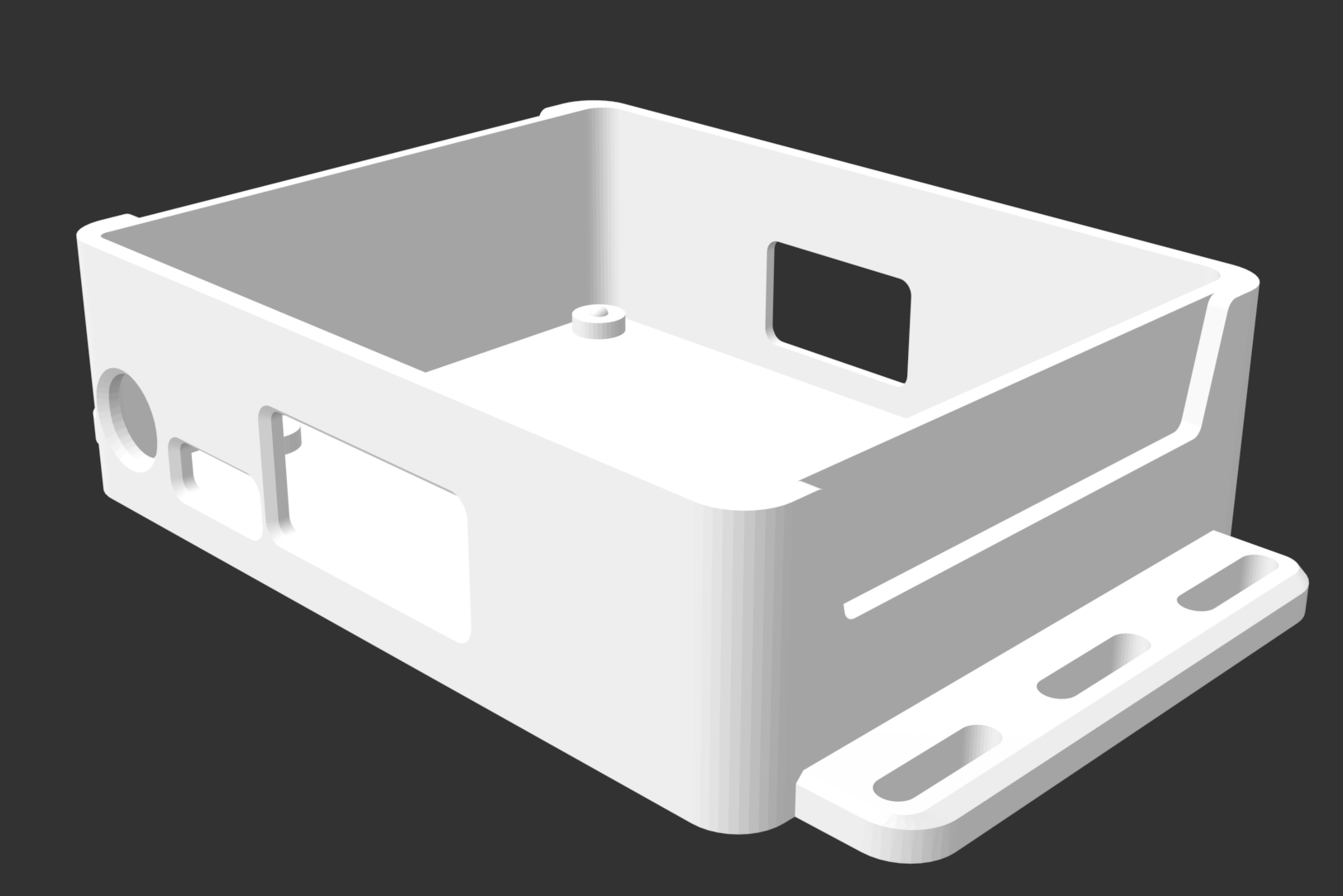

Jetson Nano Case Bottom

Note that 2.6mm x 8mm self tapping screws are needed to secure the case in place.


3D Print Suggestion for the FLIR Camera

When using the FLIR Camera, it is important to create a type of case for it to ensure that it sits approximately 10 inches off of the ground, as well as remains stabilized.

There are two print files included for the FLIR Camera:


FLIR Camera Case Top


FLIR Camera Case Bottom

Note that 2.6mm x 8mm self tapping screws are needed to secure the print in place.


3D Print Suggestion for the Intel Camera

When using the Intel Camera, it is important to create a type of case for it to ensure that it obtains the proper amount of ventilation as well as remains stabilized.

There are two print files included for the Intel Camera:

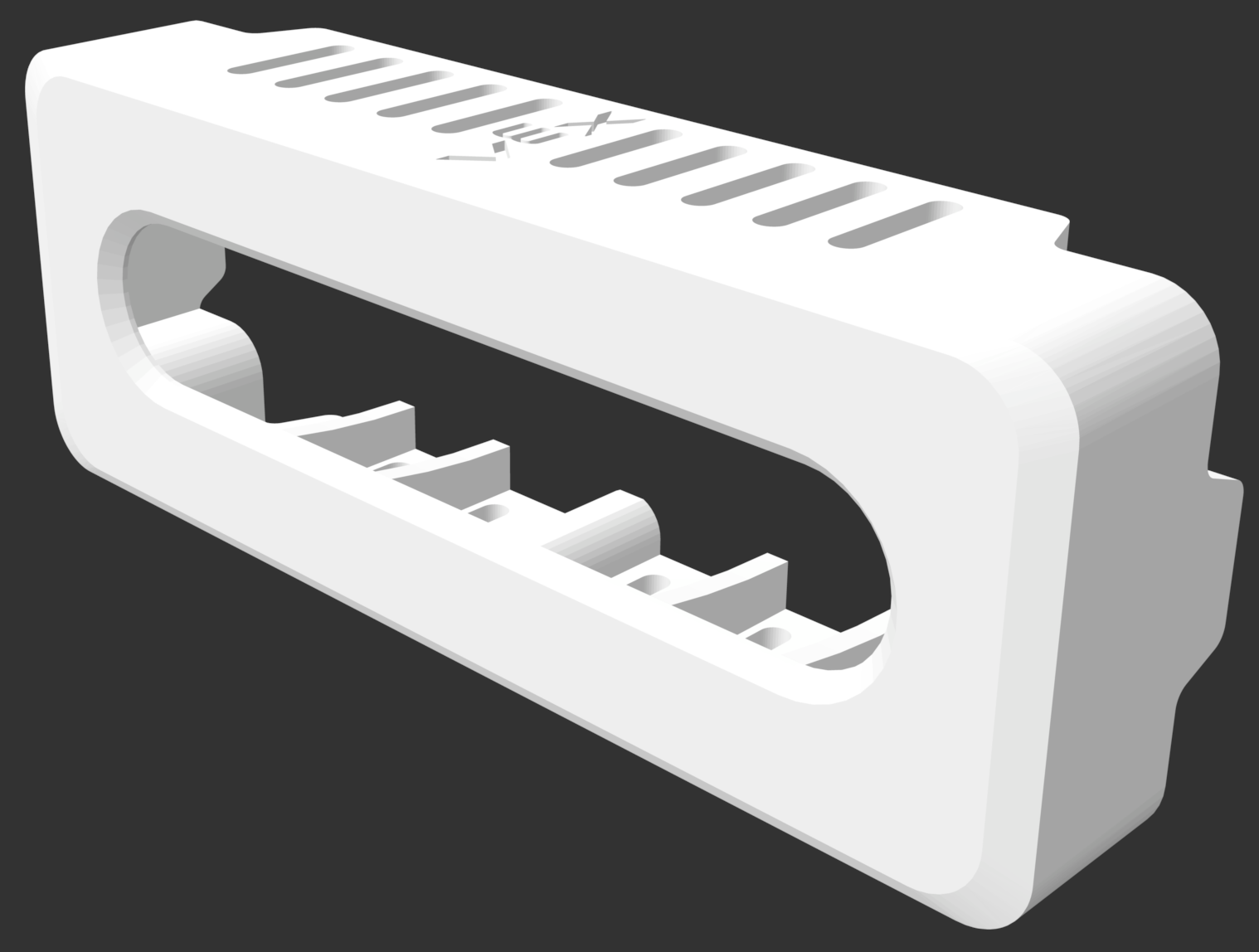

Intel Camera Case Top


Intel Camera Case Bottom

Note that four of the 276-6781 threaded motor inserts and two #6-32 x 0.5" screws are needed to secure the print in place.
