When working in VEXcode V5, there are several ways to open a project on an iPad.

Open an Existing Project

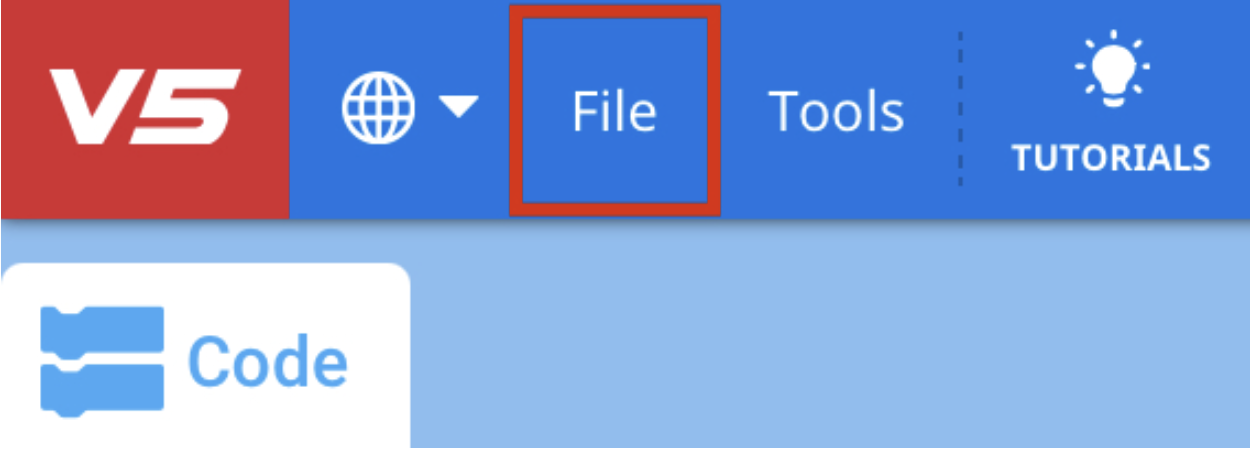

VEXcode V5 Toolbar with the File option highlighted in between the Language and Tools options.

Select File in the Toolbar.

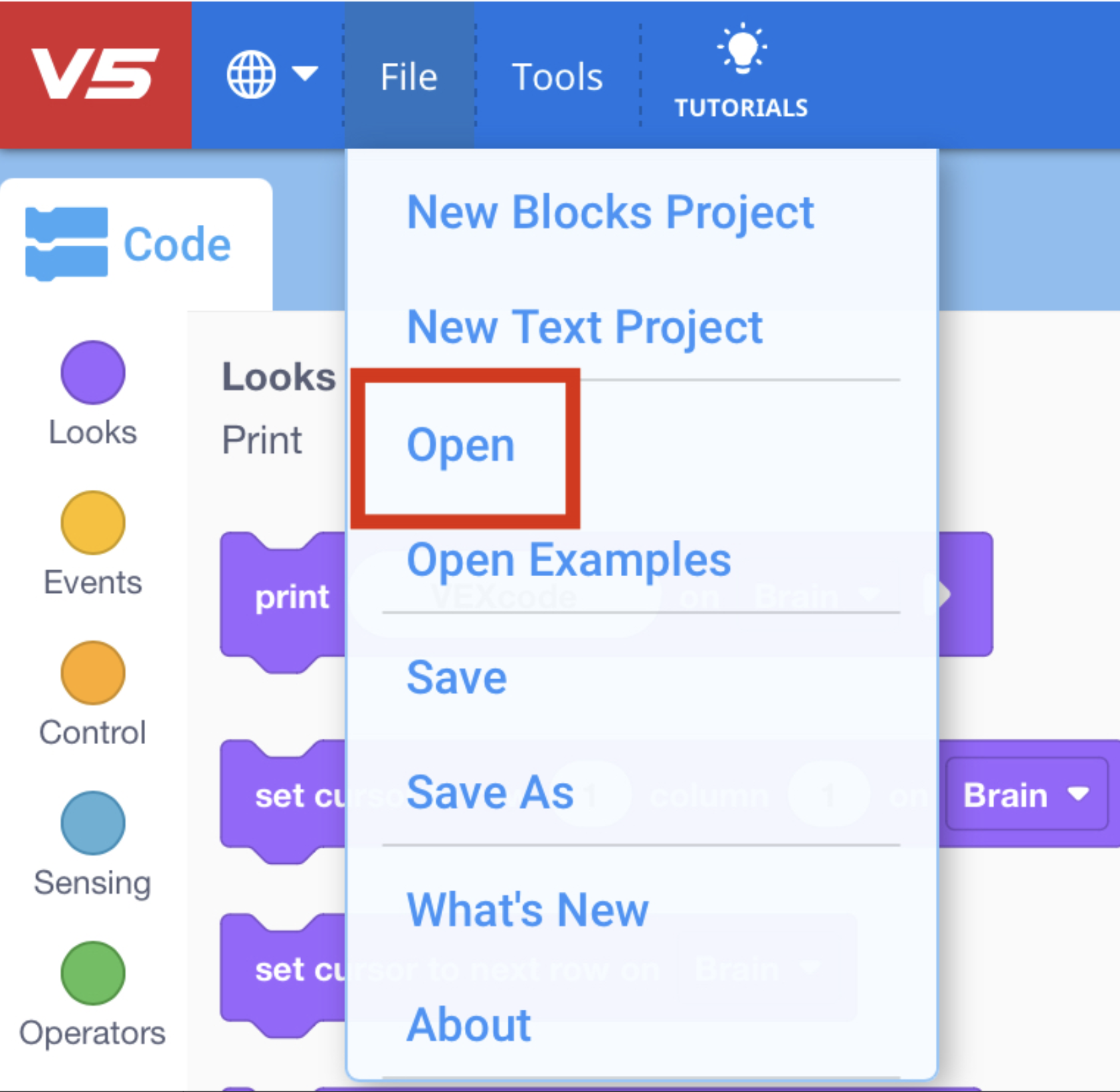

VEXcode V5 Toolbar with the File menu open and the Open option highlighted. Open is the third option in the menu, below New Blocks Project and New Text Project.

Select Open in the drop down menu.

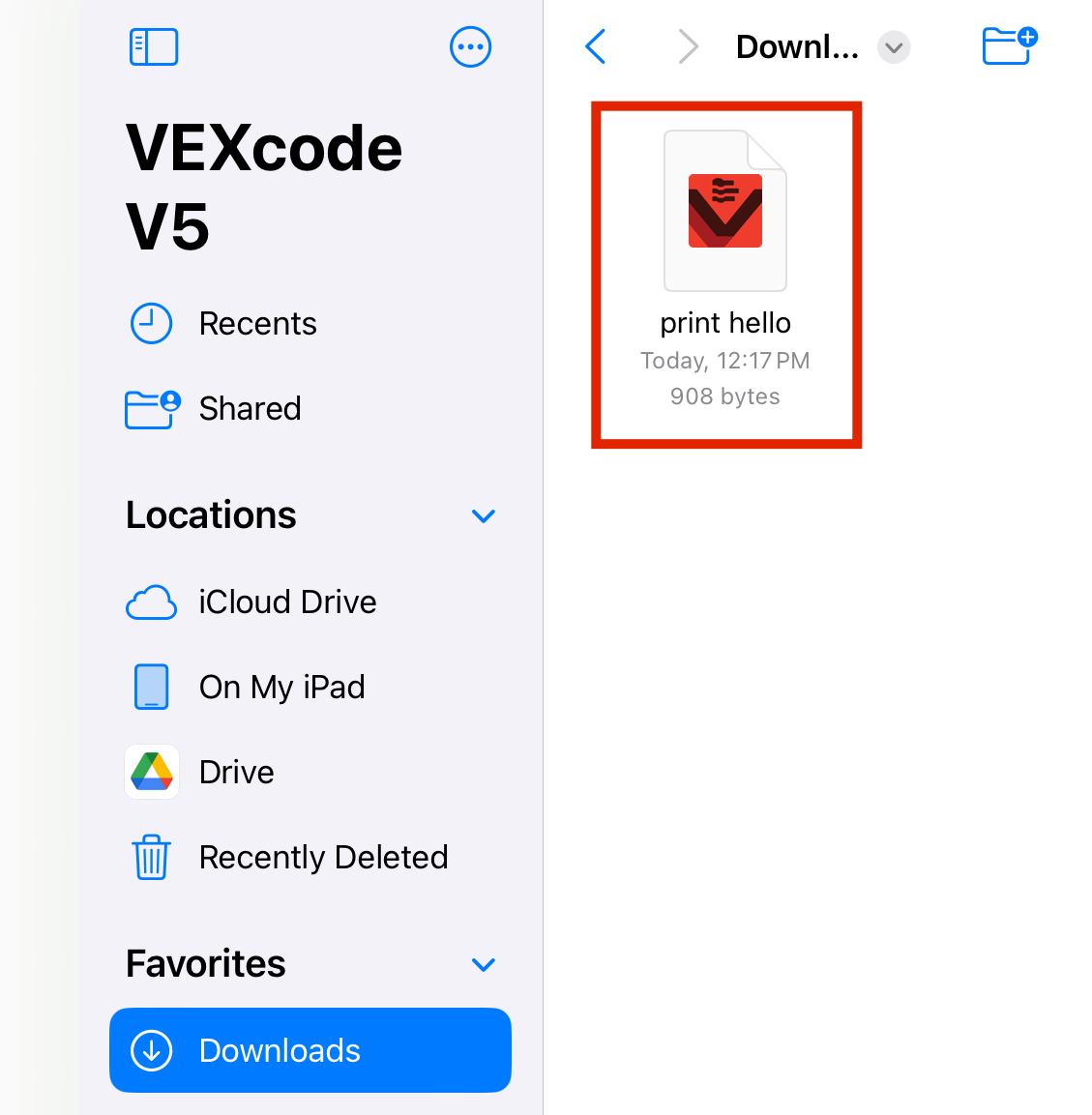

Previously saved VEXcode V5 project is visible from the device's files and is highlighted.

Then, use the iPad interface to navigate and select your existing blocks project.

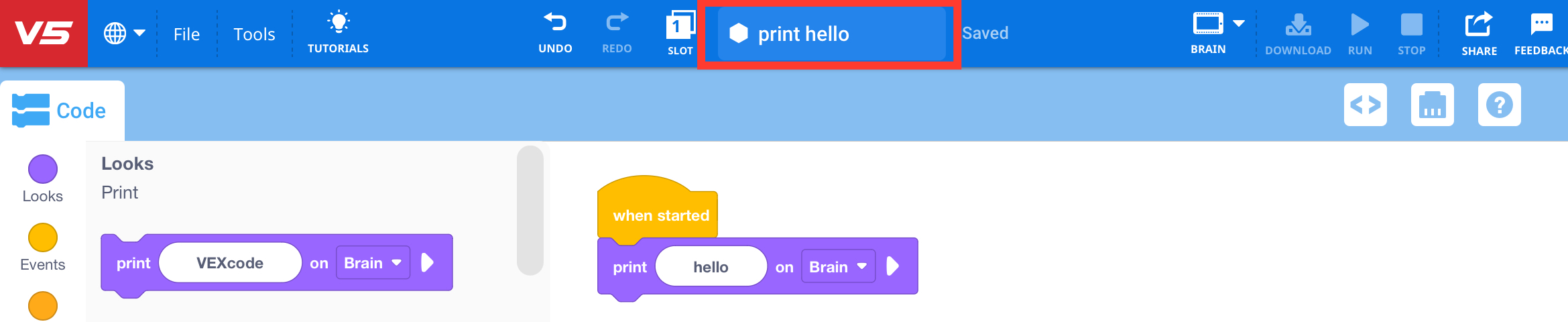

VEXcode V5 with a previously saved Blocks project successfully opened in the Workspace.

Your project will open in VEXcode V5.

Open an Example Project

VEXcode V5 Toolbar with the File option highlighted in between the Language and Tools options.

Select File in the Toolbar.

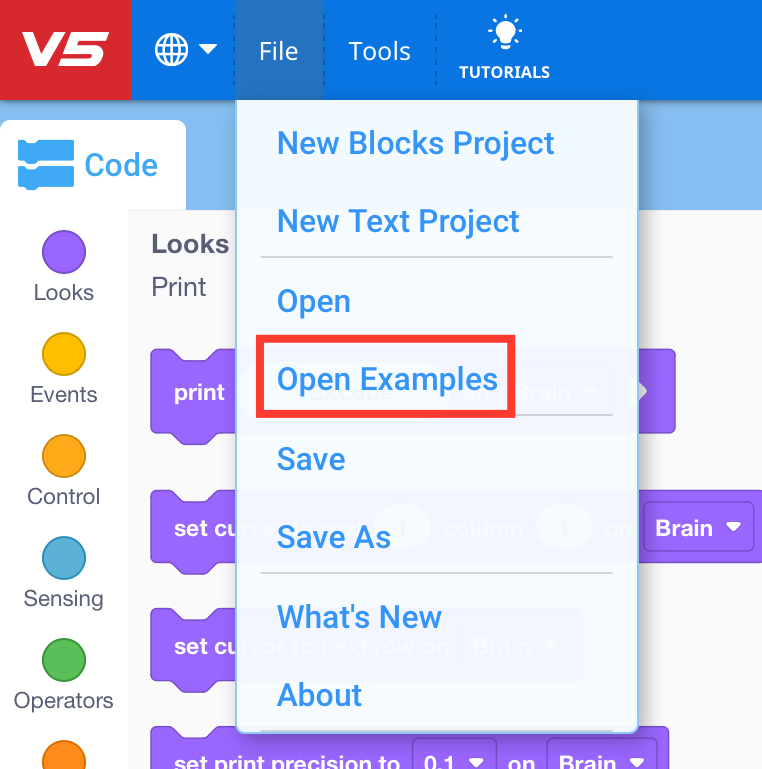

VEXcode V5 Toolbar with the File menu open and the Open Examples option highlighted. Open Examples is the fourth option in the menu, below New Blocks Project, New Text Project, and Open.

Select Open Examples in the drop down menu.

VEXcode Blocks Example Projects menu with a variety of projects across different categories to choose from.

Select a Template or an Example Project.

Note: Templates and Example Projects are used for the following.

Templates configure the motors and sensors on your robot for the project.
Example projects are premade projects that are ready to download and run.

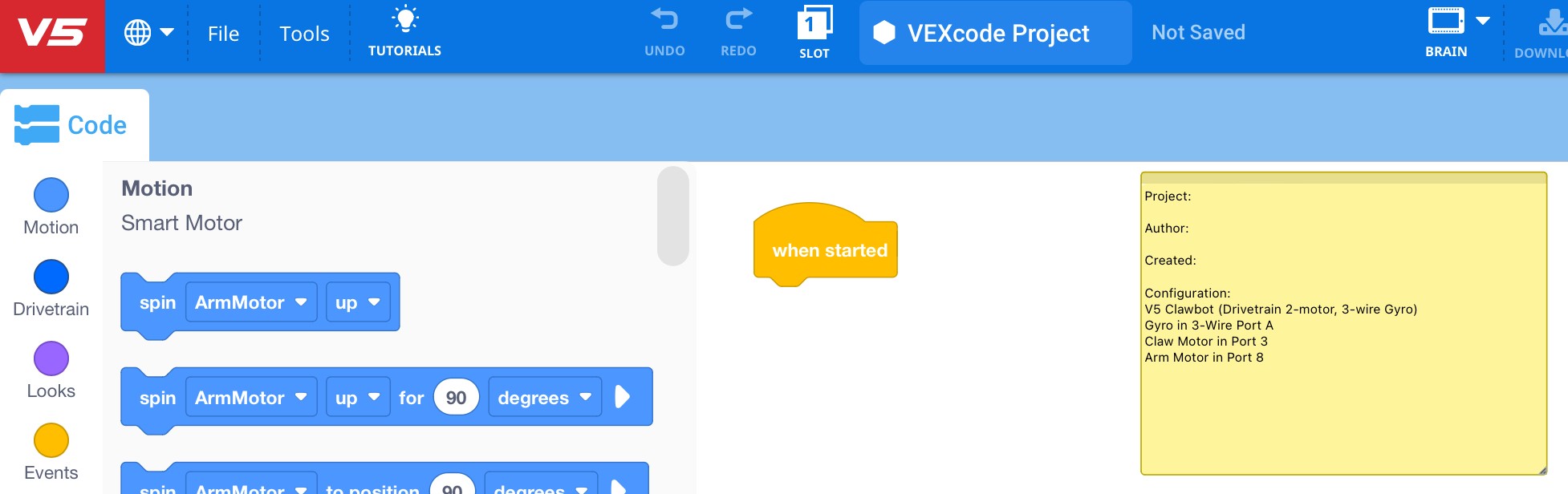

VEXcode V5 with a template Example Project opened, including configured devices and a note with a description of the project.

Once selected, the Template or Example Project will open.
