Installing the Intel Dual Band Wi-Fi and Antennas for VEX AI

Before the Jetson can function properly, the Intel Dual Band Wi-Fi and Antennas need to be installed.


Parts Needed

Diagram showing all parts included in the VEX AI setup, illustrating components necessary for assembly and configuration in the V5 robotics system.

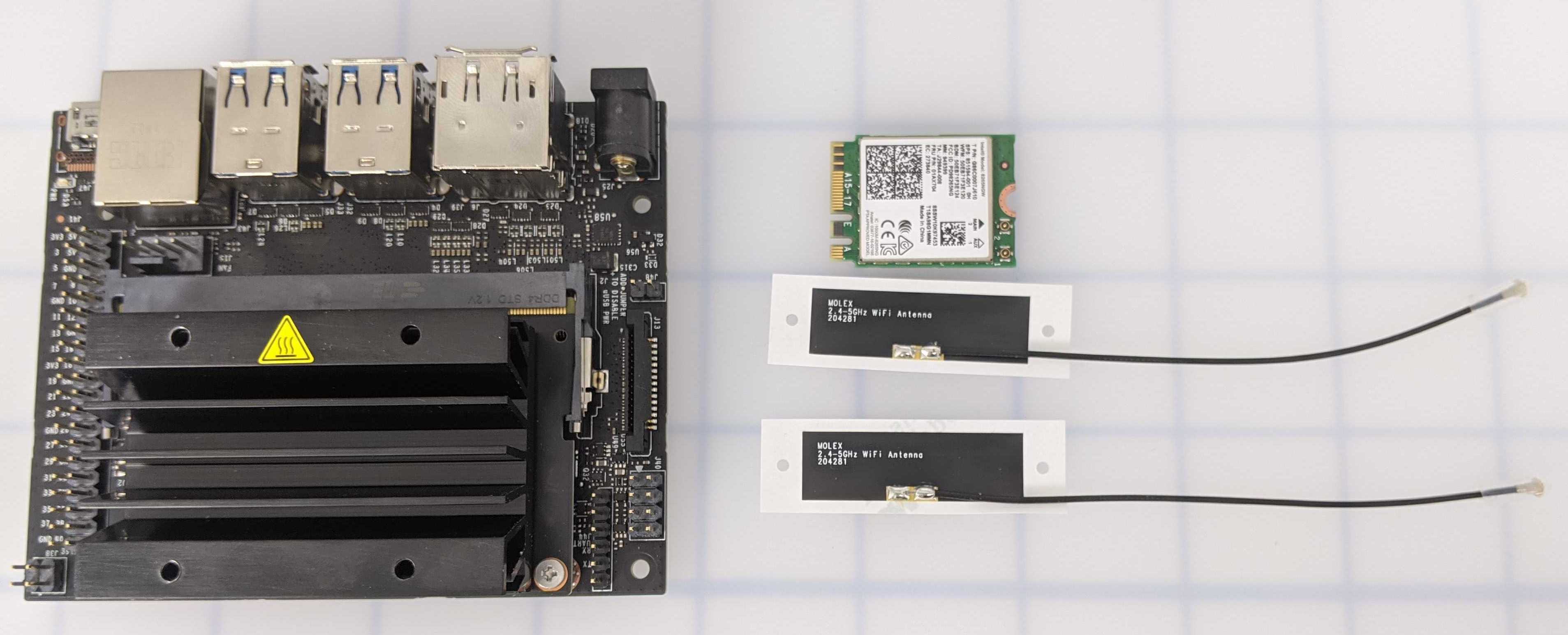

The parts needed for assembly are as follows:

  • Jetson
  • Intel Dual Band Wi-Fi
  • 2x Antennas

Remove the Jetson Nano Module

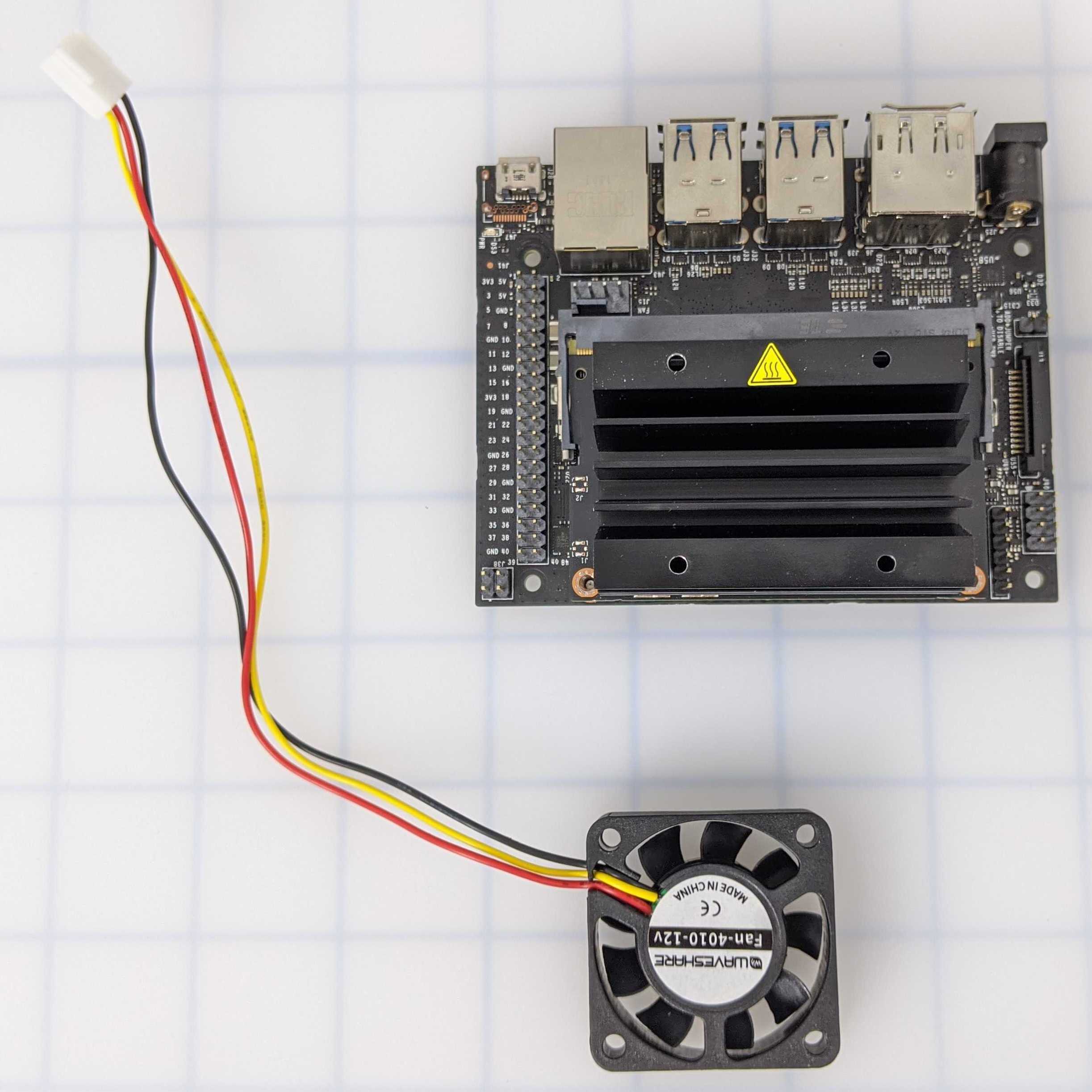

Image showing the process of removing a fan from a VEX AI robot, illustrating the steps involved in setting up the VEX AI system.

Unplug the fan if it is attached to the Jetson Nano Module and remove it. If the fan is already detached, proceed to step 2.

Diagram of a two-screw heatsink with labeled components, illustrating its setup for VEX AI applications.

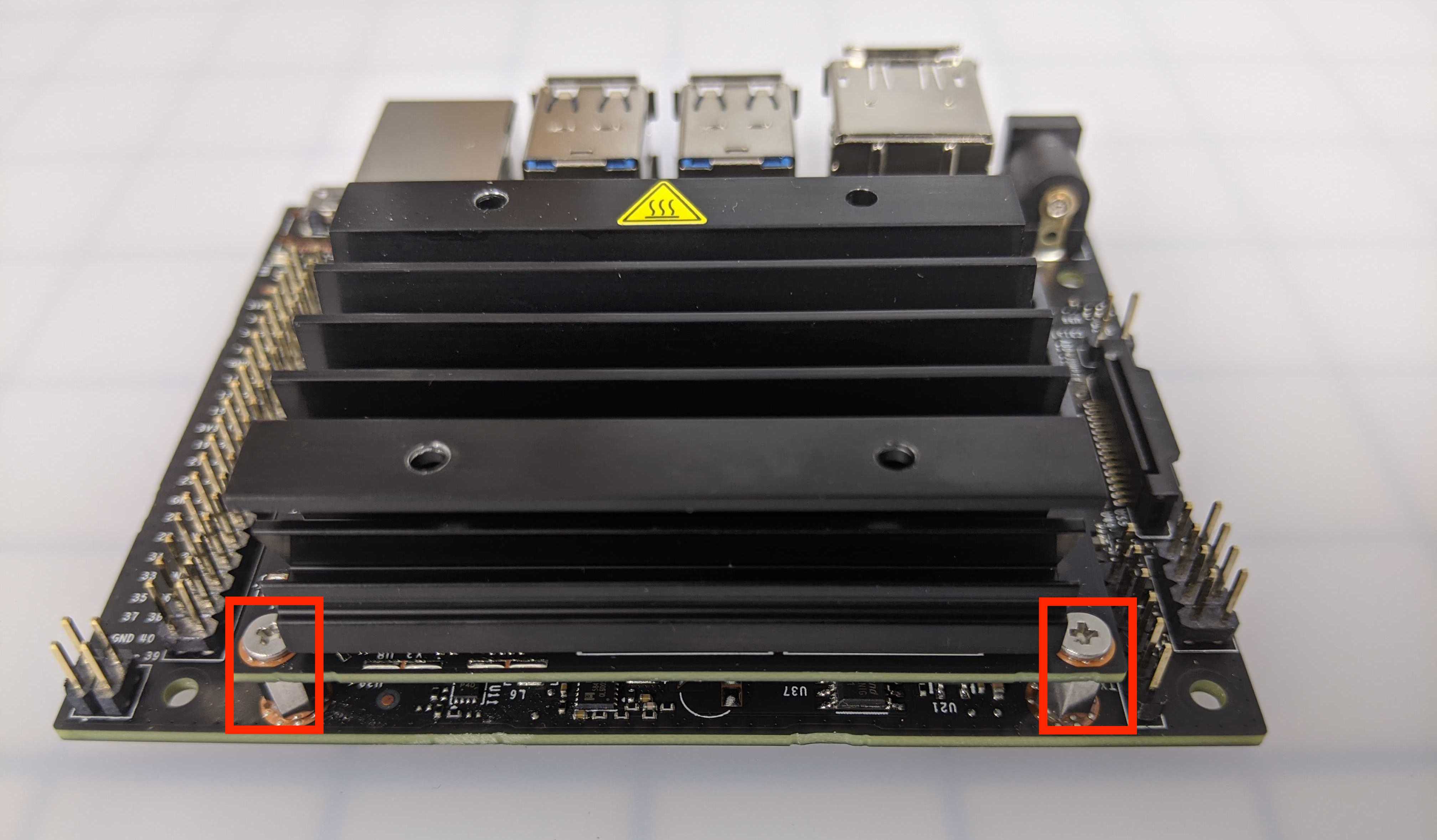

Remove the two screws holding the Jetson Nano Module to the Carrier Board.

Two VEX AI clips side by side, showcasing their design and features for setting up VEX AI in robotics applications.

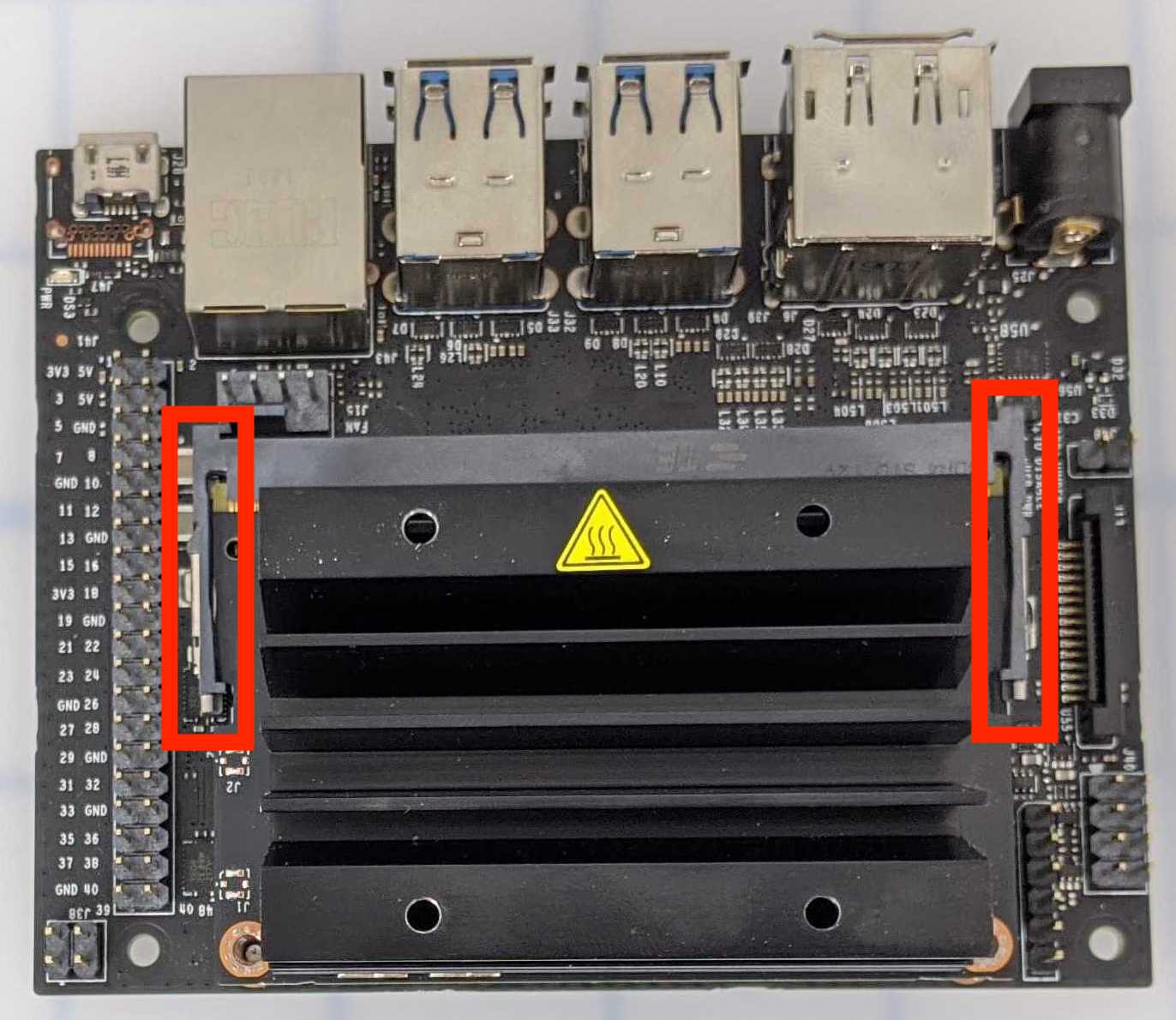

Once the screws are removed, open the two tabs holding the Jetson Nano Module into the Carrier Board. Do this by gently pulling the tabs horizontally away from the Jetson Nano Module.

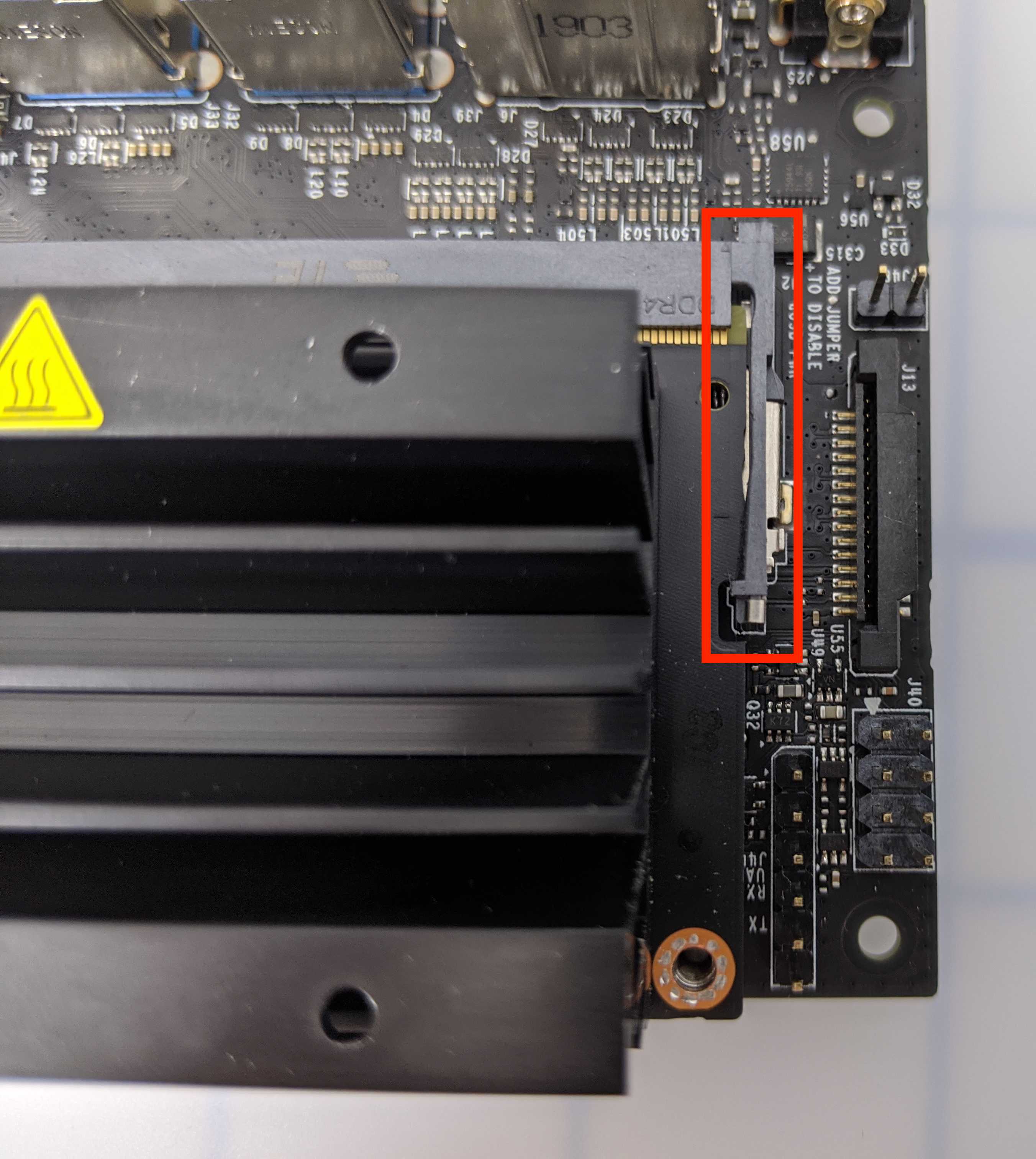

Diagram showing VEX AI heatsink clips with labeled components for proper setup in VEX V5 robotics system.

There is a tab on each side of the Jetson Nano Module.

Close-up of a VEX AI heatsink with a screw-in callout, illustrating the setup process for VEX AI in the V5 category description.

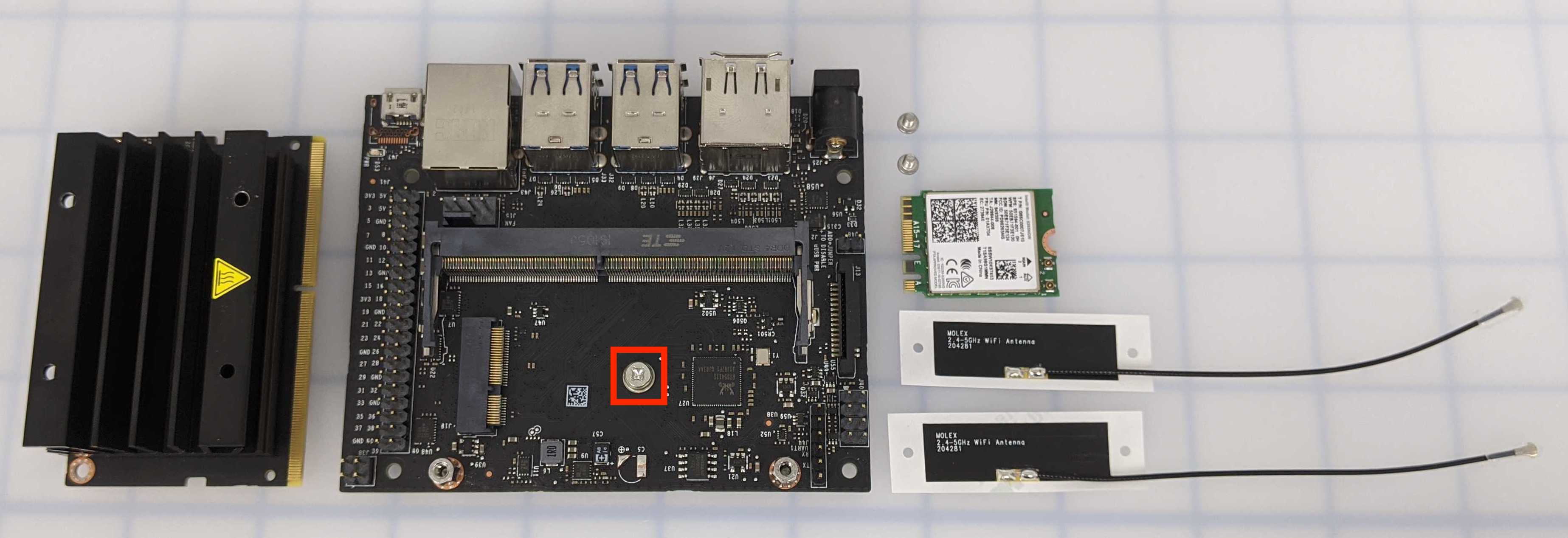

Carefully pull the Jetson Nano Module straight out of the Carrier Board. Notice the screw in the middle of the Carrier Board.

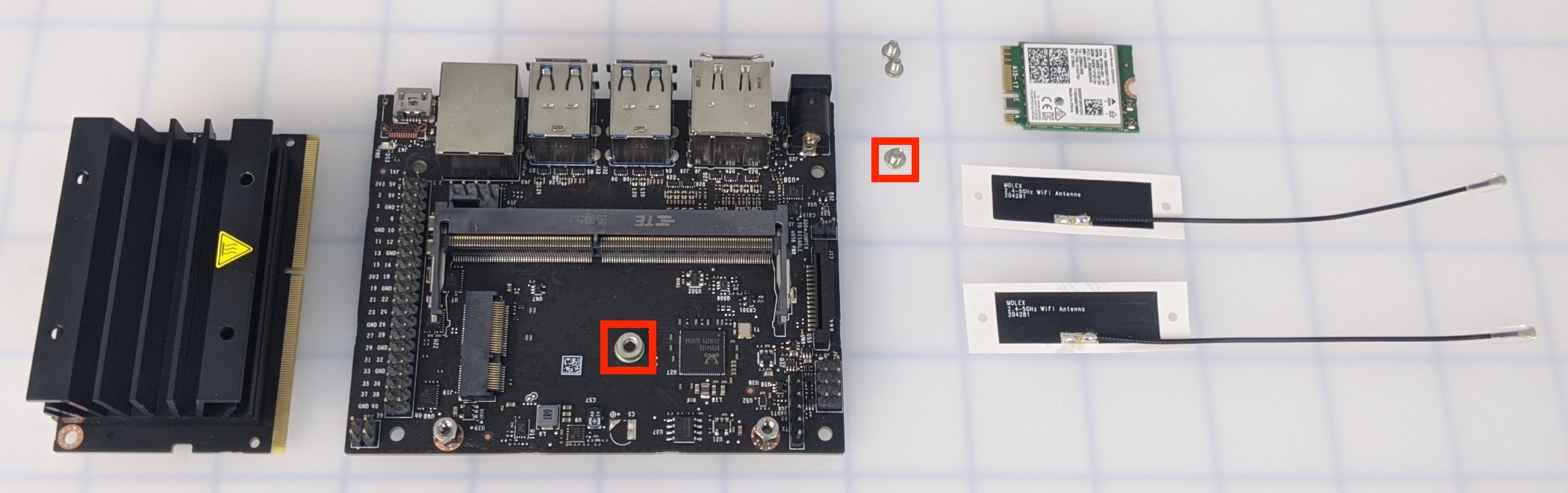

Diagram showing the removal of the middle screw from a VEX AI robot assembly, highlighting the specific screw to be taken out for proper setup.

Remove the screw in the middle of the Carrier Board.


Attach the Antennas

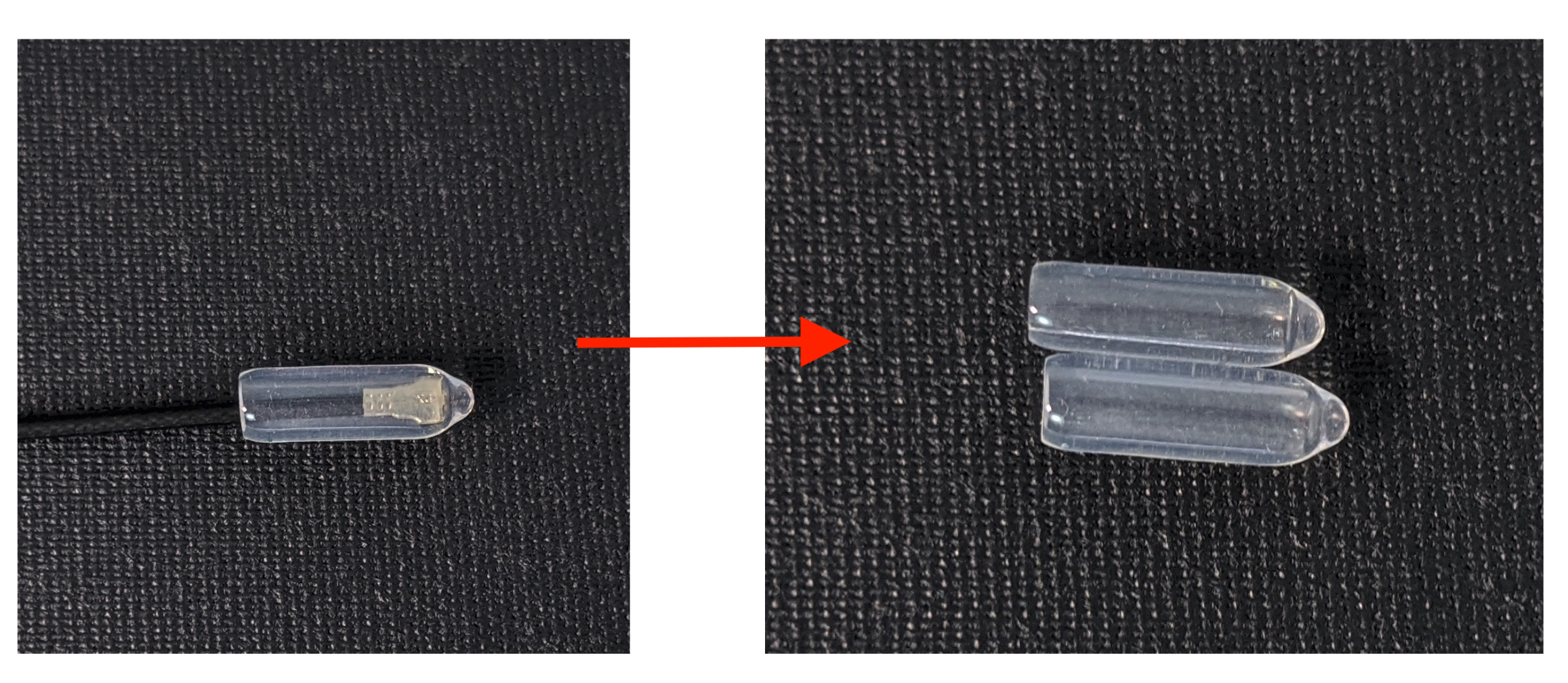

Collage of images demonstrating the removal of plastic covers from VEX AI components, showcasing step-by-step instructions for setting up VEX AI in the V5 category.

Remove the plastic cover from antennas.

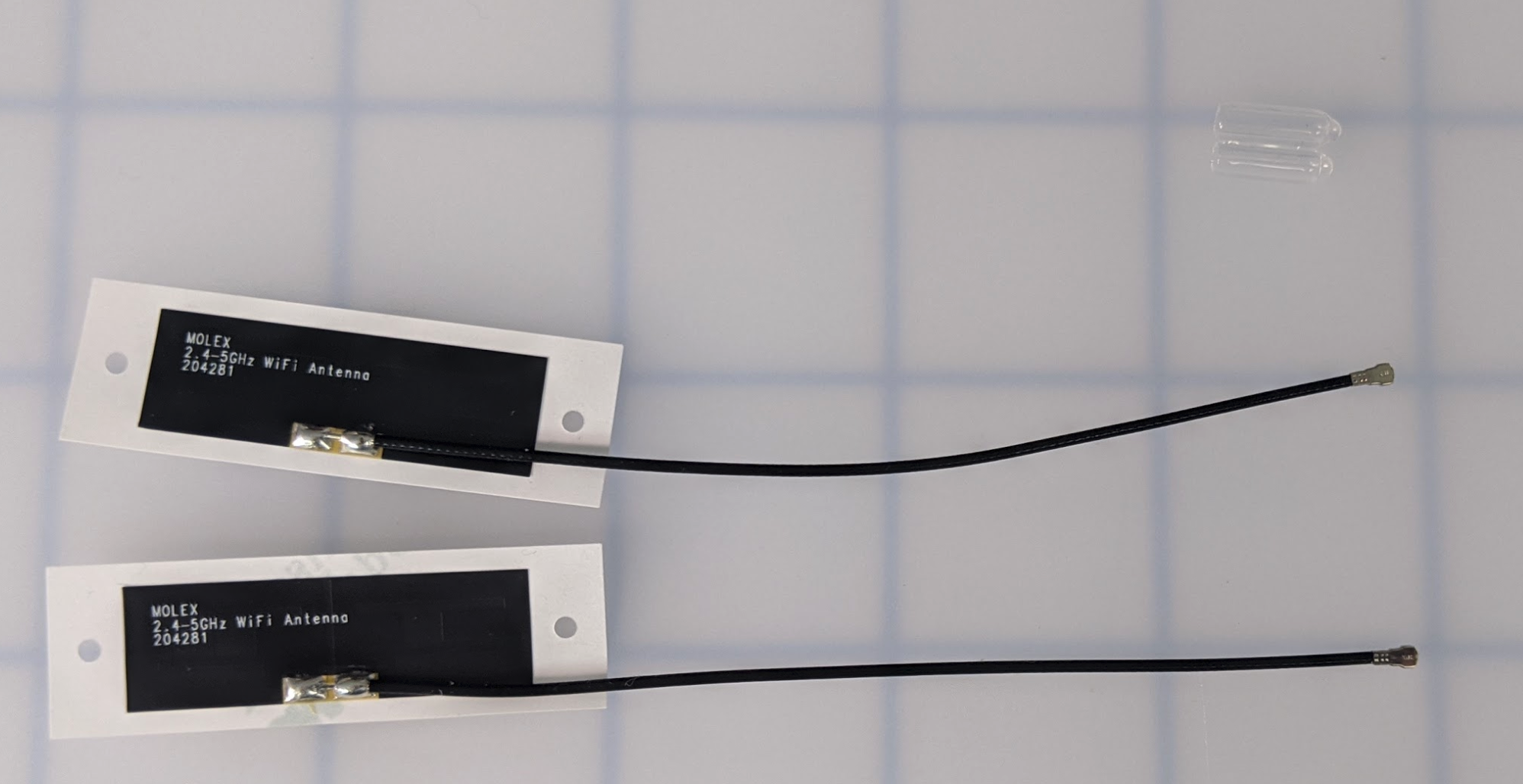

Image showing VEX AI setup with full covers removed, highlighting the internal components and configuration of the VEX robotics system.

Ensure the plastic coverings are removed from both antennas.

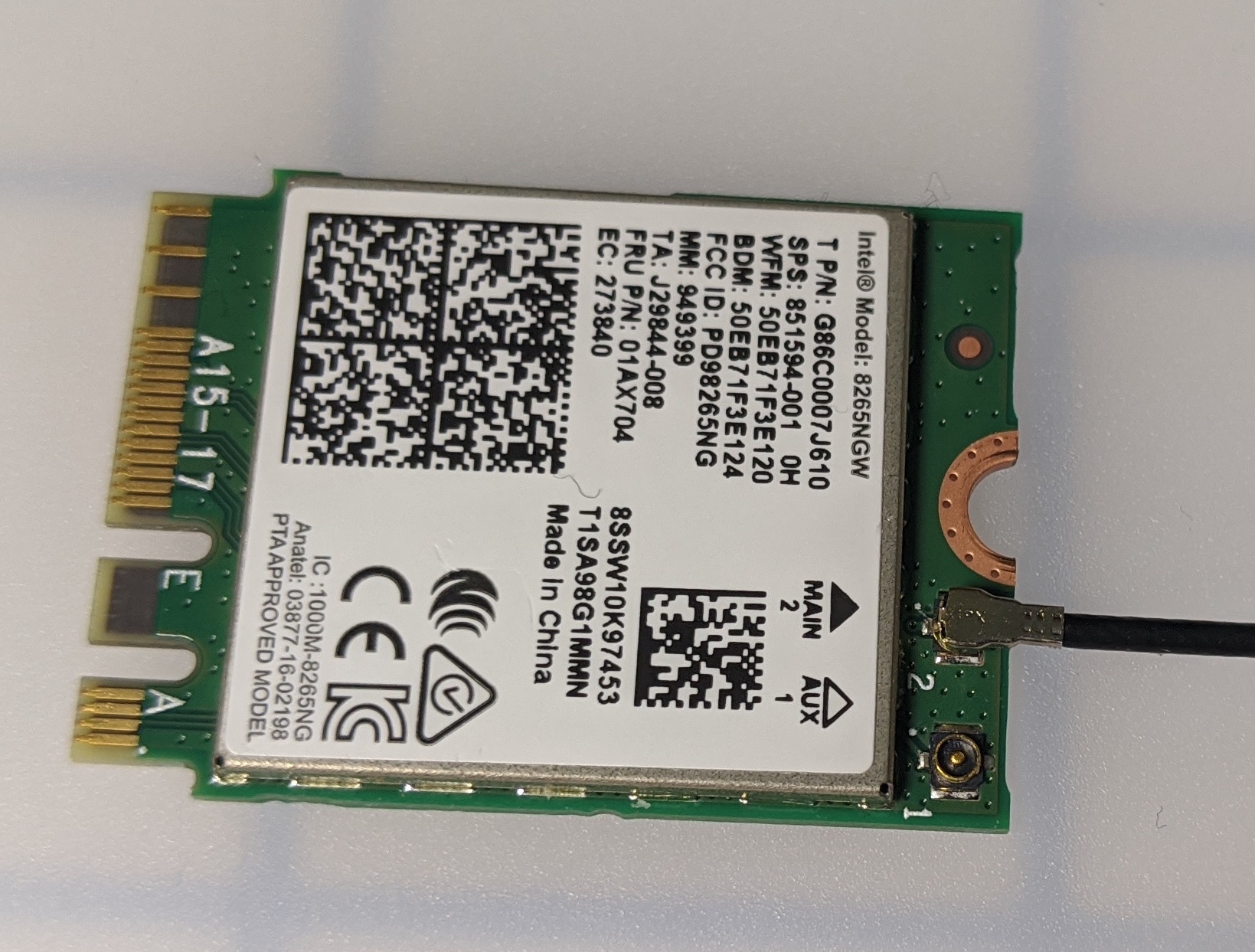

A close-up view of a VEX AI robot setup, featuring various components and wiring, illustrating the configuration process for VEX robotics in the context of the V5 Category Description and Setting Up VEX AI.

Attach one antenna to the Intel Dual Band Wi-Fi. Ensure to apply light pressure, as the parts are delicate. A ‘click’ sound will ensure the antenna is attached fully.

Note: if more pressure is needed to secure the antenna, use a pencil eraser or other small object to apply more pressure. Using metal to apply pressure is not recommended.

Close-up of a VEX AI setup, featuring various components and wiring, illustrating the configuration process for VEX robotics in the context of the V5 Category Description.

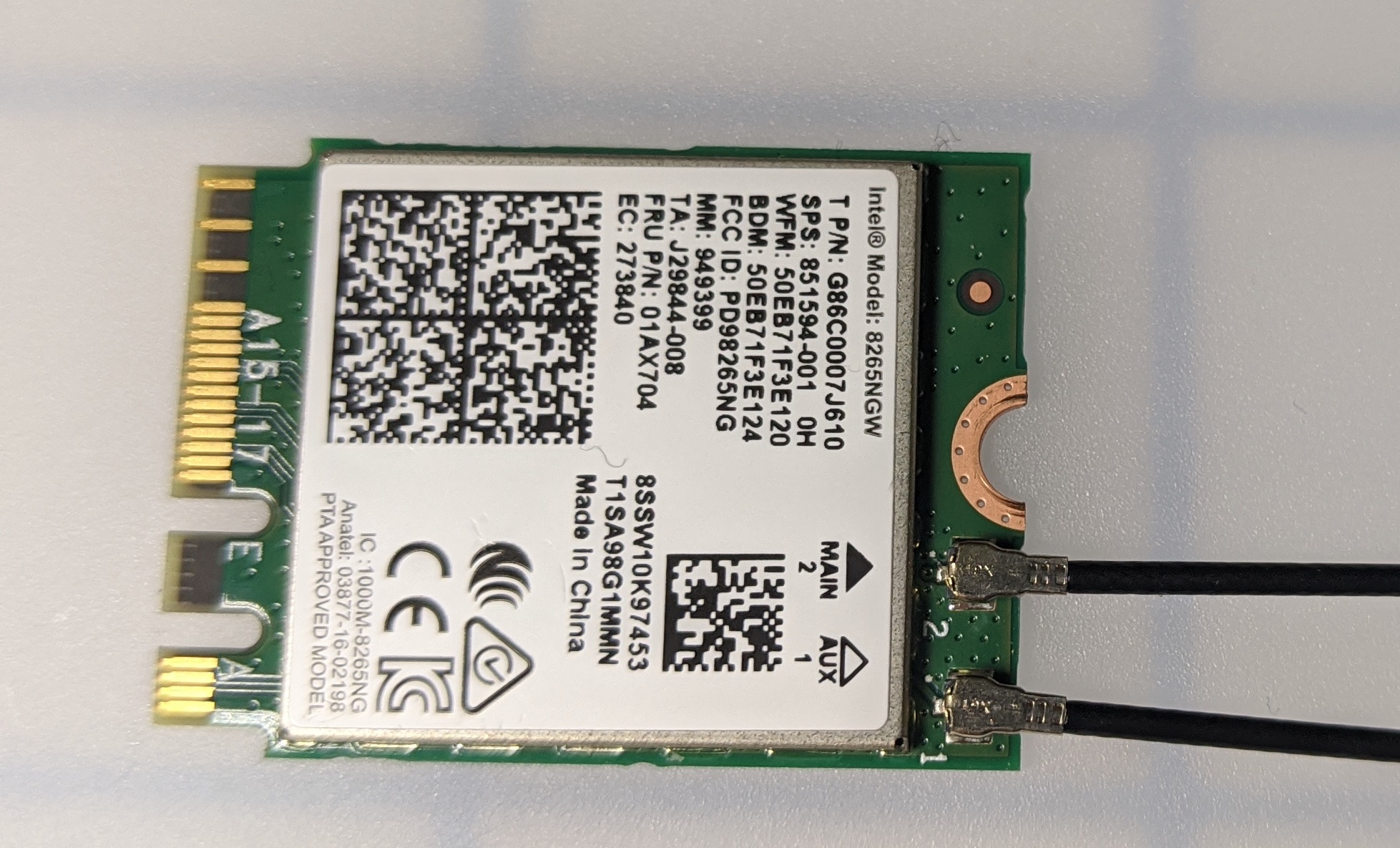

Attach the second antenna following the same procedure in the previous step.

Image showing the setup process for VEX AI, featuring a VEX robotics kit with various components arranged on a table, illustrating the configuration steps for effective AI integration.

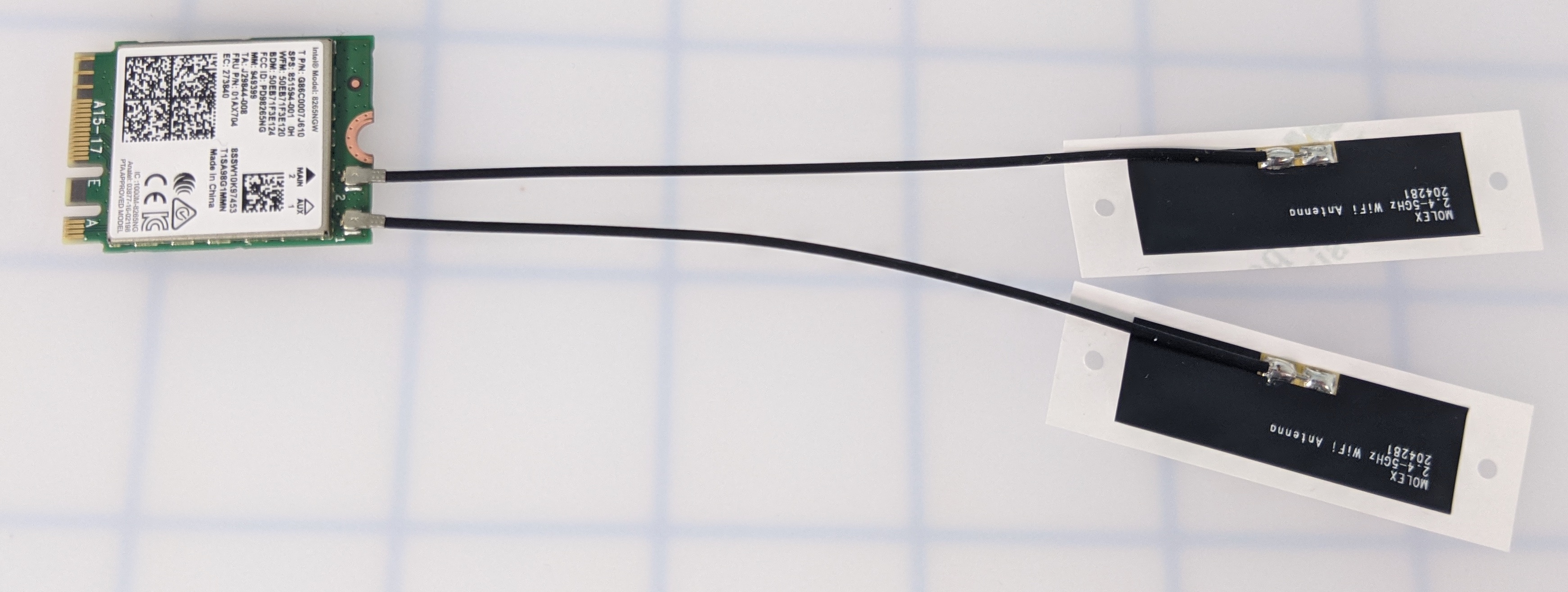

Ensure both antennas are attached to the Intel Dual Band Wi-Fi fully. Pick up the Intel Dual Band Wi-Fi to ensure both antennas are secure and neither of them fall off.

A close-up image of a VEX AI robot setup, showcasing the components and wiring necessary for configuration. The image is part of the V5 Category Description in the Setting Up VEX AI section.

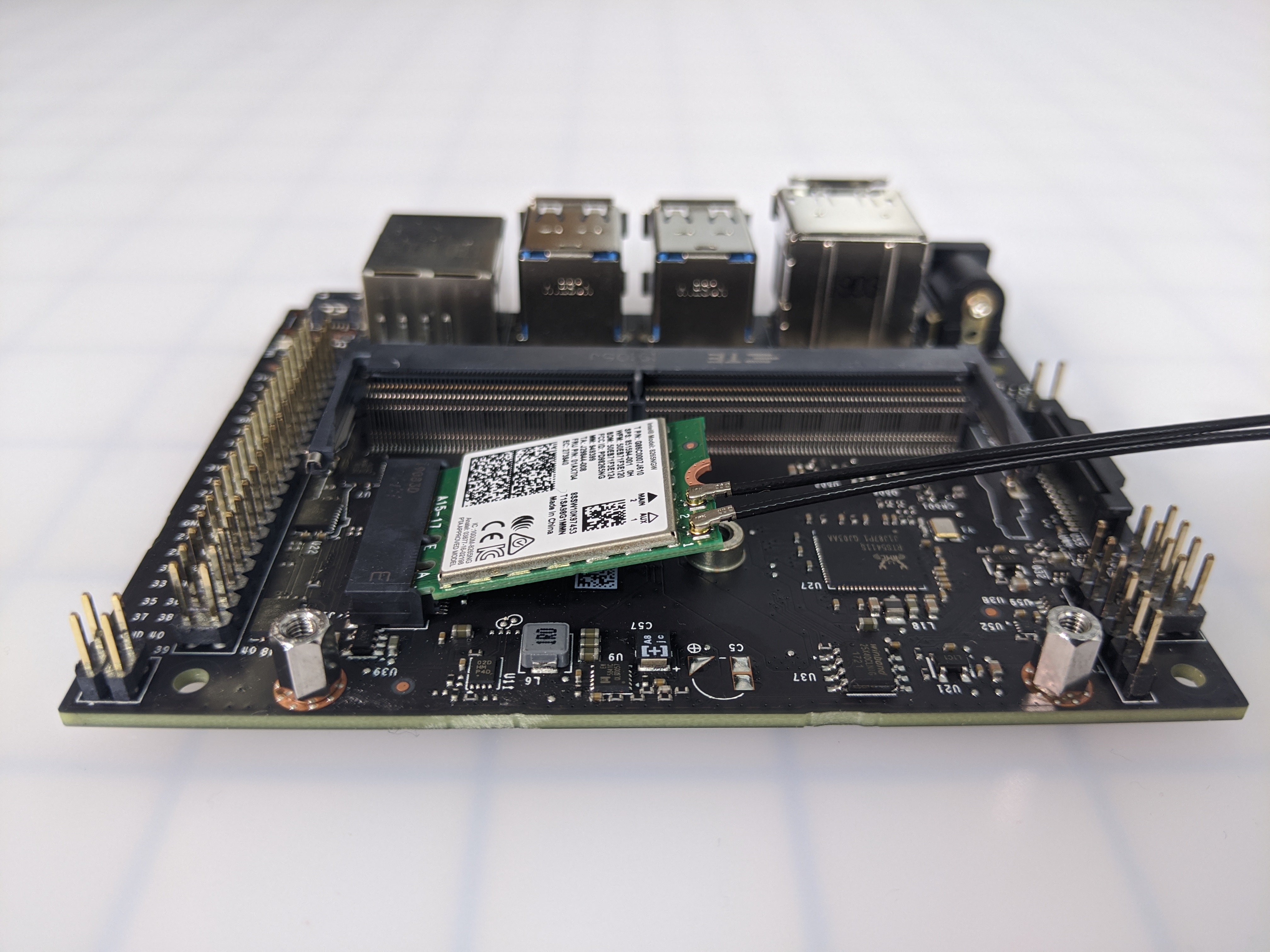

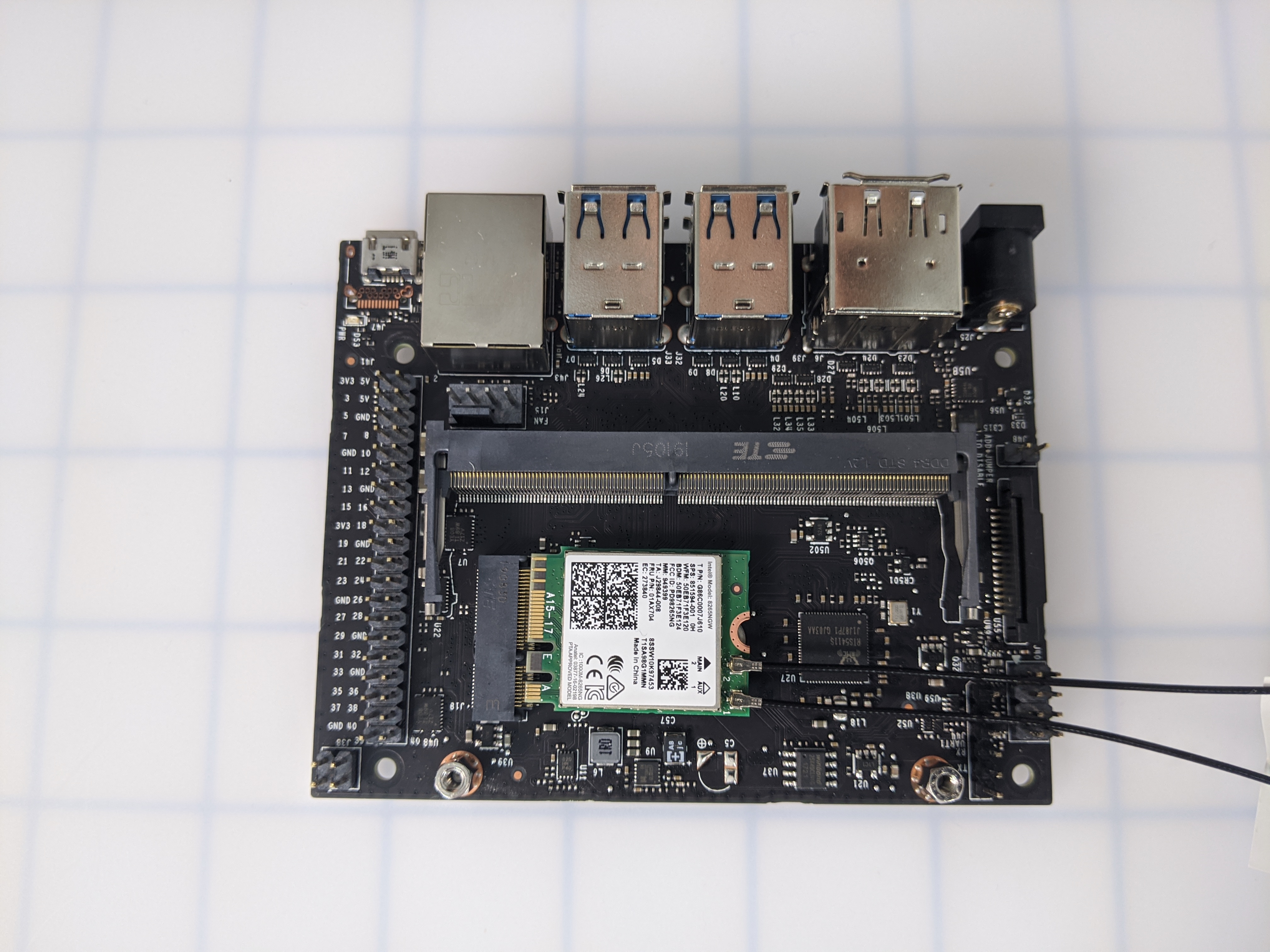

Place the Intel Dual Band Wi-Fi in the Carrier Board at an angle.

A close-up view of a VEX AI robot setup, showcasing the components and wiring necessary for configuration in a robotics environment, illustrating the process of setting up VEX AI for optimal performance.

It will remain angled up slightly until a screw is used to hold it down in place.

Close-up of a screw mounted on a circuit board, illustrating components used in VEX AI setup for robotics.

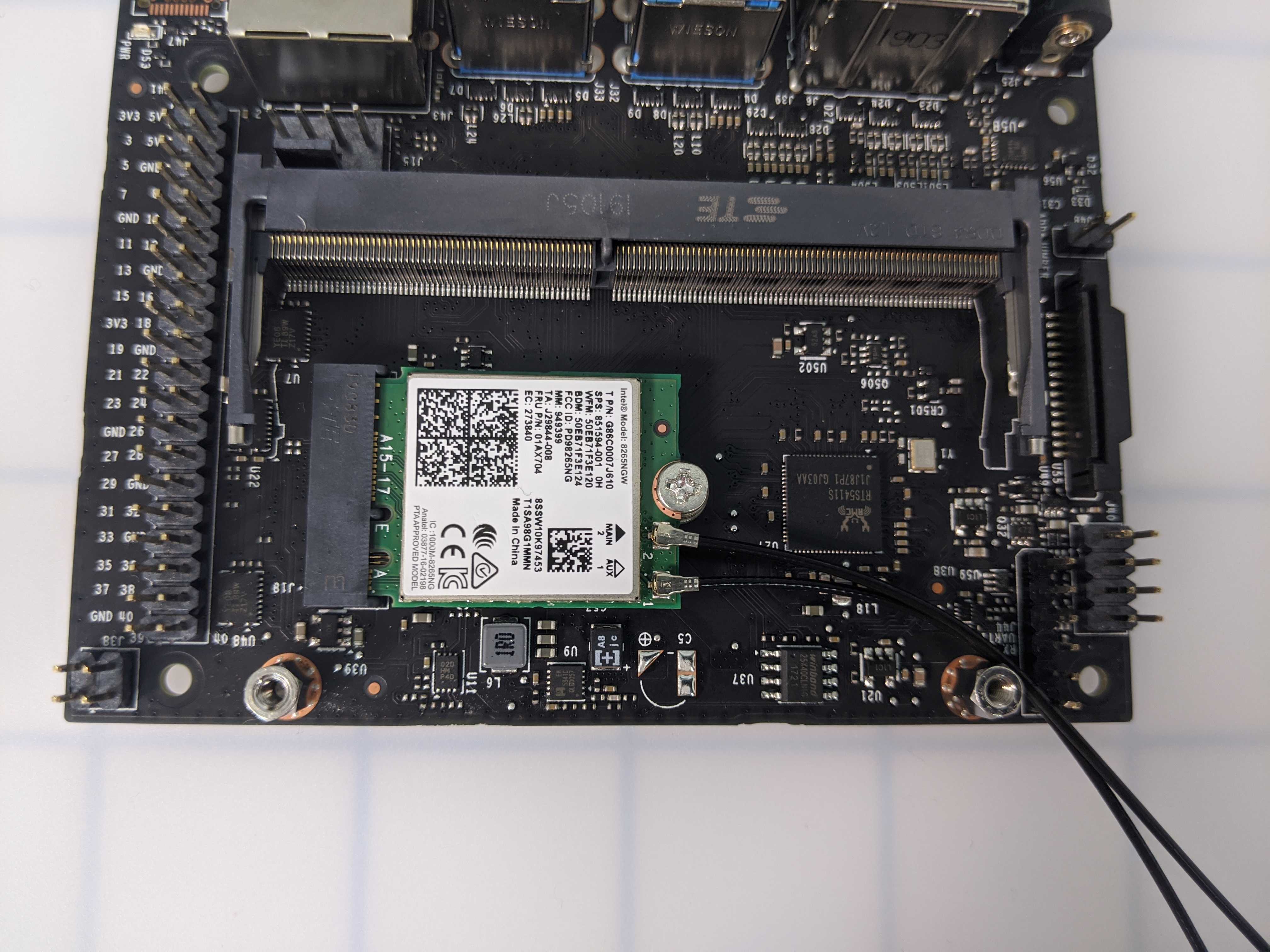

Secure the screw to hold the Intel Dual Band Wi-Fi in place. Ensure to not tighten the screw too much to avoid stripping it.


Re-attach the Jetson Nano Module

Diagram of heat sink holes with labeled callouts for VEX AI setup, illustrating the placement and dimensions of holes for optimal cooling in VEX robotics hardware.

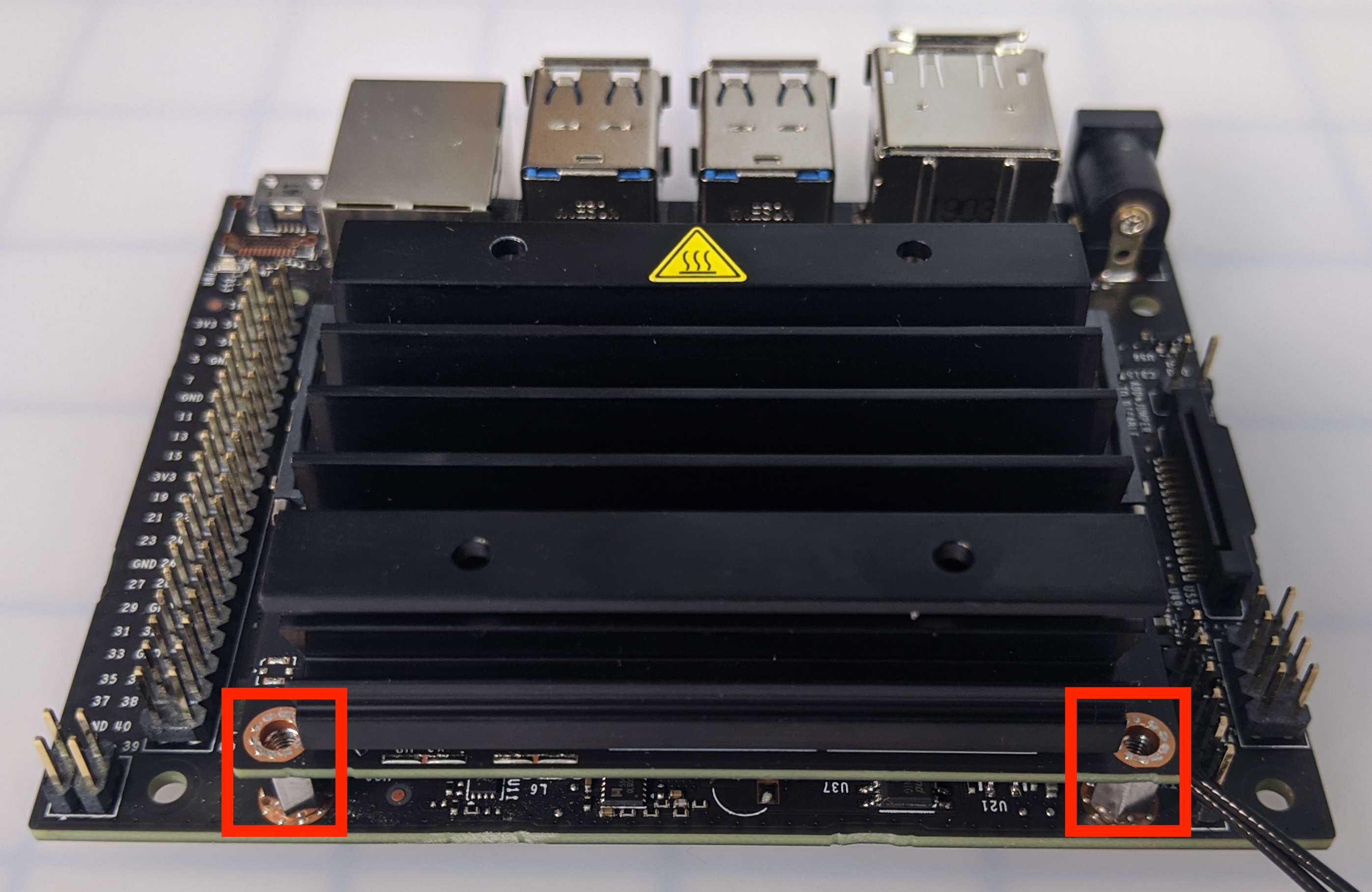

Place the Jetson Nano Module back on the Carrier Board at an angle. Push down slightly so the screw holes are flush.

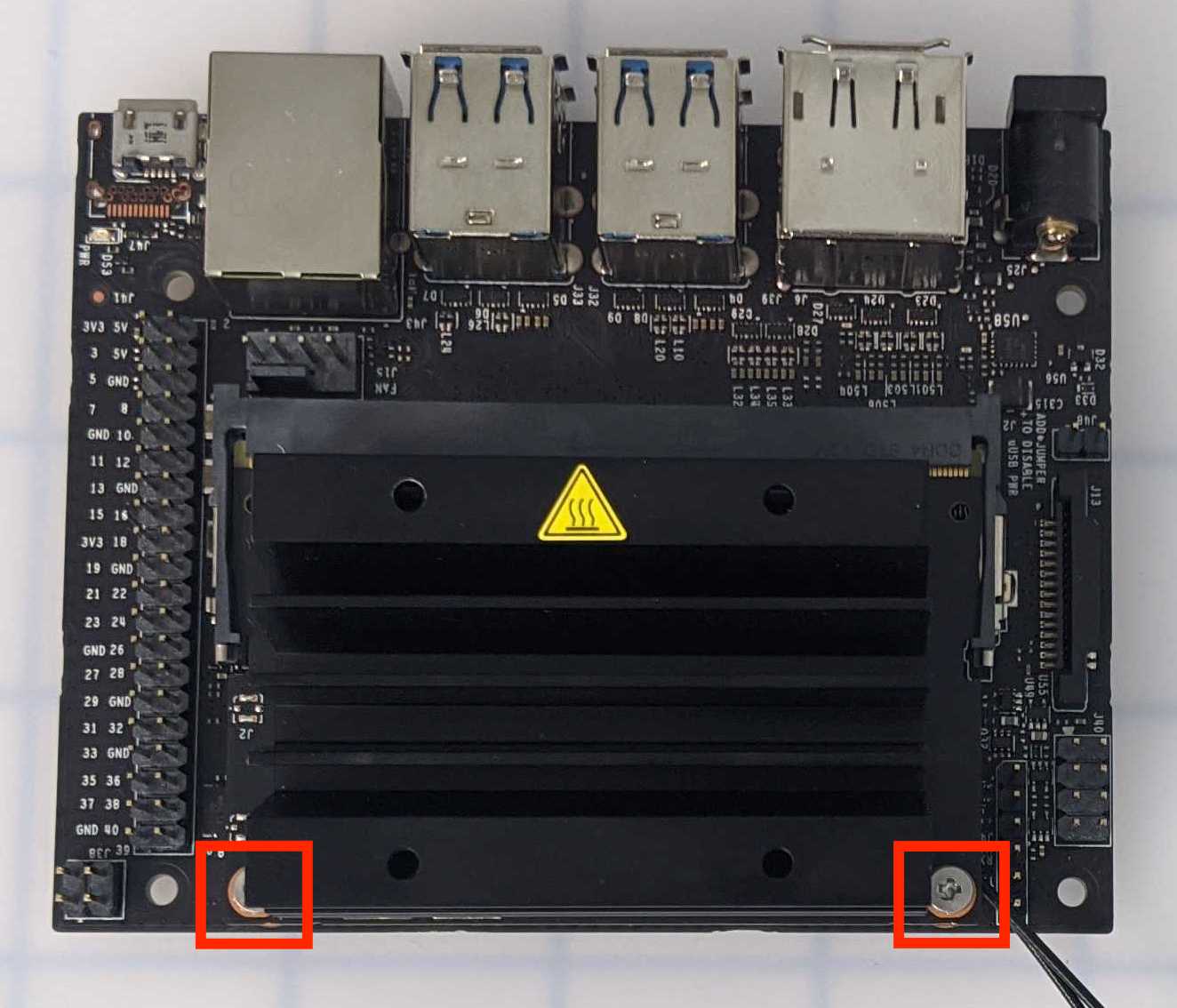

Close-up of final screws being installed in a VEX AI setup, illustrating the assembly process for V5 robotics components.

Secure the two screws back into the Jetson Nano Module to attach it to the Carrier Board. Ensure to not tighten the screws too much to avoid stripping.

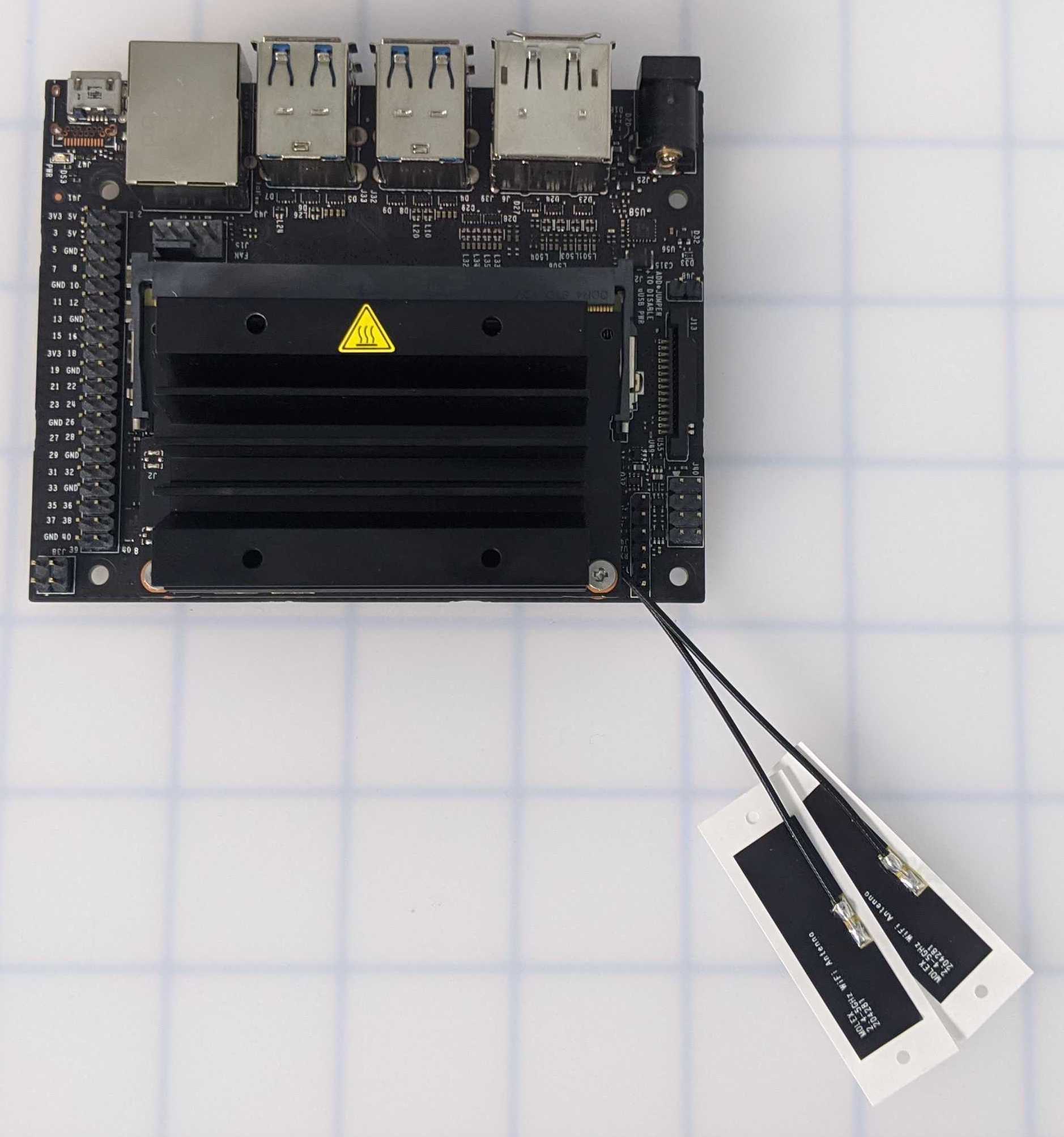

Diagram illustrating the setup process for VEX AI Wi-Fi configuration, featuring labeled components and connection steps for optimal network connectivity.

The Intel Dual Band Wi-Fi and Antennas are now installed.
