In order to program the V5 Brain, a successful connection needs to be established between the V5 Brain and a device via a Micro-USB cable.

Gathering the Components

Image of a BrainConnect USB device, used for connecting to the VEX V5 Brain, showcasing its design and features in the context of connecting to the brain for robotics applications.

Gather the Required Components

A working Micro-USB cable
V5 Brain
V5 Battery
V5 Battery Cable
Windows, Mac, or Chromebook Computer

Connecting Components

V5 battery for robotics, showing the battery's design and connectors, used for connecting to the V5 Brain in robotics applications.

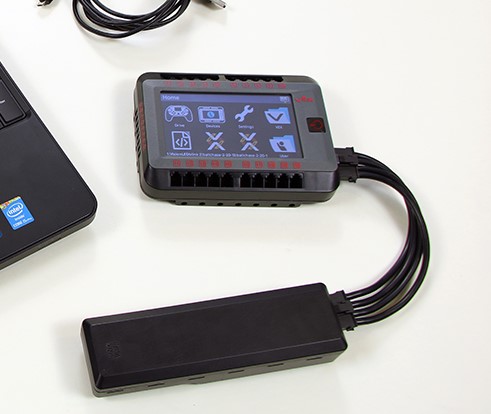

Connect the V5 Battery to the V5 Brain

Connect the V5 Brain to the V5 Battery using the battery cable. Ensure the connection is secure.

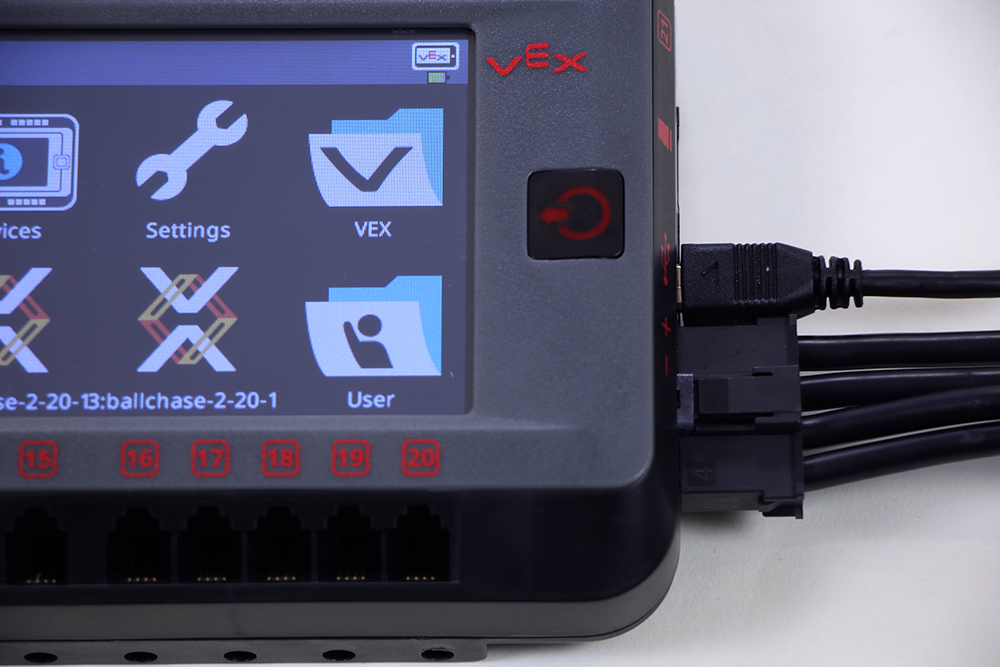

Connect the Micro-USB cable to the V5 Brain

Diagram showing the connection process to the V5 Brain, illustrating the steps and components involved in establishing a link between the V5 system and the Brain unit.

Connect the V5 Brain to a device using the Micro-USB cable.

Make sure the V5 Brain is connected to a charged V5 Battery and turned on.

Connect the Micro-USB Cable to a Device

Image of a BrainConnect USB device, used for connecting to the VEX V5 Brain, showcasing its design and features in the context of connecting to the brain for robotics applications.

Connect the other end of the Micro-USB cable to the Computer’s USB port.

Confirm a successful connection

Illustration of a green brain icon with a checkmark, representing successful connection to the V5 Brain in robotics, as part of the V5 Category Description on connecting to the Brain.

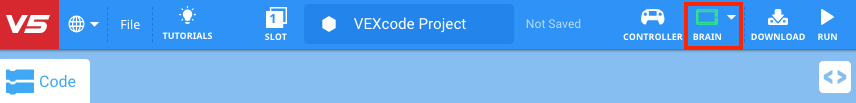

A successful connection is confirmed when the Brain Status Icon in the Toolbar is green.
