This Electromagnet on the VEX VR Robot can be controlled to pick up and drop disks with metal cores.

What is an Electromagnet?

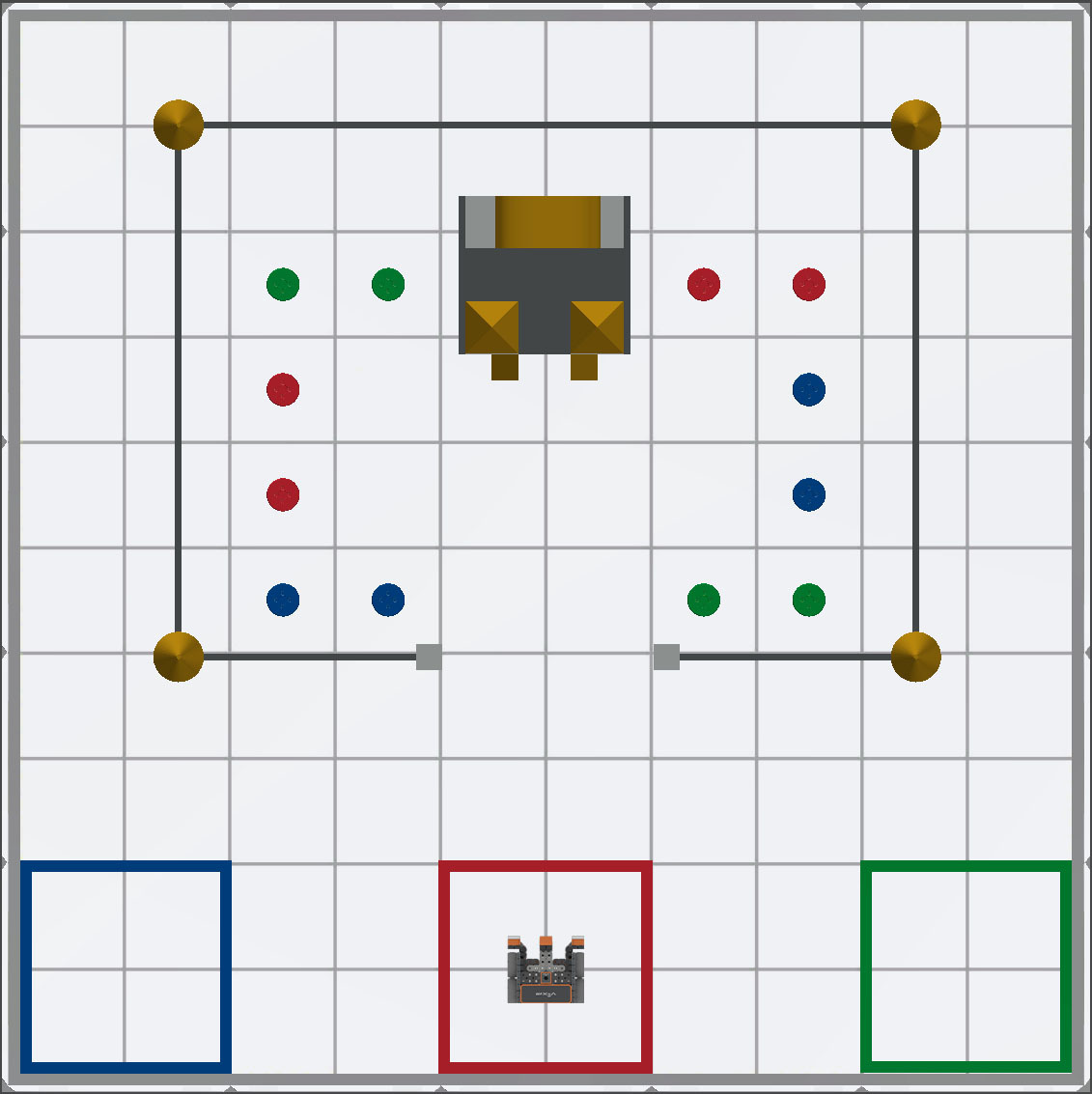

VEXcode VR Playground showing the Electromagnet robot with block and text coding workspaces

An electromagnet is a specific type of magnet where the magnetic field is produced by an electric current. The VEX VR Robot has an electromagnet to pick up and put down disks that contain metal cores.

Electromagnet location on the VR robot’s front bumper

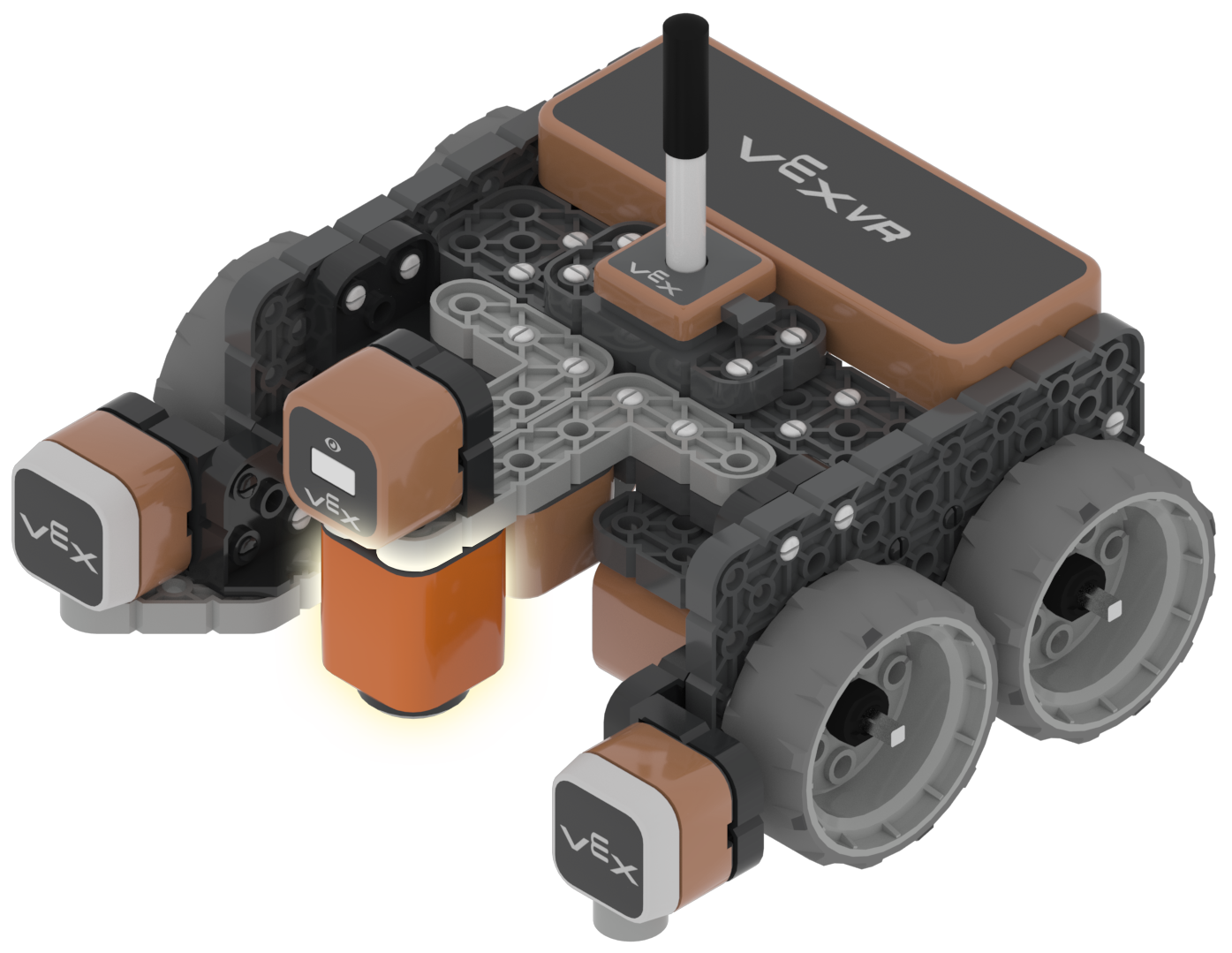

The VEX VR Robot Electromagnet is located at the front of the robot pointing down towards the Playground currently in use.

How Electromagnets Work

VEXcode VR Blocks

Electromagnet location on the front bumper of the VEXcode VR robot

VEXcode VR Python

def main():
    magnet.energize(BOOST)

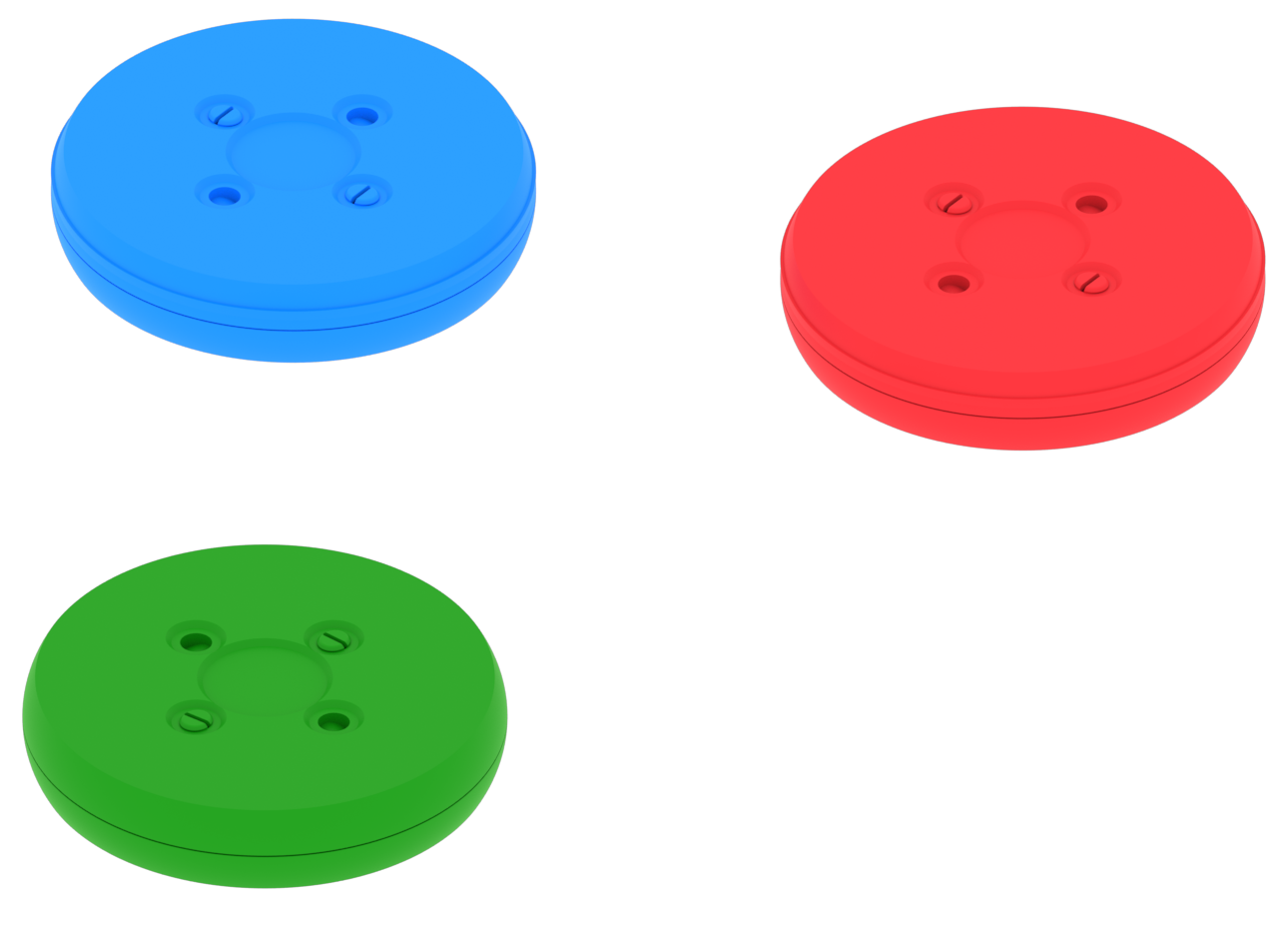

On specific Playgrounds in VEXcode VR, there are disks with metal cores that can be used with the Electromagnet.

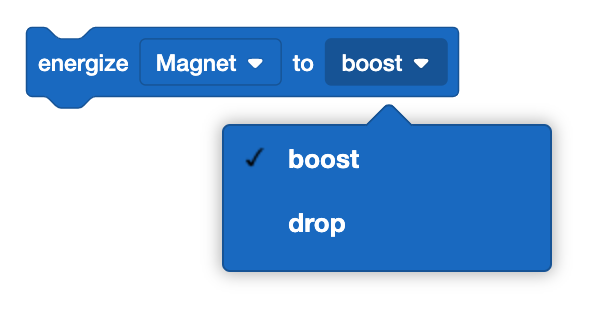

By setting the Electromagnet to 'boost,' the user is able to energize the magnet.

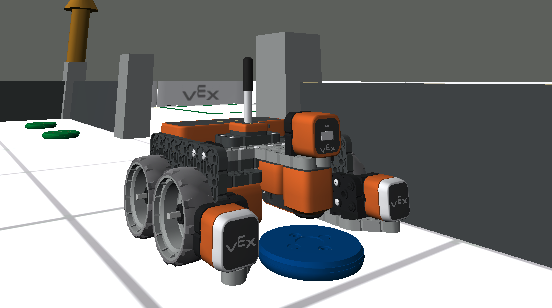

VR Robot using the Electromagnet to pick up disks in the Disk Mover playground

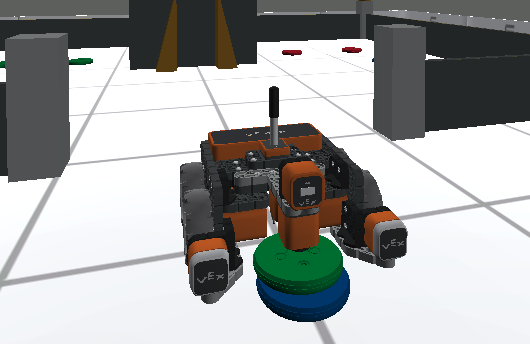

Any disks beneath the Electromagnet will be picked up by the VR Robot.

VEXcode VR Blocks

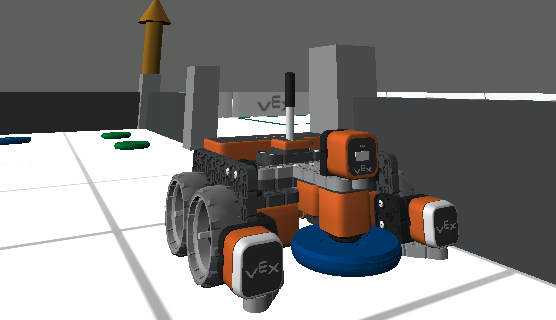

VEXcode VR robot using an electromagnet to pick up a disk

VEXcode VR Python

def main():
    magnet.energize(DROP)

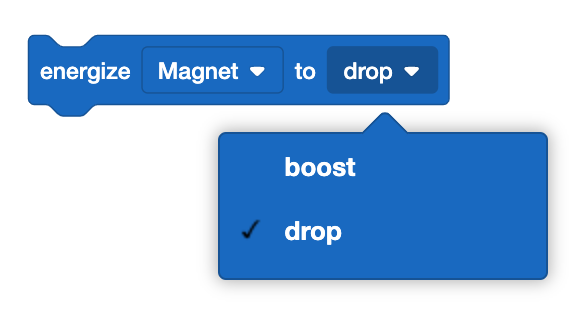

By setting the Electromagnet to 'drop,' the user de-energizes the magnet.

Electromagnet location on the VR Robot’s front bumper

Any disk currently being held by the VR Robot Electromagnet will be dropped.

Uses in VEXcode VR

VEXcode VR Blocks	Disk Transport Playground

	VEXcode VR Python

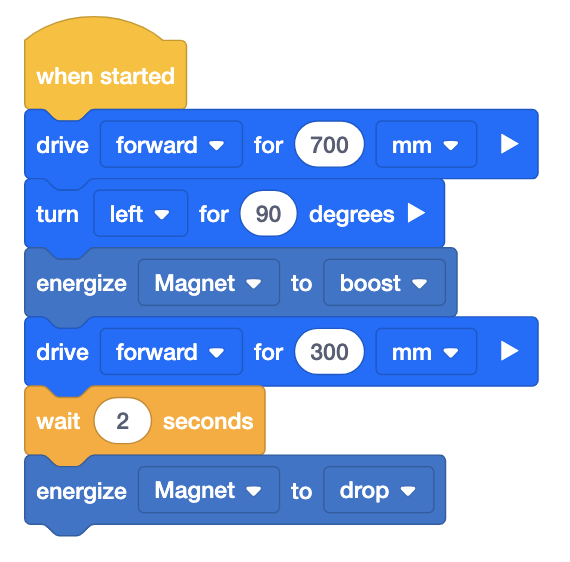

	def main(): drivetrain.drive_for(FORWARD, 700, MM) drivetrain.turn_for(LEFT, 90, DEGREES) magnet.energize(BOOST) drivetrain.drive_for(FORWARD, 300, MM) wait(2, SECONDS) magnet.energize(DROP)
The VEXcode VR Robot Electromagnet can be used on the Disk Transport Playground. Disks of varying colors lie within a walled area. The following example has the VR Robot drive forward into the Castle walls, turn left, then pick up and drop a blue disk.

VEXcode VR robot with the electromagnet and other components labeled

For an extra challenge, attempt to stack disks on top of one another. While the Electromagnet can only hold one disk at a time, the user is able to stack disks two high and still travel over the stack.
