When starting to program with VEXcode V5, Drive and Turn blocks will not appear in the Toolbox until a Drivetrain has been configured.

You can only configure one Drivetrain per project.

If you are configuring a Drivetrain with a Gyro Sensor, click here.

In this article, the default values in the Drivetrain Settings are for the VEX V5 Clawbot.

Adding a Drivetrain

Button labeled 'Robot Config' for VEX V5, used for configuring robot settings in the VEXcode software.

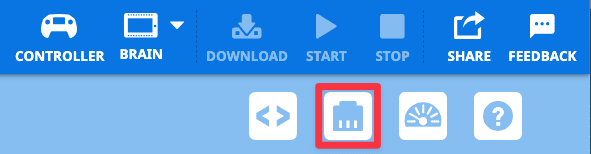

To configure a Drivetrain, select the Devices button to open the Devices window.

Screenshot of the VEX V5 Robot Configuration interface, showing options for adding devices to the robot setup, including various device icons and connection settings.

Select “Add a device.”

Diagram of the V5 Select 4-DT Motor, illustrating its features and specifications for the Robot Config section in the V5 Category Description.

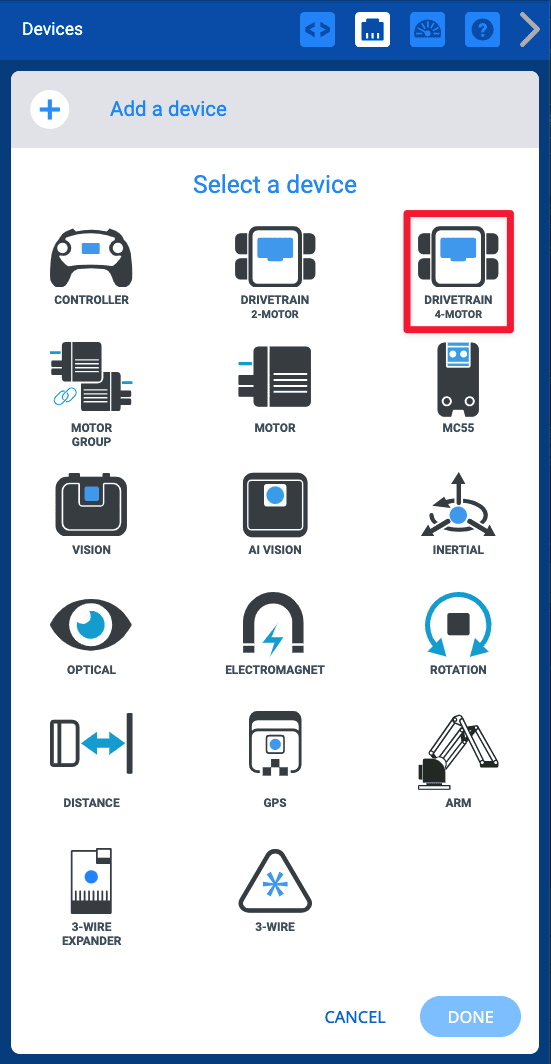

Select “Drivetrain 4-Motor.”

Screenshot of the port selection interface for VEX V5 Robot configuration, displaying various ports and their corresponding functions for connecting sensors and motors.

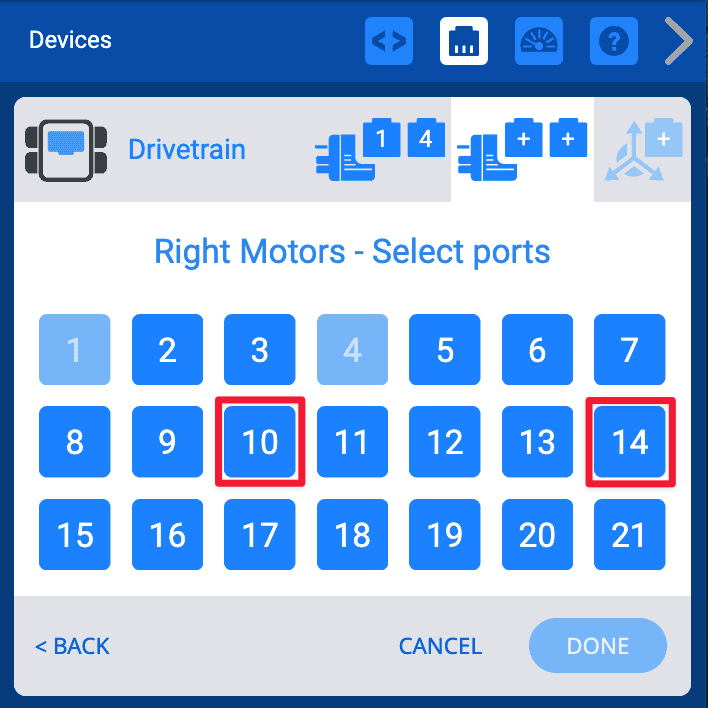

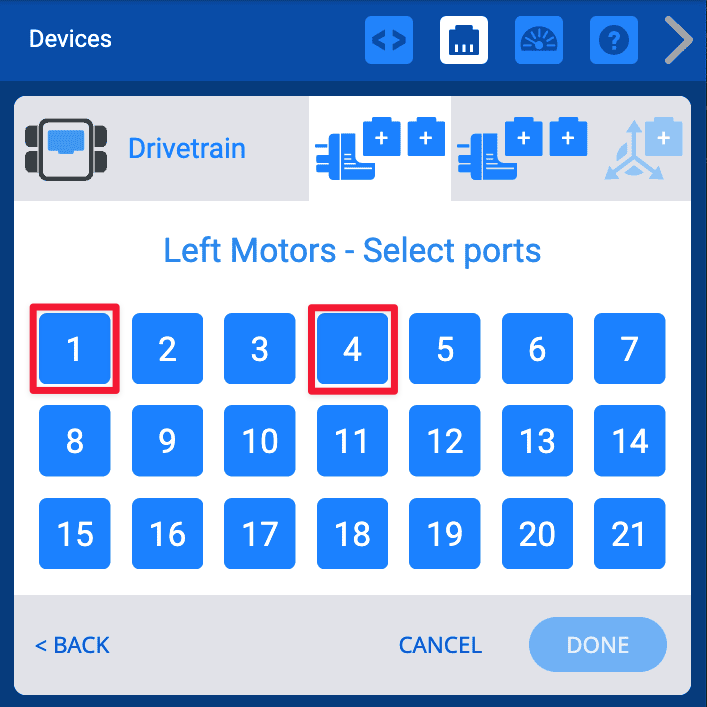

Select which ports the Left Motors and Right Motors are attached to on the VEX V5 Brain. Ports that are already configured for other devices will be unavailable.

Diagram illustrating the configuration options for the V5 robot's gyroscope, showing various settings and connections related to the robot's navigation and stability.

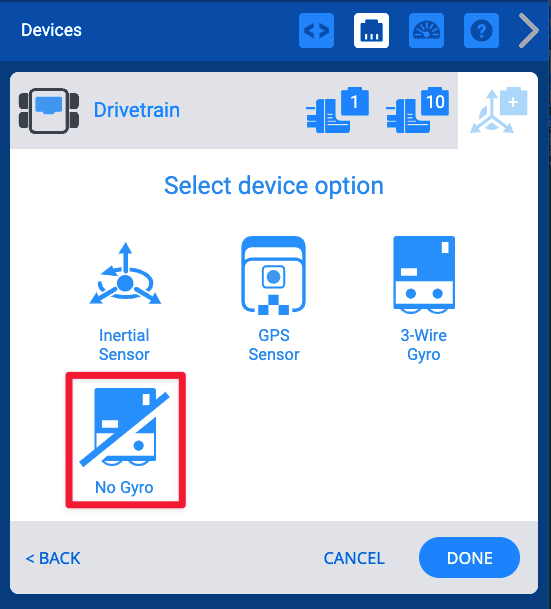

Select "No Gyro" to turn the Gyro off.

Screenshot of the VEX V5 Robot configuration interface showing a message indicating that no gyroscope is connected, with visual elements highlighting the absence of gyro functionality.

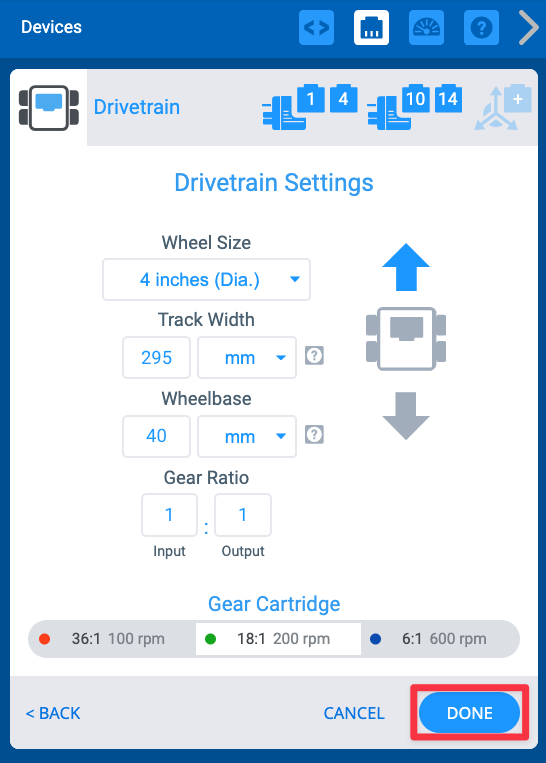

Once the Drivetrain has been configured, select “Done” to submit the device to the configuration or “Cancel” to return back to the Devices menu.

Note: Selecting “Cancel” will undo any changes you have made to the device and will not be a part of the configuration.

Changing a Drivetrain’s Port Numbers

Screenshot showing the process of changing port numbers in the V5 Robot Configuration settings, highlighting the relevant options and fields for users to adjust their robot's communication settings.

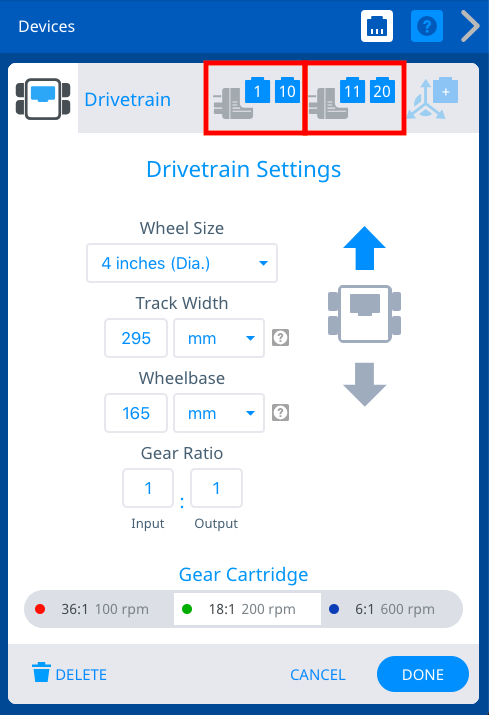

You can change the port numbers for the Left Motors or Right Motors in the Drivetrain by selecting the device’s plug icon in the top right corner of the Options screen.

Collage of various VEX V5 robot configurations showcasing different designs and setups for robotics projects, illustrating the versatility and adaptability of the V5 system in educational and competitive environments.

Select a different port on the Port Selection screen and the port number will turn green. Then select "Done" to submit the change.

Changing a Drivetrain’s Wheel Size

Diagram illustrating the impact of changing wheel sizes on robot configuration in V5 robotics, showing different wheel sizes and their corresponding effects on robot performance.

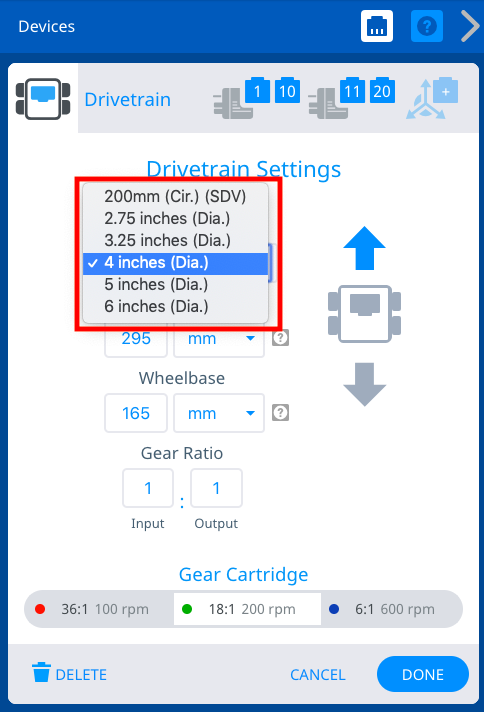

You can change the wheel size for the Drivetrain by selecting the drop down menu under “Wheel Size.”

Changing a Drivetrain’s Track Width

Diagram showing track width measurements in inches and millimeters for V5 Robot Configurations, illustrating the dimensions relevant to V5 category specifications.

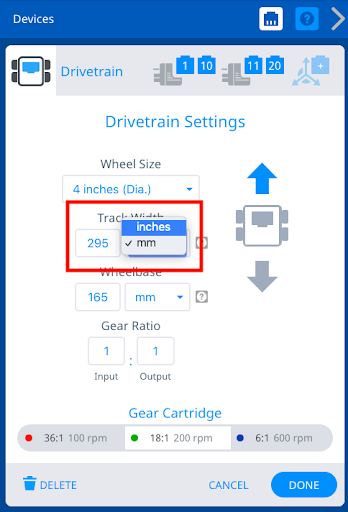

You can change the size of the track width for the Drivetrain by entering the values in the number box and by selecting the drop down menu under “Track Width.” The track width is the measurement between the middle of the front left wheel to the middle of the front right wheel.

Changing a Drivetrain’s WheelBase

Diagram illustrating the robot wheel base configuration for V5 robotics, showing dimensions and layout for optimal performance in robot design.

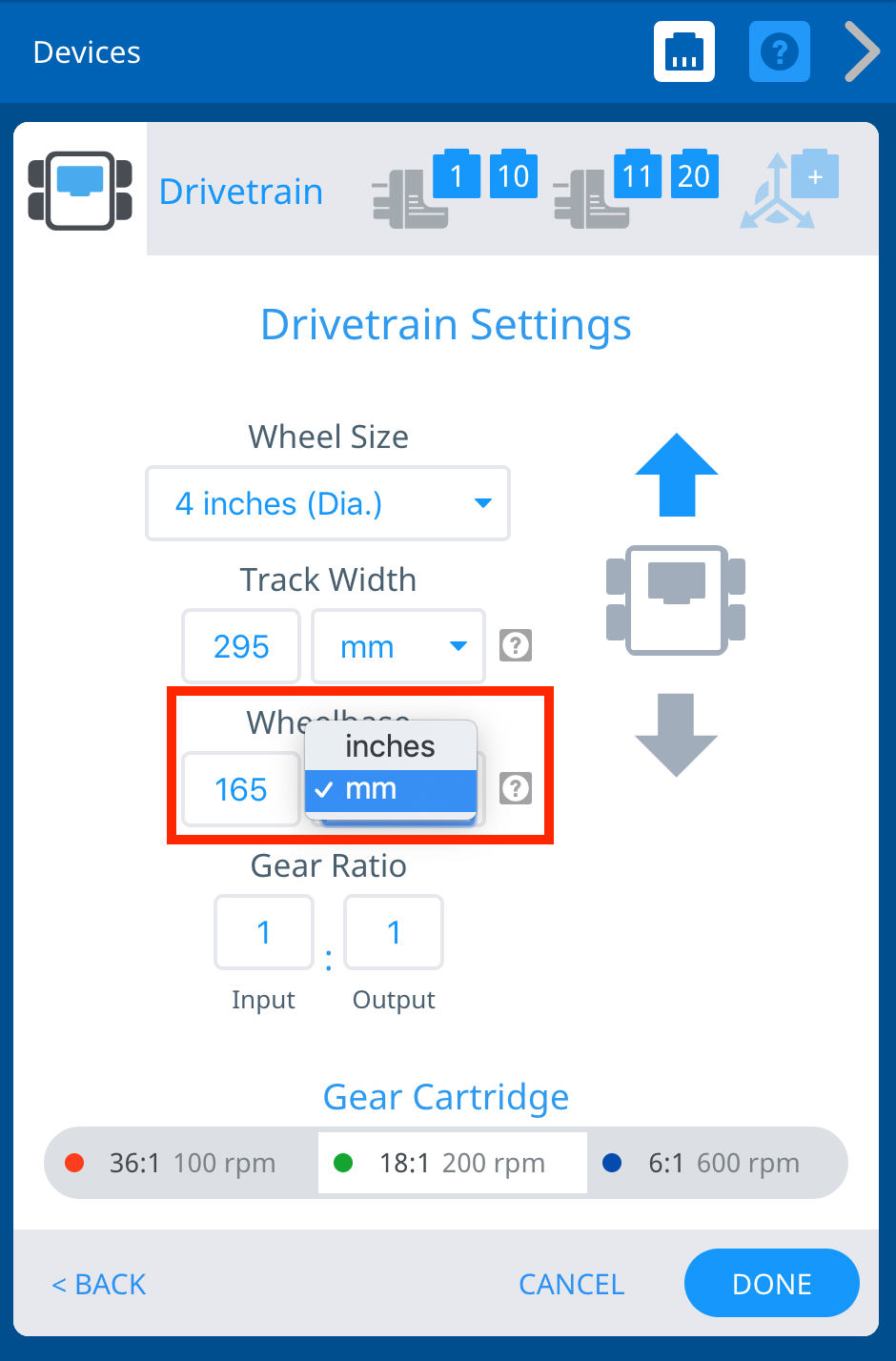

You can change the size of the WheelBase for the Drivetrain by entering the values in the number box and by selecting the drop down menu under “Wheelbase.” The Wheelbase is the measurement between the front and rear axles.

Changing a Drivetrain’s Gear Ratio

Diagram showing the gear ratio configuration for the VEX V5 robot without a gyro, illustrating the relationship between motor speed and torque in the context of robot design.

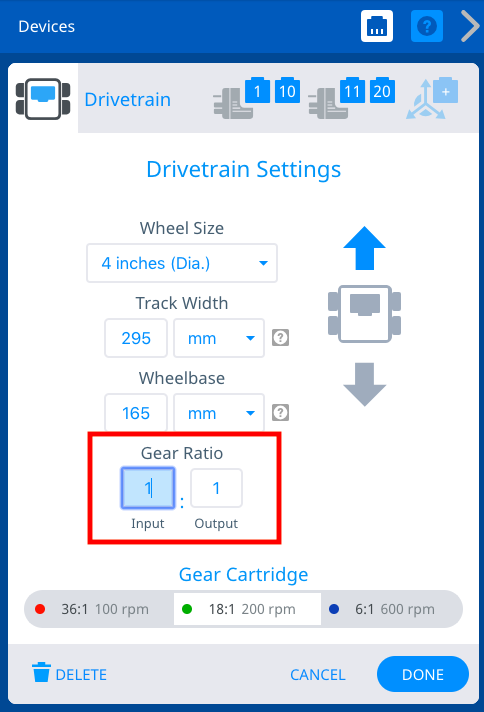

You can change the gear ratio for the Drivetrain by entering values in the “Input” and “Output” boxes.

Reversing a Drivetrain

Diagram of a No Gyro Reverse Drivetrain configuration for V5 robots, illustrating the layout and connections of motors and sensors for optimal performance in reverse driving scenarios.

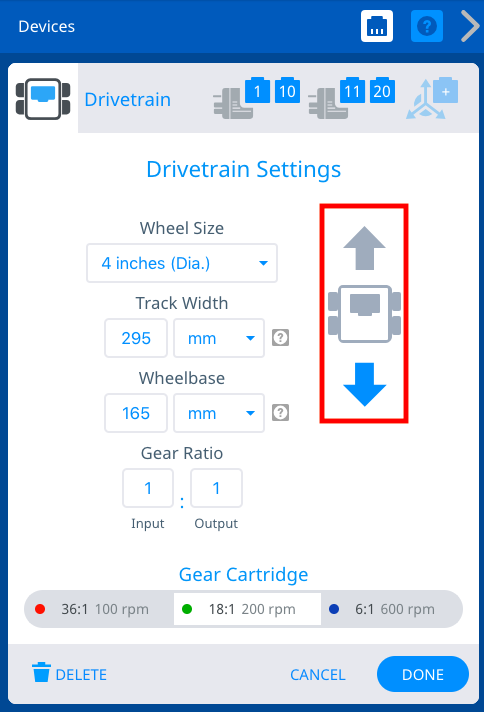

The Options screen also allows the direction of the Drivetrain to be reversed.

Deleting a Drivetrain

Screenshot showing the process of deleting a robot configuration in VEX V5, highlighting the delete option and confirmation prompt.

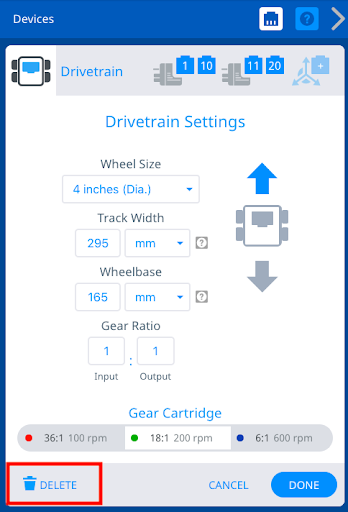

A Drivetrain can also be deleted by selecting the “Delete” option at the bottom of the screen.

Changing a Gear Cartridge

V5 No Gyro Gear Cartridge image showing the component's design and features, used in robot configurations for VEX robotics.

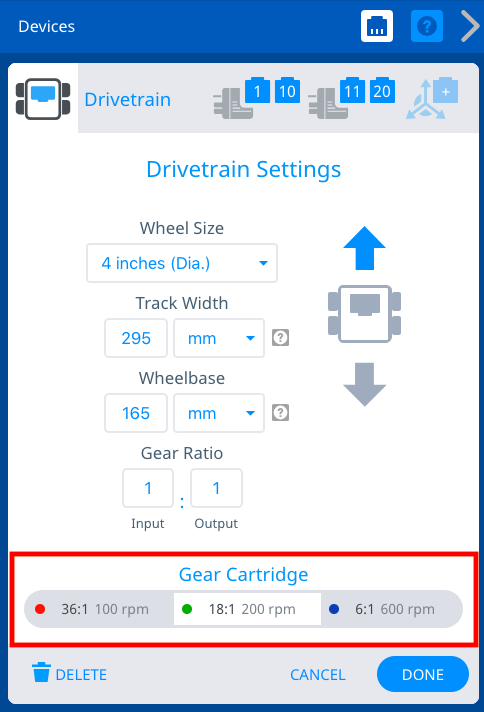

The Options screen also allows the gear cartridge to be changed.
