The following article will walk you through how to install VEXcode Pro V5 with MSI installers.

Diagram illustrating the installation process for V5 components, showing labeled parts and connections to assist users in correctly setting up their V5 system.

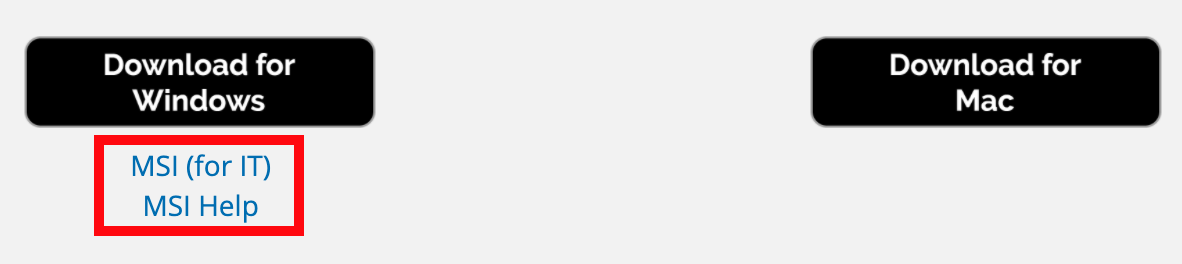

MSI installers are created to assist IT Administrators with site-wide deployments. If you are not an IT Administrator, you should install the .EXE version to avoid issues found here.

V5 installation diagram showing step-by-step instructions for setting up the V5 robotics system, including labeled components and connections.

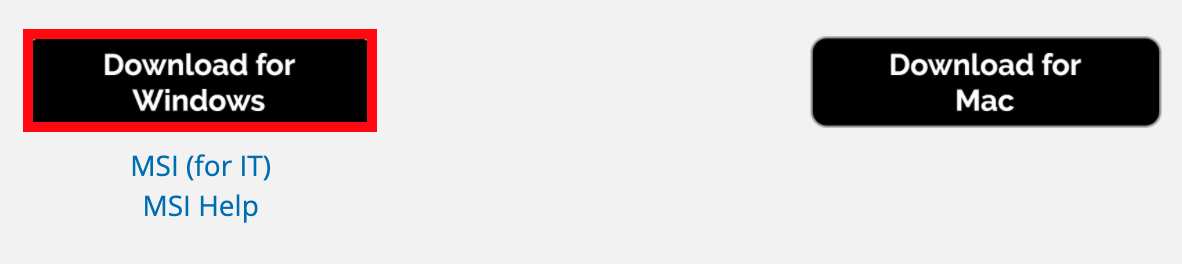

For additional help installing the .EXE version of VEXcode Pro V5, view this article.

Steps for Installation

If you are using a remote deployment system such as SCCM you may need to install the Driver Signing Certificates before running the driver installer.
1. Download these two certificate files:
  1. Certificate 1
  2. Certificate 2
2. Certs can be installed with the following commands using Microsoft’s certutil command.
```
certutil -addstore "TrustedPublisher" VEXroboticsCert23.cer
certutil -addstore -f -v root VEXroboticsCert23.cer
certutil -addstore "TrustedPublisher" RobomatterIncCert.cer
certutil -addstore -f -v root RobomatterIncCert.cer
```
First, install the VS 2013 Redistributable.
Next, install the VS 2017 Redistributable.
Then, download and install the MSI version of VEXcode Pro V5 found here.
Finally, once the VS 2013 Redistributable, the VS 2017 Redistributable, and VEXcode Pro V5 are installed, run the following as an administrator with elevated permissions:
C:\Program Files (x86)\VEX Robotics\V5Drivers\Console Driver Installer.exe
