Downloading and Running a Project in VEXcode Pro V5

The VEX Visual Studio Code Extension has replaced VEXcode Pro V5, which is now end-of-life.

VEXcode Blocks and VEXcode Text remain actively developed and supported for all VEX platforms.

When programming in VEXcode Pro V5, compiling a project gives the programmer a tool to help identify errors. Downloading and running a project enables the robot to receive the code written by the programmer.


How to Compile a Project

Compiling a project gives the programmer the ability to check errors without downloading a project to the V5 robot Brain.

Screenshot of a V5 category tutorial interface, displaying various options and settings related to VEX robotics programming, with highlighted features for user guidance.

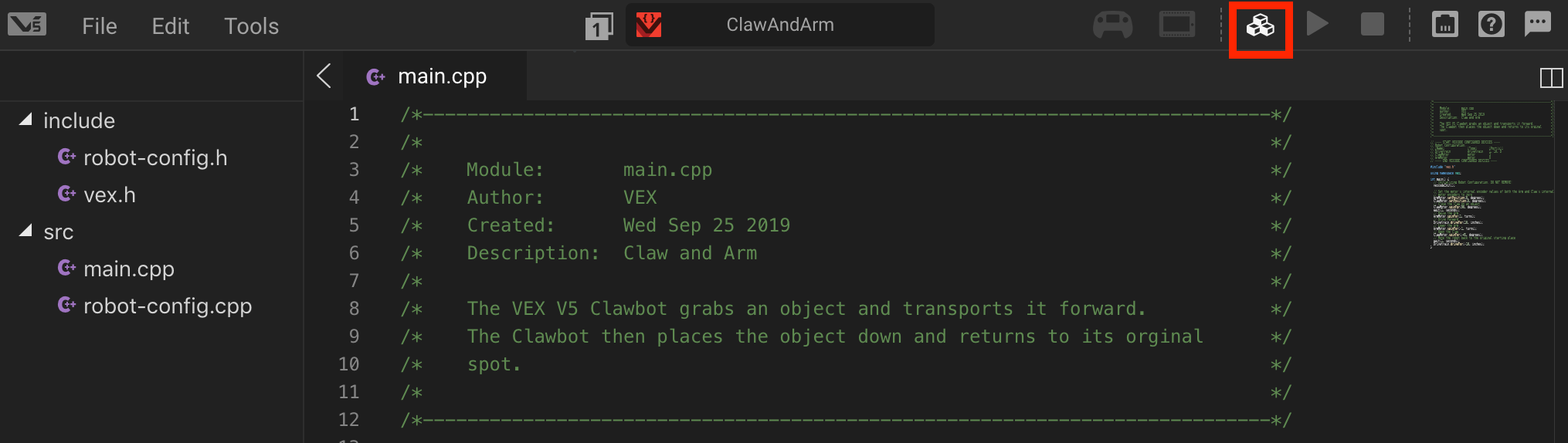

Click on the Build icon to compile the project.

Screenshot of a V5 category description tutorial, featuring an overview of V5 product features and functionalities, with labeled sections for easy navigation and understanding.

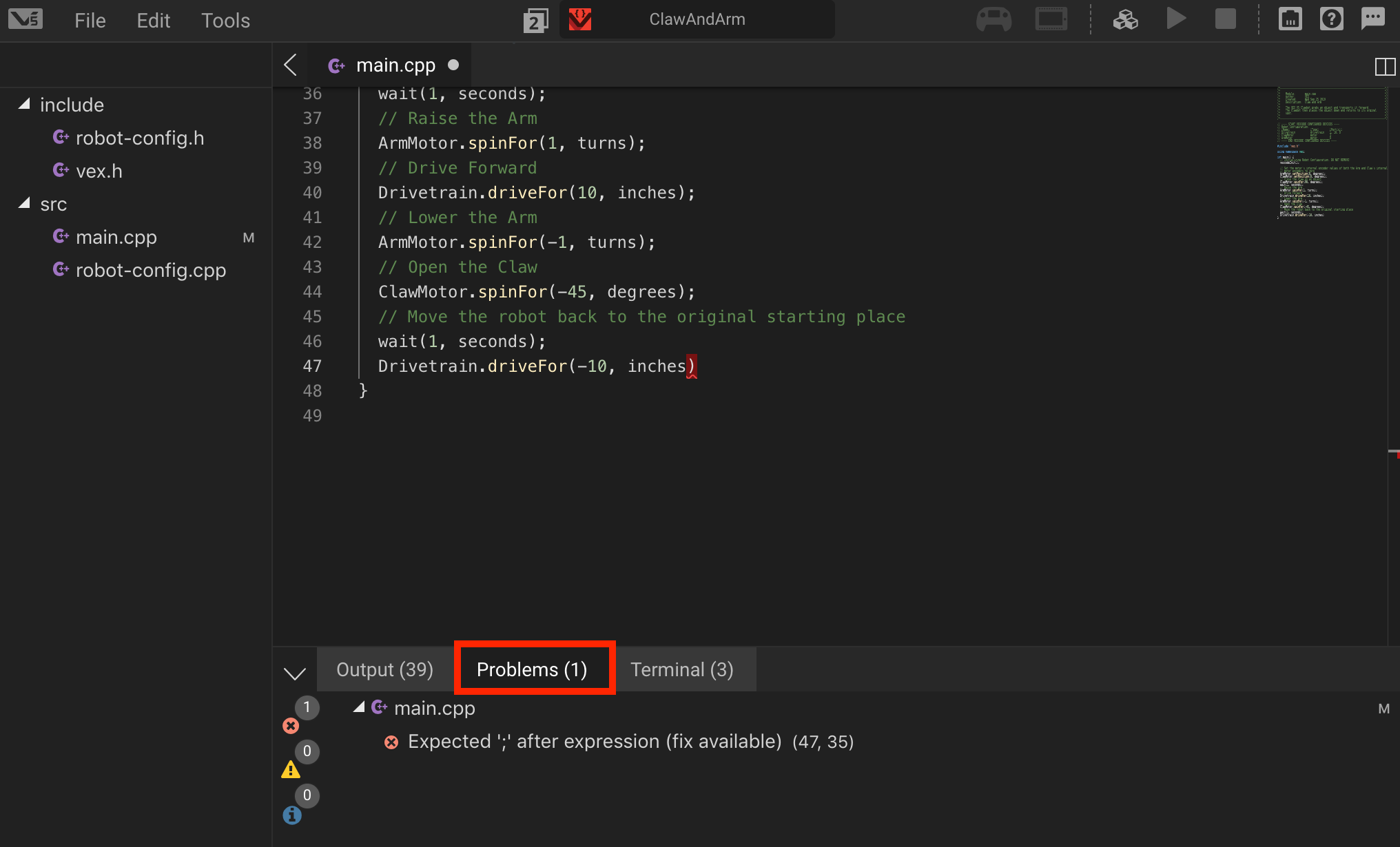

If there is an error in the project, viewing the "Problems()" tab at the bottom will help identify what those errors are as well as how to potentially fix them.

NOTE: The build icon will only appear when a V5 Robot Brain is not connected to the computer.


How to Download a Project

Screenshot of a tutorial interface for V5 Category Description, showcasing various features and options available for users to enhance their understanding of the V5 system.

Select the slot that the project will be downloaded to on the V5 Robot Brain by clicking on the boxed 1 icon to open up all available project slots and select the desired slot.

Screenshot of a tutorial interface for V5 category description, showcasing various features and options available for users.

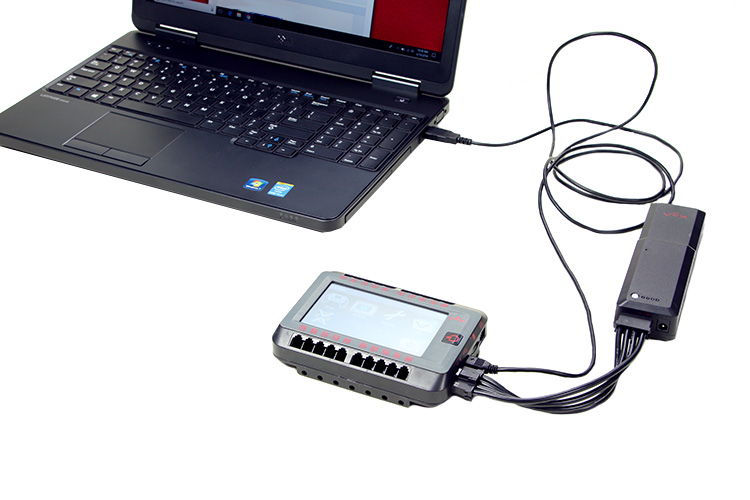

Connect the V5 Robot Brain to the computer using a micro USB cable and power on the V5 Robot Brain.

Screenshot of a V5 robotics tutorial interface, showcasing various categories and options available for users to navigate and learn about V5 robotics features and functionalities.

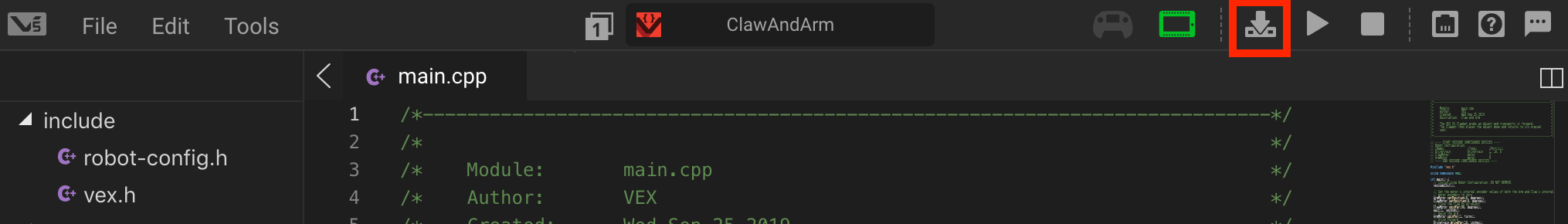

Click on the Download icon next to the Device Info icon to download the project to the V5 Robot Brain.

NOTE: When the V5 Robot Brain is connected to the computer, the Build icon changes to the Download icon.


How to Run and Stop a Project

Screenshot of a V5 category tutorial interface showing various options and features for users to explore, designed to assist in understanding V5 functionalities.

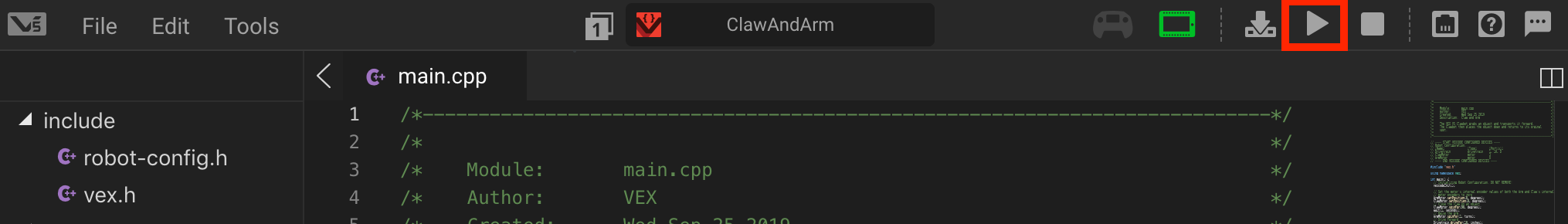

Click the Run icon to start the project that was downloaded to the V5 Robot Brain.

NOTE: This method for running the project only works if the robot is still plugged into the computer and is planned to remain stationary.

Screenshot of a tutorial interface for V5 Category Description, showcasing various features and options available for users to navigate and utilize in their projects.

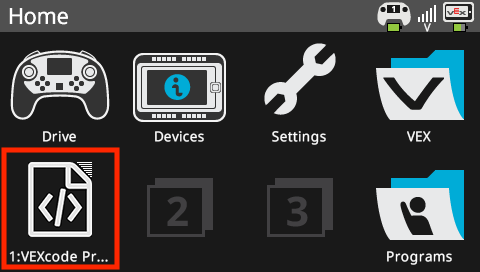

It is advised to run the project from the V5 Robot Brain while unplugged from the computer if the robot is supposed to drive.

Screenshot of a V5 Category Description tutorial, showcasing key features and components of the V5 system, including labeled sections and visual elements for enhanced understanding.

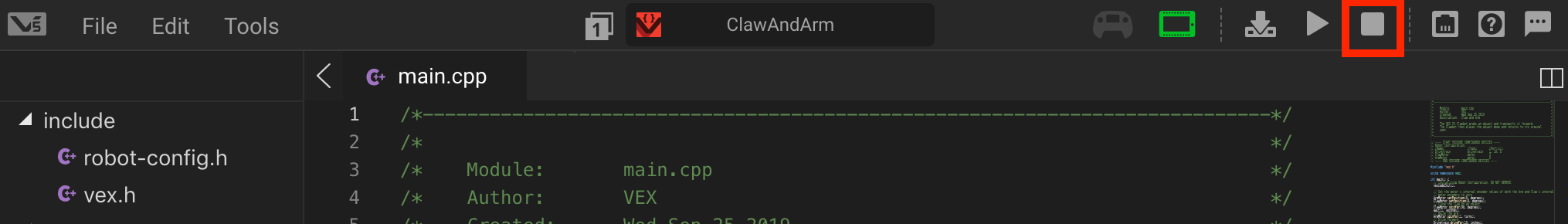

Press the Stop icon to stop the project from running while the V5 Robot Brain is still plugged into the computer.

For more information, help, and tips, check out the many resources at VEX Professional Development Plus
