Installing VEXcode IQ on Windows – VEX Library

First, download VEXcode IQ if you have not done so already.

VEXcode IQ Installer icon as shown after downloading it for Windows.

Select the VEXcode IQ Installer icon to begin installation.

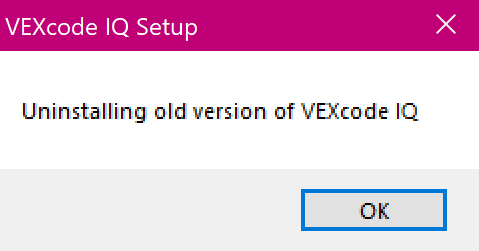

VEXcode IQ Setup pop up window that reads Uninstalling old version of VEXcode IQ. The OK button below is highlighted.

If there is a previous version of VEXcode IQ on the computer, the installer will first uninstall the old version of VEXcode. Select OK.

Note: You might have to grant permission for the app to make changes to your computer.

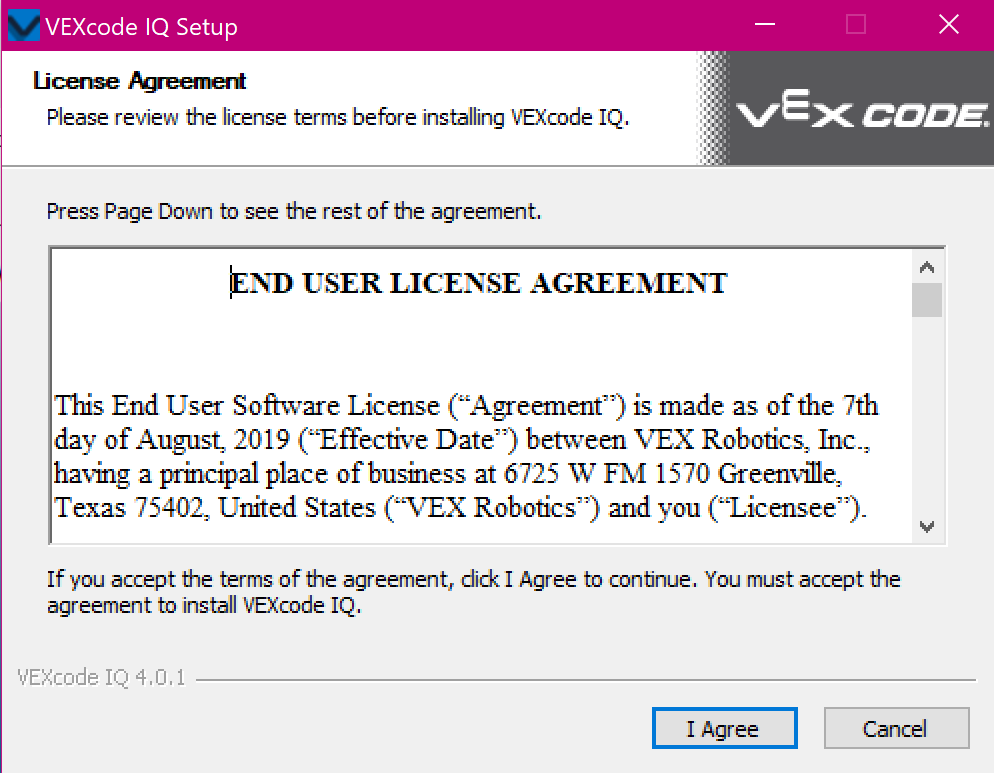

VEXcode IQ Setup window showing the End User License Agreement. The I Agree button below is highlighted.

The License Agreement will appear. After you have finished reading through the EULA, select I Agree.

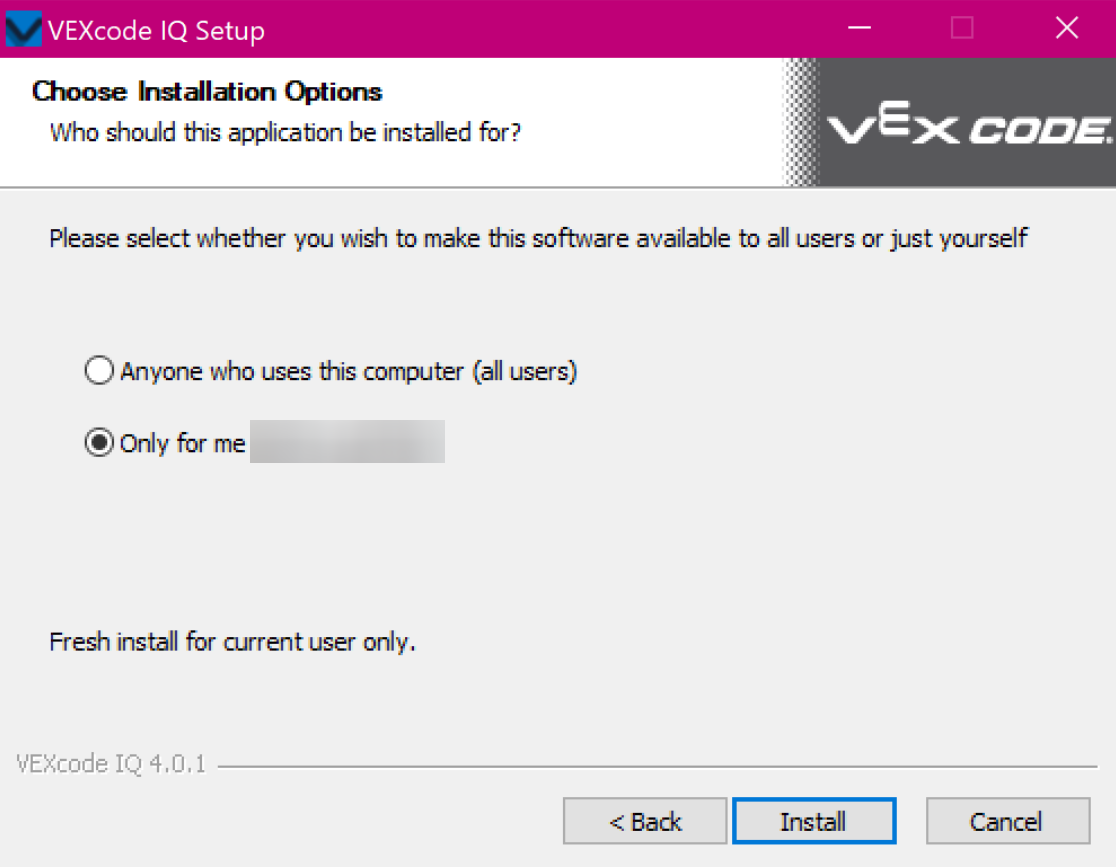

VEXcode IQ Setup window showing the Installation Options, with a choice between installing the application for only the current user or all users. The Install button below is highlighted.

Choose the installation button for the installer, whether it will be installed only for the current user, or for all users on the computer. Once chosen, select Install.

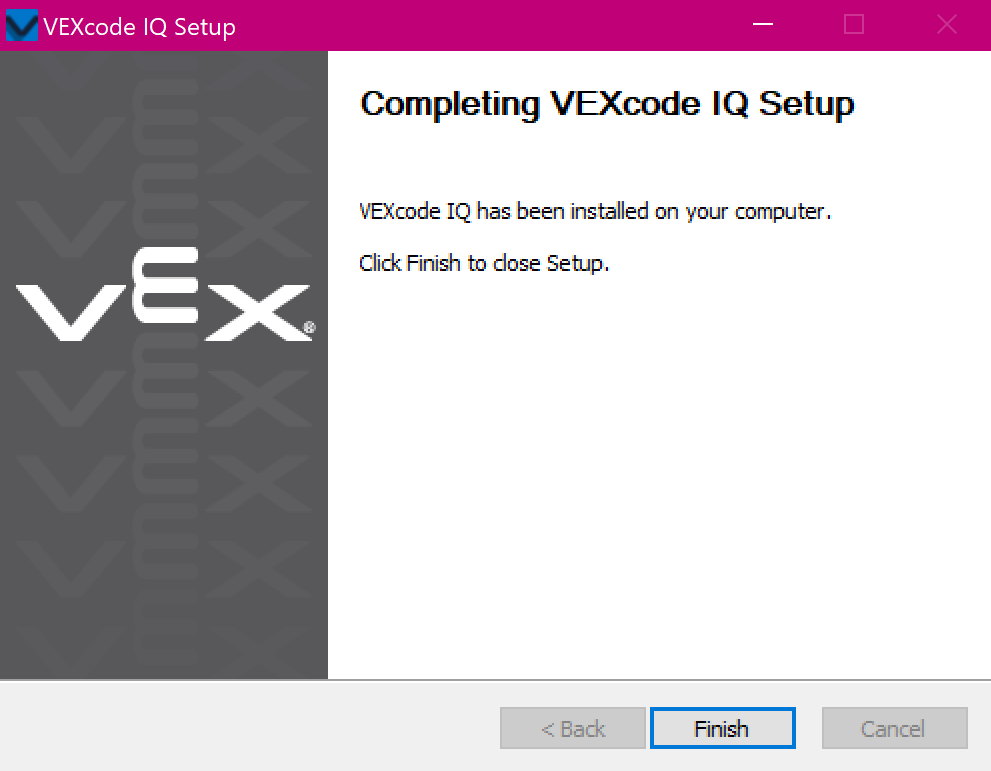

VEXcode IQ Setup window showing the Completing VEXcode IQ Setup screen. The Finish button below is highlighted.

Wait for the installation to complete, then select Finish.

VEXcode IQ application icon installed on Windows.

Launch VEXcode IQ using the desktop shortcut.

VEXcode IQ application installed and opened on Windows.

Begin working in VEXcode IQ.

Create a new project to get started with coding in VEXcode IQ!

Name and save your project.
Configure your motors, sensors, drivetrain (with or without the Gyro Sensor), and controller.
Get to know more about the shapes of blocks, program flow, and how to access Help.
