Viewing the V5 Motor Dashboard

Diagram illustrating the V5 motor specifications, including dimensions and connection points, relevant to V5 category description.

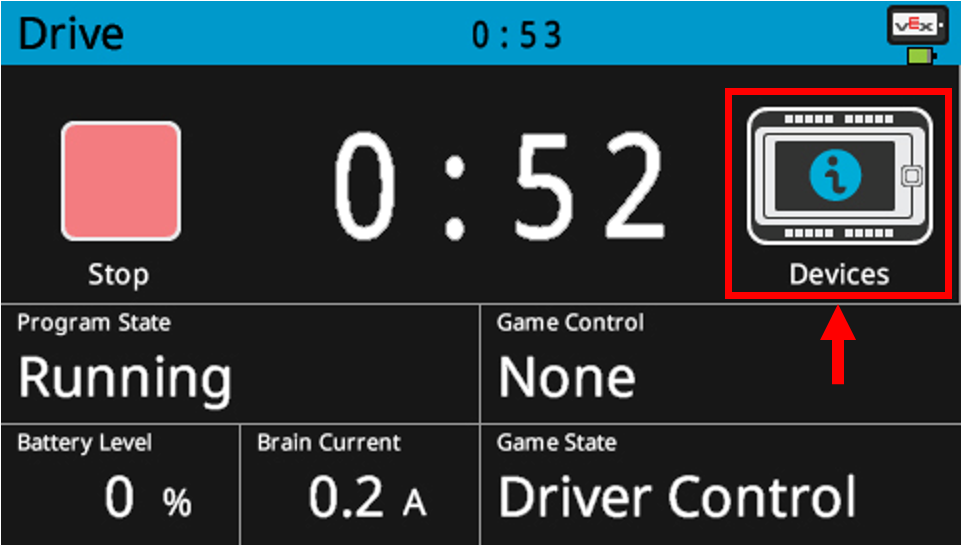

Click on Devices while a program is running

Diagram showing VEX V5 motor specifications and features, including dimensions, power ratings, and connection points, relevant to robotics applications.

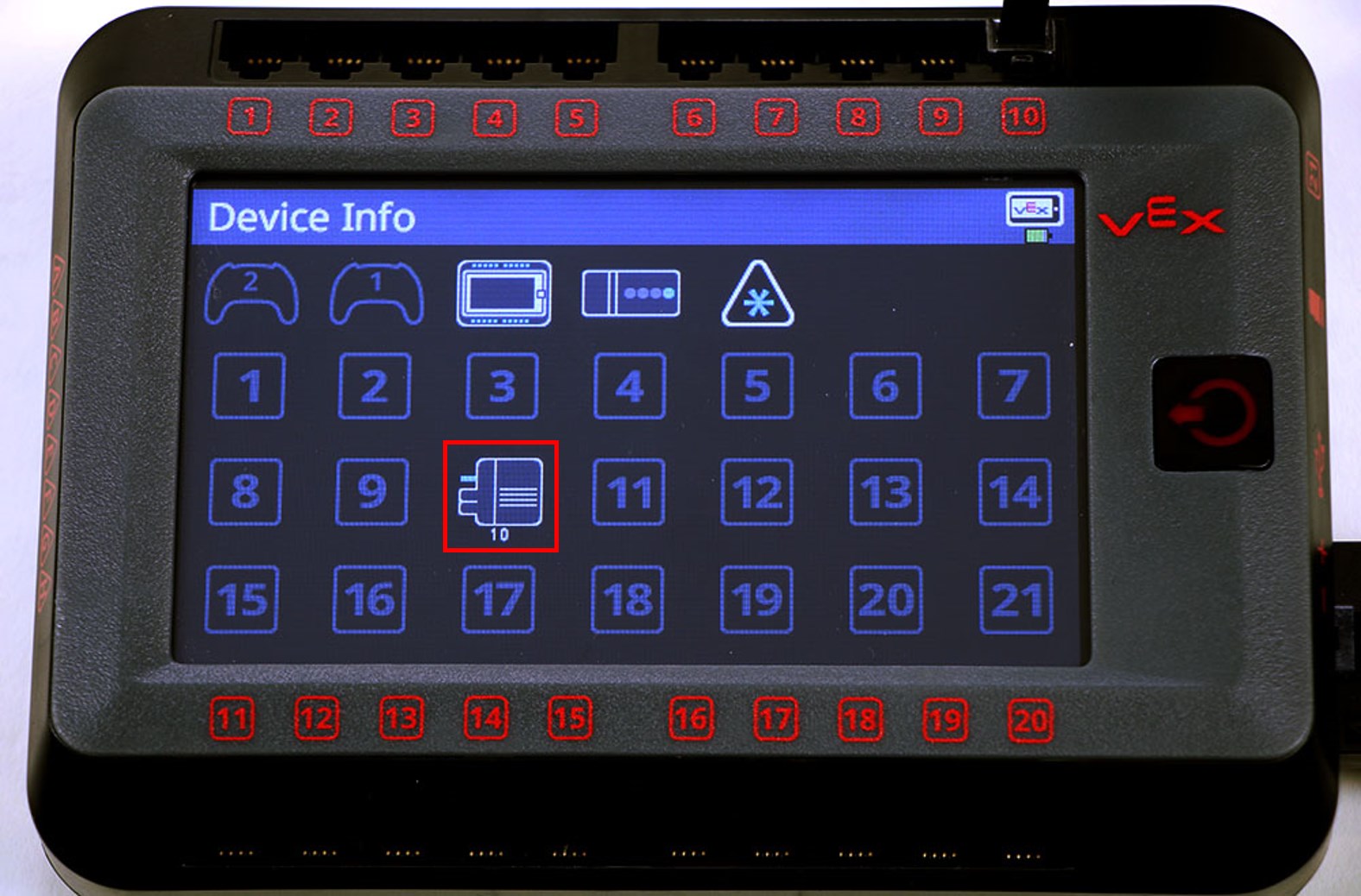

Choose the V5 Smart Motor to see its Motor Dashboard

Diagram illustrating the specifications and features of a V5 motor, including dimensions, weight, and connection points, as part of the V5 Category Description.

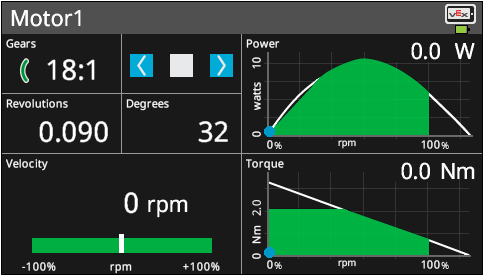

Review the data provided

Note: Be sure the gear ratio displayed in the Gears frame of the motor window matches the V5 Smart Motor Cartridge the motor is paired with. The gear ratio display can be changed by touching the Gears frame on the touch screen.
