Running Arcade Drive with the V5 Controller

Power on your V5 Controller

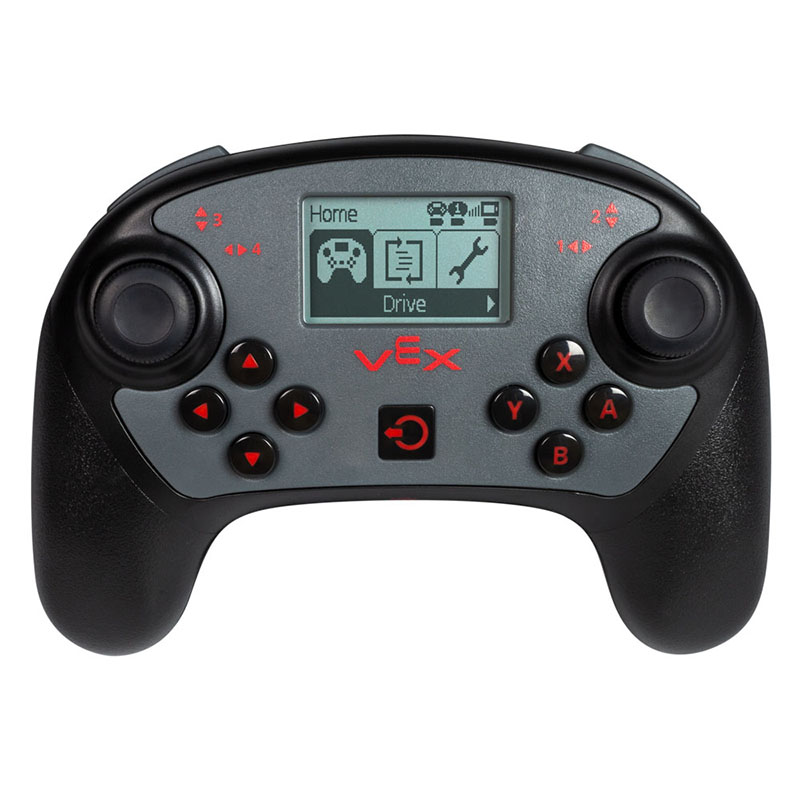

Controller powered on with its screen showing the Home menu.

Press the square Power Button in the center of the controller to turn it on.

Set up Driver Control

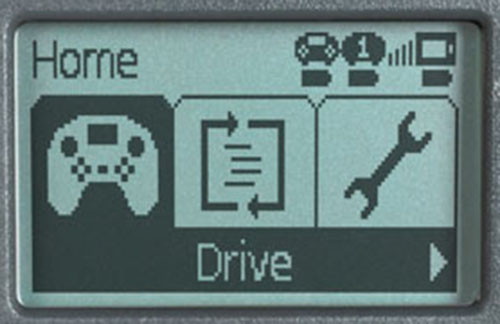

Controller screen is shown in the Home menu, with three icons for the Drive, Programs, and Settings menus. The Drive icon is highlighted by default.

Use the Arrow buttons to highlight the Driver Control program's icon (highlighted in the image).

Then press the A button to choose Drive.

Press the A button again to choose Run.

Press the B button to return to the previous menu, if needed.

Use the Joysticks to Operate the Drive Train

  • The joysticks will operate the drive train motors in arcade control.
  • Tilting the joysticks forward will move the V5 Robot forward.
  • Tilting the joysticks backward will move the V5 Robot backward.
  • Tilting the joysticks to the left or right will cause the V5 Robot to make a point turn in the chosen direction.

For more information, help, and tips, check out the many resources at VEX Professional Development Plus
