Making Selections from the V5 Controller Main Screen – VEX Library

Power on your V5 Controller

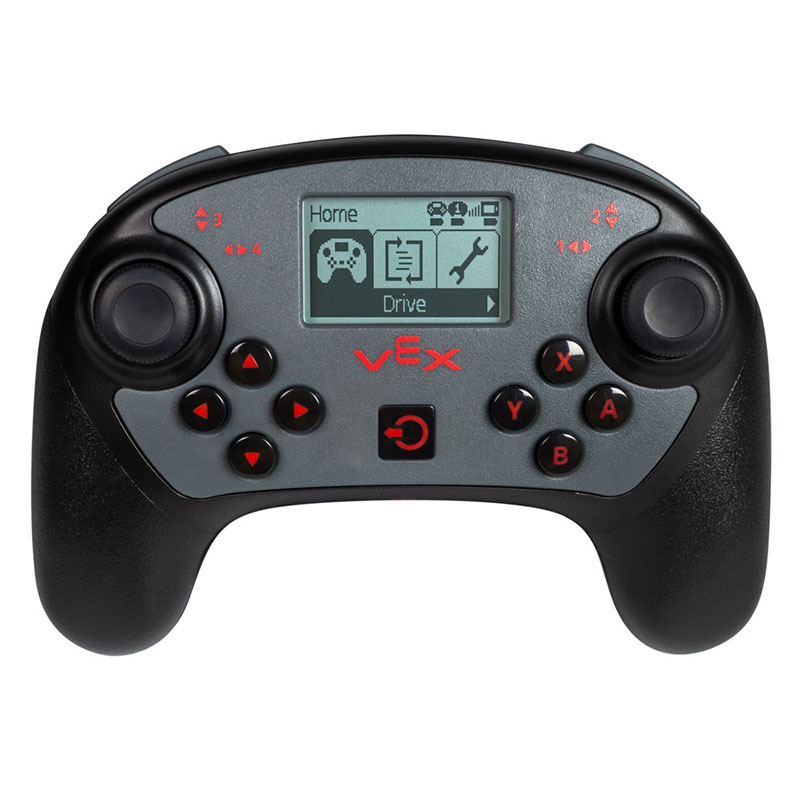

Controller powered on with its screen showing the Home menu.

Press the square Power Button in the center of the controller to turn it ON.

To turn the controller OFF, press and hold the Power Button for 3 seconds.

Make selections from the Home screen

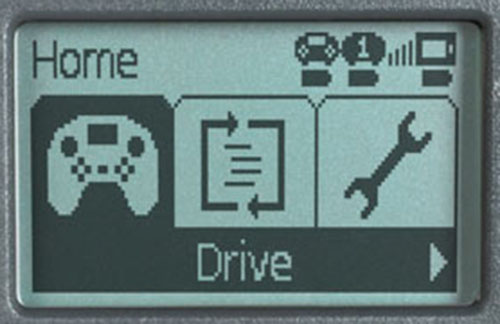

Controller screen is shown in the Home menu, with three icons for the Drive, Programs, and Settings menus. The Drive icon is highlighted by default.

Use the arrow buttons to highlight the Driver Control program's icon (highlighted in the image), the Programs Menu icon (center), or the Settings Menu icon (right).

Then press the A button to choose that option. You can press the B button to return to the previous menu.
