Tips on Attaching Motors to a Build

Watch the video below to learn tips on how to attach a V5 Smart Motor to a build.

Collect the parts that you will need.

Diagram illustrating V5 motor specifications, featuring labeled components and connections for educational purposes in robotics.

You will need the following:

(1) V5 Smart Motor (not shown)
(2) #8-32 x 1/2" Screws
(1) 5-64" Hex Key
(1) 3-32" Hex Key
(1) Shaft Coupler
(1) 1/2" Shaft

Position the V5 Smart Motor.

Close-up image of a VEX V5 motor, showcasing its design and features, including mounting points and electrical connections, used in robotics applications.

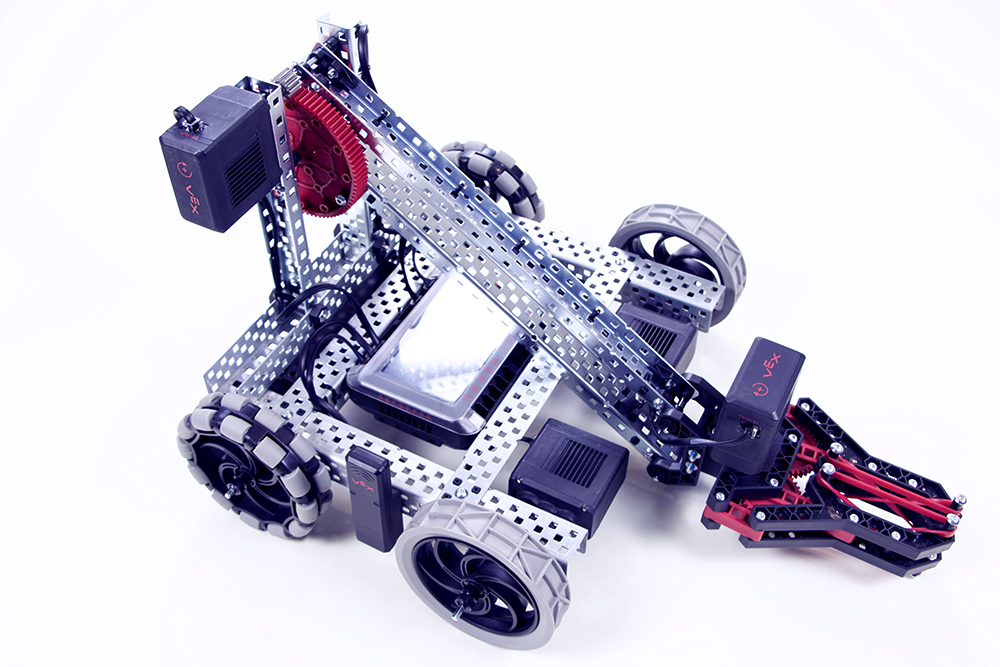

Position the V5 Smart Motor to turn a wheel, the Claw Arm, or the Claw.

This example will focus on the V5 Smart Motor powering the movement of the Claw Arm.

Secure and wire the V5 Smart Motor.

VEX V5 motor image showing the motor's design and features, highlighting its components and structure for educational purposes in robotics.

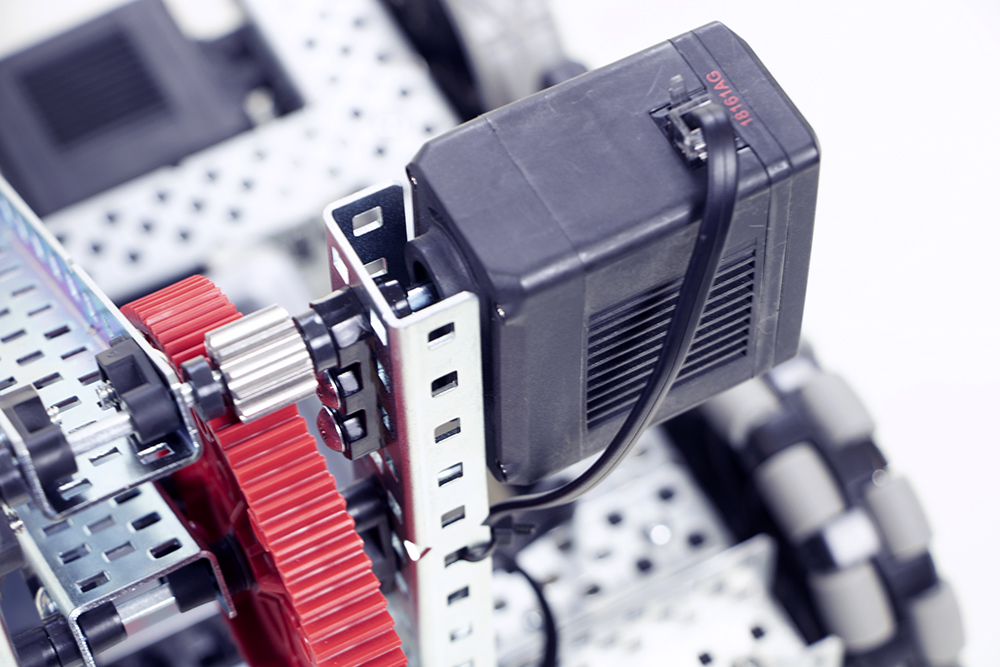

Use the tools that you assembled to securely mount the V5 Smart Motor to the top of the V5 Clawbot's arm support structure.

Make sure that the motor is mounted so that it properly aligns and is able to turn the gear.

Use a Smart Cable to connect your new V5 Smart Motor to Port 8 on your V5 Robot Brain.
