Running Claw Control with the V5 Controller

Power on your V5 Controller

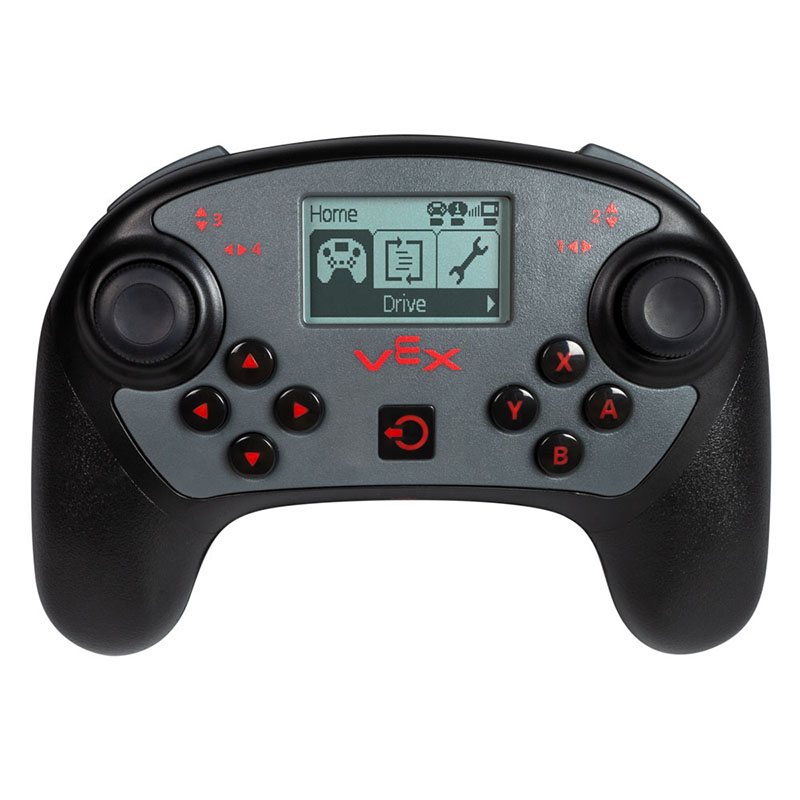

Controller powered on with its screen showing the Home menu.

Press the square Power Button in the center of the controller to turn it on.

Set up Driver Control

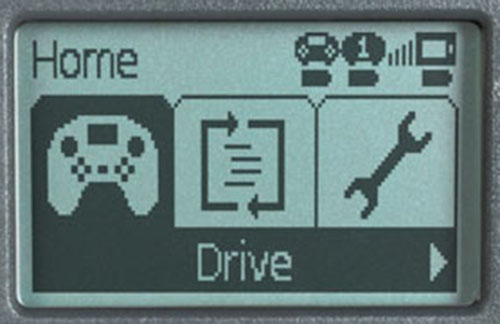

Controller screen is shown in the Home menu, with three icons for the Drive, Programs, and Settings menus. The Drive icon is highlighted by default.

Use the Arrow buttons to highlight the Driver Control program's icon (highlighted in the image).

Then press the A button to choose Drive.

Press the A button again to choose Run.

Press the B button to return to the previous menu, if needed.

Use the L1 and L2 Buttons on the Left Side of the Controller to close and open the claw

  • The rectangular L1 button on the front of the controller closes the claw.
  • The rectangular L2 button on the front of the controller opens the claw.

For more information, help, and tips, check out the many resources at VEX Professional Development Plus
