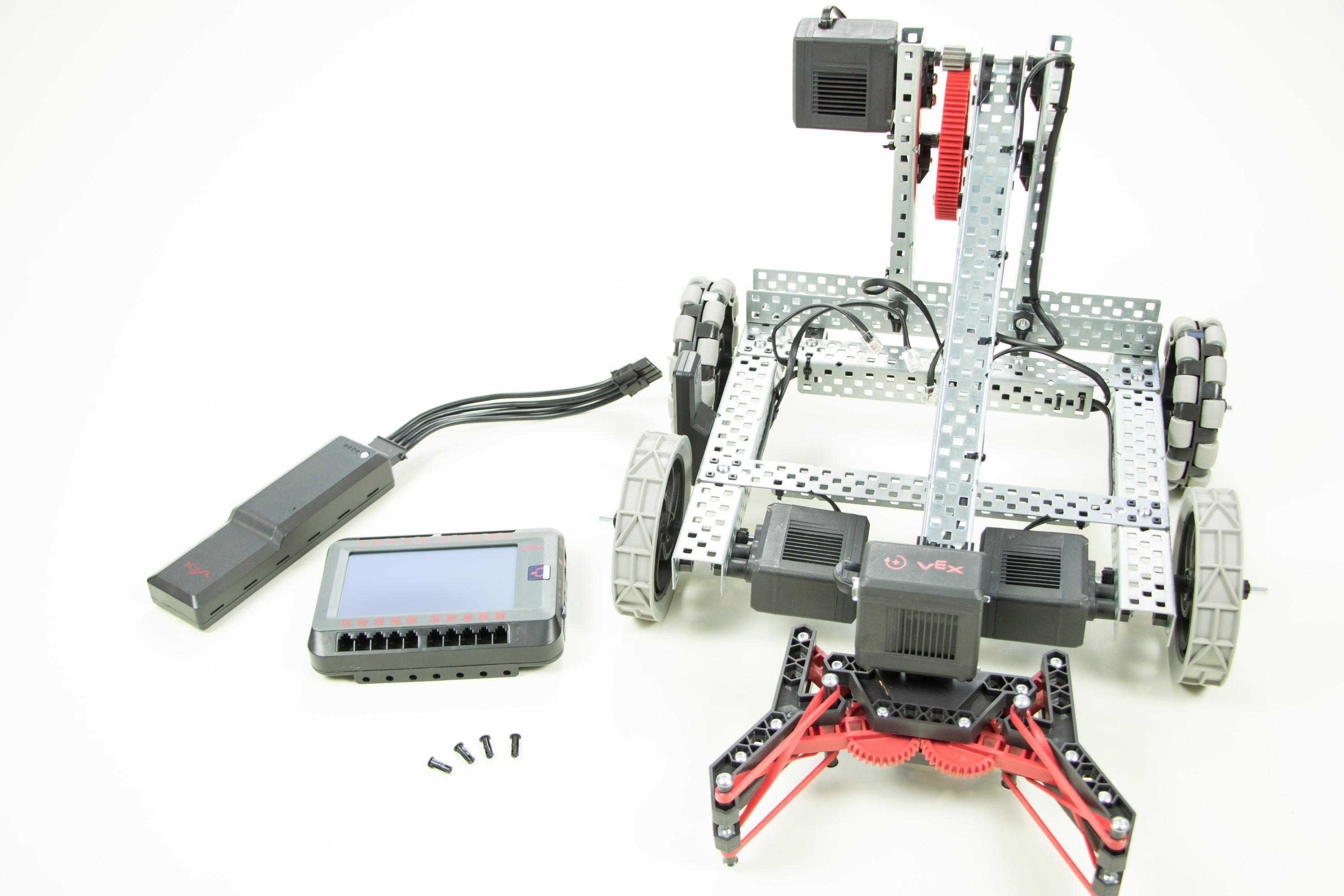

Collect needed parts

VEX V5 Robot Brain with labeled ports and features, showcasing the design and layout for educational robotics applications.

You will need the following items to mount the V5 Robot Brain:

A charged V5 Robot Battery
A V5 Robot Brain
A chassis with enough space to mount the V5 Robot Brain
4 Connector Pins to mount the V5 Robot Brain to the chassis

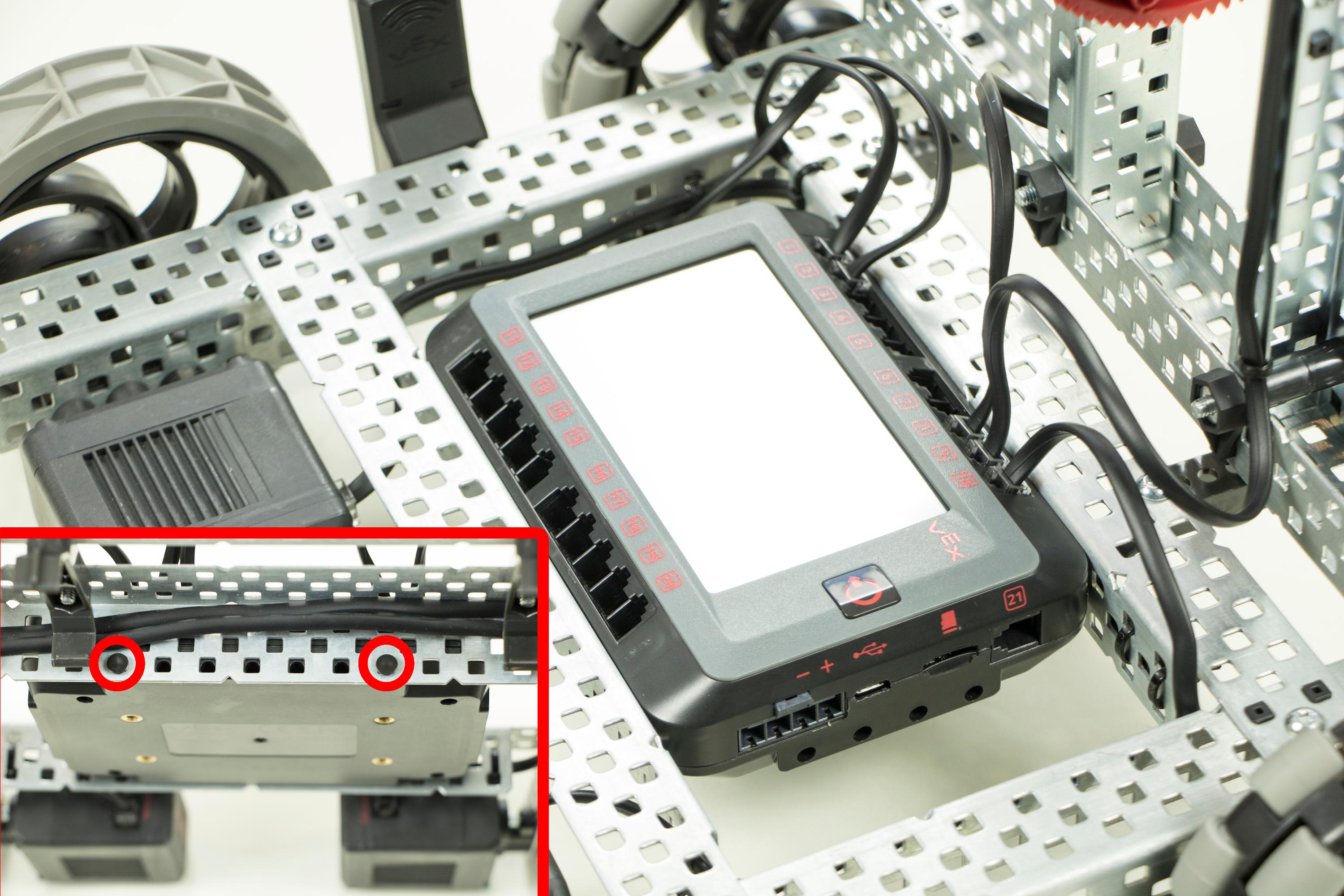

Mount the V5 Robot Brain using the Connector Pins

Diagram of the VEX V5 Robot Brain, illustrating its components and connections, used in robotics education and competitions.

Hold the V5 Robot Brain where you want it to be mounted on your chassis.

Use the Connector Pins to mount the V5 Robot Brain to the chassis using the holes on the sides of the brain.

NOTE: The V5 Robot Brain can also be mounted using the included flanges, or threaded holes on the back of the brain.

Connect the V5 Robot Battery to the V5 Robot Brain

Diagram of the VEX V5 Robot Brain, showcasing its components and connections, including ports and sensors, illustrating the structure and functionality of the robot's control system.

Connect the V5 Robot Battery by plugging it into the battery port.

For more detailed instructions on mounting and wiring the brain, see theV5 Clawbot Build Instructions.

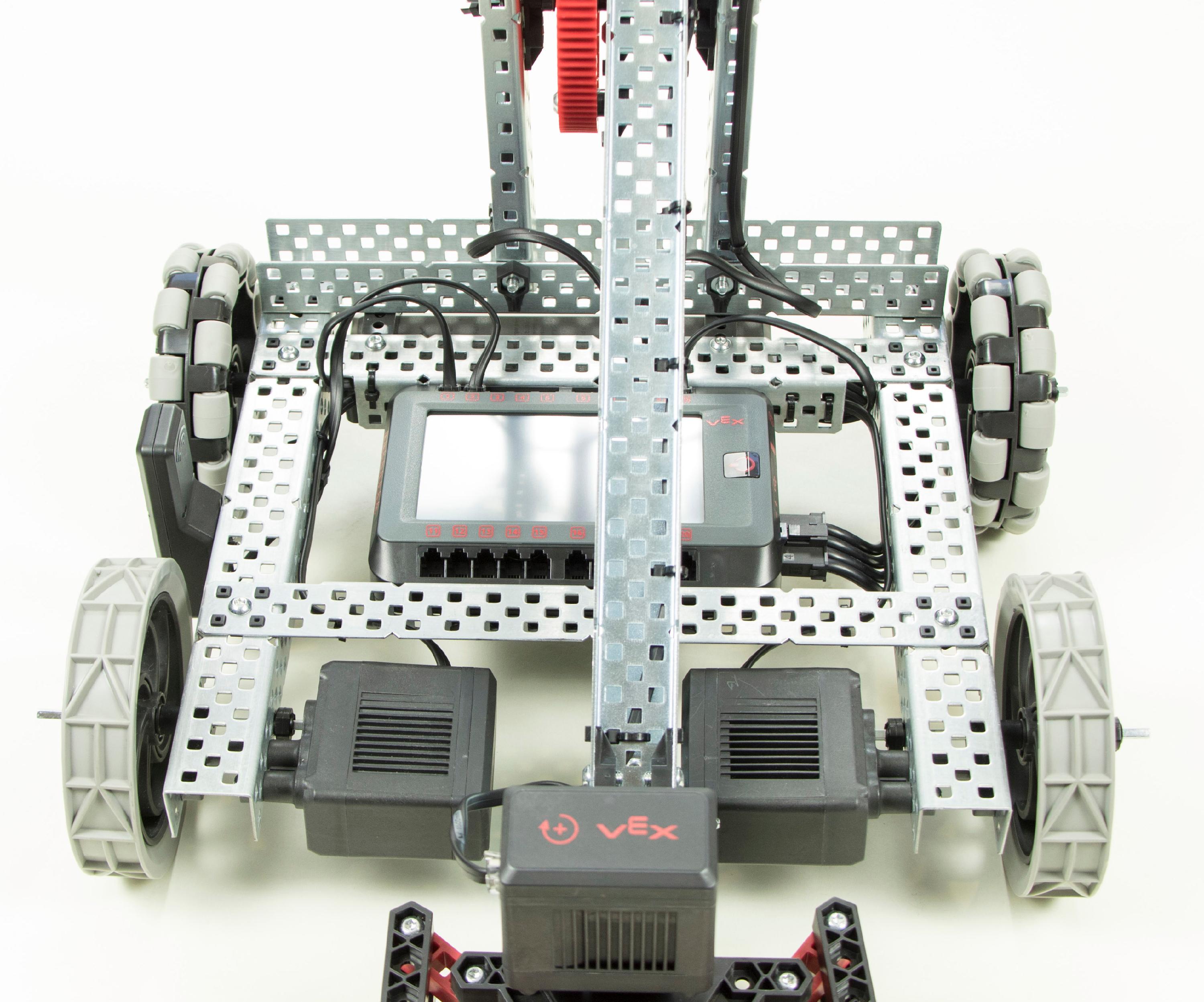

Connect devices to the V5 Robot Brain

Diagram of the VEX V5 Robot Brain, illustrating its components and connections, including ports for sensors and motors, power supply, and communication interfaces, highlighting the central role of the brain in robot functionality.

Connect your devices to the proper ports on the V5 Robot Brain.

When building a V5 Clawbot, see the V5 Clawbot Build Instructions for proper port configurations.
