Connecting a 3-Wire Device to the V5 Brain – VEX Library

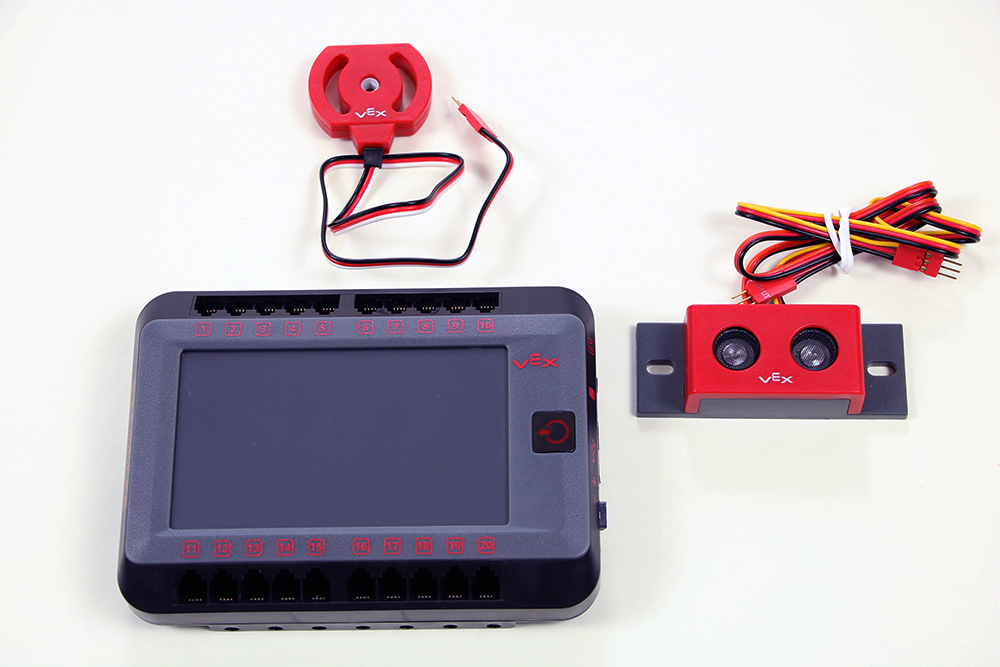

Gather the required components

Diagram illustrating the setup and usage of V5 sensors, showcasing various sensor types and their connections to the V5 robotics system for enhanced functionality in robotics projects.

You will need the following items:

a V5 Robot Brain
a 3-Wire device

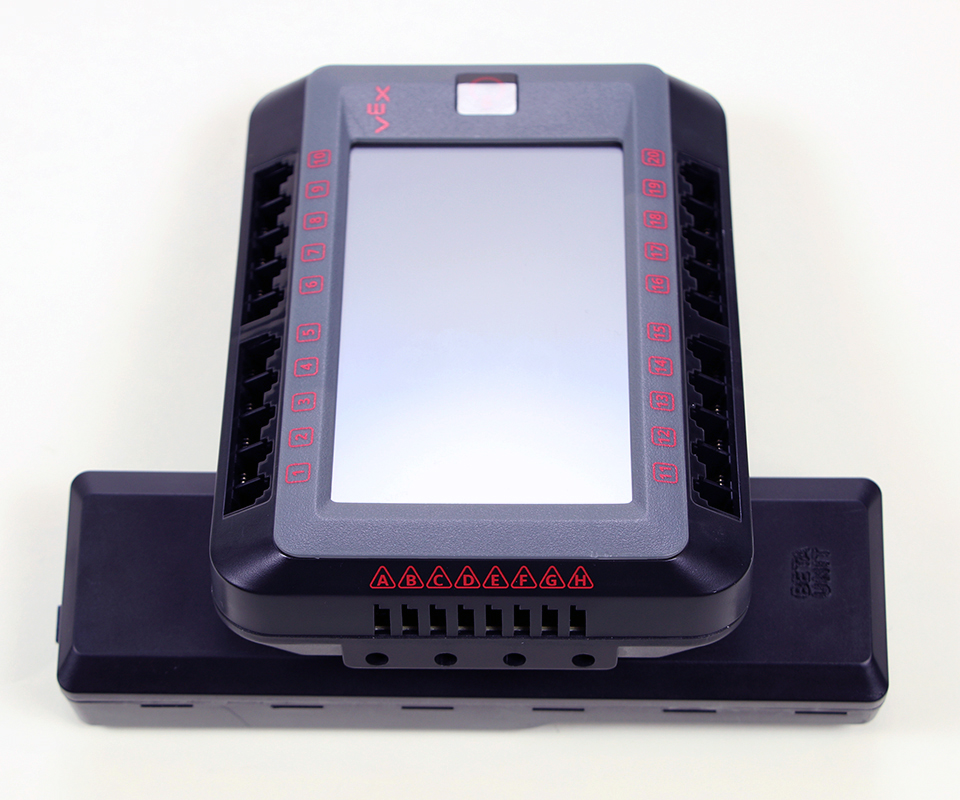

Locate the 3-Wire Ports

Diagram illustrating the use of sensors in V5 robotics, showing various sensor types and their connections to the V5 brain, highlighting how they interact within the robotic system.

The 3-Wire Ports are located on the side of the V5 Brain opposite the side with the battery connection.

The V5 brain has a total of eight 3-Wire ports, labeled A-H, which can all be used as inputs or outputs that can be used with VEX EDR 3-wire legacy sensors and motor controllers.

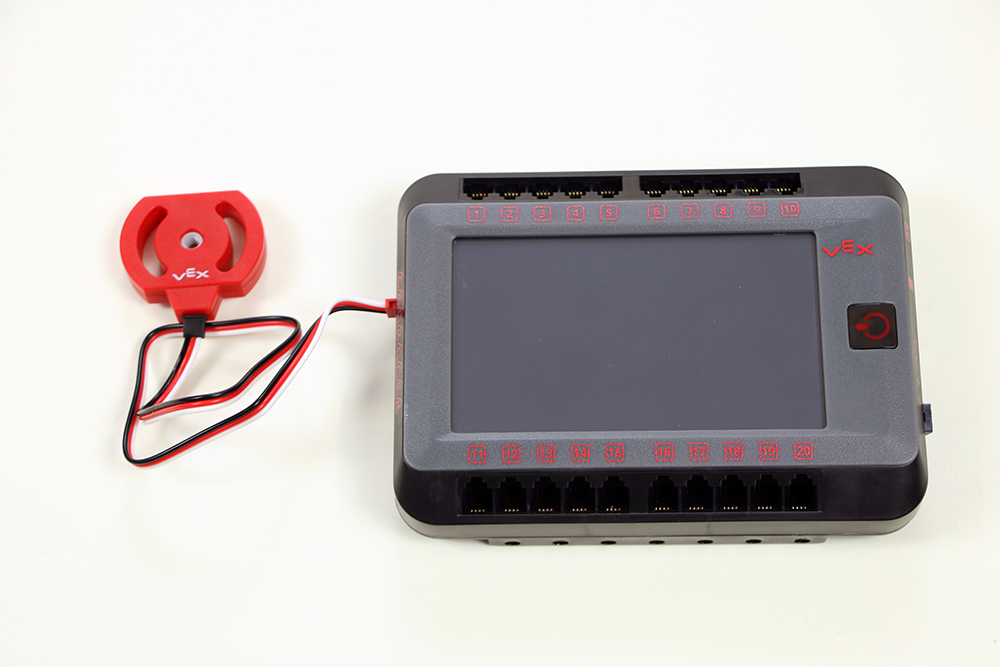

Connect the 3-Wire device.

Diagram illustrating the setup and connections of V5 sensors, highlighting key components and their functions in a robotics system.

Insert the 3-Wire cable(s) into the desired port(s). The ports are keyed so you can only plug the cable in one way.

If you are using 3-Wire extensions, make sure the black wires are always connected to prevent connecting the device incorrectly.
