Wirelessly Downloading a Project in VEXcode Pro V5

The VEX Visual Studio Code Extension has replaced VEXcode Pro V5, which is now end-of-life.

VEXcode Blocks and VEXcode Text remain actively developed and supported for all VEX platforms.

Screenshot of a V5 category description tutorial, illustrating key features and components of the V5 system, including labeled sections and visual aids for better understanding.

Wirelessly connect the V5 Controller to the Brain or via a Smart Cable.

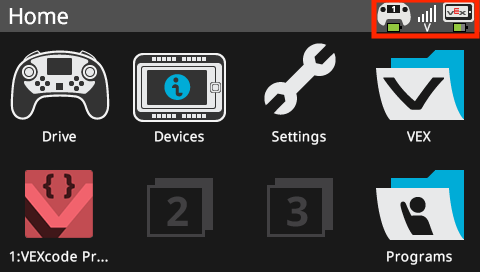

NOTE: The Controller must be connected to the Brain throughout the entire wireless download process. You can confirm that your controller is connected by looking at your Brain’s screen. You will see a controller and a signal icon at the top right of the screen.

Screenshot of a V5 category description tutorial, showcasing key features and functions related to VEX robotics, with labeled sections for easy navigation and understanding.

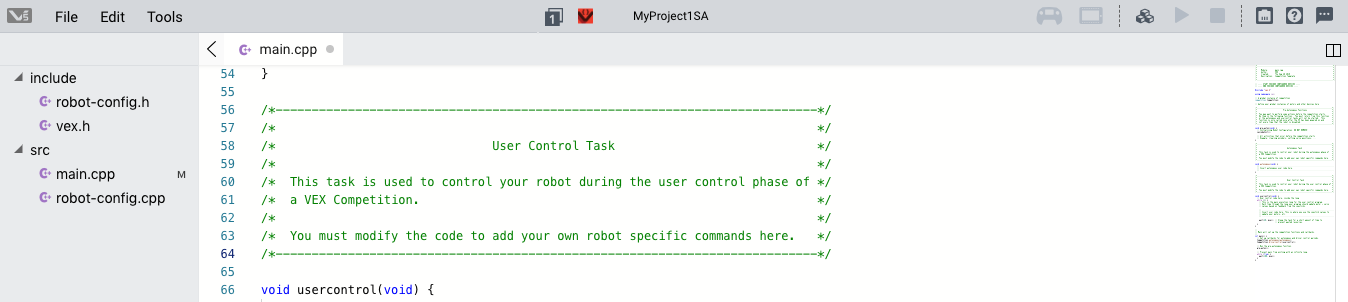

When you have your controller connected to the brain, open VEXcode Pro V5.

Screenshot of a V5 robotics tutorial interface, displaying various programming options and tools for users to learn and implement in their projects.

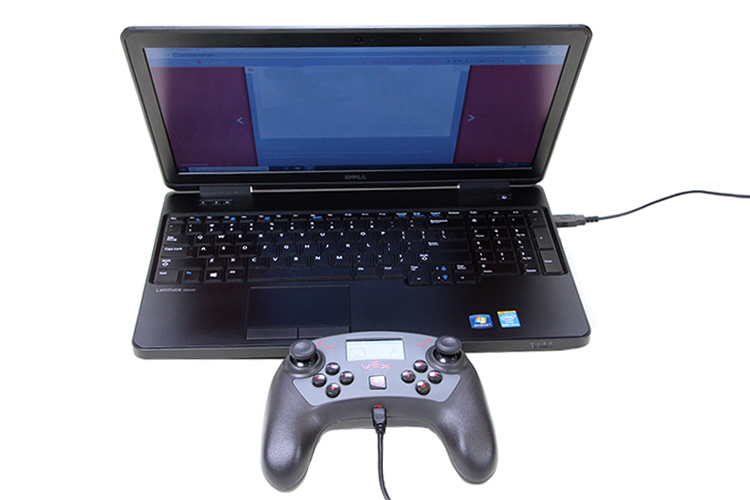

Connect the Controller to the computer via a USB cable. The Controller must be connected to the computer via a USB cable throughout the entire wireless download process.

Screenshot of a tutorial interface for V5 category description, displaying various options and features related to the V5 robotics system, designed to guide users through the setup and usage of V5 components.

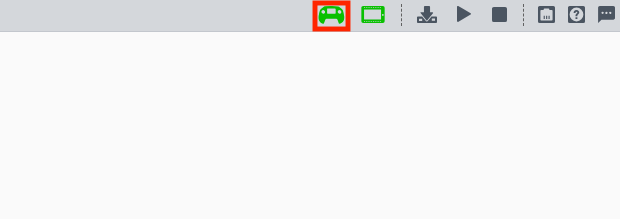

Check that the Controller is connected properly. This is indicated by the Controller icon being green.

Screenshot of a V5 category tutorial interface, displaying various options and features related to VEX robotics programming, highlighting key elements for users to navigate and utilize effectively.

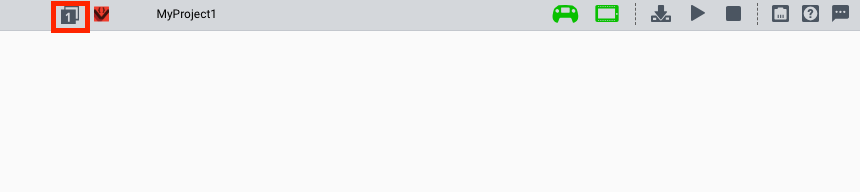

Save the project and then choose which of the Brain’s slots to download to.

Screenshot of a tutorial interface for V5 Category Description, showcasing various features and options available in the software, designed to assist users in navigating and utilizing the platform effectively.

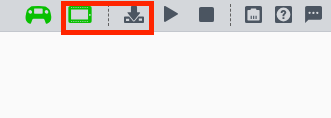

Check that the Brain icon is green and the Download and other icons are gray.

Screenshot of a V5 category tutorial interface, showcasing various options and features for users to navigate and utilize in their projects.

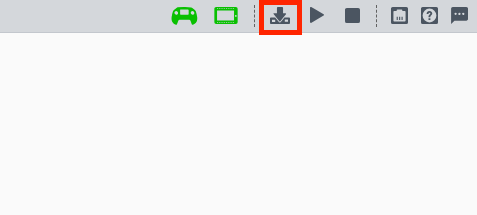

Select Download to the project to the Brain’s selected slot.

NOTE: The Download, Run, and Stop icons will turn briefly gray until the download is complete. Downloads done wirelessly take slightly longer than wired downloads.

Screenshot of a V5 category tutorial interface, displaying various options and features related to VEX robotics, with highlighted sections for user guidance.

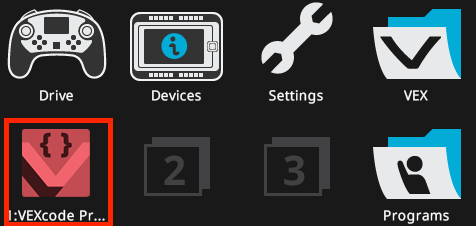

Finally, run the project on the Brain.

Screenshot of a tutorial interface in V5, showcasing various features and options available for users, highlighting the layout and functionality for better understanding.

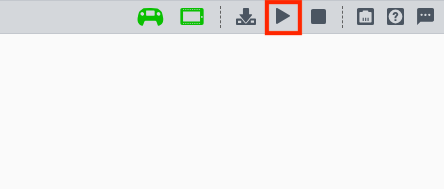

You can also run the project from the toolbar.

NOTE: The project must already be downloaded before you can run the project from the toolbar.
