When starting to program with VEXcode Pro V5, Sensor and 3-Wire device commands will not appear in the Command Reference until they have been configured.
Here are the different options when configuring a 3-Wire device:
- Adding a 3-Wire Device
- Changing a 3-Wire Device’s Port Number
- Renaming a 3-Wire Device
- Deleting a 3-Wire Device
Also included at the end of this article:
- Configuring a VEX Motor-393
Adding a 3-Wire Device

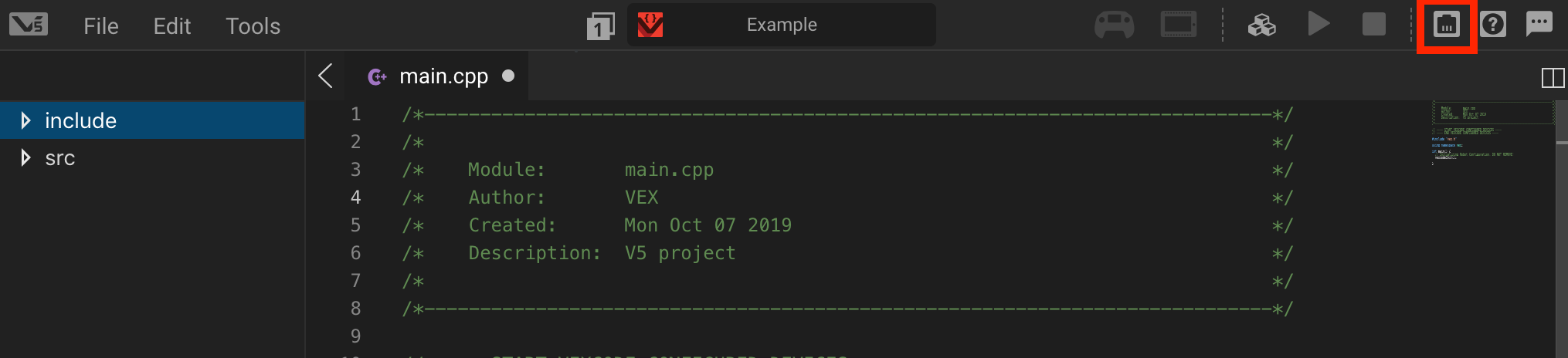

To configure a device, select the Robot Configuration button to open the Robot Configuration window. A project must be open in order to use the Robot Configuration window.

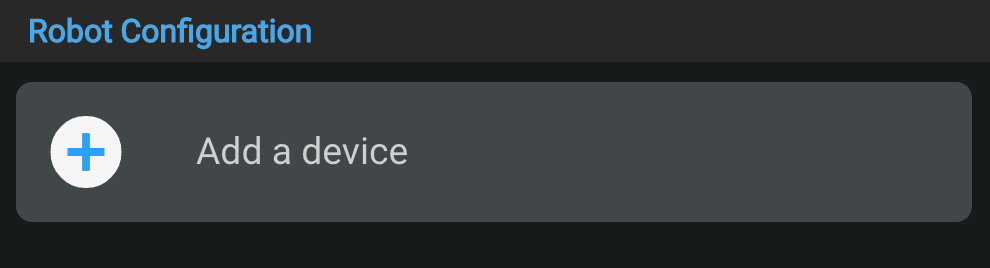

Select “Add a device.

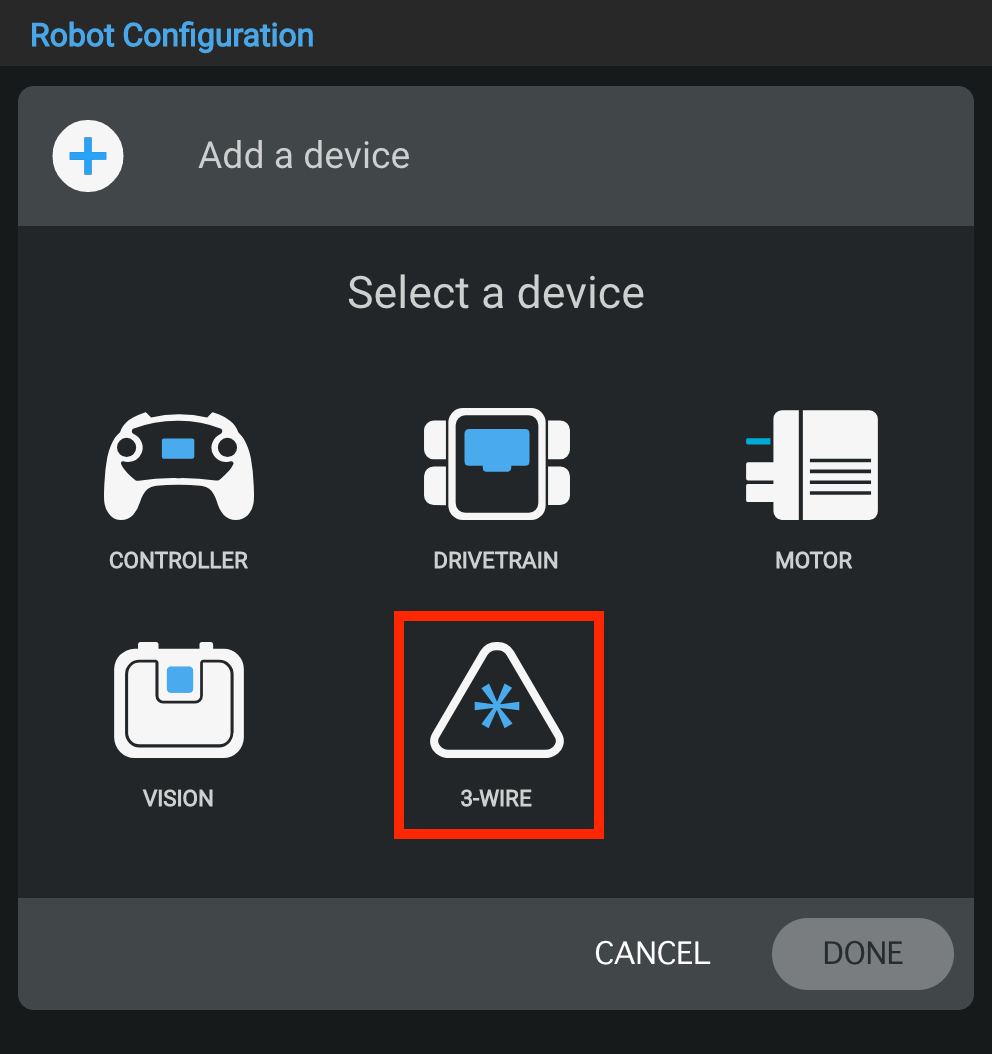

Select the 3-wire Devices.

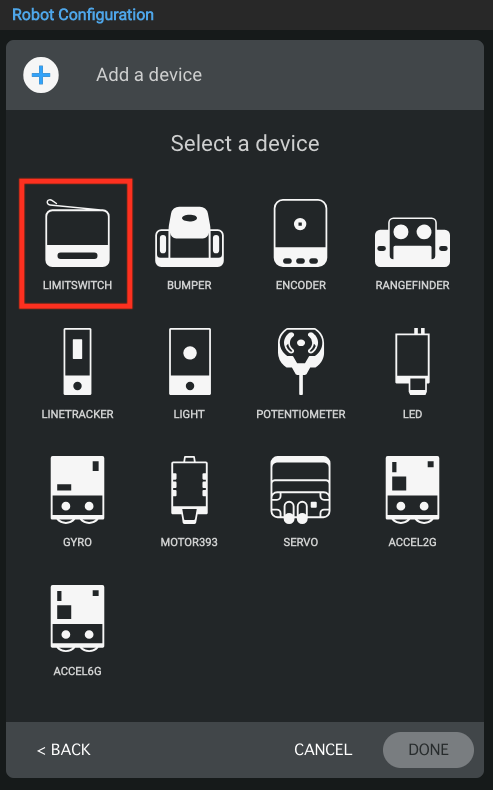

Select the 3-wire Device that you are using. This example shows a Limit Switch.
Note: 3-wire Devices include the Limit Switch, Bumper Switch, Encoder, Range Finder, Line Tracker, Light, Potentiometer, LED, Gyro, Motor-393, Servo, Accelerometer-2G, and Accelerometer-6G. All devices follow the same configuration process with an additional step for Motor-393. See the bottom of this article for more details.

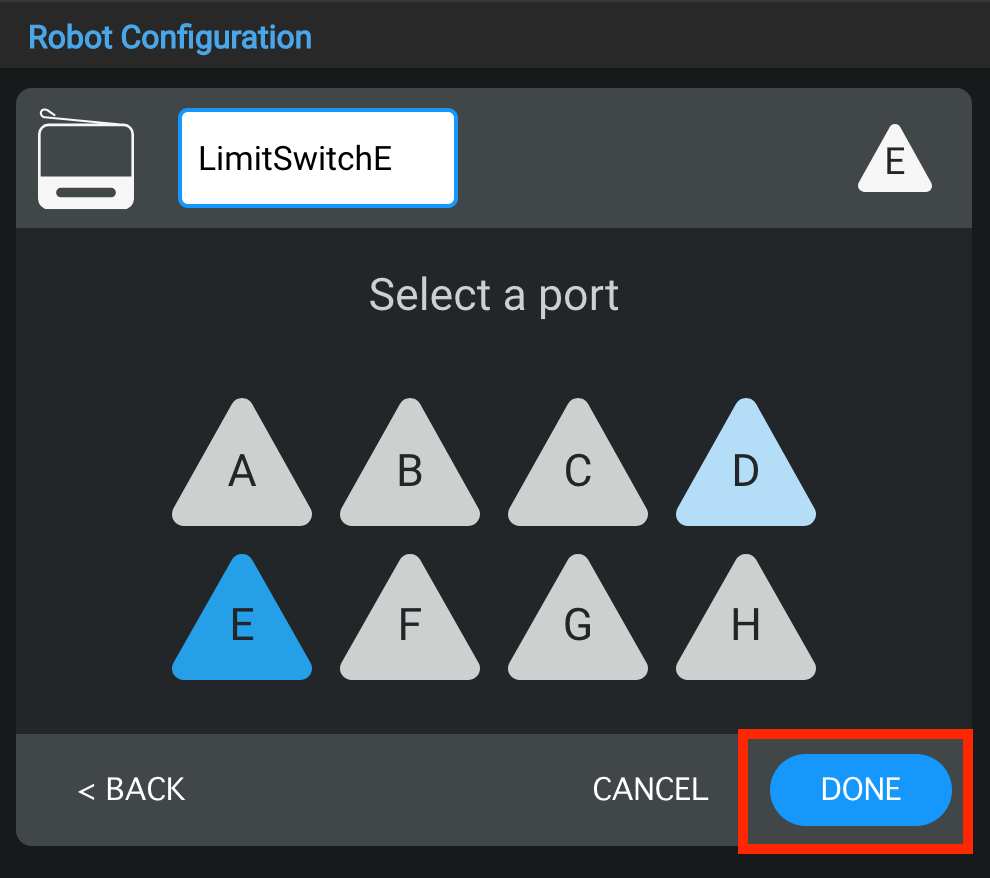

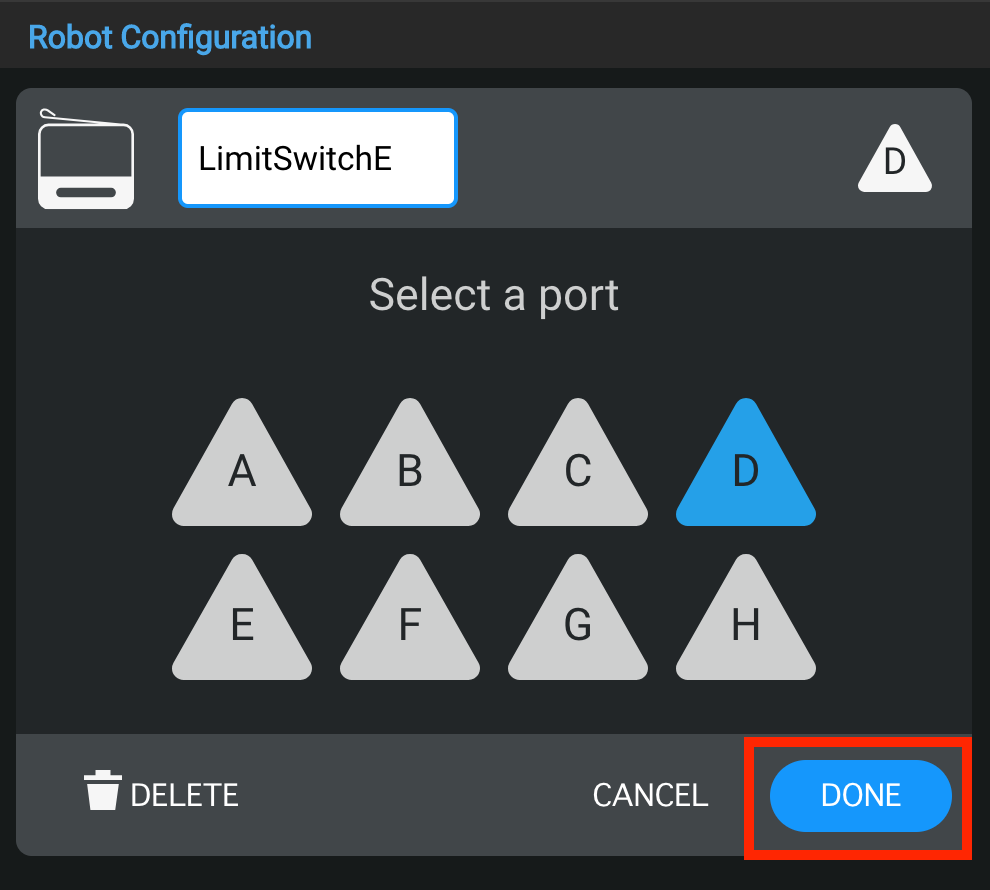

Select which port the device is attached to on the VEX V5 Brain. Ports that are already configured for other devices will be unavailable. Once the port has been selected, select “Done” to submit the device to the configuration or “Cancel” to return back to the Robot Configuration window.
Note: Selecting “Cancel” will undo any changes you have made to the device and will not be a part of the configuration.
Changing a 3-Wire Device’s Port

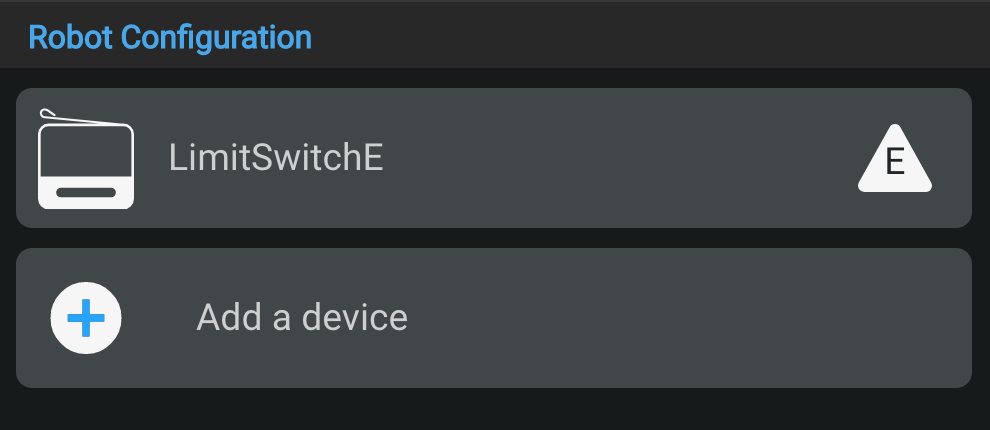

You can change the port number for the 3-Wire Device by selecting the 3-Wire Device in the Robot Configuration window.
Select a different port on the Port Selection screen and the port number will turn blue. Then select "Done" to submit the change.
Renaming a 3-Wire Device

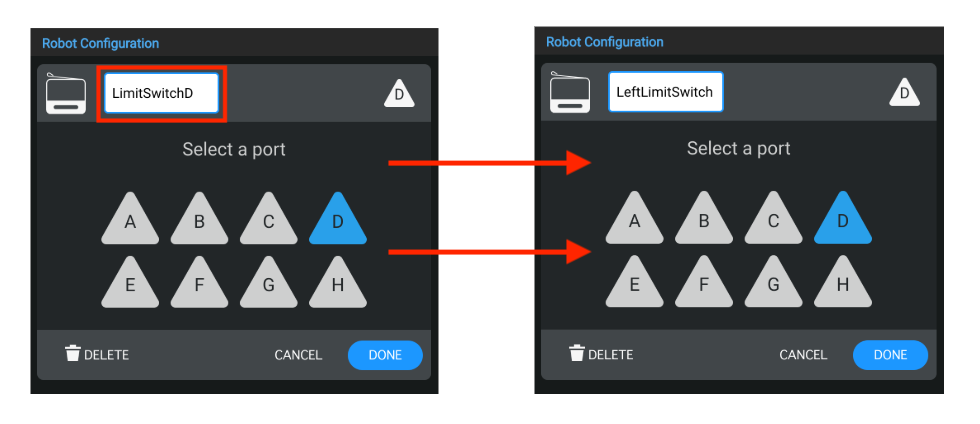

You can also rename the 3-Wire Device by changing the name in the text box at the top of the Port Selection window. If you select an invalid name, the text box will highlight orange to indicate. Then select "Done" to submit the device changes to the configuration.

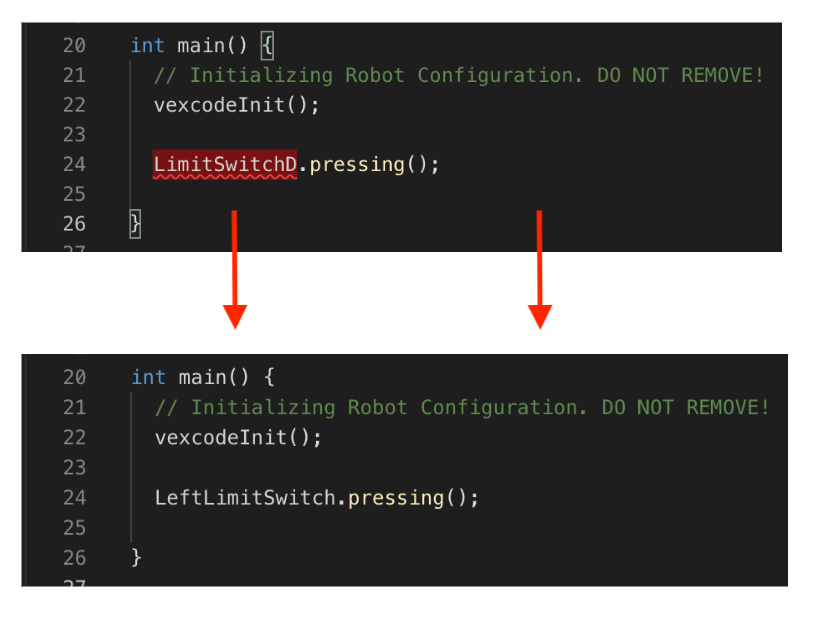

If you change the name of 3-Wire Device that is already being used in your project, you will need to update the device's name in the command to the new name.
Deleting a 3-Wire Device

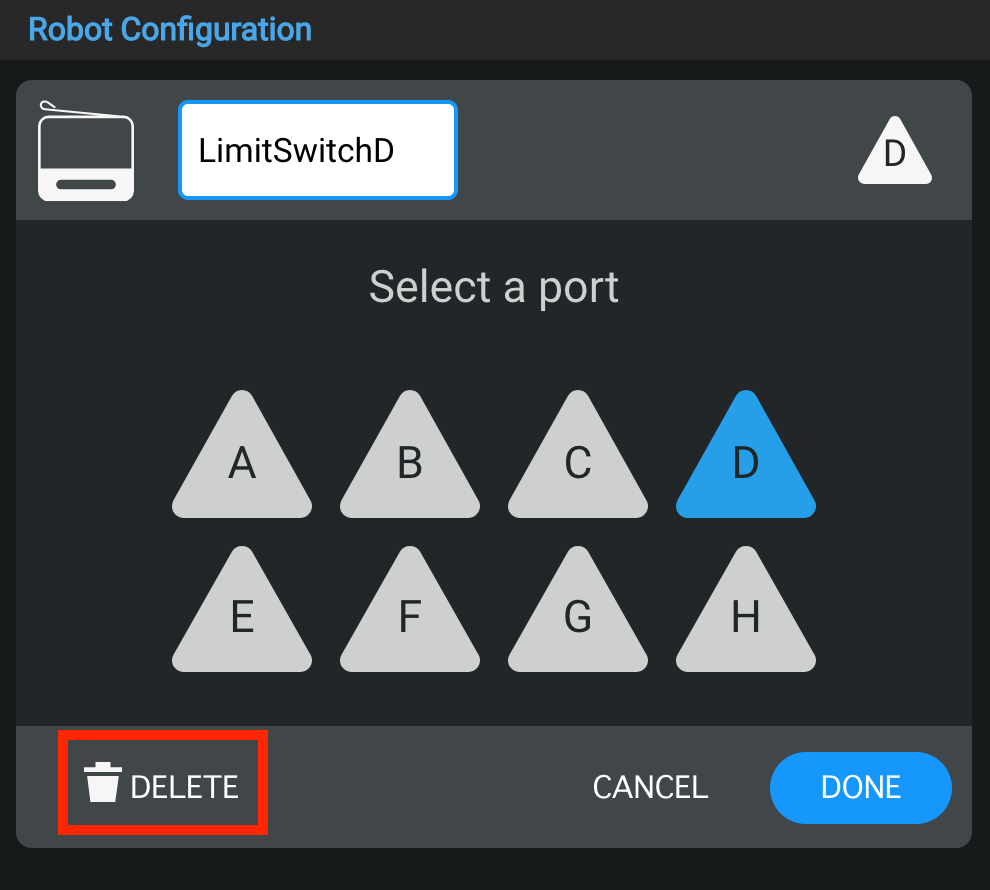

3-Wire Devices can also be deleted by selecting the “Delete” option at the bottom of the Port Selection window.
Note: If you delete a 3-Wire Device that is already being used in your project, your project will generate an error if you try to download it until you also delete the commands that were using the deleted device.
Configuring a VEX Motor-393

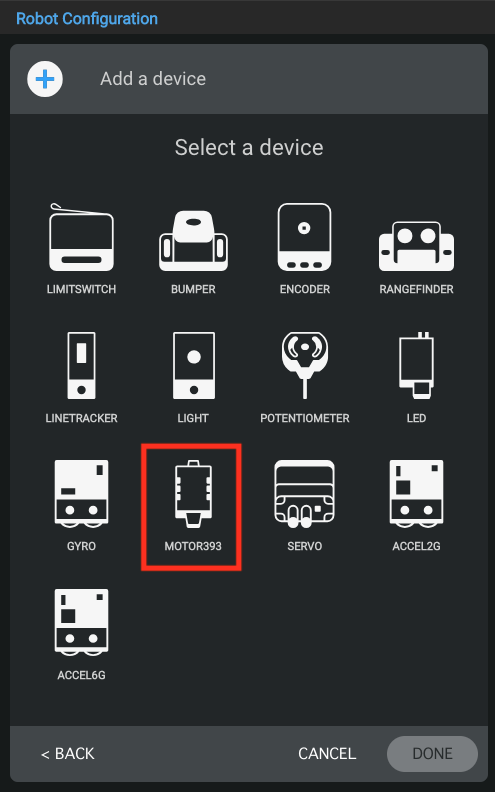

Select the VEX Motor-393 from the list of devices.

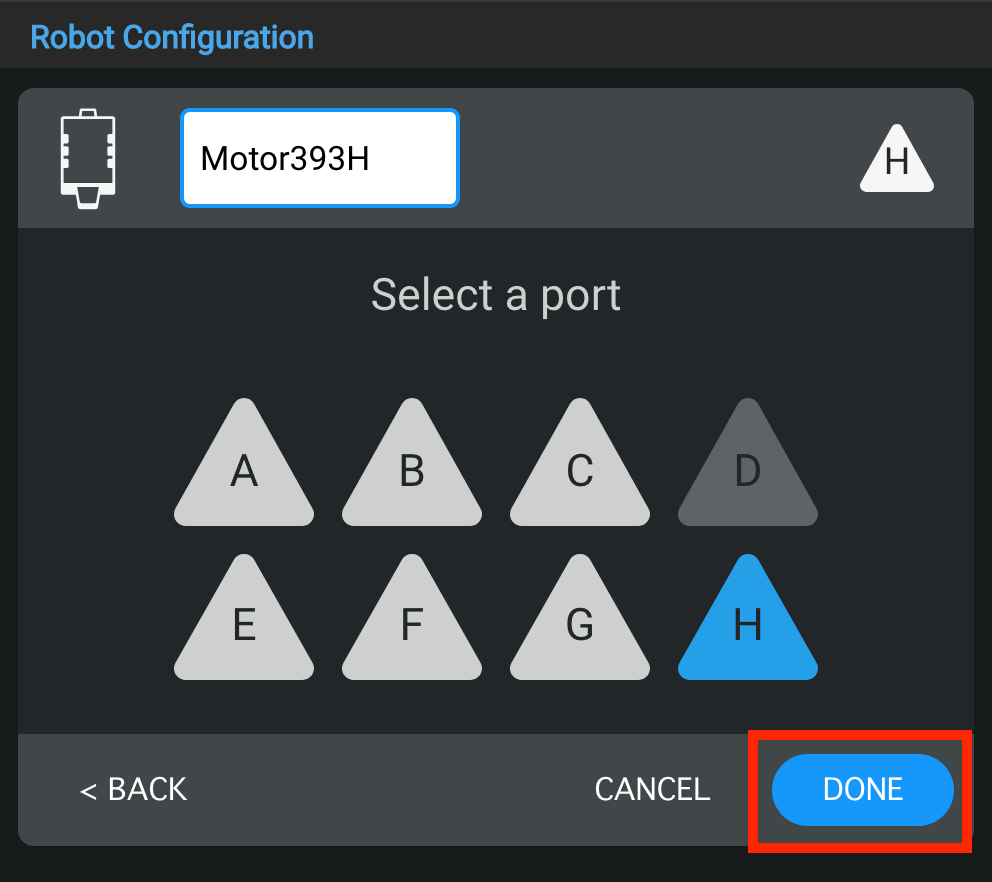

Select a port for the Motor-393.

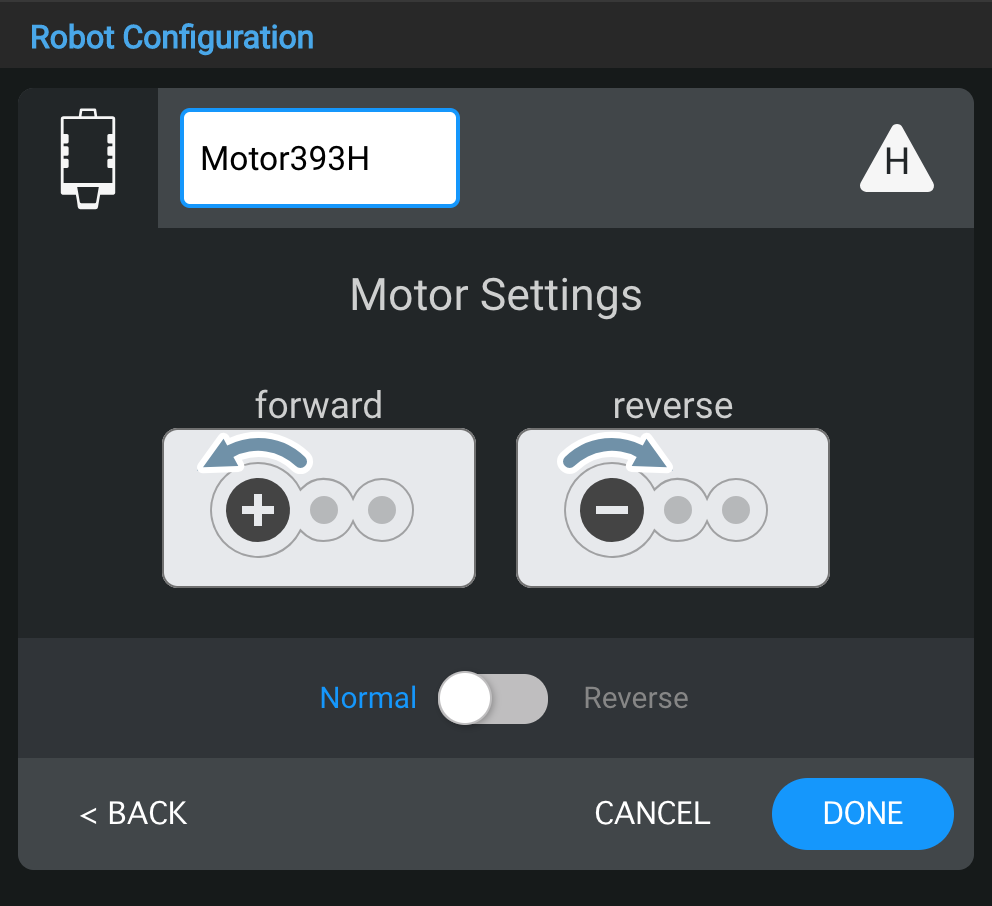

After selecting the port, this Motor Settings window will let you configure Motor-393 further by:
- Changing the name
- Changing the port
- Changing the direction
For more information on these additional configurations, see the options below.
Changing the name of Motor-393.
Changing the port of Motor-393.

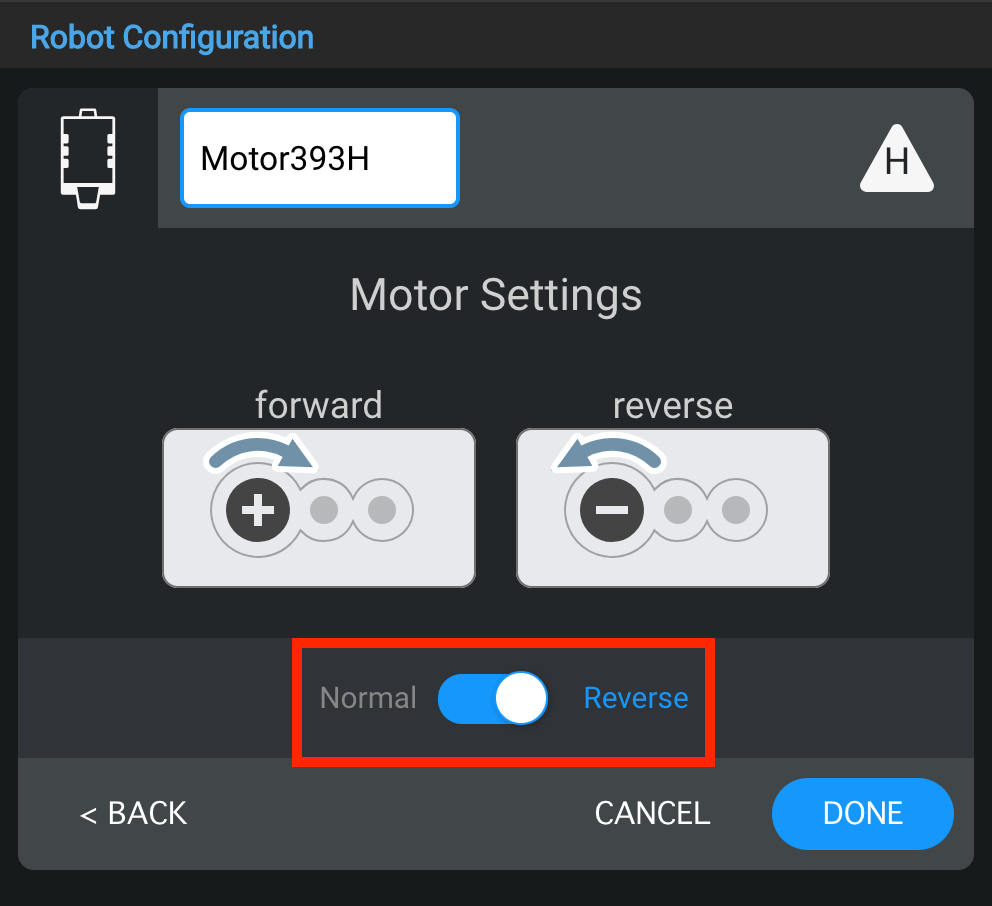

Changing the direction of Motor-393.
