Using Notes in a Blocks Project in VEXcode V5

Adding a Note to a Project

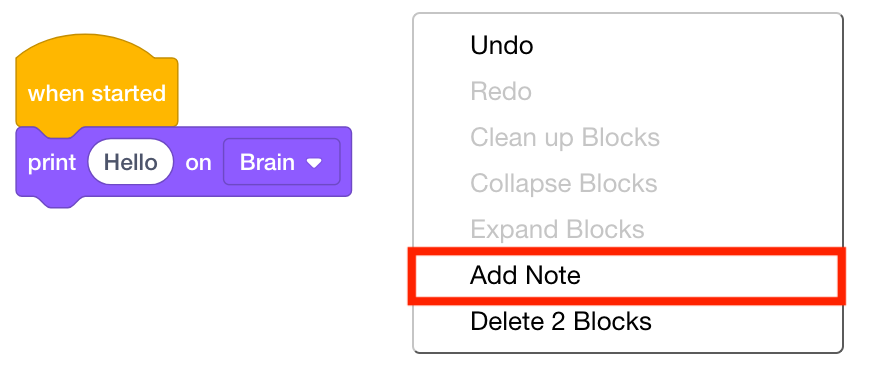

Screenshot of the 'Add Note' feature in VEX V5 Blocks, demonstrating how to create and attach notes within a programming project.

Right-click or long-press anywhere in the Workspace and select 'Add Note.'

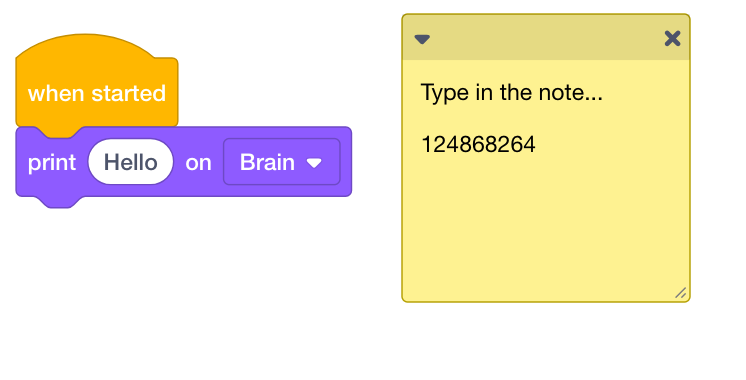

Screenshot of a text input block in VEX V5 programming interface, demonstrating how to add and configure text for programming tutorials.

Then, type any text, numbers, or symbols into the note.

  • Press the “Enter” or “Return” key to write a multi-line note.
  • Select anywhere in the Workspace when the note is complete.

Collapsing Notes

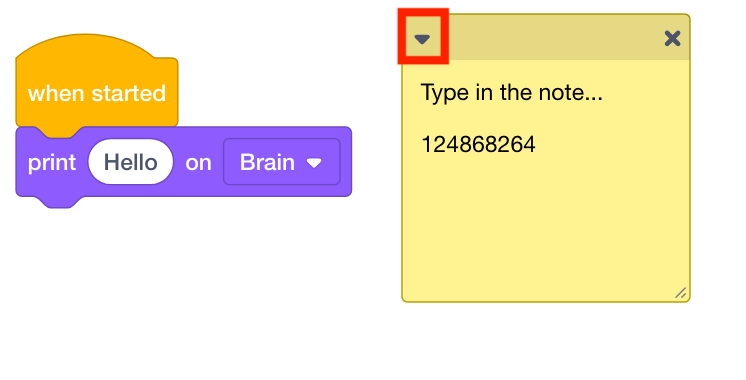

Down arrow icon indicating expandable content in V5 Blocks Tutorials section.

You can collapse a note by selecting the down arrow in the top margin.

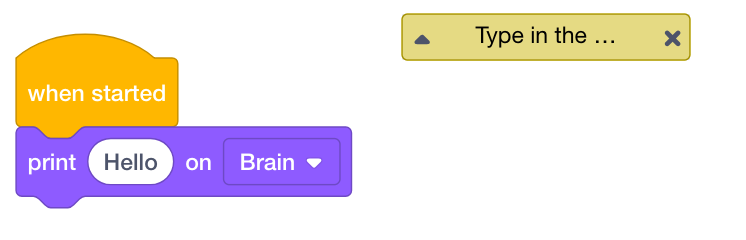

Screenshot of a collapsed note in V5 Blocks Tutorials, illustrating how to manage and organize notes within the interface.

This will collapse the note.


Moving Notes Around

Screenshot of the V5 top bar interface displaying various options and tools for Blocks programming tutorials.

You can move a note by selecting the top margin and dragging it around.


Deleting Notes

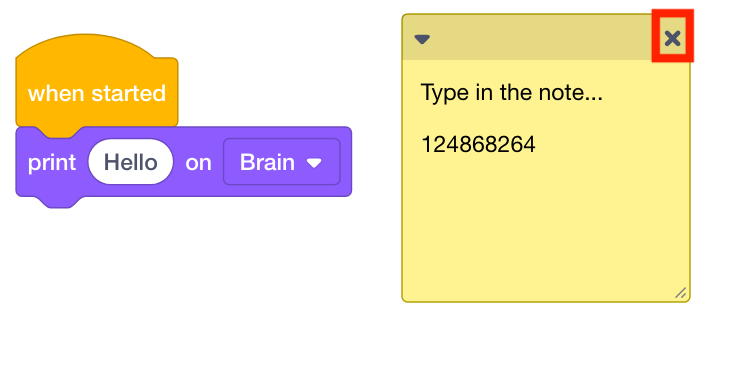

Screenshot of the 'Delete Note' button interface in V5 Blocks Tutorials, illustrating how to remove a note within the application.

You can delete any note by selecting the 'X' located at the top right of the note.

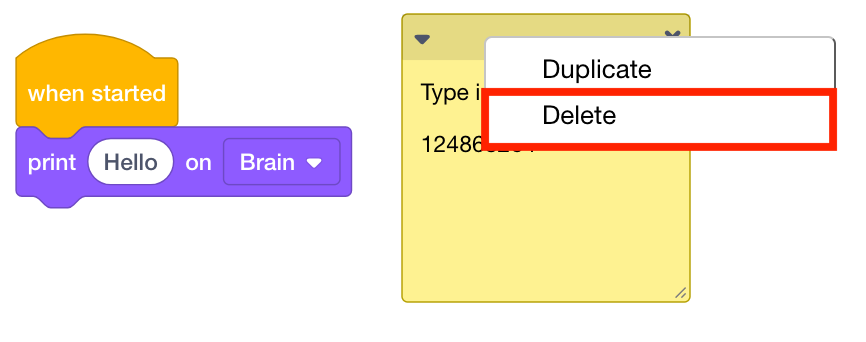

Screenshot of the Delete menu in Vex V5, showing options for removing blocks in the programming interface, relevant to Blocks Tutorials.

You can also delete a note by right-clicking or long-pressing on it and selecting 'Delete.'


Duplicating Notes

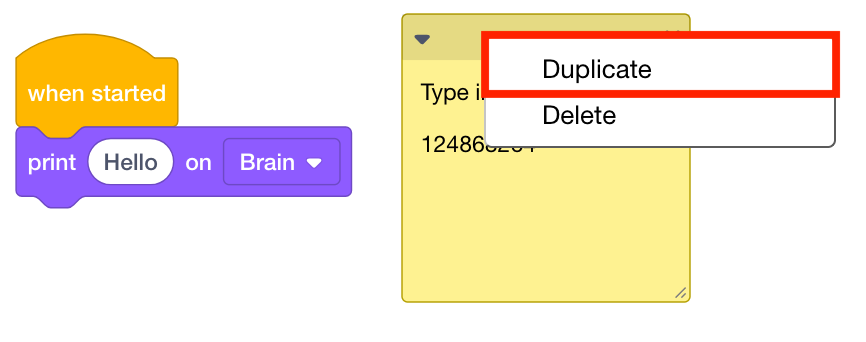

Screenshot of a duplicate menu in V5 category description, illustrating the blocks tutorial interface with options and settings for managing block elements.

You can duplicate a note by right-clicking or long-pressing on it and selecting 'Duplicate.'

For more information, help, and tips, check out the many resources at VEX Professional Development Plus
