Robot Radio - Migrate to V5

Step 1: Collect the parts you will need

Diagram illustrating the VEX Cortex microcontroller hardware components, including connections for sensors and motors, designed to support robotics projects in educational and competitive settings.

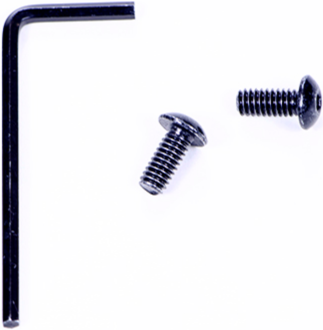

  • Gather two Screws 8-32 x 0.500" and one Hex Key 3/32".

Step 2: Secure the V5 Robot Radio and wire it

Image of VEX Cortex microcontroller showcasing its design and features, part of the hardware resources for VEX Robotics projects, supporting users in building and programming robots.

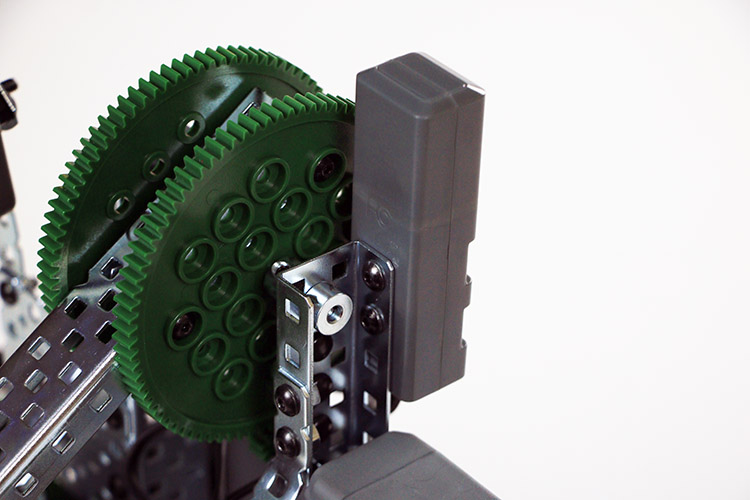

  • Use the two screws to mount and secure the V5 Robot Radio to the top of the arm support.
  • Use a Smart Cable to connect the V5 Robot Radio to Port 21 on your V5 Robot Brain.

For more information, help, and tips, check out the many resources at VEX Professional Development Plus
