Connect the V5 Battery Cable to the V5 Robot Battery.

Diagram showing the V5 robot battery, including key components and labels for proper installation and maintenance, illustrating the battery's connection points and specifications.

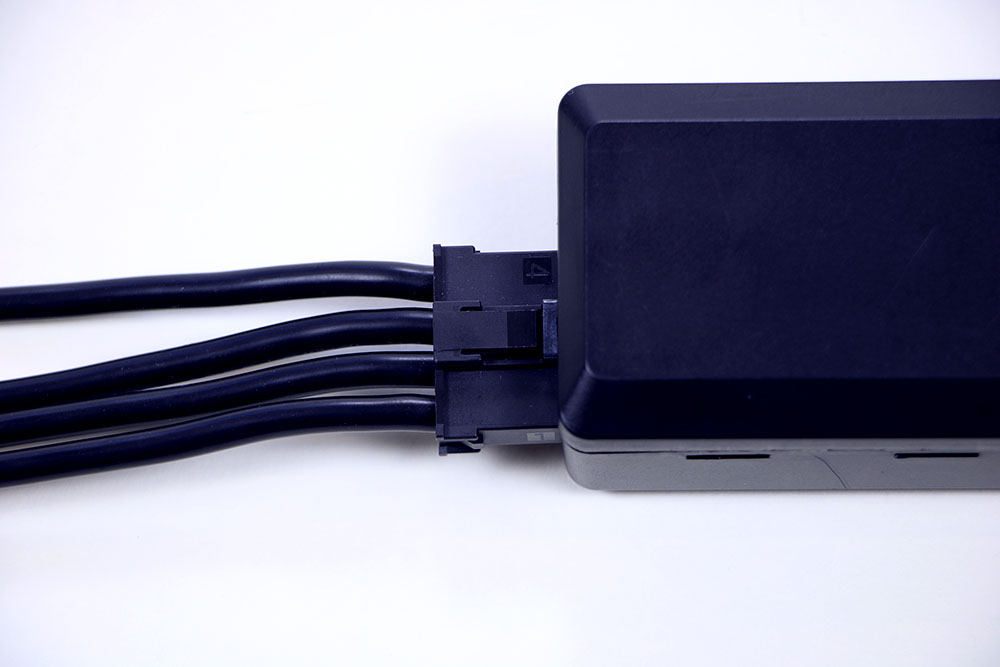

Connect the battery cable's rectangular connector to the base of the battery.

Make sure that the clip on the connector is positioned correctly. The picture above is the backside of the battery.

Connect the V5 Battery Cable to the V5 Robot Brain.

VEX V5 robot battery with specifications, including dimensions and voltage details, displayed on a white background, illustrating the battery's design and features for educational purposes.

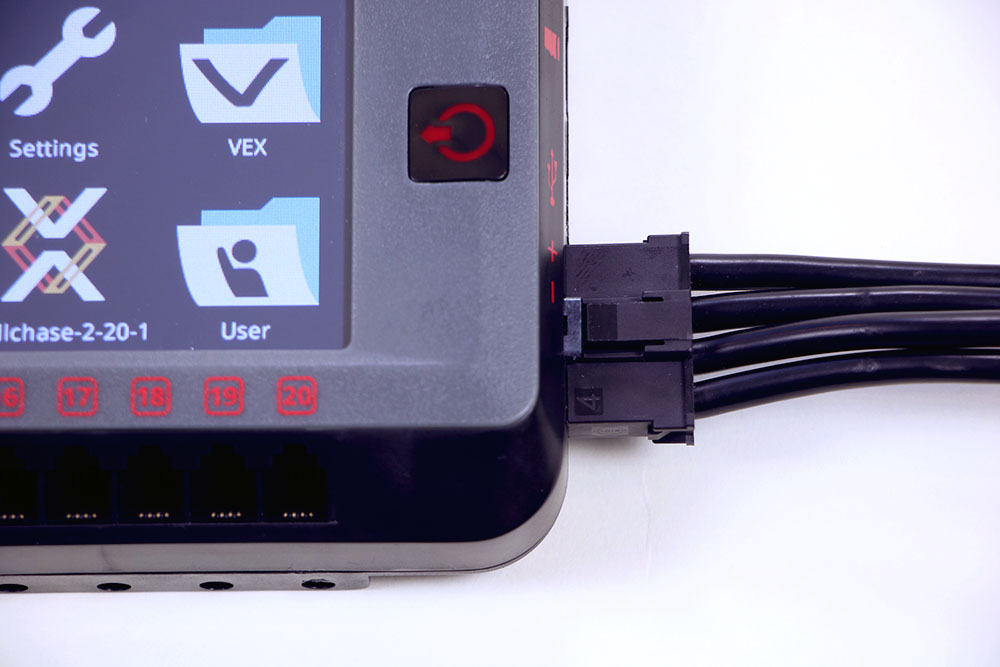

Then connect the other rectangular connector to the brain.

Again, make sure that the clip on the connector is positioned correctly.

If the brain does not automatically power on, press and hold the Power button until the Home screen is displayed.
