When your VEX AIM Coding Robot is connected to VEXcode AIM, you can download, run, and stop a project on your robot in VEXcode AIM. To learn more about how to connect your robot to VEXcode AIM, view these articles.

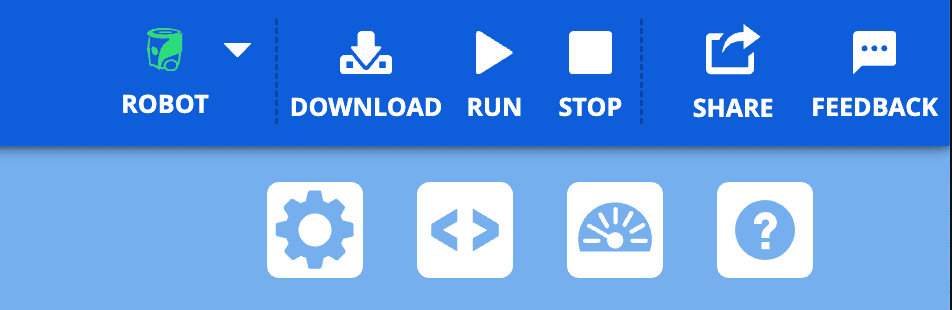

The upper right hand corner of the VEXcode AIM Toolbar with the Robot icon showing green and the Download, Run and Stop buttons to the right.

Once your robot is connected, the Robot icon will show green, and the Download, Run, and Stop buttons in the upper right hand corner of the VEXcode AIM Toolbar will become active.

Downloading a project

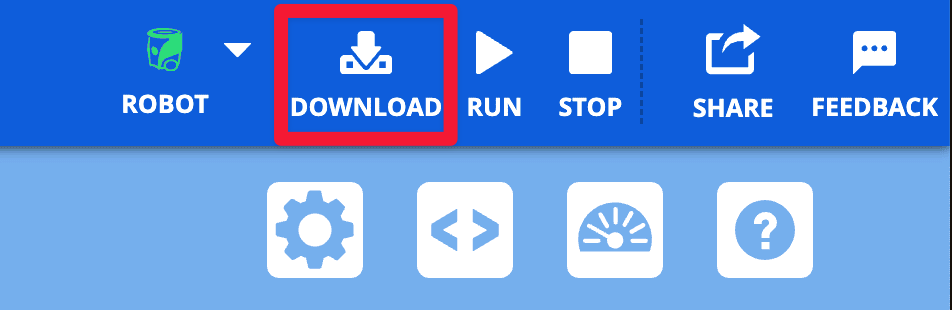

The same image of the upper right corner with the Download button highlighted, to the right of the green Robot icon.

To download a project to your robot, select the Download button in VEXcode AIM.

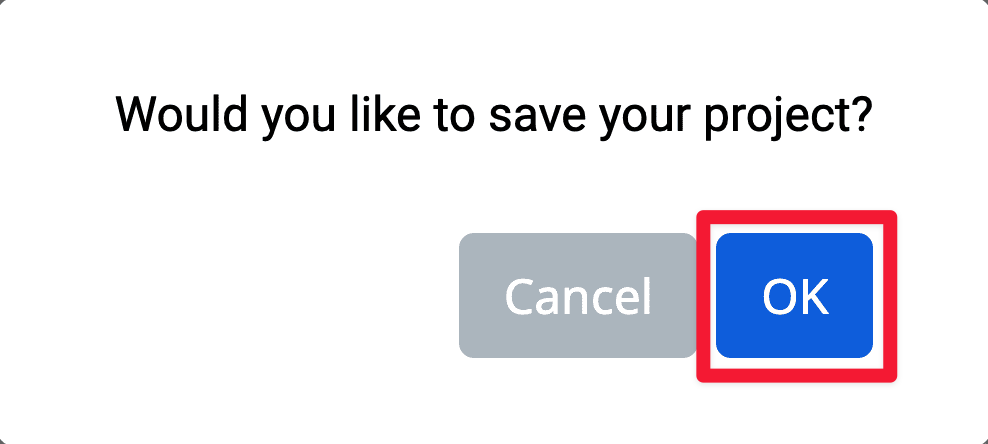

A prompt that reads Would you like to save your project? is shown, with the Ok button in the lower right corner highlighted.

If you have not yet saved your project, you will be prompted to save it. Select OK to save your project to your device. To learn more about saving a project, view this article.

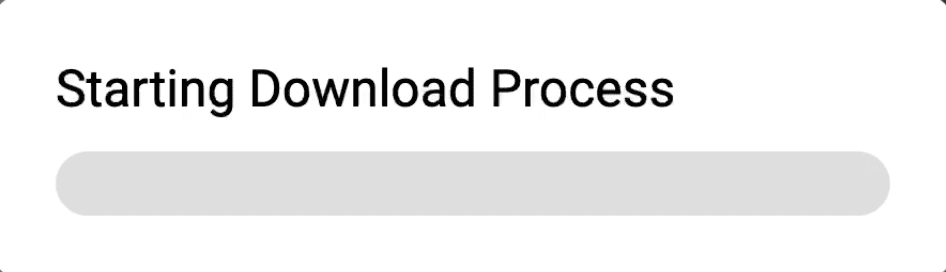

A progress bar is shown that reads Starting Download Process.

You will see a progress bar appear when your project is downloading.

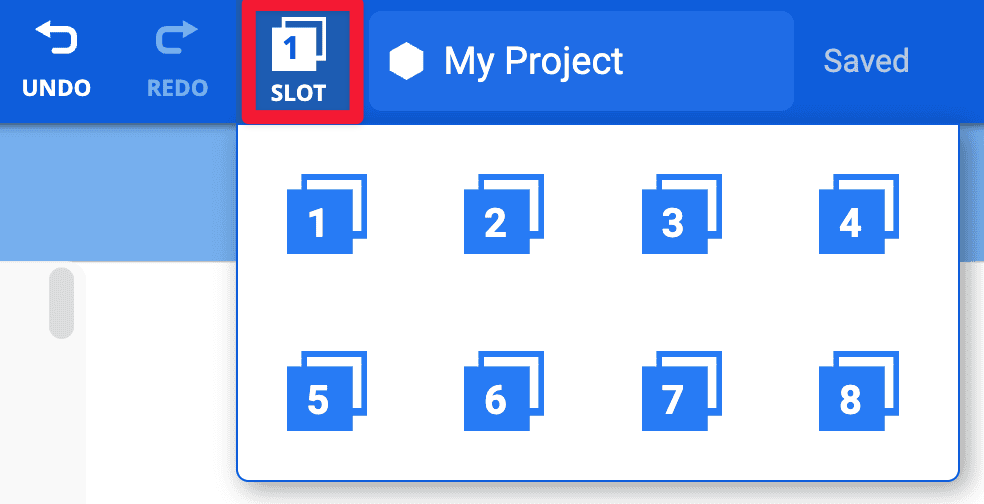

The center of the VEXcode AIM Toolbar is shown with the Slot number highlighted, and the dropdown showing available slots 1 through 8 open, indicating what to select to change the slot number.

Note: VEXcode AIM projects will download to Slot 1 on the robot by default. To change the slot number you download a project to, select the Slot icon and choose from the available slots.

Running a project

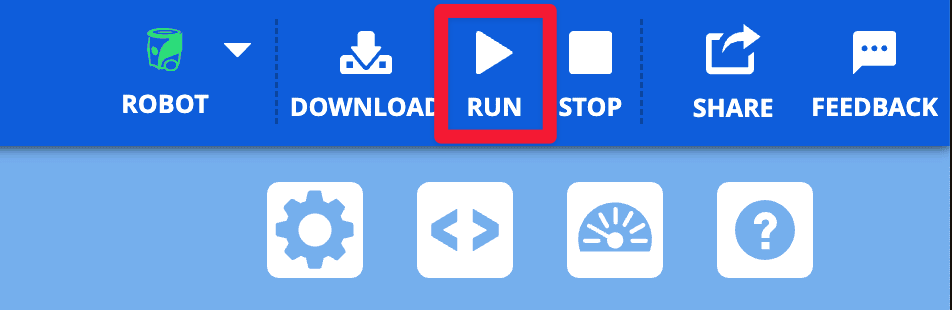

The upper right hand corner of the VEXcode AIM Toolbar with the Run button highlighted to the right of the Download button.

Once your project is downloaded successfully, select the Run button in the VEXcode AIM Toolbar to run the project on your robot.

Stopping a project

The same image, this time with the Stop button to the right of the Run button highlighted.

You can stop a running project at any time by selecting the Stop button in the VEXcode AIM Toolbar.
