Adding a Note to a Project

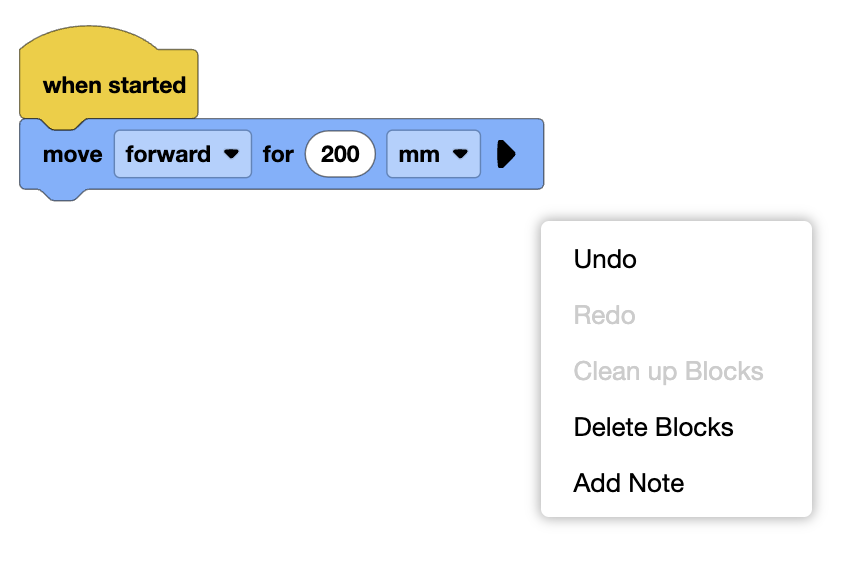

VEXcode AIM Workspace Context Menu with the Add Note option highlighted. Add Note is the fifth option in the menu, below Undo, Redo, Clean up Blocks, and Delete Blocks.

Add a note to the Workspace by right-clicking to open the context menu. Then select Add Note.

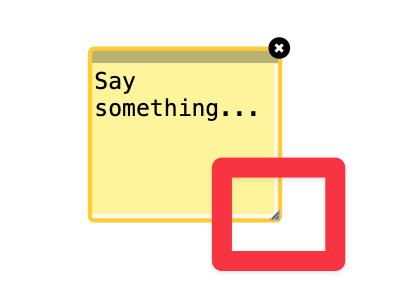

Yellow Note from VEXcode AIM with a highlight on the bottom right corner.

Change the size of the note by selecting the lower right corner of the note and dragging to the desired size.

Select anywhere else on the note and drag to move it around the Workspace.

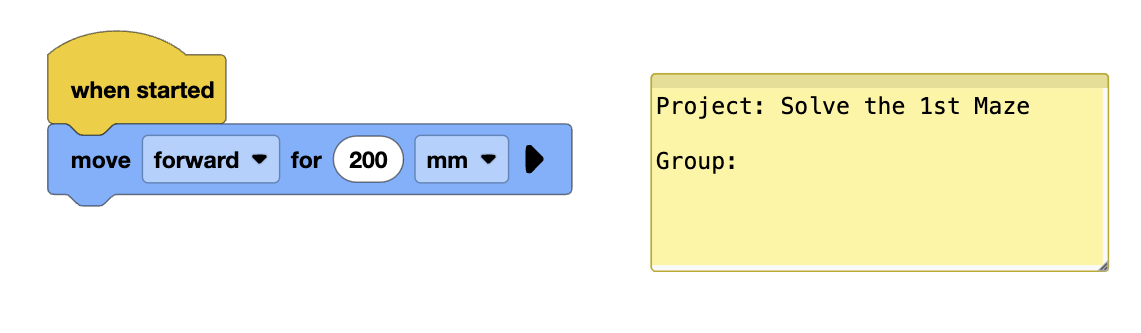

Note in the VEXcode AIM workspace with the text Project colon Solve the 1st Maze to show that numbers and symbols can be written too.

Then, type any text, numbers, or symbols into the note.

Use the Return or Enter key on your keyboard to write a multi-line note.
Select anywhere in the Workspace when the note is complete.

Deleting Notes

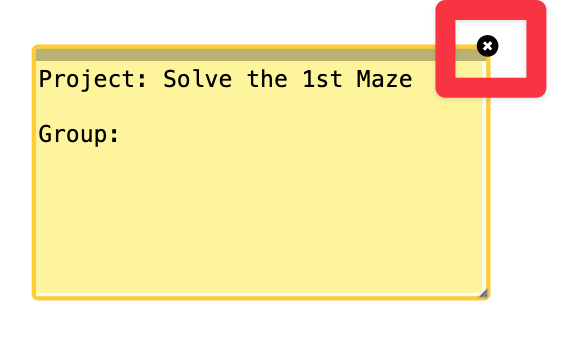

Note in the VEXcode workspace with the X button in the note's top right corner highlighted.

Delete a note by selecting the X located at the top right of the note.

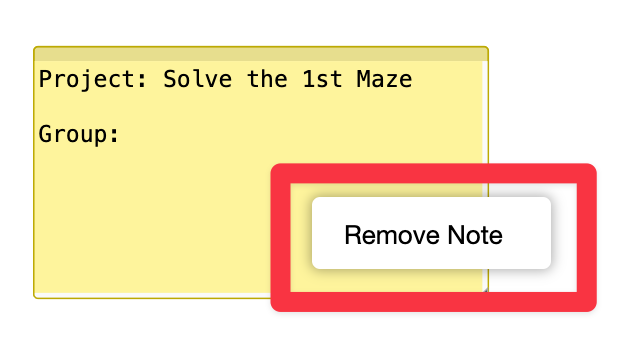

Note in the VEXcode workspace with its Context menu open and the Remove note option highlighted. This is the only option in the menu.

Notes can also be deleted by opening the context menu and selecting Remove Note.
