Connecting VEX AIM to VEXcode AIM - USB

To begin coding the VEX AIM Coding Robot, you'll first need to connect it to VEXcode AIM. Below are the steps for connecting and disconnecting the robot via a USB-C connection.

For information on setting up a wireless connection with your robot, read this article..

All USB-C connection options begin with connecting the robot and the computer.

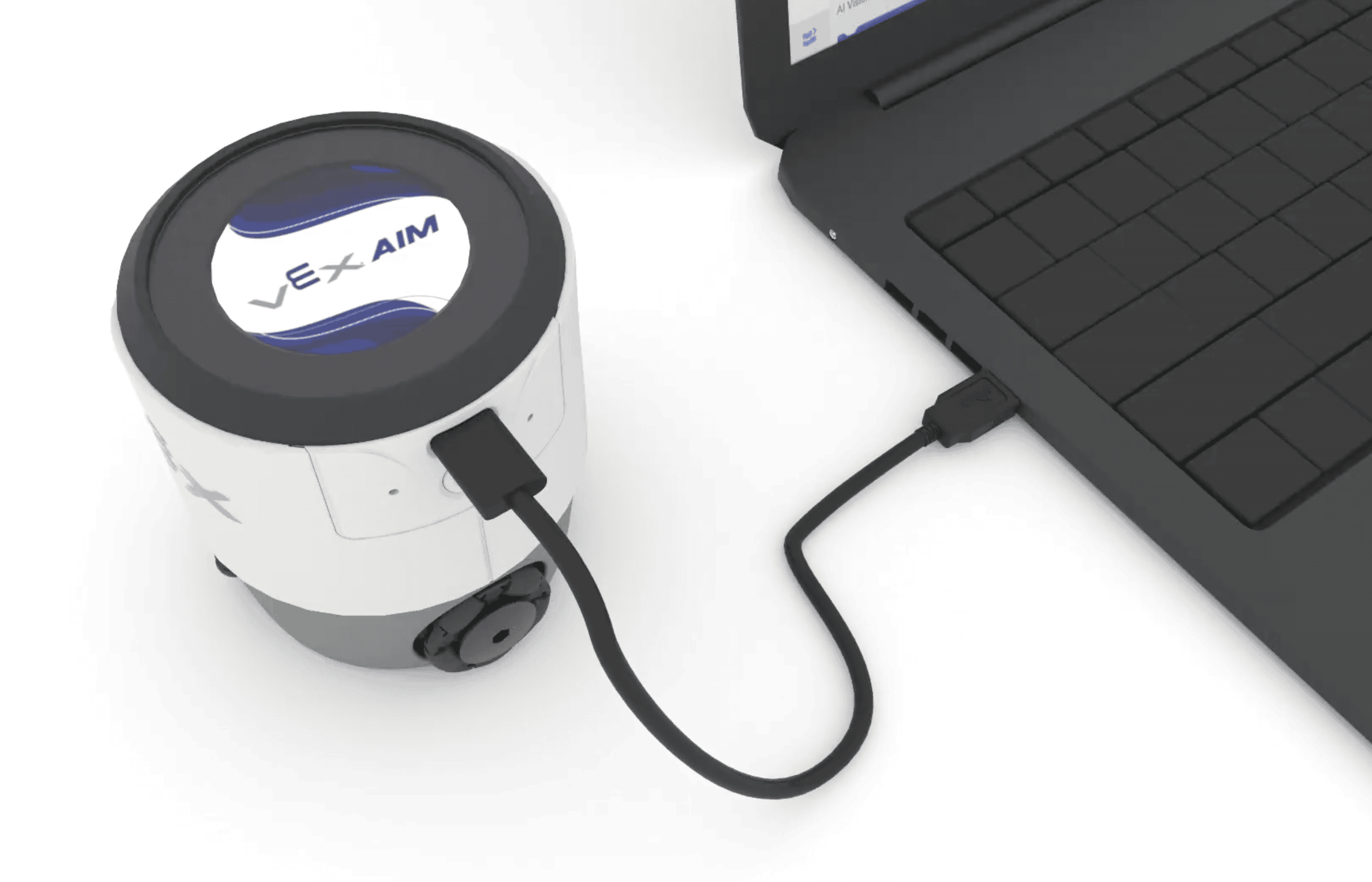

robot to the left of a laptop with a cable connecting the two electronics.

Use a USB-C cable to connect the robot to a computer. The robot will automatically turn on.

Connecting to App-Based VEXcode AIM

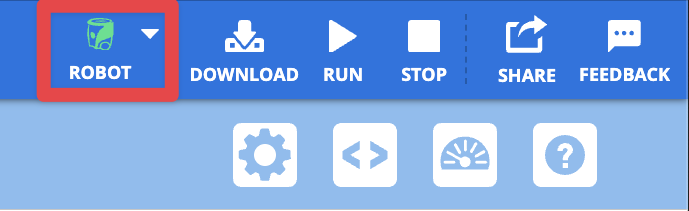

Robot icon on the top right of VEXcode with a red box around it.

With the robot powered on and connected to the device via the USB-C cable, the Robot icon in the upper right corner of VEXcode AIM will automatically turn green.

Connecting to Web-Based VEXcode AIM

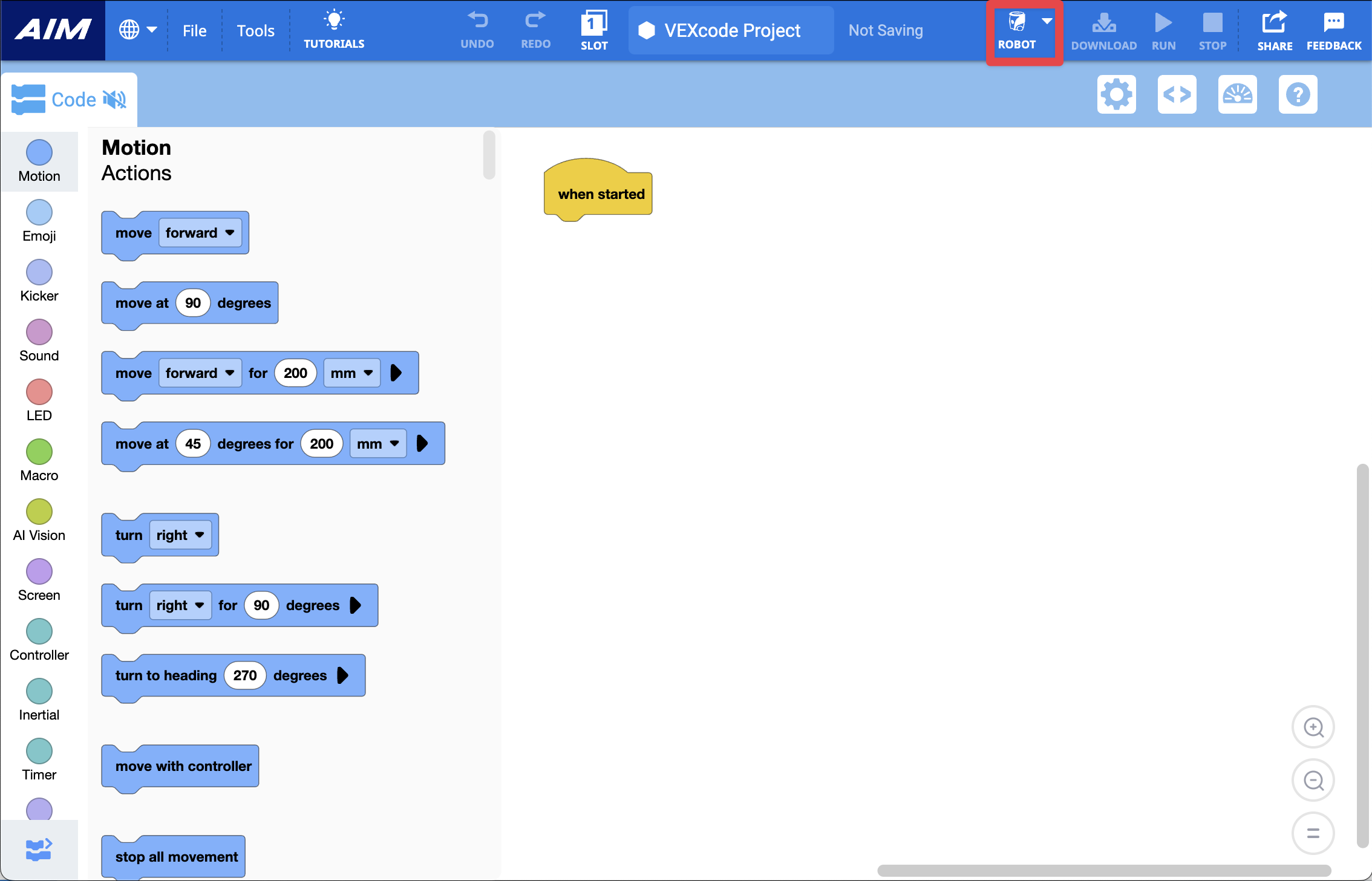

Robot icon on the top right of VEXcode with a red box around it.

Select the Robot icon in the top right corner.

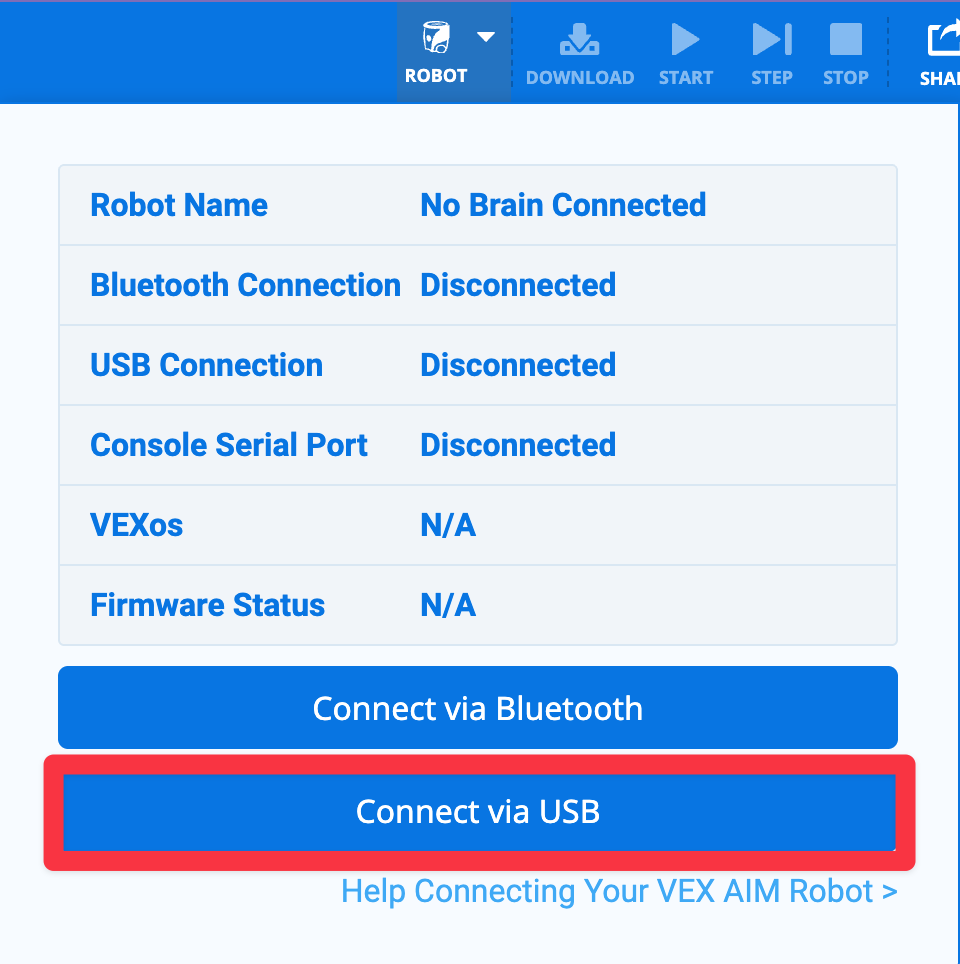

In the dropdown menu of VEXcode's robot, a red box is highlighted for Connect via usb.

Select Connect via USB from the menu.

macOS/Chromebook

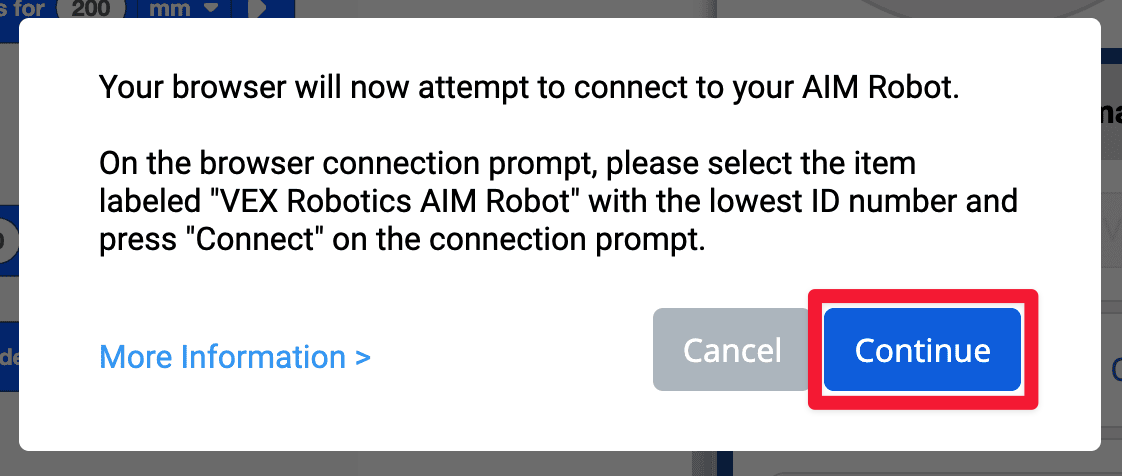

Prompt for connecting the lowest number. A red box is highlighted for the Continue button.

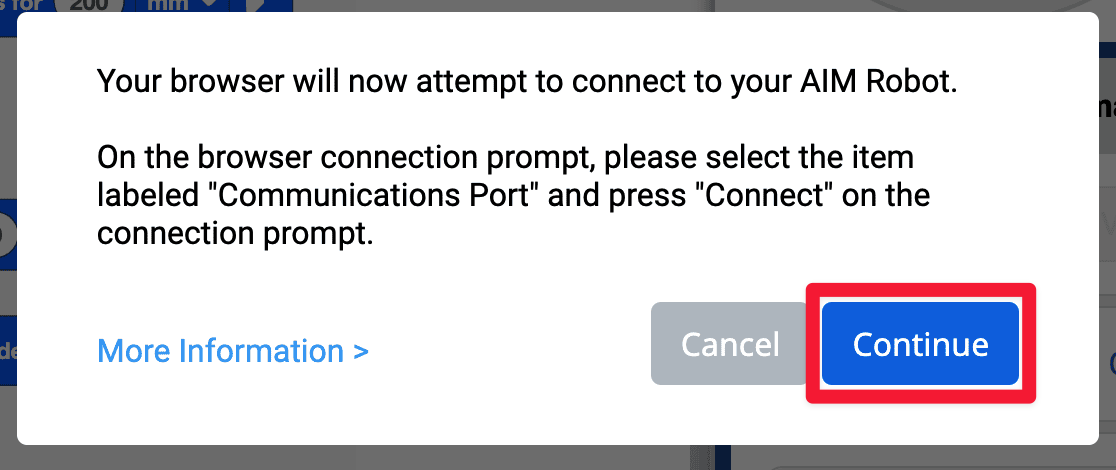

Windows

Prompt for connecting the communication port. A red box is highlighted for the Continue button.

Select each image above to enlarge.

A prompt will appear based on your device. Select Continue.

macOS/Chromebook

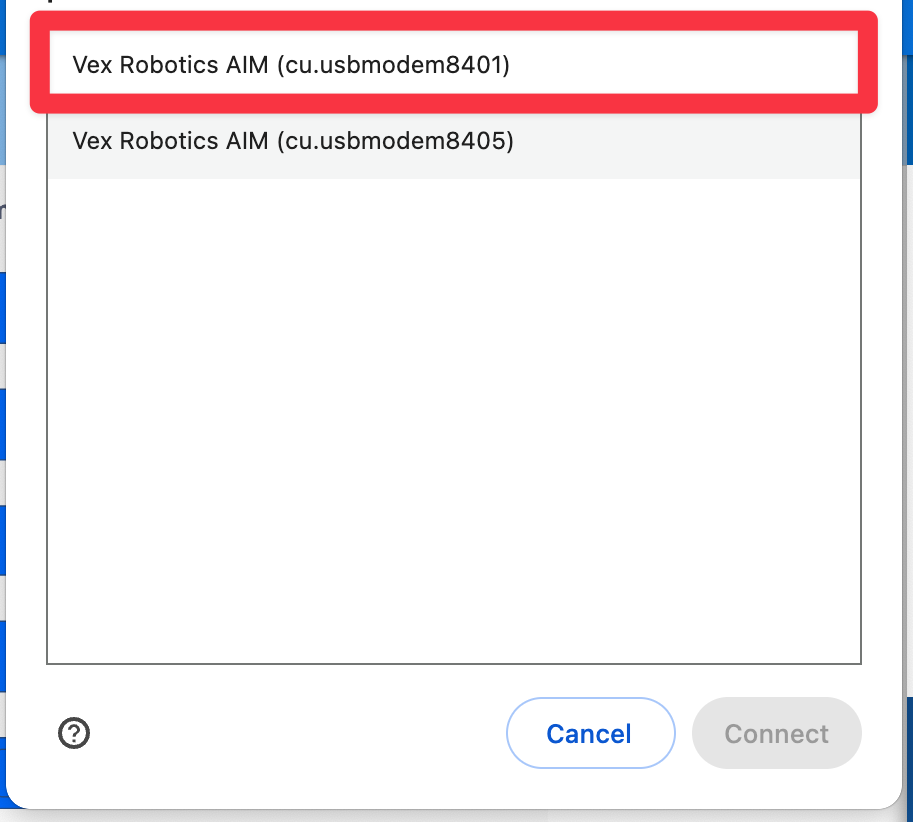

Select the robot with the LOWEST ID number from the list of robots available. The lowest id number is highlighted in a red box.

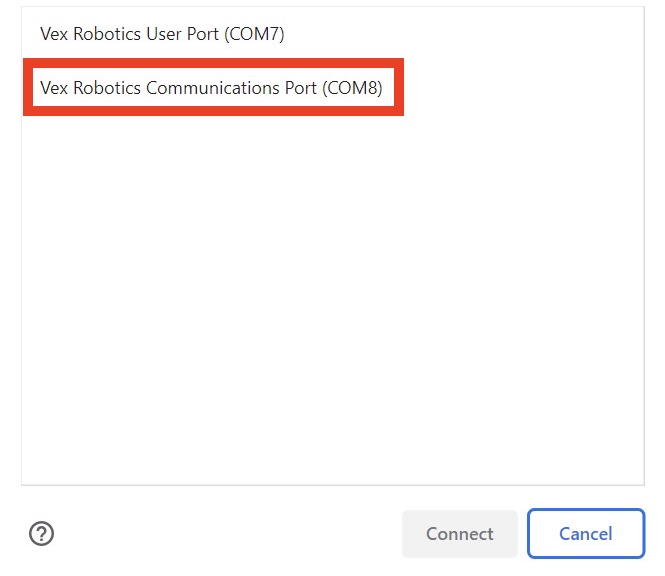

Windows

Select Communications Port. The communication port is highlighted in a red box.

Select each image above to enlarge.

  • macOS/Chromebook: Select the robot with the LOWEST ID number from the list of robots available.
  • Windows: Select Communications Port.

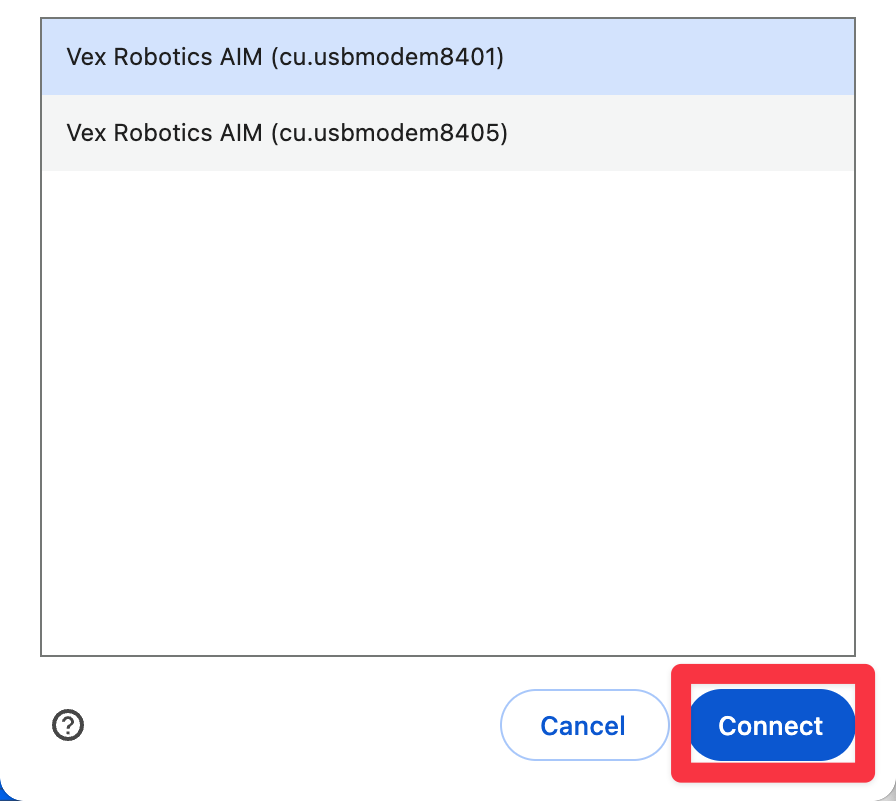

macOS/Chromebook

Same as above with connect button highlighted.

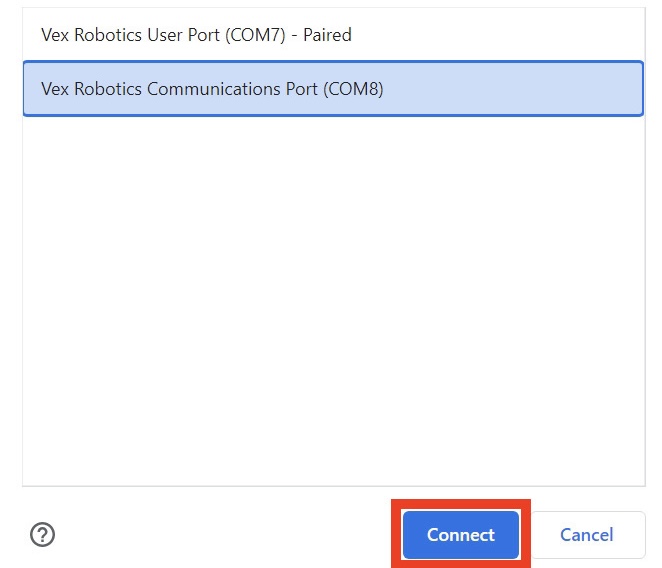

Windows

Same as above with connect button highlighted.

Select each image above to enlarge.

Select Connect once your choice is highlighted.

Robot icon on the top right of VEXcode with a red box around it.

The Robot icon in the upper right corner of VEXcode AIM will now appear green.
