Downloaded Projects Menu on VEX AIM

After downloading a project to the robot, you can run, stop, and delete the project directly from the VEX AIM Coding Robot's screen.

Running a Project

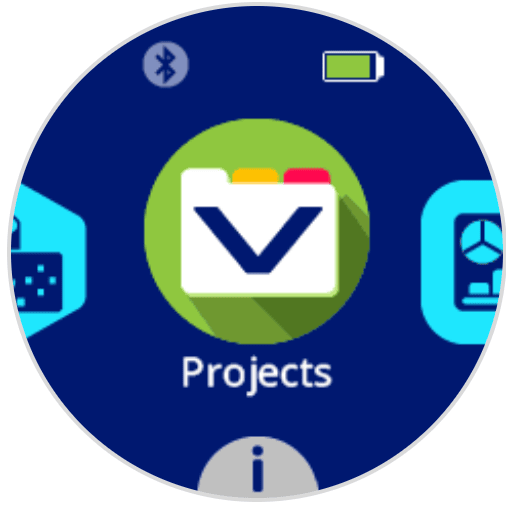

AIM Screen with a folder icon in the center that reads Projects underneath.

Navigate to Projects, and tap to select it.

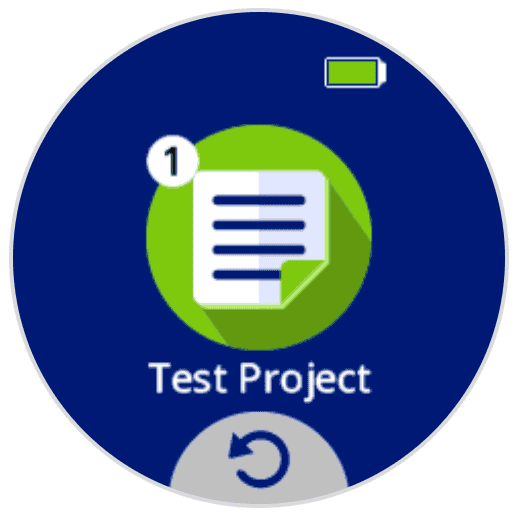

AIM Screen with a notepage icon in the center that reads Test Project underneath. The icon has a number 1 in the top left corner indicating the project is saved in the first slot.

Navigate to the project you wish to run.

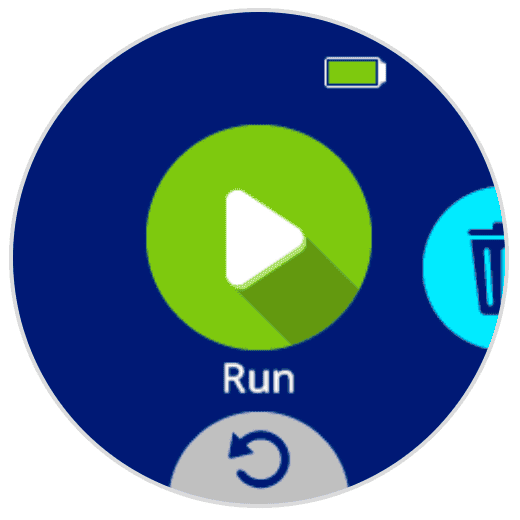

AIM Screen with a triangle play button icon in the center that reads Run underneath.

Tap the Run button to run the project.

Stopping a Project

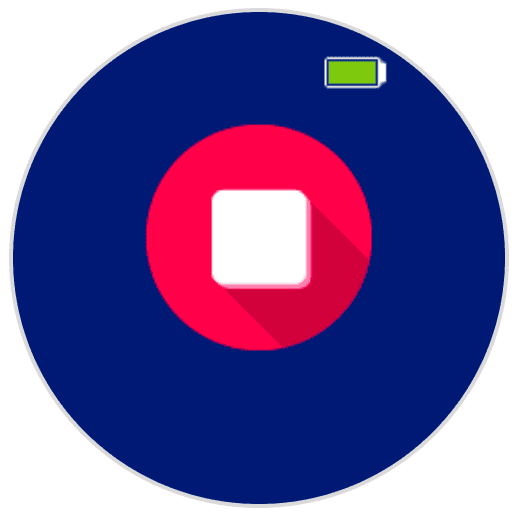

AIM Screen with a square icon in the center that reads Stop underneath.

While a project is running, you can swipe the robot's screen at any time, and the Stop button will appear. Tap the Stop button to stop the project.

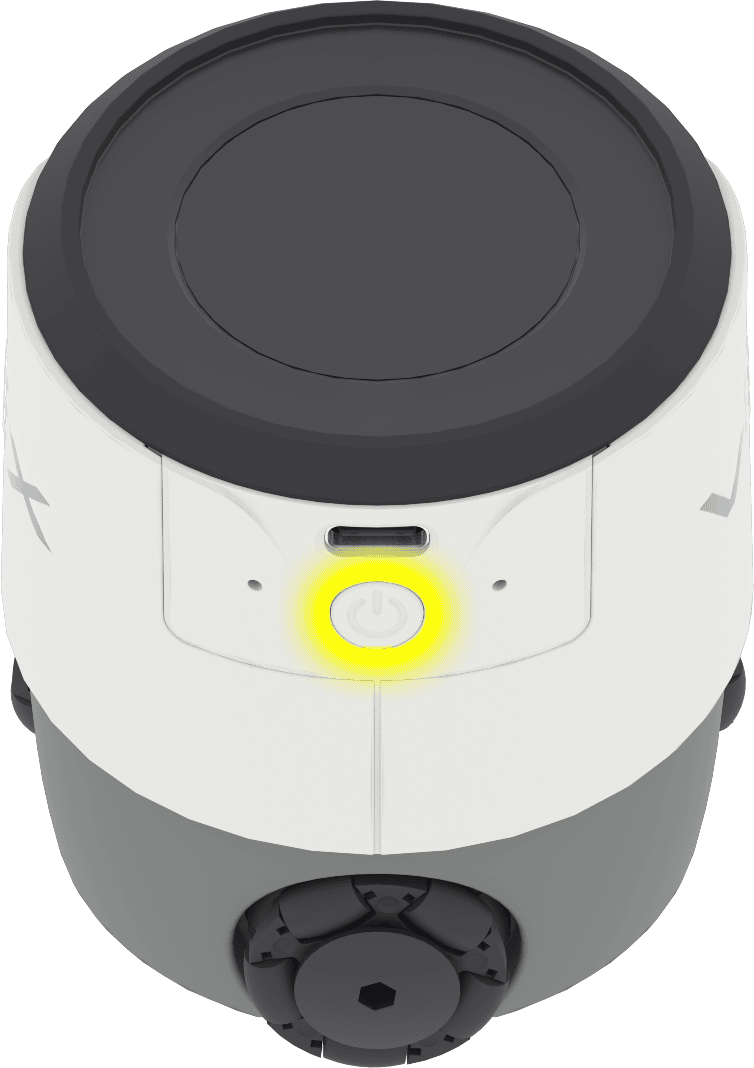

Back of the robot with a callout on the power button beneath the USB C port.

You can also stop a project while it is running by pressing the power button on the rear of the robot at any time.

Deleting a Project

AIM Screen with a notepage icon in the center that reads Test Project underneath. The icon has a number 1 in the top left corner indicating the project is saved in the first slot.

Within the Projects menu, navigate to the project you wish to delete, and tap to select it.

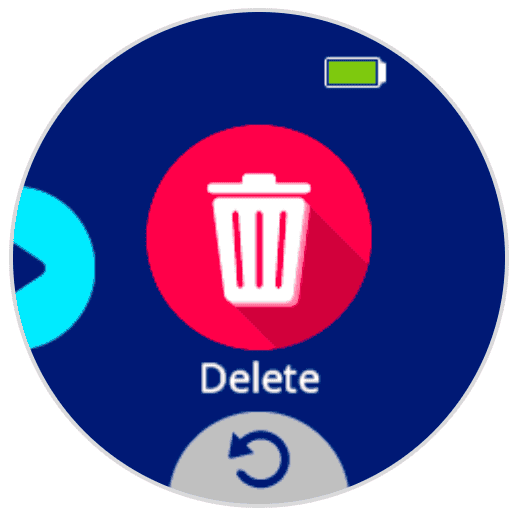

AIM Screen with a trash can icon in the center that reads Delete underneath.

Navigate to the Delete option, and tap to select it.

AIM Screen with a red folder with an x icon in the center.

Tap the Confirm Delete button to delete the project from the robot. Once deleted, the project will no longer appear in the Projects menu.

For more information, help, and tips, check out the many resources at VEX Professional Development Plus
