Settings Menu on VEX AIM

There are many options in the Settings Menu on the VEX AIM Coding Robot. This article covers what each of these options are.

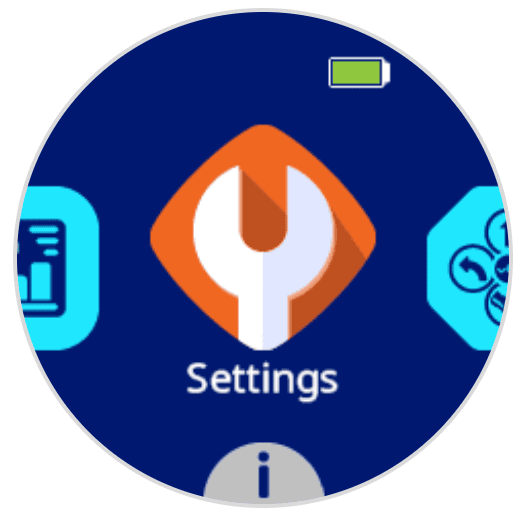

AIM screen showing an icon of a wrench with the label Settings beneath the icon.

Open the Settings Menu by swiping to the side and selecting the Settings option on the robot's screen.

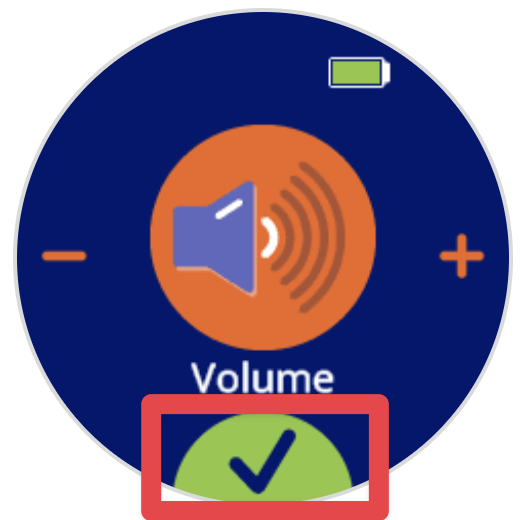

Same volume icon with one line white and four grey. A callout is on the green check at the bottom of the screen.

After changing any of the settings described below, select the green checkmark at the bottom of the screen to save your choice.

Language

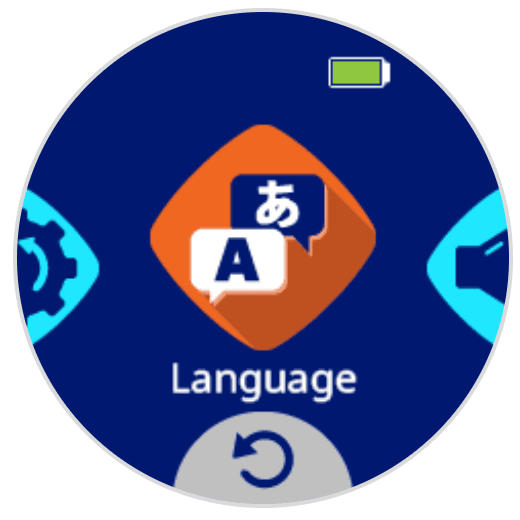

AIM screen showing the Language menu option. An icon with a letter and a character representing a letter is above the label Language.

Language allows you to change the language of the menu's on the robot.

Speaker

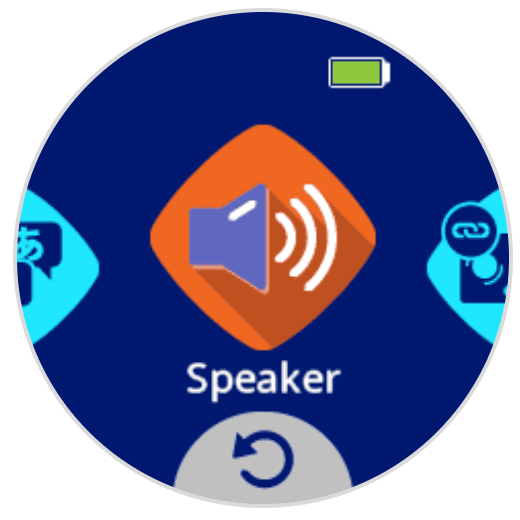

AIM screen showing an icon of a microphone with lines eminating from the speaker with the label Speaker beneath the icon.

Speaker allows you to change the volume of the robot's speaker.

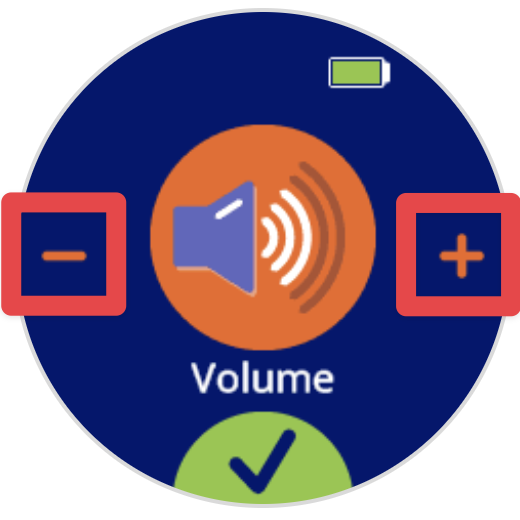

Same icon as before with five lines eminating from the microphone. The three lines closest to the microphone are white and the other two are grey. Callout boxes are on the plus sign on the right and on the minus sign on the left of the microphone.

Increase the volume by pressing the (plus) or decrease the volume by selecting the (minus). You will hear the new volume and see the number of lines coming from the speaker icon increase or decrease accordingly.

Link Controller

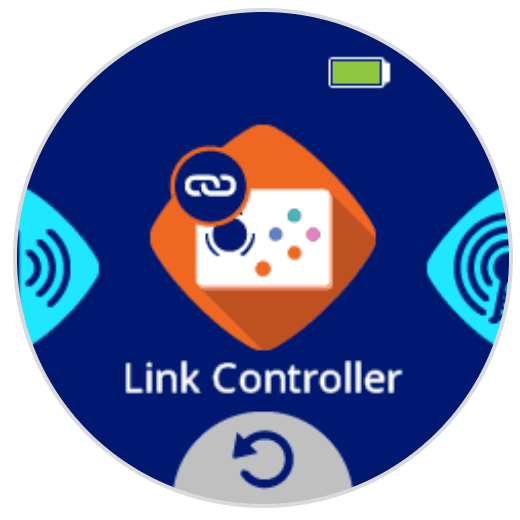

AIM Screen with an icon showing the one stick controller and a link image to the top left of the controller. The label Link Controller is beneath the icon.

Link Controller allows you to connect a Controller to the robot. Follow the steps in this article to pair a Controller to the robot.

Radio

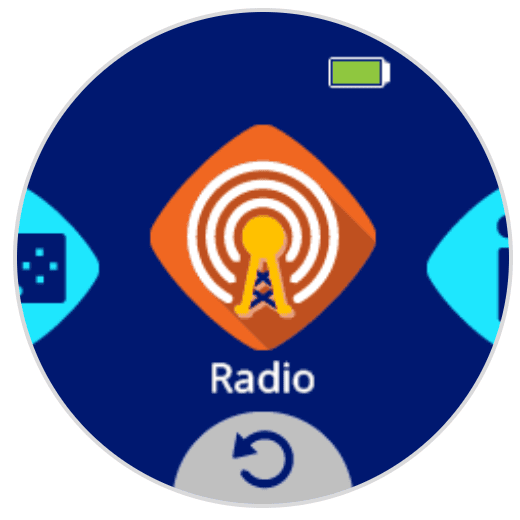

AIM screen showing an icon of a radio tower. The label Radio is beneath the icon.

Radio allows you to change the radio type on the AIM Robot to one of three options: Bluetooth, Access Point, or Station.

About

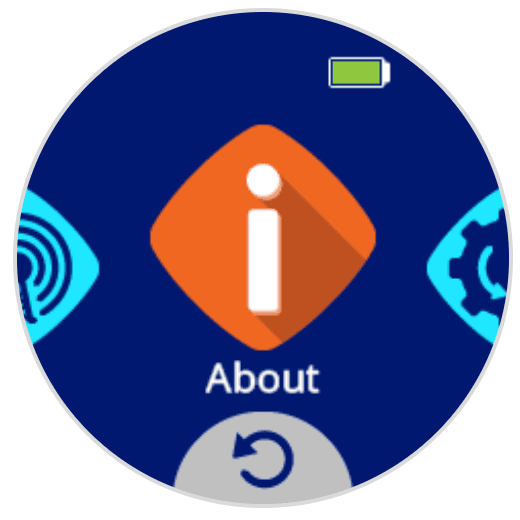

AIM screen showing an icon with the lowercase letter i. The label About is beneath the icon.

About shows information on the robot including:

  • Battery level and robot name
  • Current firmware
  • Other production information

AIM Screen with information about the robot reading Battery 100 percent, AIM Name in the place of the robot name, and Info. Arrows point to the left and the right to indicate how to move to other pages in the About section.

Swipe through each page after selecting the About icon to see all of the information available.

Factory Reset

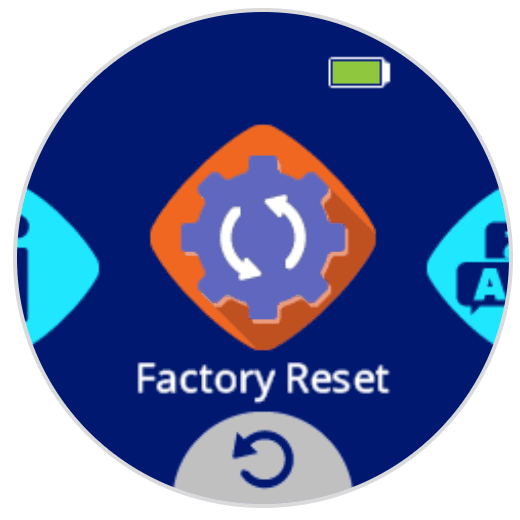

AIM Screen showing a gear icon with arrows inside. The label Factory Reset is beneath the image.

Factory Reset clears the robot and resets it back to its original settings. This includes removing all downloaded projects and resetting the default language, volume level, and robot name.

For more information, help, and tips, check out the many resources at VEX Professional Development Plus
