Using the V5RC High Stakes Playground Window

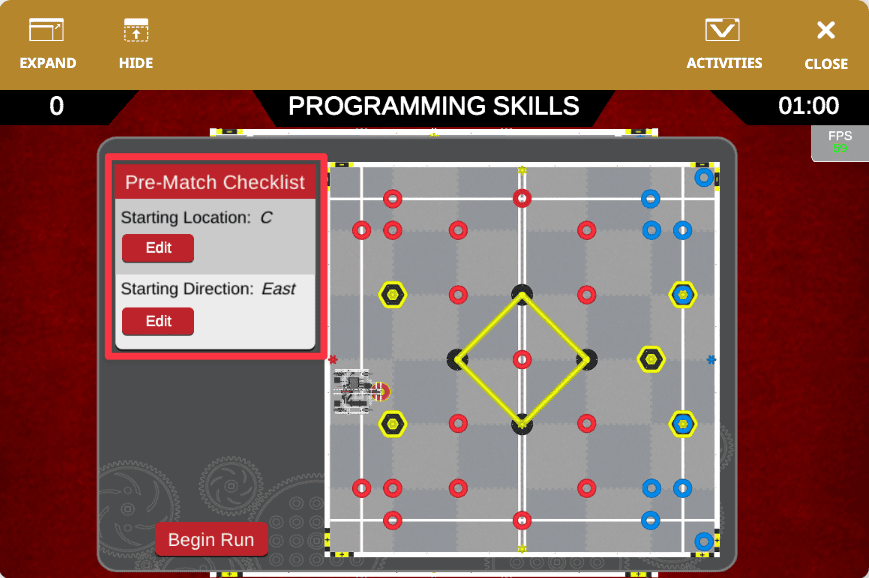

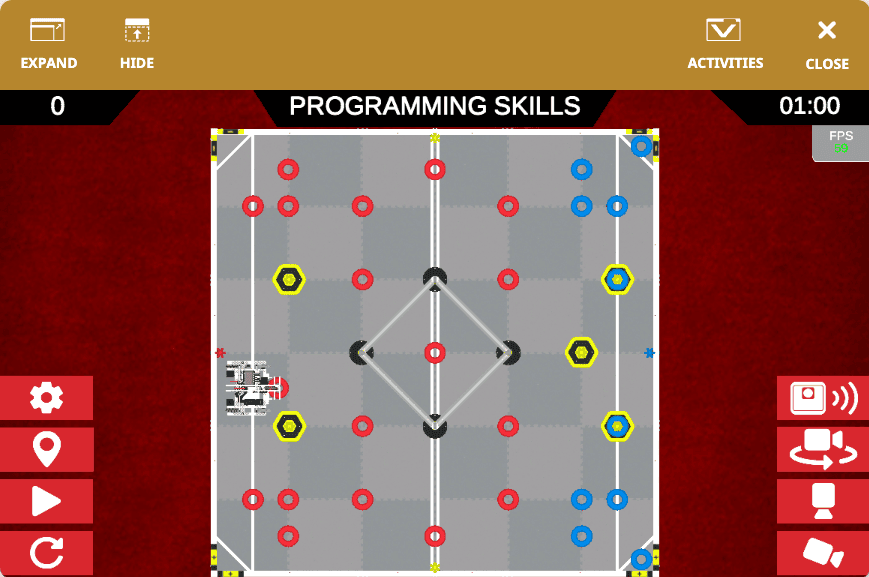

When you open the V5RC Virtual Skills High Stakes Playground Window, the Pre-Match Checklist will open. The default starting position of Axel is at location C, facing the East direction.

The starting location and direction can be edited in the Pre-Match Checklist, by selecting the Edit button for each option.

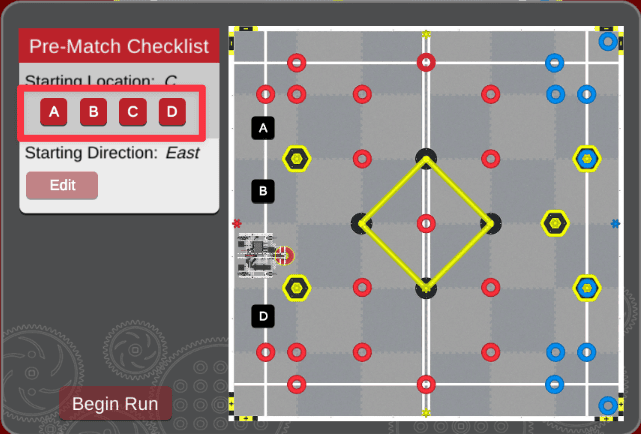

Select A, B, C, or D to choose the starting location. You will see the position of the robot on the Field layout change when the location is changed.

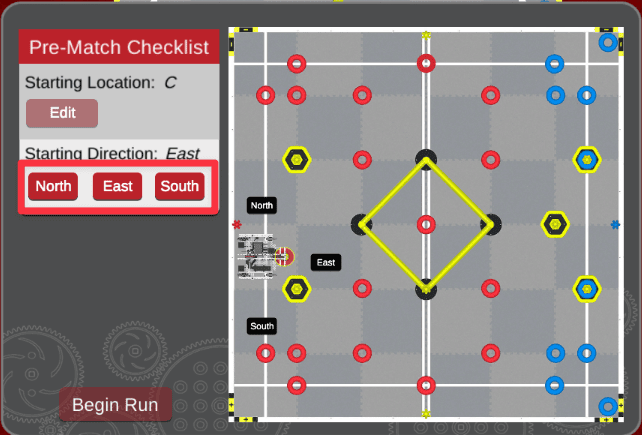

Select North, East, or South to choose the starting direction. You will see the position of the robot on the Field layout change when the direction is changed.

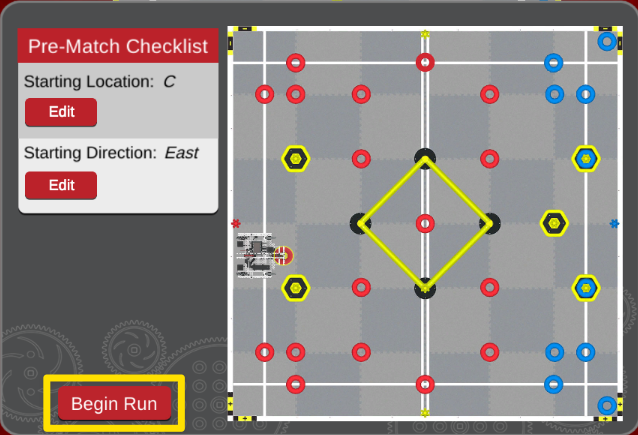

Select Begin Run to set your selections and begin your run.

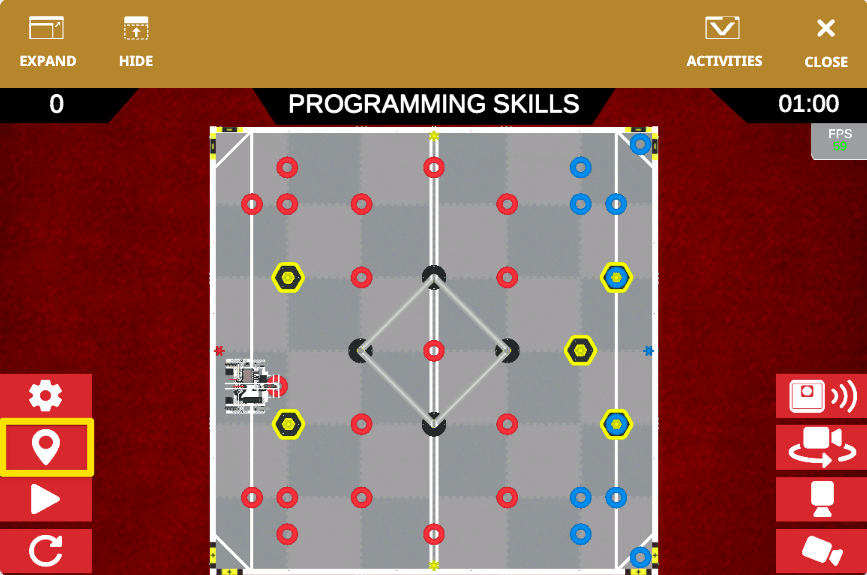

You can edit the starting position at any time by selecting the Starting Position button.

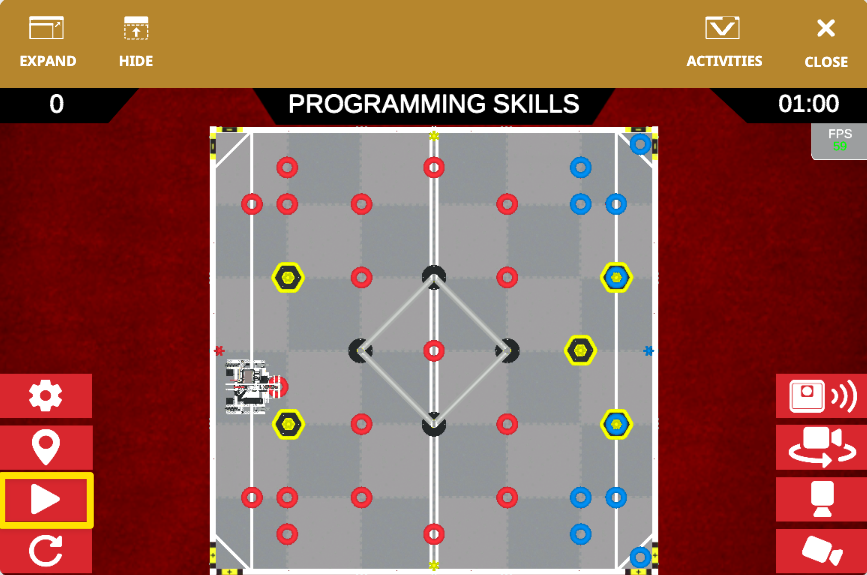

Select the Start button to start a project.

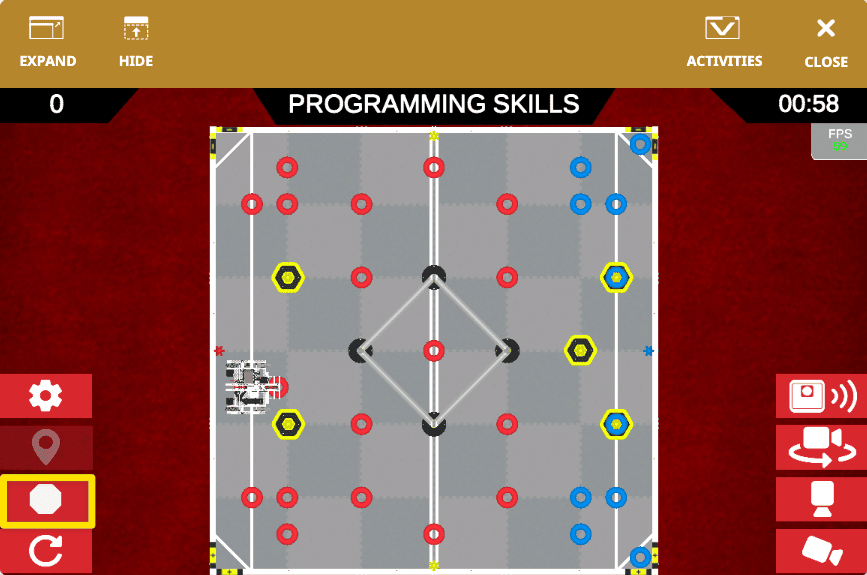

This button will change to a Stop button when a project is actively running.

Selecting the Stop button will stop the project and the timer immediately.

The Score Window will appear at this time. See below for more information on the Score Window.

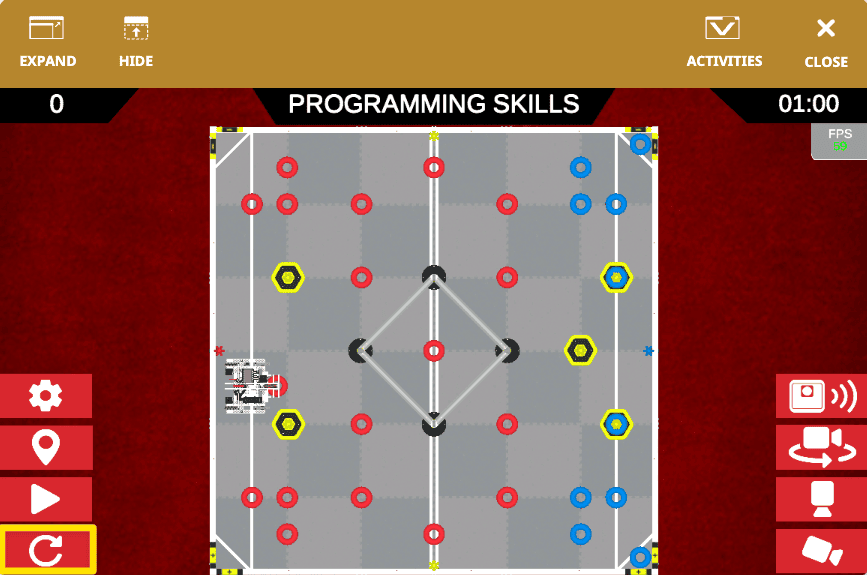

Select the Reset button to reset the timer, point value, and Field.

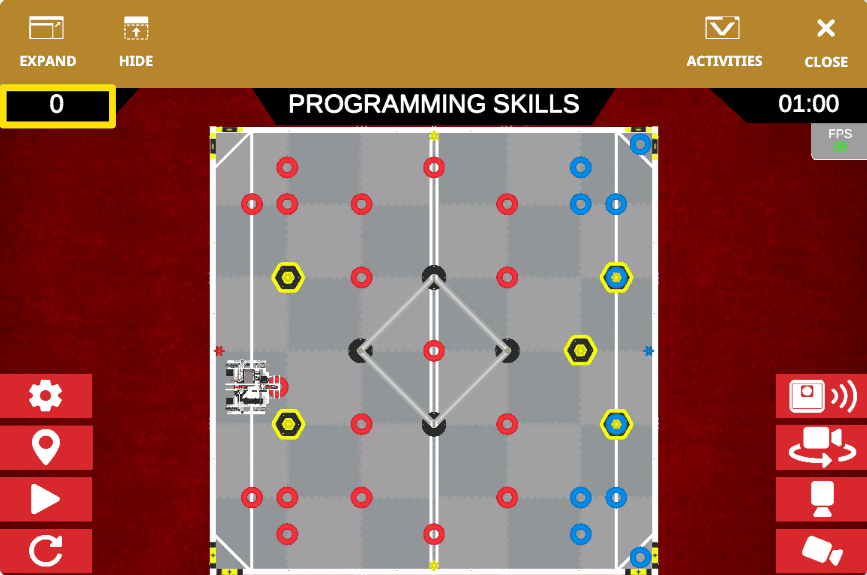

Your score can be seen above the Field on the left side. This will be updated in real-time after the project is started.

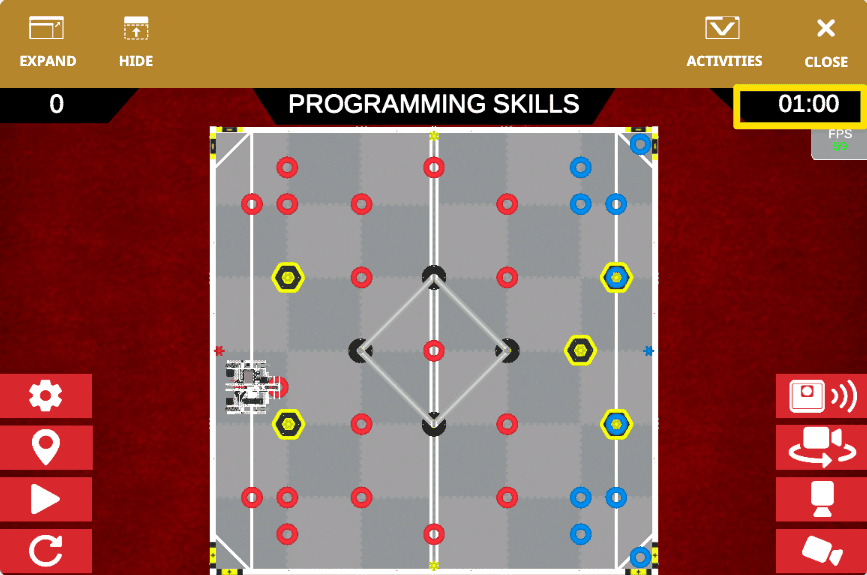

The timer is located above the Field on the right side.

The timer begins when a project is started and counts down from 1:00. The timer will count down until Stop is selected, the Stop project block is used in the project, or the timer reaches 0 seconds.

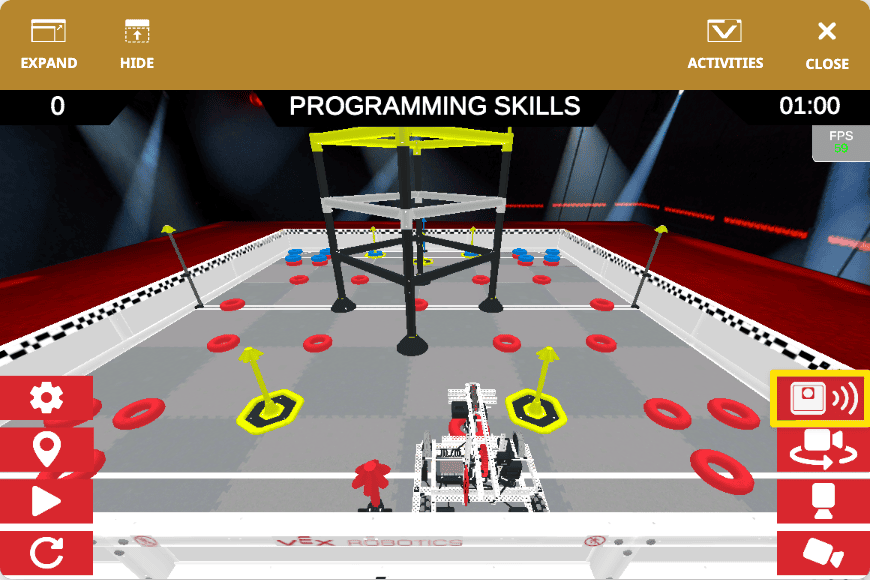

The virtual Hero Bot, Axel, is equipped with an AI Vision Sensor. To view the Snapshot Window and see the data the AI Vision Sensor is reporting, select the AI Vision Sensor button.

Select the AI Vision Sensor button again to hide the Snapshot Window.

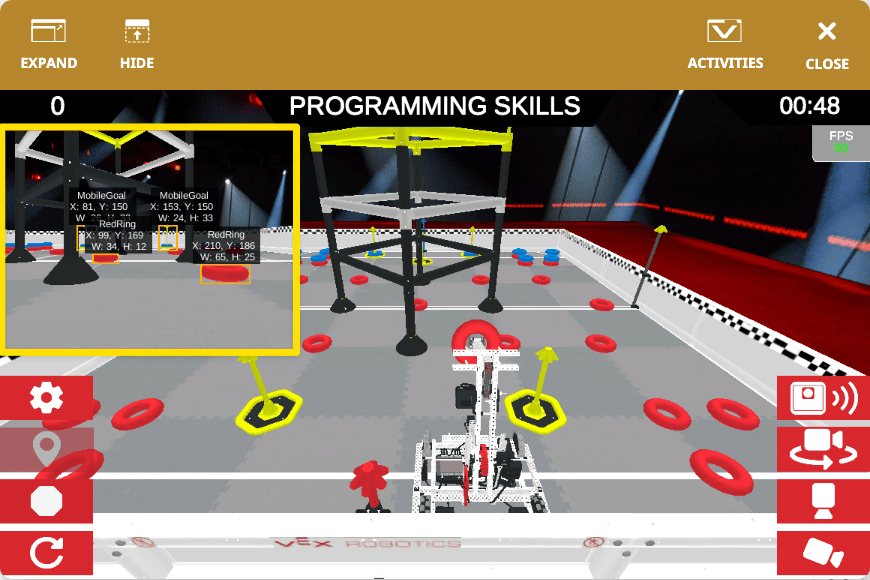

The Snapshot Window will open in the upper right hand corner of the Playground. Data from the AI Vision sensor is best viewed with Axel's arm raised, as shown here.

To learn more about using the AI Vision Sensor in V5RC High Stakes Virtual Skills, see this article.

The Score Window appears when the timer reaches 0, or if the project is stopped.

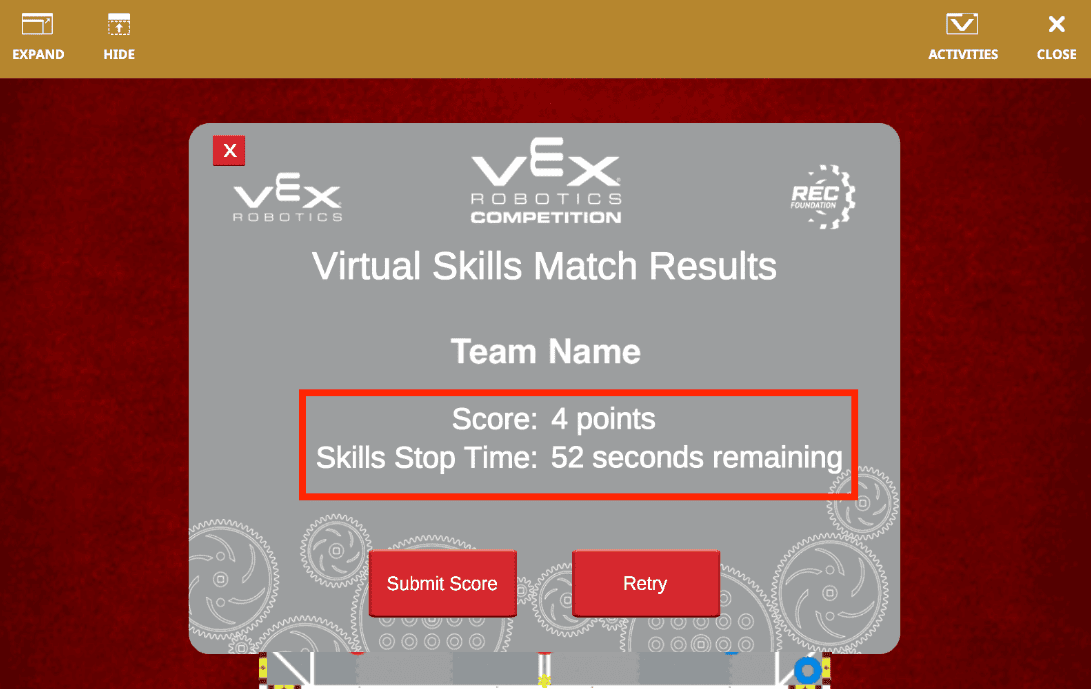

The Score Window shows your team's name, number, total score, and Skills Stop Time.

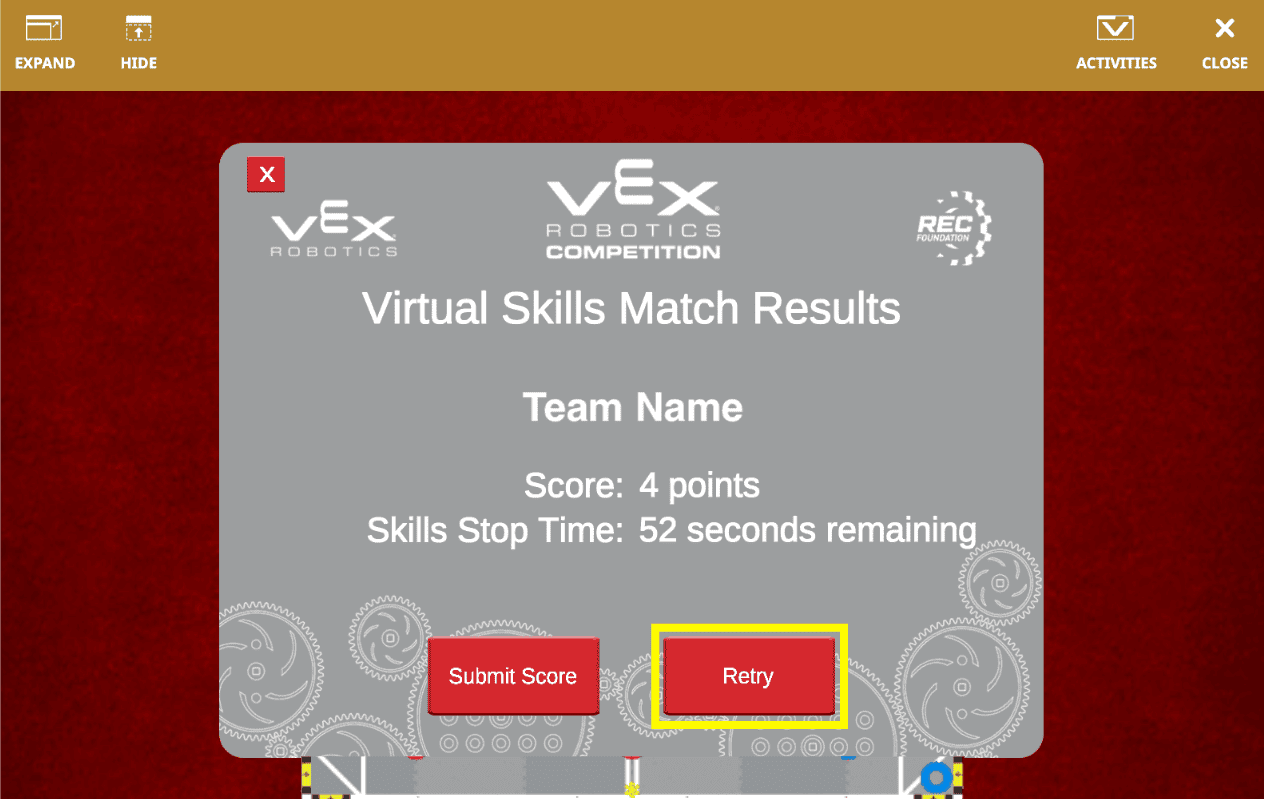

Select the Retry button to return to the Field and reset the timer and score.

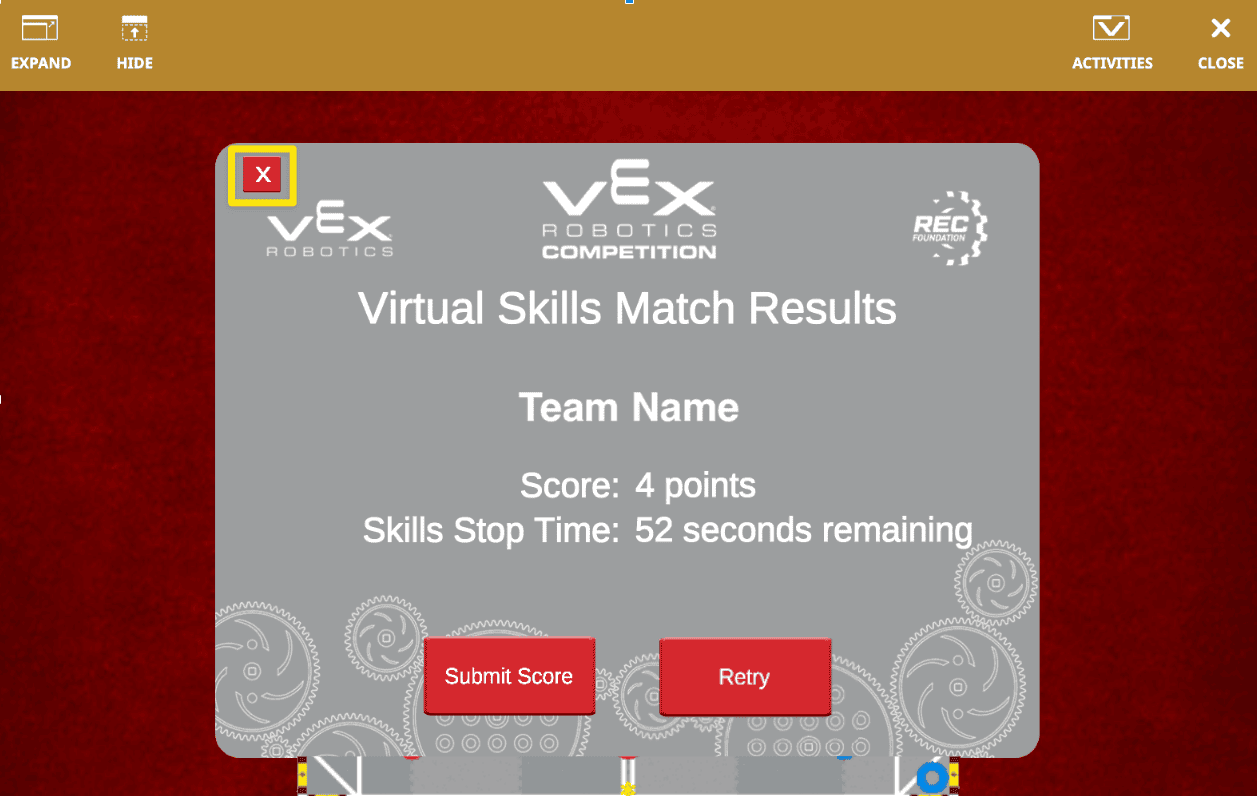

Select the X in the top-left corner to close the Score Window and return to the Field.

This will not reset the Field, timer, or score. It will return to the Field exactly as it was at the moment the project was stopped.

The window begins at a smaller size by default. If you want to expand the window, select the Expand button at the top left corner.

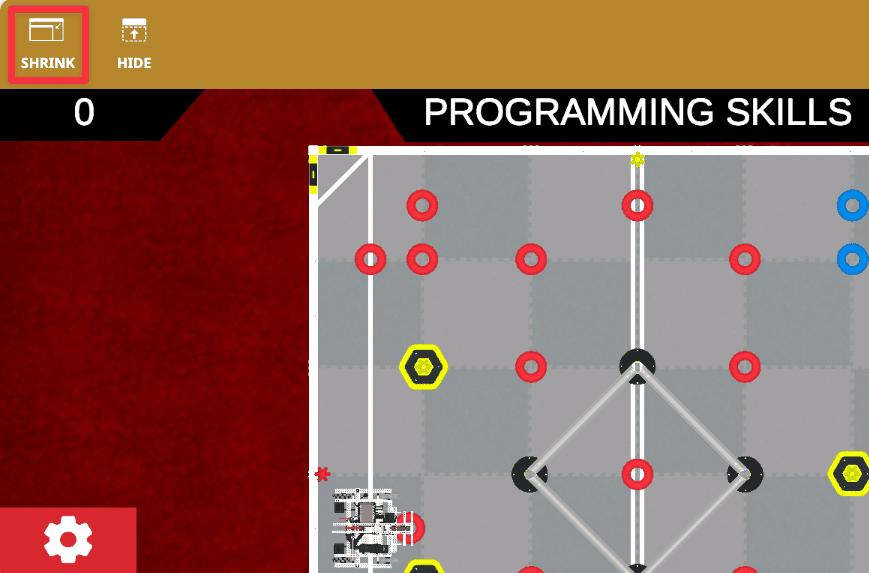

Select Shrink in the top-left corner to return the window to the default size.

Select the Hide button to collapse the V5RC Virtual Skills Window. This will still keep the toolbar at the top of the window visible.

To view the full window again, select the Show button.

Select the Top Camera button to see an overhead view of the entire Field. This is the default view when you open the V5RC High Stakes Playground Window.

Select the Chase Camera button to see a behind-the-robot view.

Select the Orbit Camera button to see an overview of Axel and the full Field.

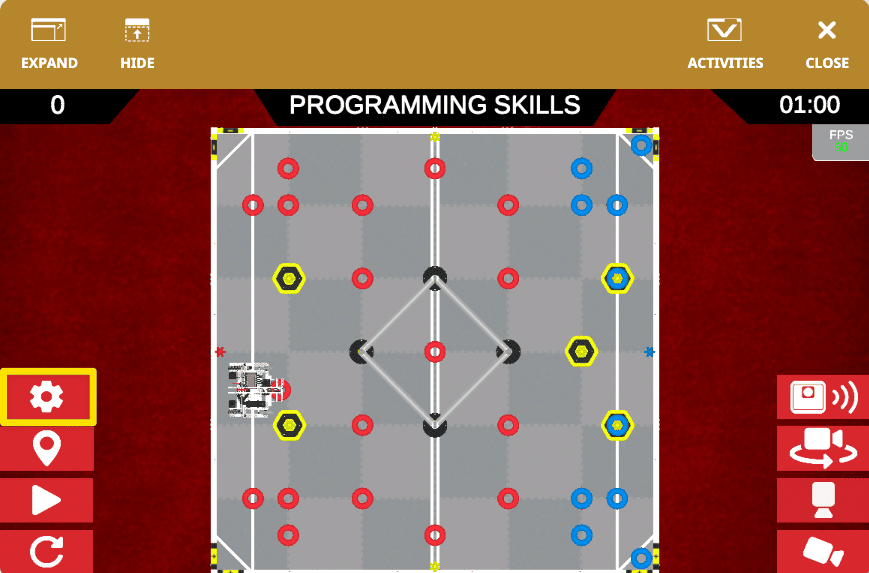

Select the gear icon to open the Settings window.

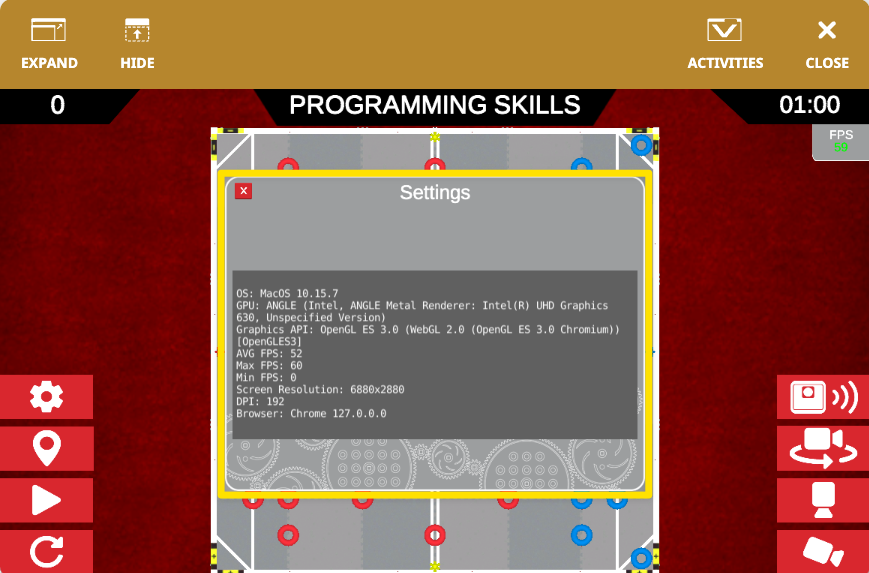

Data about your device will be displayed in the Settings window. This can be used to help troubleshoot any performance issues.
