The AI Vision Sensor detects configured Colors, Color Codes, AprilTags, and various objects. To ensure optimal performance, follow these steps to properly mount the sensor on the V5 Clawbot:

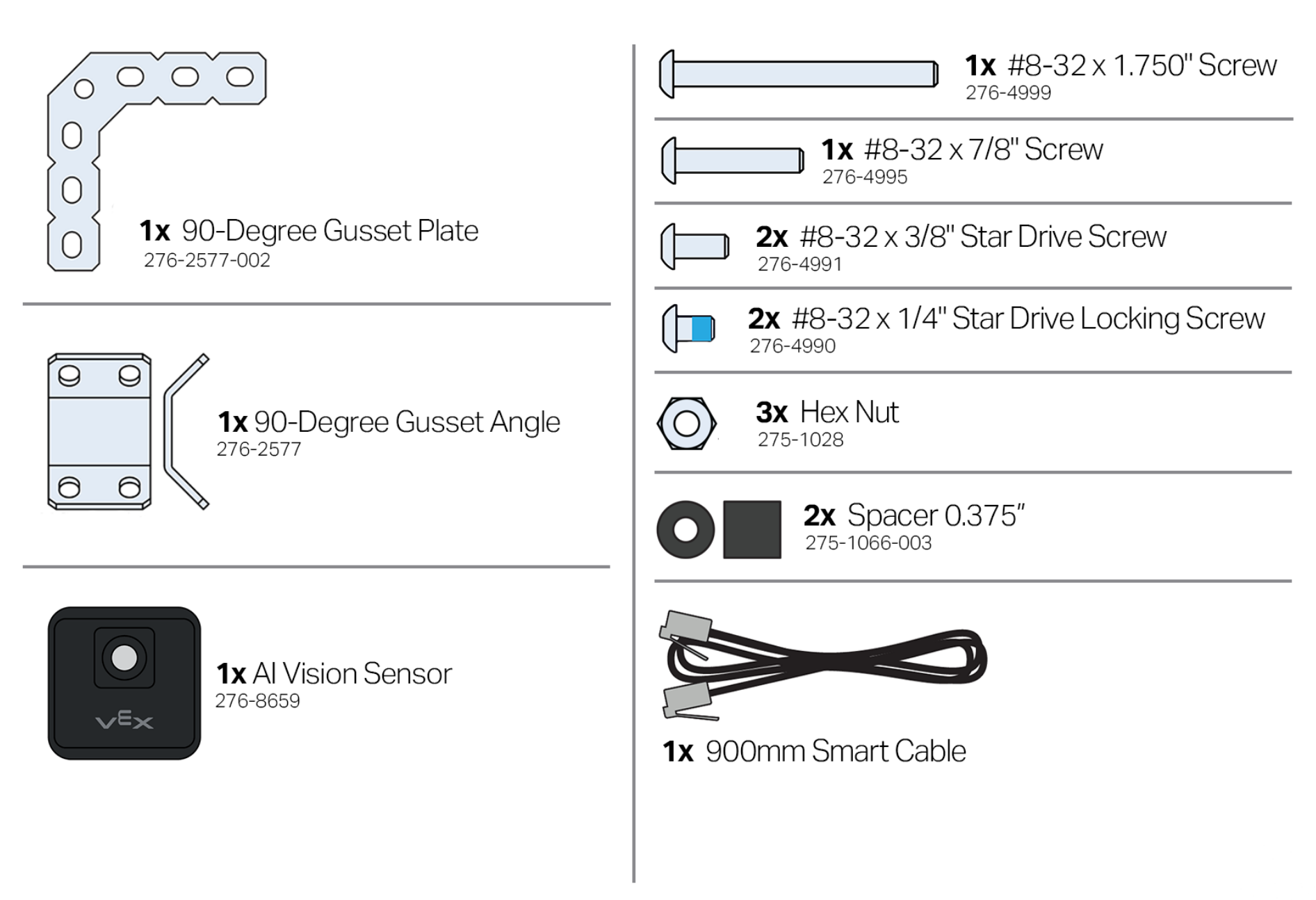

Visual list of parts that are needed to mount and wire the AI Vision Sensor to the V5 Clawbot. An image of each part is shown along with its name and quantity.

Gather the hardware you will need:

1 - 90-Degree Gusset Plate
1 - 90-Degree Gusset Angle
1 - AI Vision Sensor
1 - 1.750" Screw
1 - 7/8" Screws
2 - 3/8" Star Drive Screws
2 - 1/4" Star Drive Locking Screws
3 - Hex Nuts
2 - 0.375" Spacers
1 - 900mm Smart cable

Once your hardware is gathered, follow the 3D Build instructions to mount your AI Vision Sensor to the V5 Clawbot!
