Mounting and Wiring the AI Vision Sensor on the V5 Advanced Trainingbot

The AI Vision Sensor detects configured Colors, Color Codes, AprilTags, and various objects. To ensure optimal performance, follow these steps to properly mount the sensor on the V5 Advanced Trainingbot:

Diagram illustrating the AI Vision Sensor for V5 robotics, showcasing its components and functionality, highlighting key features and connections for enhanced visual processing capabilities.

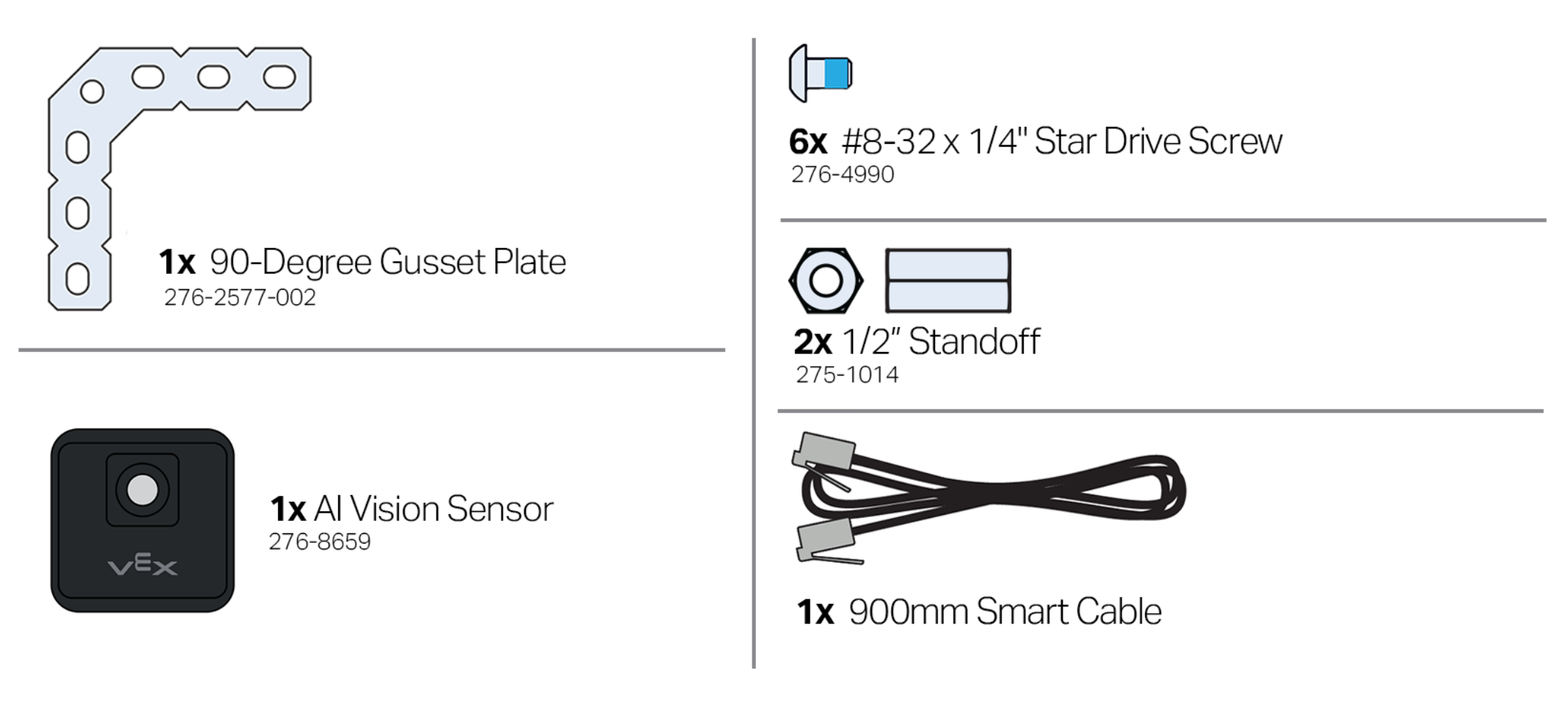

Gather the hardware you will need:

  • 1 - 90-Degree Gusset Plate
  • 1 - AI Vision Sensor
  • 6 - 1/4" Star Drive Locking Screws
  • 2 - 1/2" Standoffs
  • 1 - 900mm Smart cable

Once your hardware is gathered, follow the 3D Build instructions to mount your AI Vision Sensor to the V5 Advanced Trainingbot!

For more information, help, and tips, check out the many resources at VEX Professional Development Plus
