Connecting and Configuring the Motor Controller 55 – VEX Library

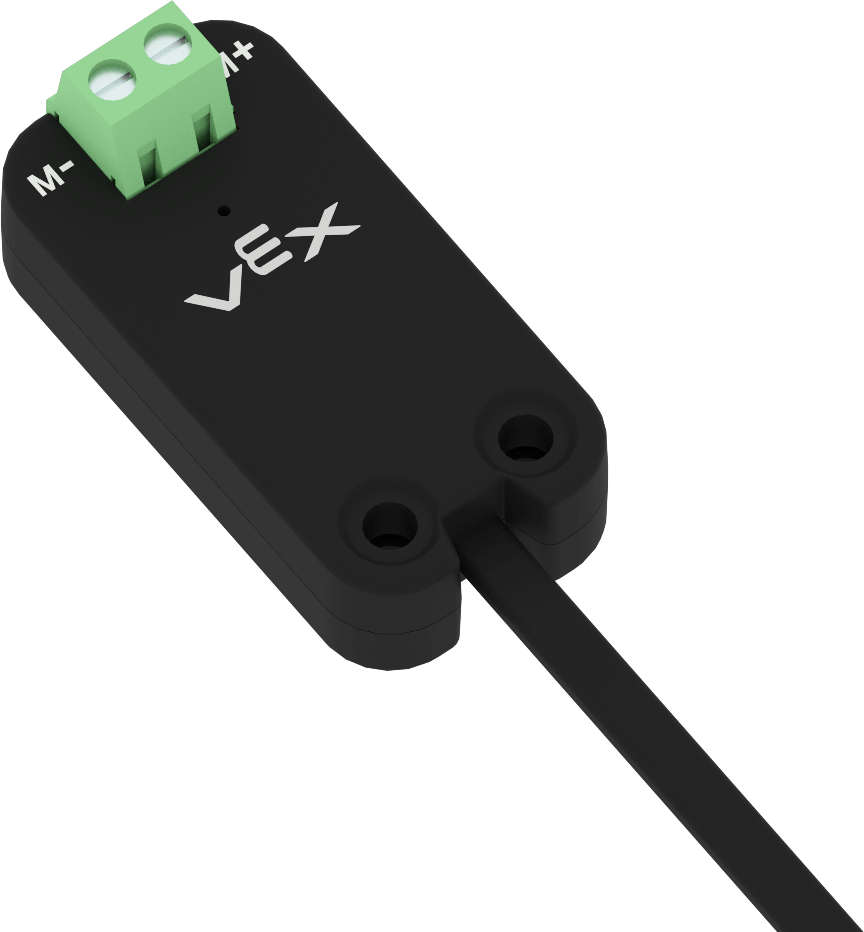

The Motor Controller 55 allows the V5 Brain to connect to Direct Current (DC) Motors. Follow the steps below to learn how to connect a DC Motor to the Motor Controller 55 and configure it as a device in VEXcode, enabling its use in coding projects.

VEX V5 motor image showcasing its design and features, including wiring and mounting options, relevant to the V5 Category Description section on motors.

Connecting the Motor Controller 55

Diagram illustrating the V5 motor specifications and features, including dimensions and connection points, relevant to robotics applications.

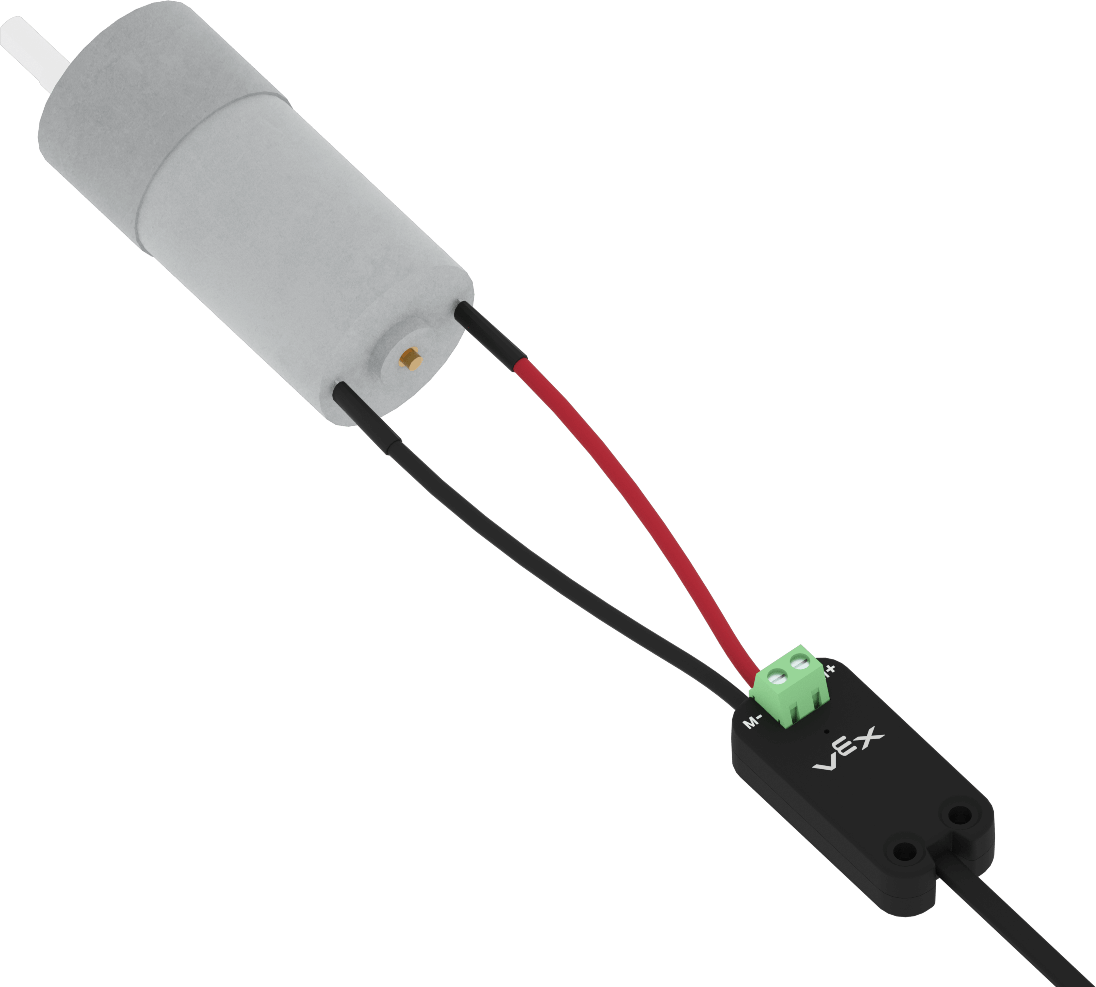

Make sure that the screws are fully loosened. Then, connect the DC Motor to the Motor Controller 55.

Diagram illustrating the V5 motor specifications, including dimensions, power output, and connection points, relevant to V5 Category Description.

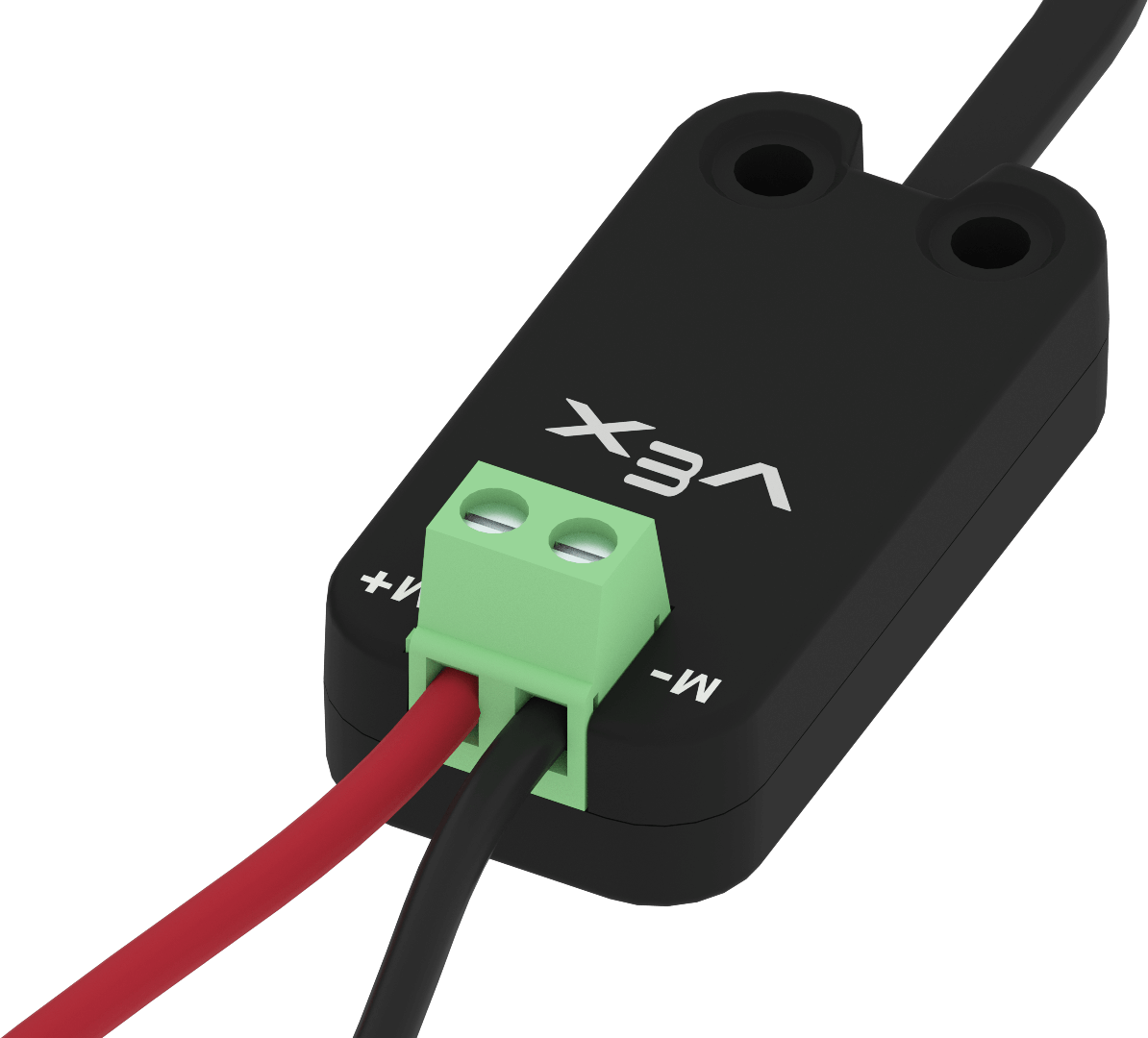

Tighten the screws on the Motor Controller 55 completely. This ensures the wires connecting to the DC Motor are secure and won't shift.

Diagram illustrating the V5 motor specifications and features, including dimensions, power output, and connection points, relevant to VEX robotics.

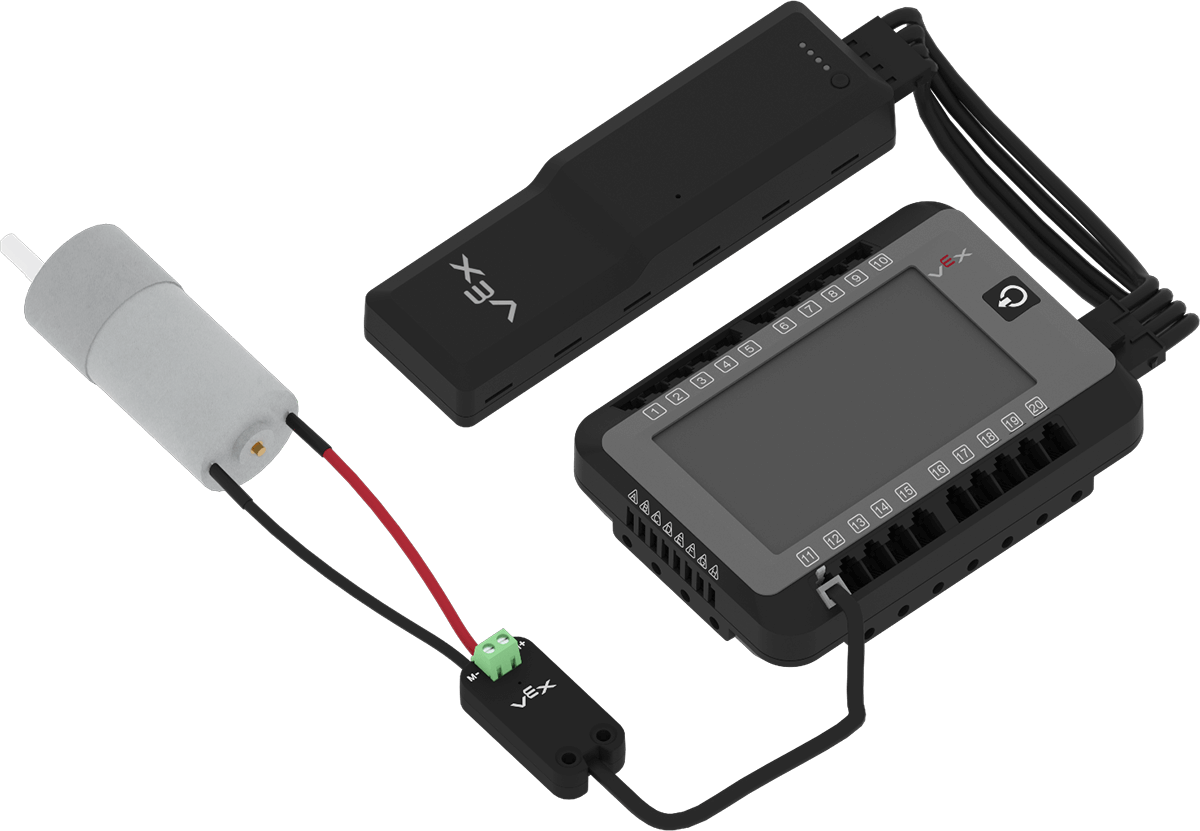

Once the Motor Controller 55 is attached to the V5 Brain, it will need to be added as a device in VEXcode.

Configuring the Motor Controller 55

Diagram illustrating the specifications and features of V5 motors, including dimensions, power ratings, and connection points, relevant to robotics applications.

Configure the Motor Controller 55 in VEXcode.

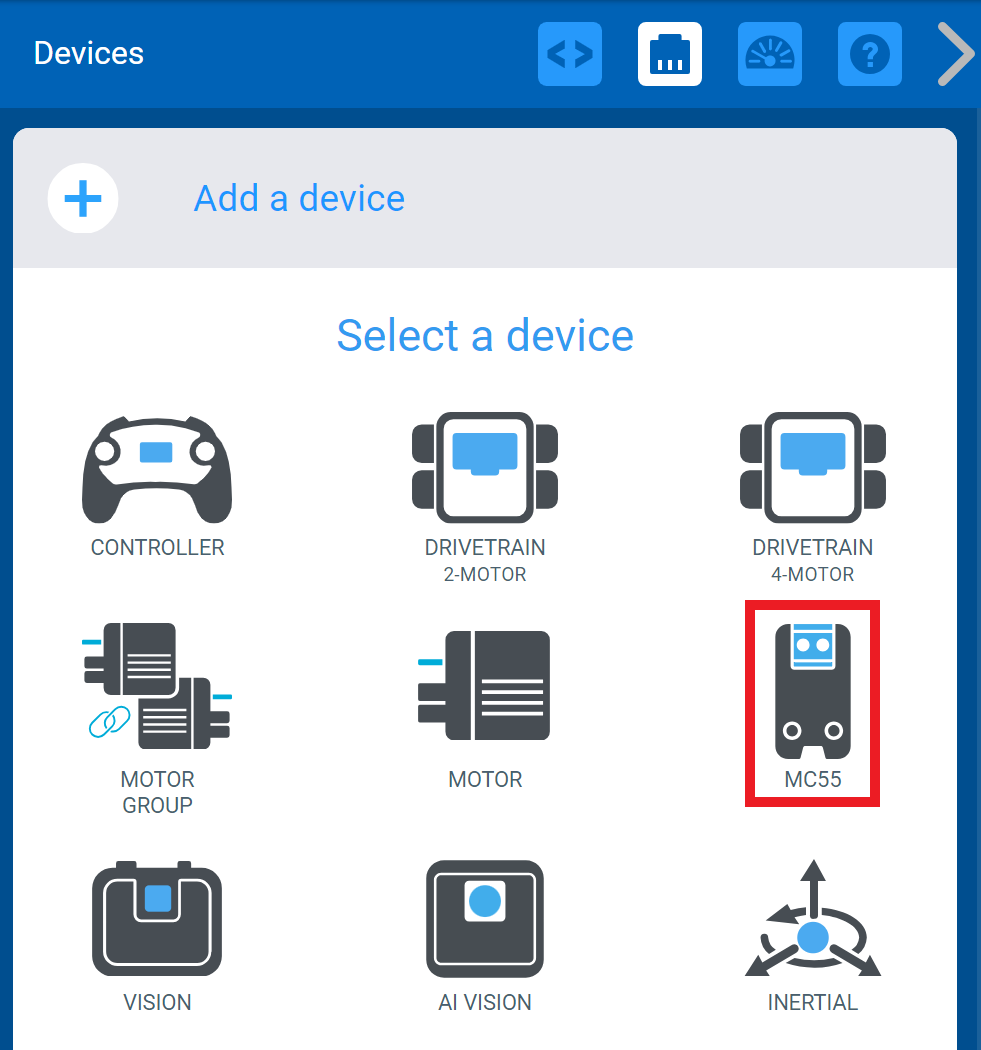

Add a new device and select MC55.

Diagram of VEX V5 motor specifications, showcasing dimensions, mounting points, and technical details for educational robotics applications.

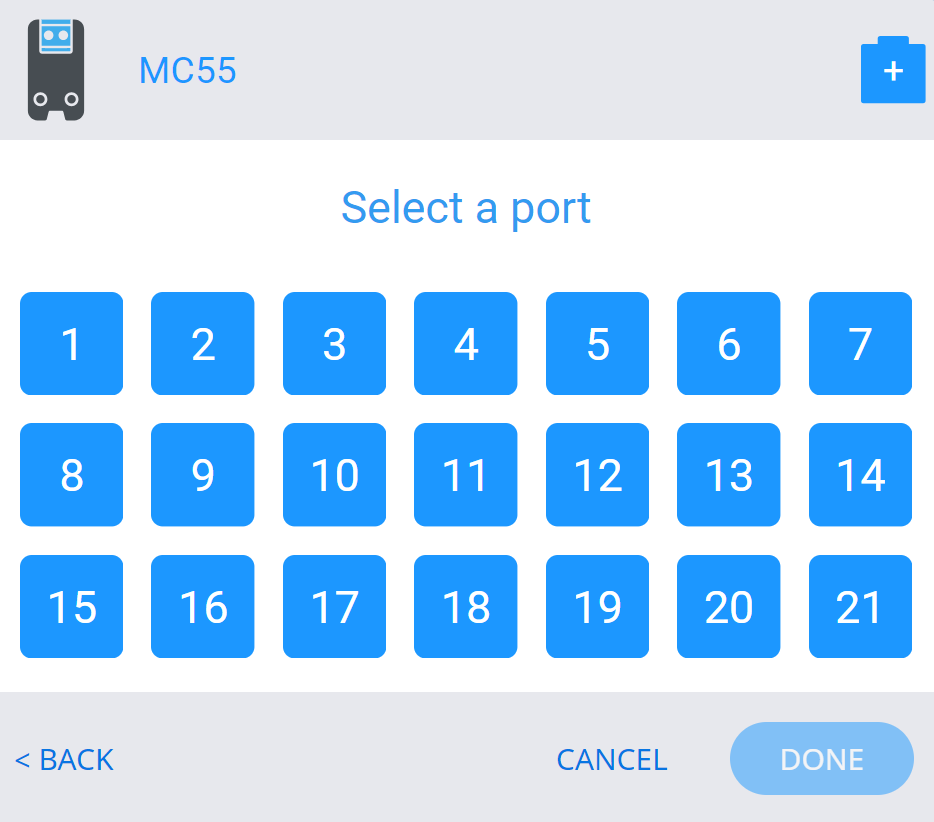

Select which port the Motor Controller 55 is connected to.

Diagram illustrating the V5 Motor specifications and features, including dimensions and connection points, relevant to robotics applications.

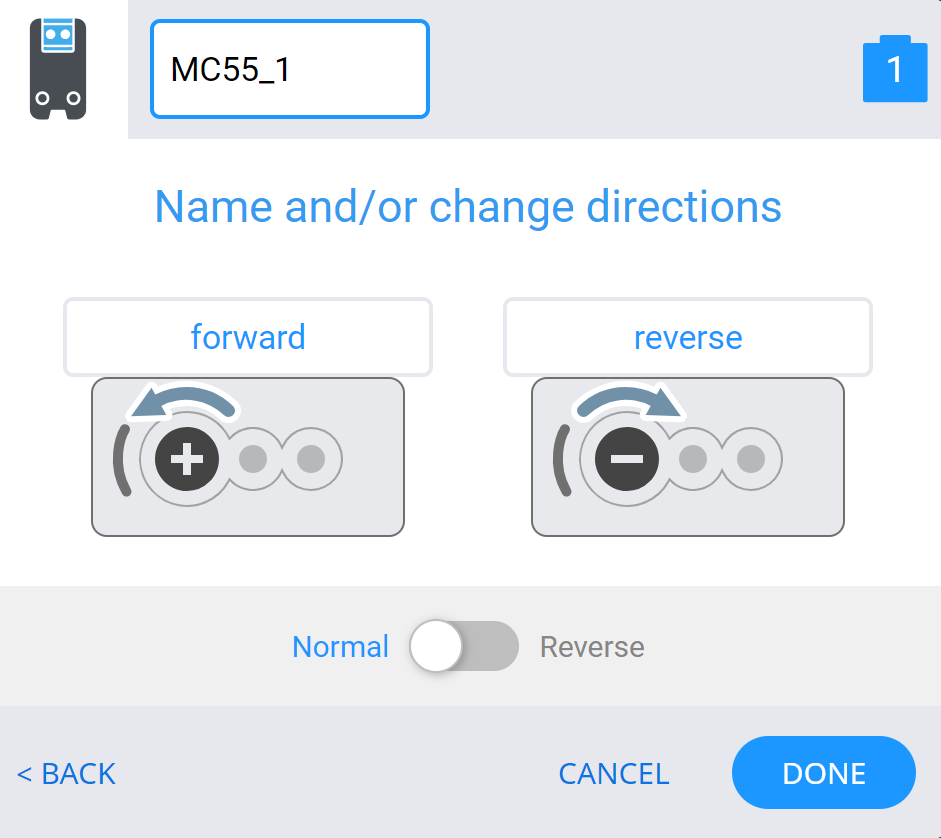

Customize the settings to match the DC Motor that the Motor Controller 55 is connected to.

Diagram showing V5 motor specifications and features, including dimensions and connection points, in the context of V5 Category Description.

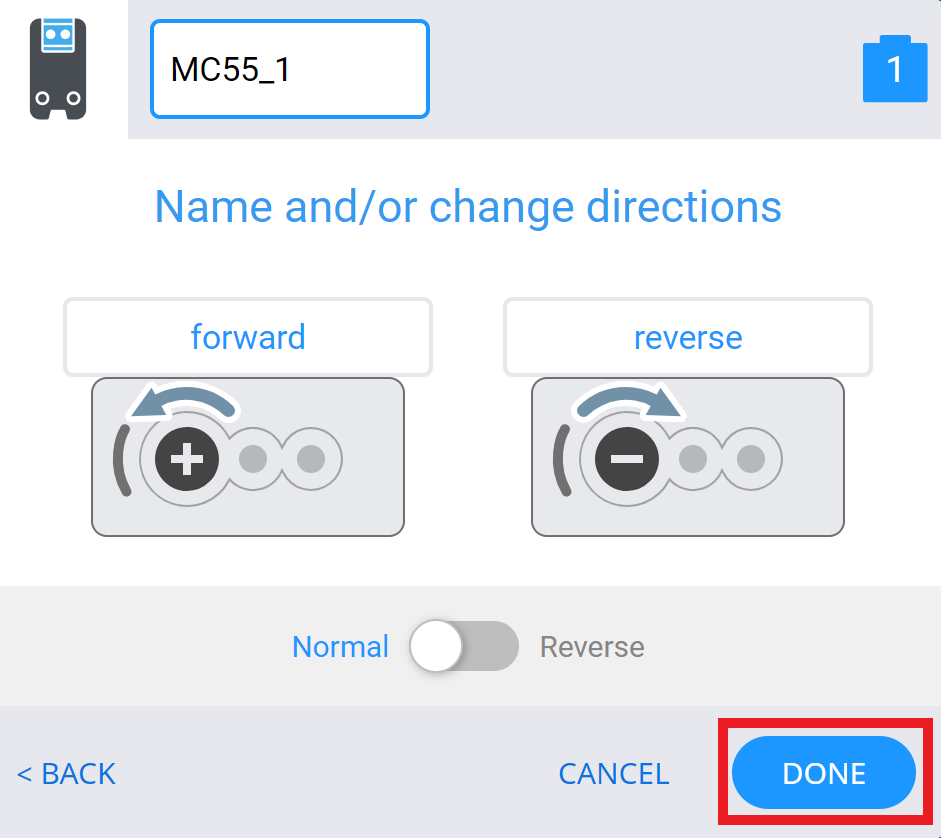

Select Done.

The DC Motor will now be able to be controlled with the Motor Controller 55.
