Keeping the AI Vision Sensor's firmware up to date is important for its best performance and compatibility with VEXcode EXP. Follow the steps below to update your AI Vision Sensor's firmware.

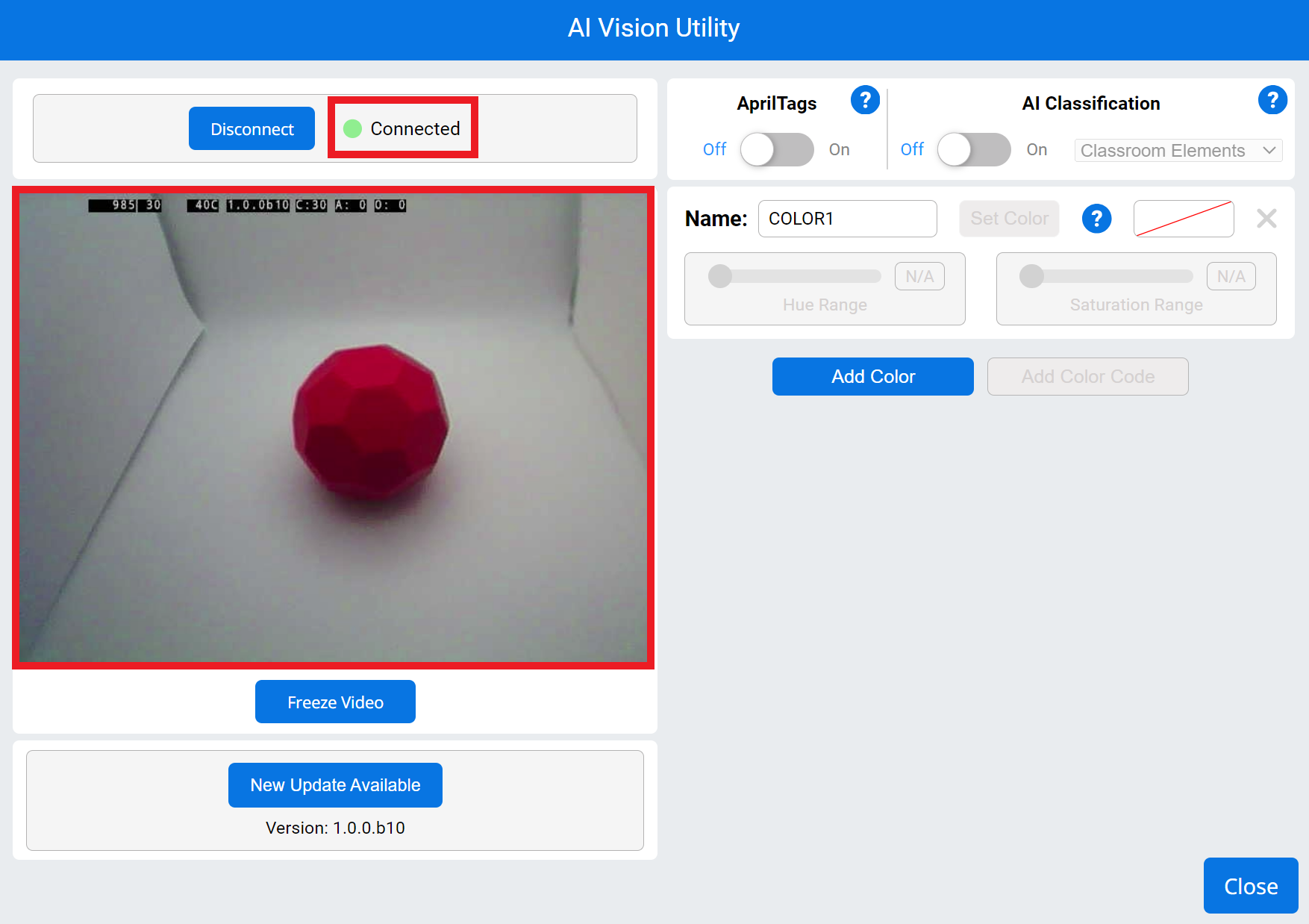

AI Vision Utility is opened in VEXcode EXP. The AI Vision Sensor's current view is shown and highlighted. Above, a green Connected status is highlighted as well to indicate that the connection is successful.

1. To check if your AI Vision Sensor’s firmware is up to date, first connect it to VEXcode and open the AI Vision Utility. Once the AI Vision Sensor is successfully connected to VEXcode, the AI Vision Sensor's current view will be displayed.

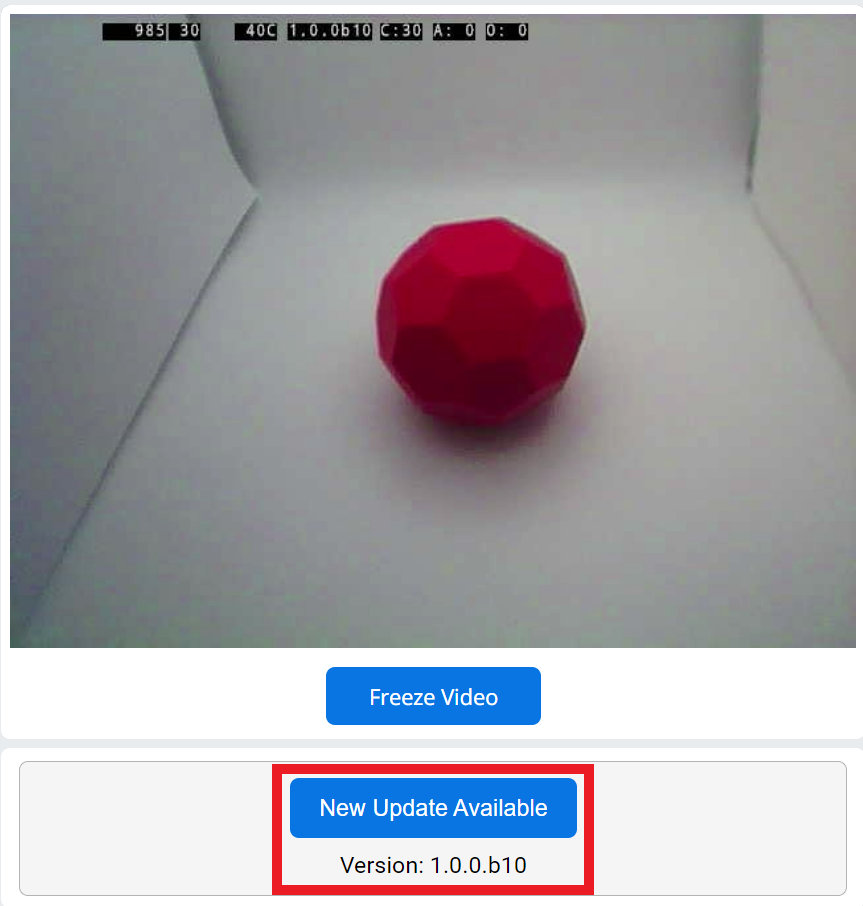

AI Vision Utility menu with a highlighted button below the current view that reads New Update Available. Below the button the version is listed, in this example it reads Version 1.0.0.b10.

2. Below the AI Vision Sensor’s screen, there is a button that will say New Update Available.

Select the button to start the firmware update.

Cursor is shown hovering over the New Update Available button, and then a progress bar appears once the button is pressed. A message below reads Update Status, In Progress.

3. Wait for the progress bar to fill.

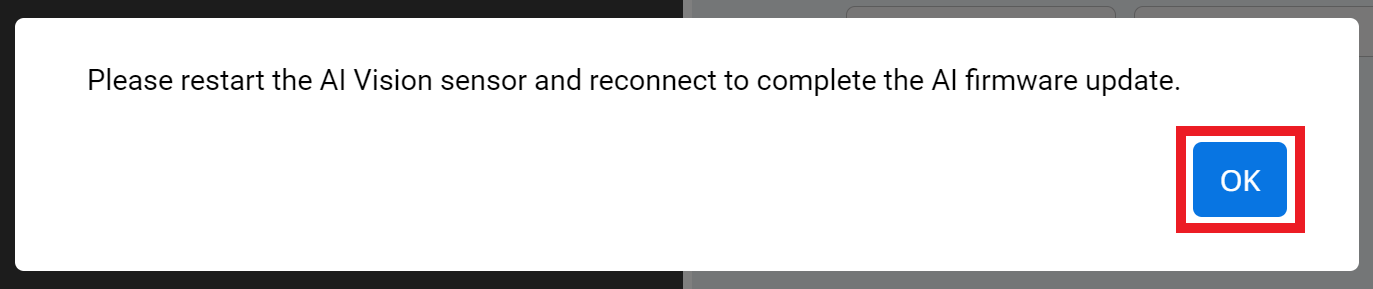

VEXcode EXP AI firmware prompt that reads Please restart the AI Vision sensor reconnect to complete the AI firmware update. Below, there is an OK button that is highlighted.

4. Once installation is complete, you will be prompted to disconnect both the USB-C cable and the Smart Cable from the AI Vision Sensor, then select Ok.

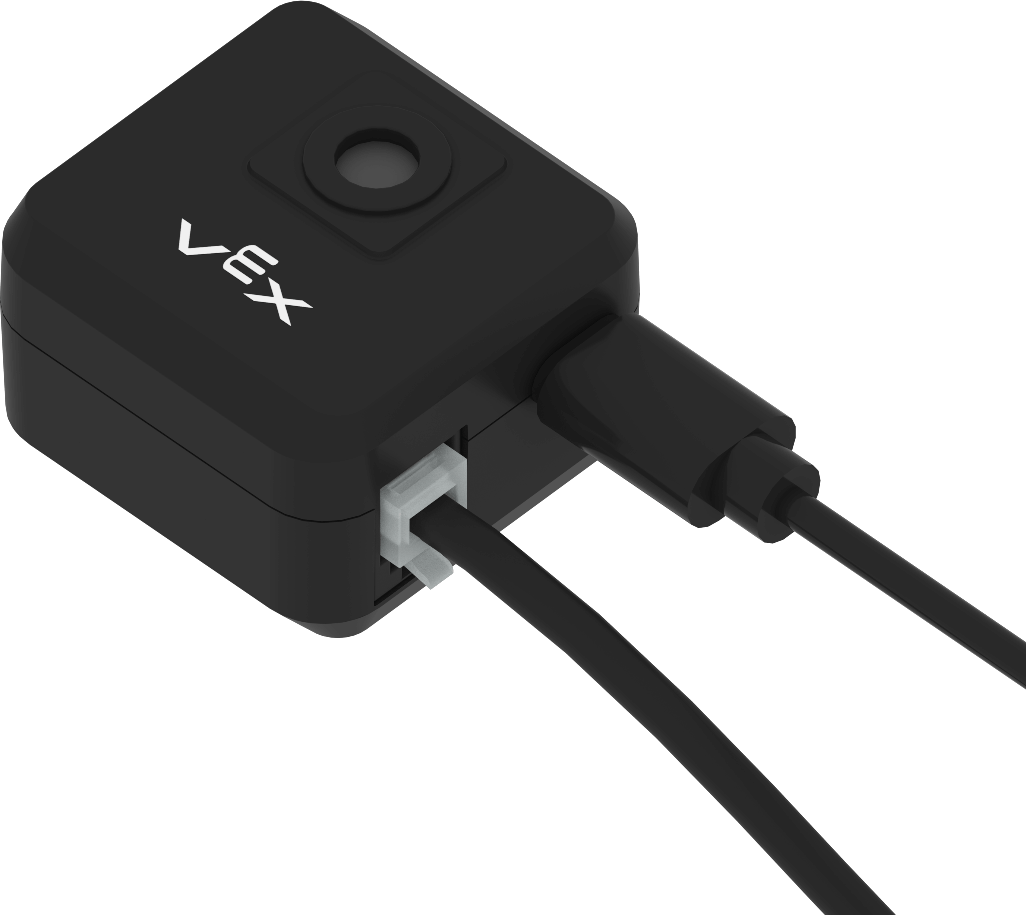

AI Vision Sensor piece is shown with a connected Smart Port cable and a connected USB cable.

5. Reconnect the cables to the AI Vision Sensor.

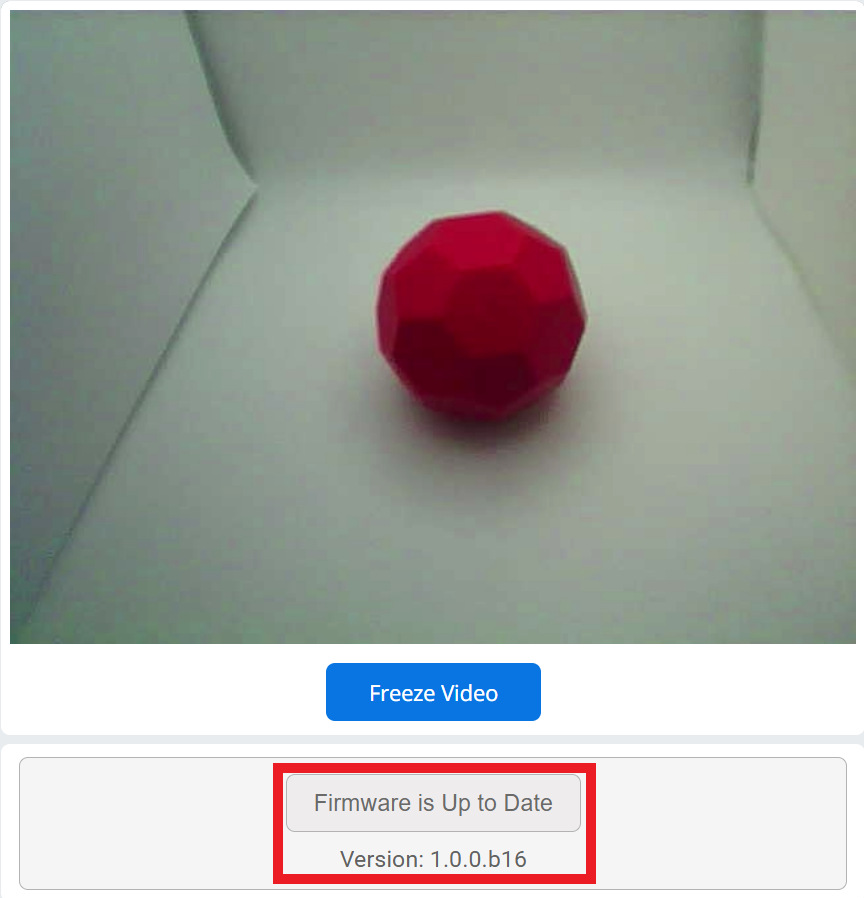

AI Vision Utility menu with a highlighted button below the current view that reads Firmware is Up to Date. The button is greyed out, and the current version is listed below. In this example the version reads Version 1.0.0.b16.

6. Reopen the AI Vision Utility in VEXcode. The button at the bottom of the AI Vision Utility will now say Firmware is Up to Date.

Your AI Vision Sensor's firmware has been successfully updated. You can now proceed to configure the AI Vision Sensor's Color Signatures.
