Installing the VEX Extension, C/C++ Extension, and Python Extension in VS Code

To develop software on VEX IQ 2nd Generation, EXP, and V5 platforms in VS Code, we need to install the VEX Extension, which supports C/C++ and Python programming languages. To enable Intellisense/Linting for both C/C++ and Python, the C/C++ Extension and the Python Extension will need to be installed. The VEX VS Code Extension will set up VEX projects to work with these extensions automatically.

  • Click on the Extension icon in the VS Code Activity Bar.

    The Extension icon on the side menu of VS Code is highlighted.

  • Type “VEX Robotics” in the Search Bar. The VEX Robotics Extension will appear in the Side Bar below. Click the Install button next to the VEX Robotics Extension to start the installation. Wait for the installation to finish.

    VS Code Extensions side menu is opened and VEX Robotics has been typed into the menu's search bar. The search results are shown below, and the VEX Robotics Extension and the VEX Robotics Feedback Extension are the first two options listed. The Install buttons underneath the VEX extensions are highlighted.

  • Once the installation is complete, the Installing button will be replaced with a Manage Gear button, both the VEX Robotics Extension and the VEX Robotics Feedback Extension will be installed, and the VEX icon will appear in the VS Code Activity Bar.

    VS Code Extensions side menu is opened and the VEX Robotics and VEX Robotics Feedback extensions have been installed. The side bar shows the VEX Robotics Extension icon.

  • Type “C/C++” in the Search Bar. The Microsoft C/C++ Extension will appear in the Side Bar below. Click the Install button next to the C/C++ Extension from Microsoft to start the installation. Wait for the installation to finish.

    VS Code Extensions side menu is opened and C/C++ has been typed into the menu's search bar. The search results are shown below, and the Microsoft C/C++ Extension is the first option listed.

  • Once the installation is complete, the Installing button will be replaced with a Manage Gear button.

    VS Code Extensions side menu is opened and the Microsoft C/C++ Extension has been installed. The Manage gear icon on the extension is highlighted.

  • Type “Python” in the Search Bar. The Microsoft Python Extension will appear in the Side Bar below. Click the Install button next to the Python Extension from Microsoft to start the installation. Wait for the installation to finish.

    VS Code Extensions side menu is opened and Python has been typed into the menu's search bar. The search results are shown below, and the Microsoft Python Extension is the first option listed.

  • Once the installation is complete, the Installing button will be replaced with a Manage Gear button.

    VS Code Extensions side menu is opened and the Microsoft Python Extension has been installed. The Manage gear icon on the extension is highlighted.

The VEX Extension, the VEX Robotics Feedback Extension, the C/C++ Extension, and the Python Extension are installed and can be found under the INSTALLED category in the Side Bar. For helpful information about how to find, install, and manage VS Code extensions from the Visual Studio Code Marketplace, please see this article on the VS Code Website.

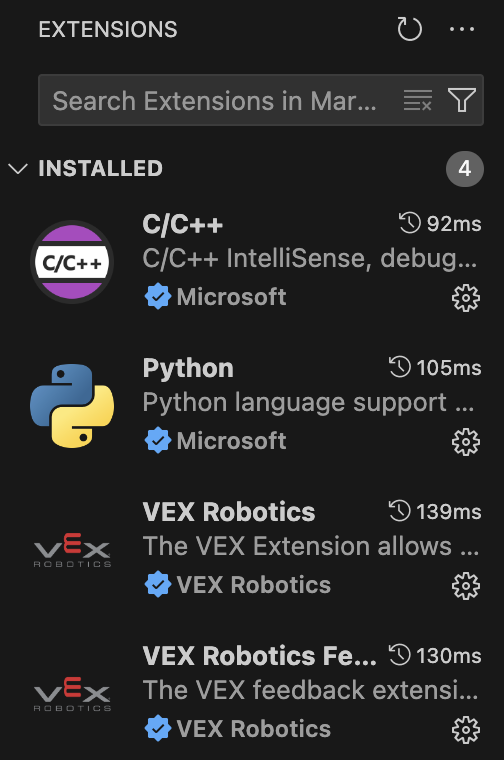

VS Code Extensions side menu is opened and the four installed extensions are shown in the list. The installed extensions read C/C++, Python, VEX Robotics, and VEX Robotics Feedback.

For more information, help, and tips, check out the many resources at VEX Professional Development Plus
